30-Inch 5-Burner Gas Slide-In Convection Range - KSGG700ESS

This product has been discontinued by the manufacture and is no longer available.

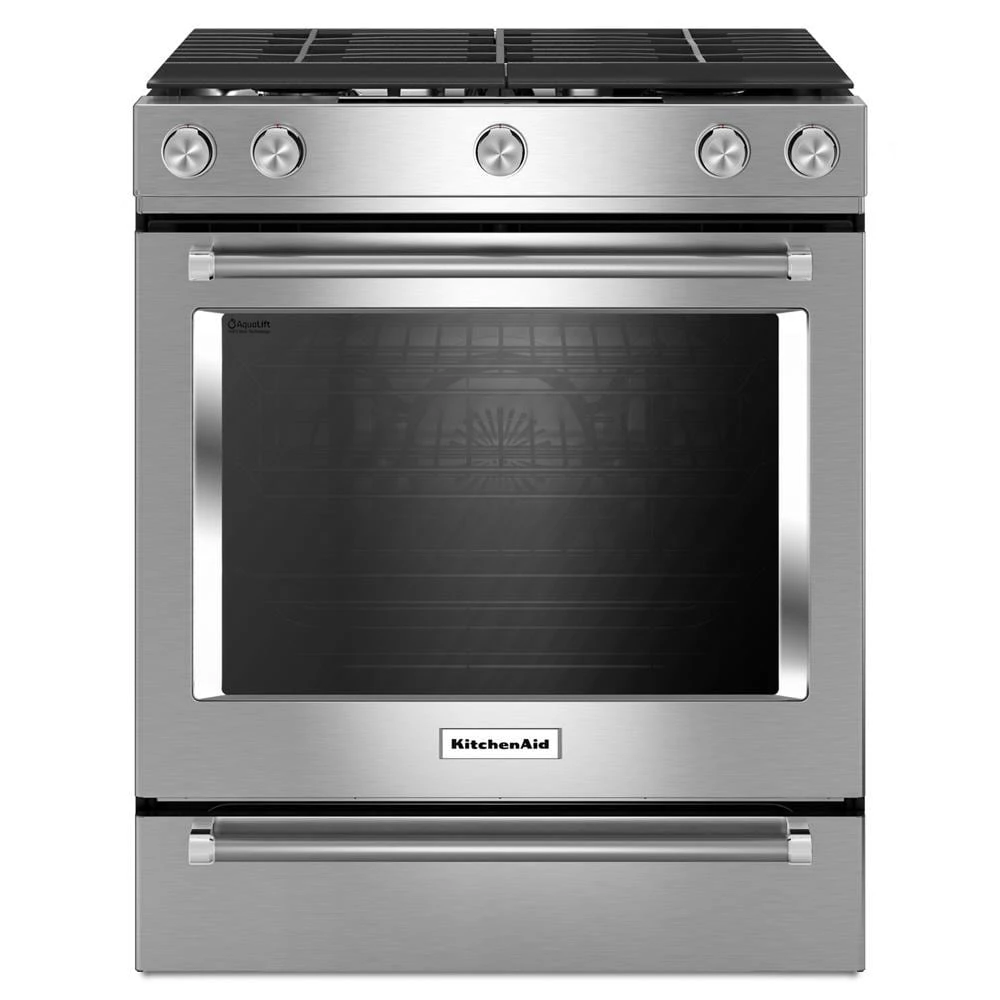

30-Inch 5-Burner Gas Slide-In Convection Range

Model: KSGG700ESS

30-Inch 5-Burner Gas Slide-In Convection Range KSGG700ESS30-Inch 5-Burner Gas Slide-In Convection Range KSGG700ESS30-Inch 5-Burner Gas Slide-In Convection Range KSGG700ESS30-Inch 5-Burner Gas Slide-In Convection Range KSGG700ESS30-Inch 5-Burner Gas Slide-In Convection Range KSGG700ESS30-Inch 5-Burner Gas Slide-In Convection Range KSGG700ESS30-Inch 5-Burner Gas Slide-In Convection Range KSGG700ESS30-Inch 5-Burner Gas Slide-In Convection Range KSGG700ESS30-Inch 5-Burner Gas Slide-In Convection Range KSGG700ESS30-Inch 5-Burner Gas Slide-In Convection Range KSGG700ESS30-Inch 5-Burner Gas Slide-In Convection Range KSGG700ESS30-Inch 5-Burner Gas Slide-In Convection Range KSGG700ESS30-Inch 5-Burner Gas Slide-In Convection Range KSGG700ESS30-Inch 5-Burner Gas Slide-In Convection Range KSGG700ESS30-Inch 5-Burner Gas Slide-In Convection Range KSGG700ESS30-Inch 5-Burner Gas Slide-In Convection Range KSGG700ESS30-Inch 5-Burner Gas Slide-In Convection Range KSGG700ESS30-Inch 5-Burner Gas Slide-In Convection Range KSGG700ESS30-Inch 5-Burner Gas Slide-In Convection Range KSGG700ESS30-Inch 5-Burner Gas Slide-In Convection Range KSGG700ESS30-Inch 5-Burner Gas Slide-In Convection Range KSGG700ESS30-Inch 5-Burner Gas Slide-In Convection Range KSGG700ESS30-Inch 5-Burner Gas Slide-In Convection Range KSGG700ESS30-Inch 5-Burner Gas Slide-In Convection Range KSGG700ESS30-Inch 5-Burner Gas Slide-In Convection Range KSGG700ESS30-Inch 5-Burner Gas Slide-In Convection Range KSGG700ESS30-Inch 5-Burner Gas Slide-In Convection Range KSGG700ESS30-Inch 5-Burner Gas Slide-In Convection Range KSGG700ESS30-Inch 5-Burner Gas Slide-In Convection Range KSGG700ESS30-Inch 5-Burner Gas Slide-In Convection Range KSGG700ESS30-Inch 5-Burner Gas Slide-In Convection Range KSGG700ESS30-Inch 5-Burner Gas Slide-In Convection Range KSGG700ESS
30-Inch 5-Burner Gas Slide-In Convection Range KSGG700ESS
30-Inch 5-Burner Gas Slide-In Convection Range KSGG700ESS
30-Inch 5-Burner Gas Slide-In Convection Range KSGG700ESS
30-Inch 5-Burner Gas Slide-In Convection Range KSGG700ESS
30-Inch 5-Burner Gas Slide-In Convection Range KSGG700ESS
+27more

Color : Stainless Steel

30-Inch 5-Burner Gas Slide-In Convection Range KSGG700ESS
Stainless Steel

Type : Gas

Key Features

  • Continuous Interlocking Grates

  • Side Trim Accessory Kit

  • Steam Rack

  • 5.8 cu ft. Oven Capacity

  • 5 Burners (5k, 8k, 9.2k, 15k and 17k)

  • FIT Guarantee

  • Storage Drawer

  • Glass Touch Controls

Read More

Description

This beautiful gas range produces flawless cooking results thanks to Even-Heat™ True Convection; the unique bow-tie design and convection fan ensure the inside of the entire oven is heated to, and stays at, the perfect temperature. This range also features a Steam Rack that offers the ability to add additional moisture to the inside of the oven, enhancing cooking results. The oven is 5.8 cu ft., providing a large cooking capacity that’s perfect for preparing multiple dishes at once.
Read More

Available from Mark's Appliance, serving customers throughout Southern IL & St. Louis, MO.

Features
Specifications

Features

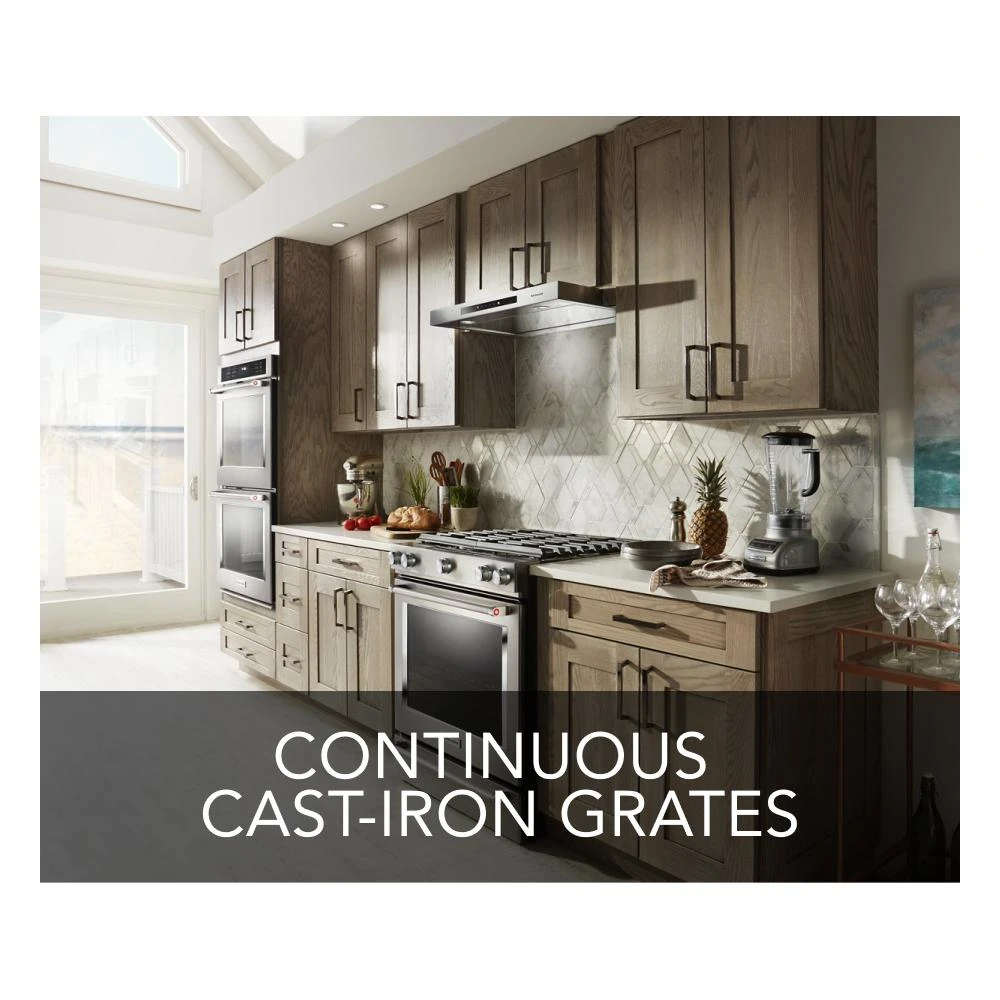

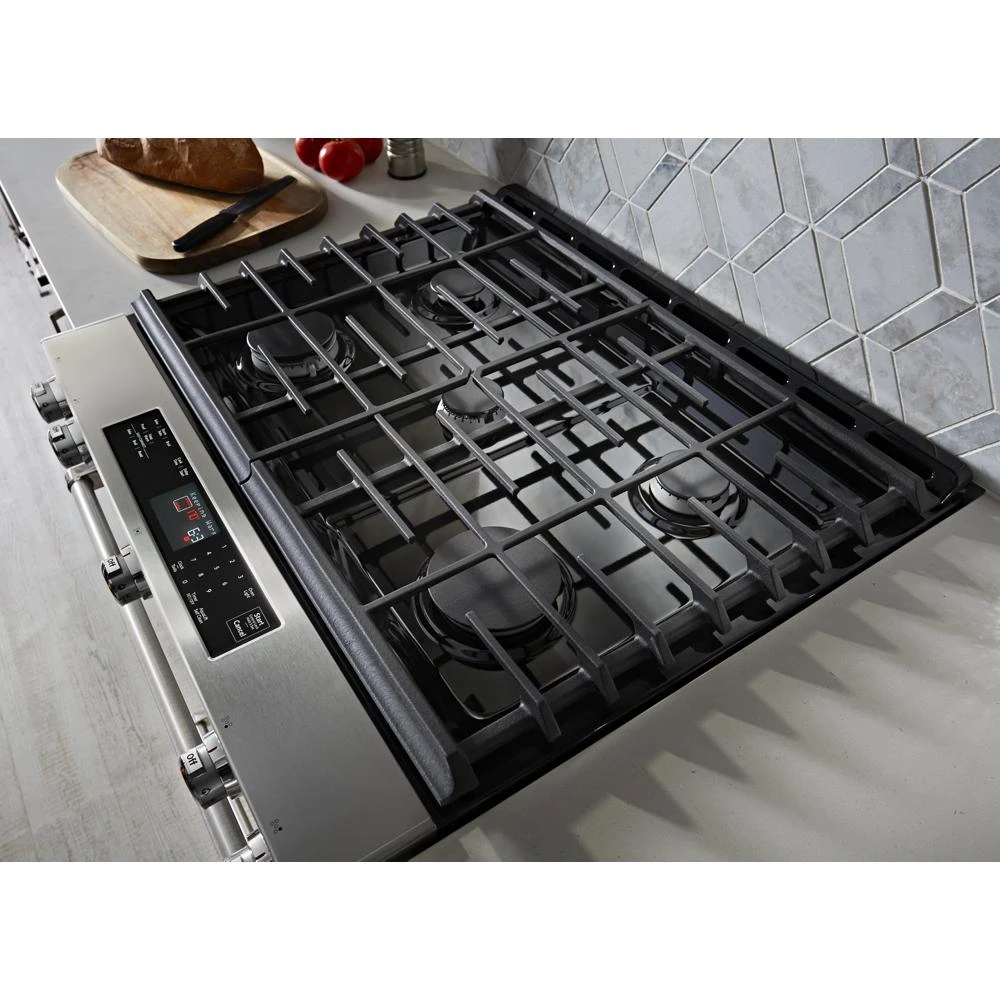

Continuous Interlocking Grates

Provide a level cooking surface that lets you easily change burners and move pots and pans across the entire range.

Side Trim Accessory Kit

This optional accessory kit will cover damaged countertops and unfinished edges from an old slide- in range to make them beautiful again. Trim pieces come in black, white and stainless to seamlessly match your new range.

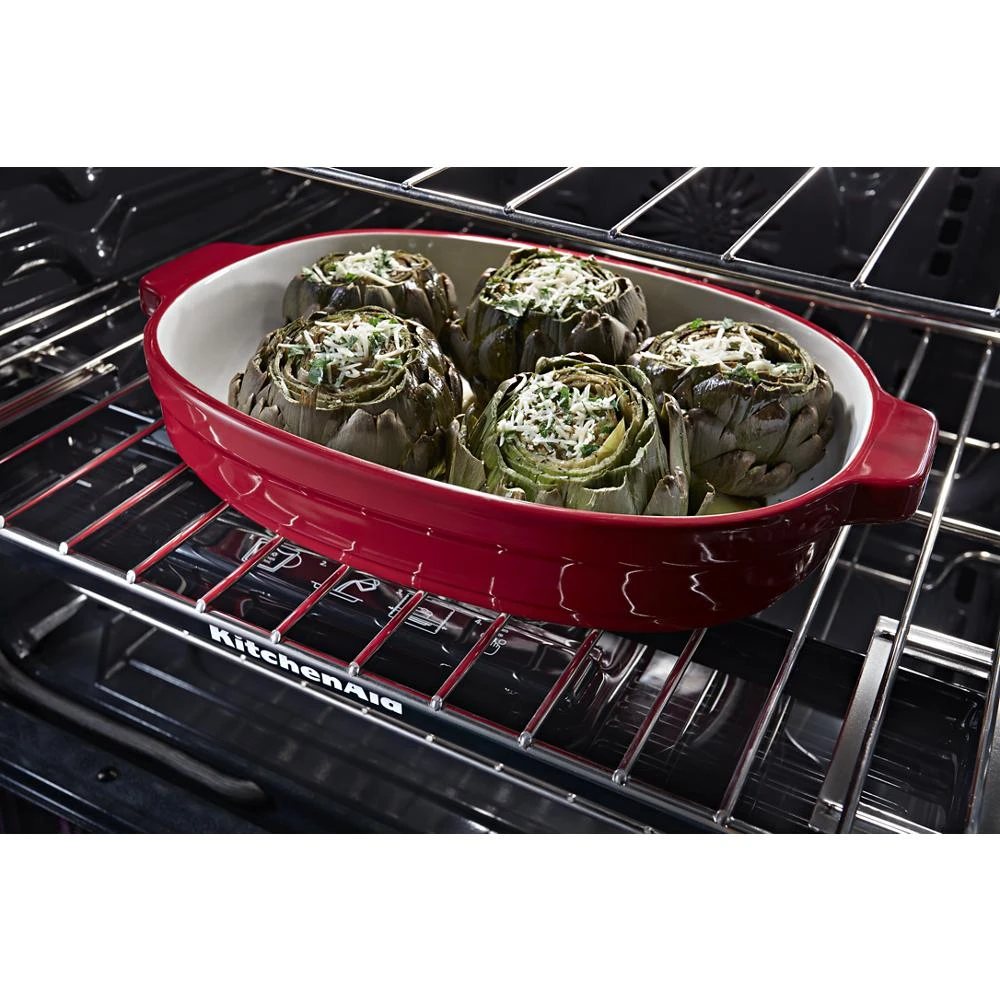

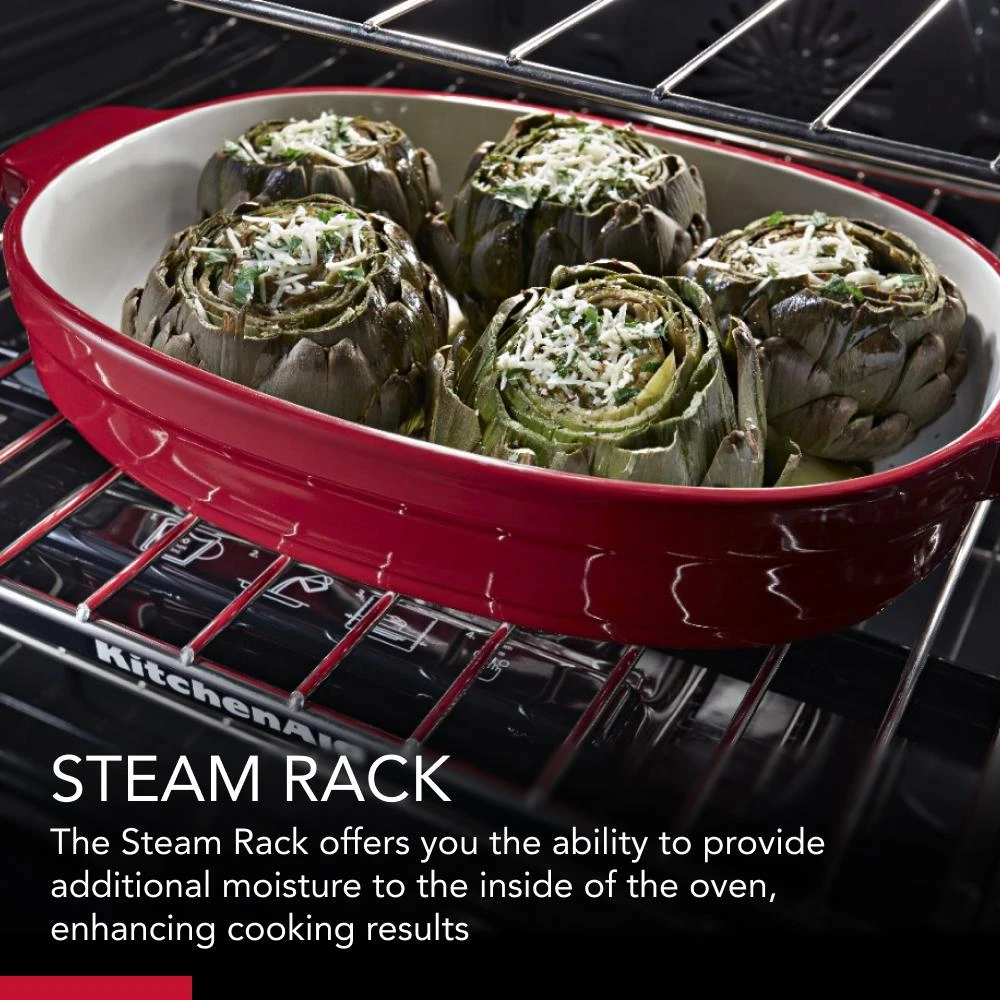

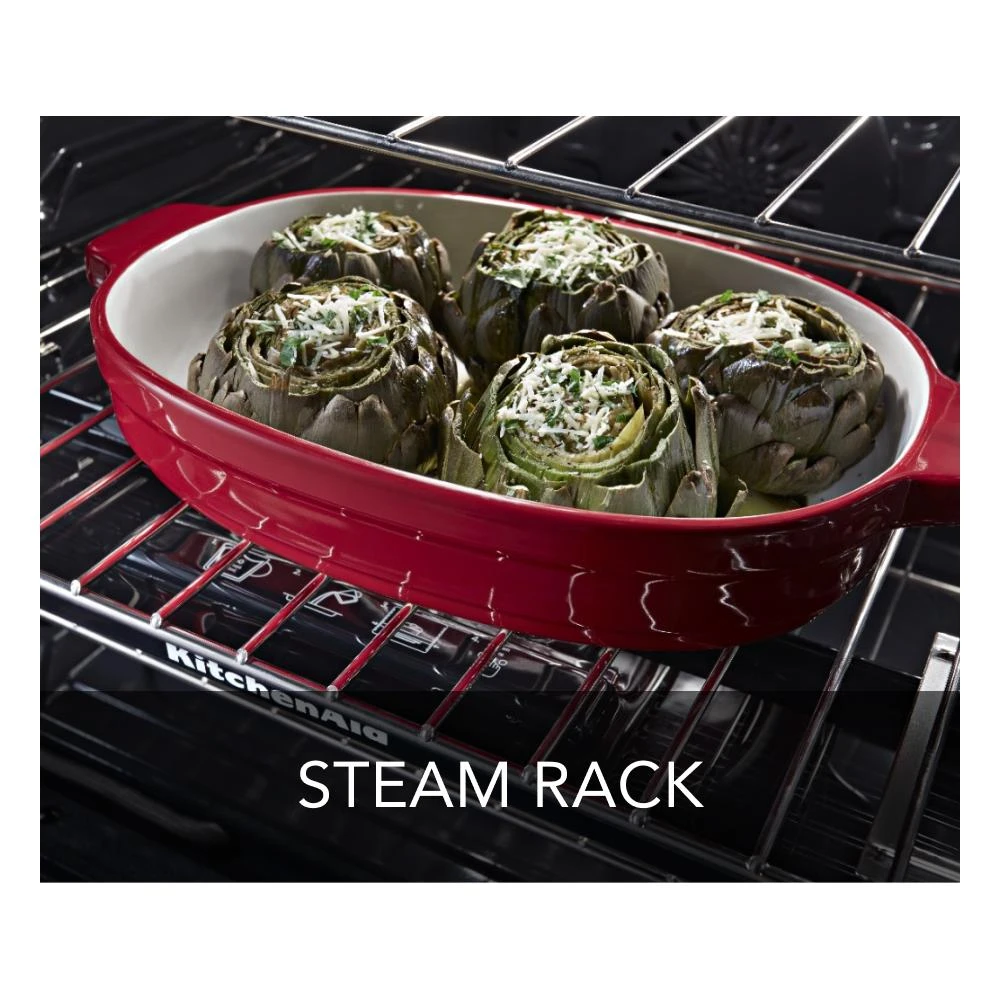

Steam Rack

Offers the ability to provide additional moisture to the inside of the oven, enhancing cooking results.

5.8 cu ft. Oven Capacity

This gas slide-in range provides a large cooking capacity that’s perfect for multiple dishes at once.

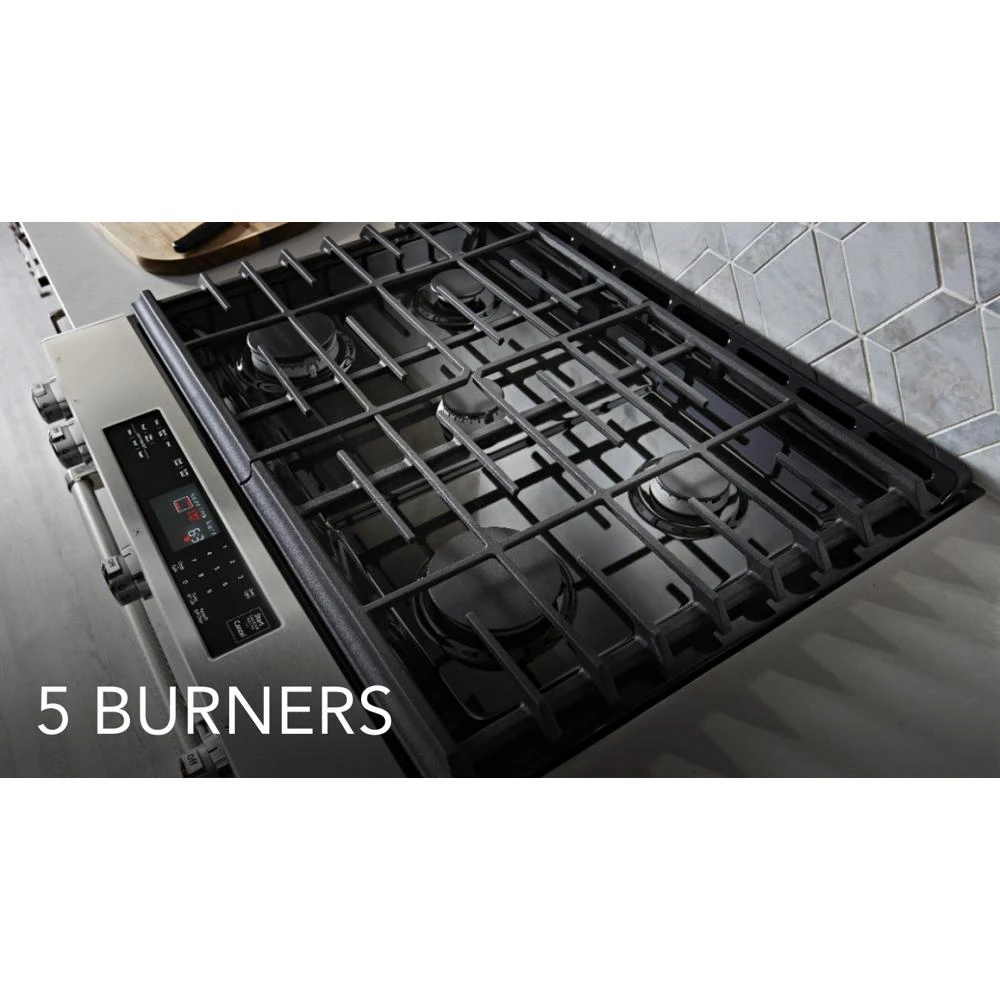

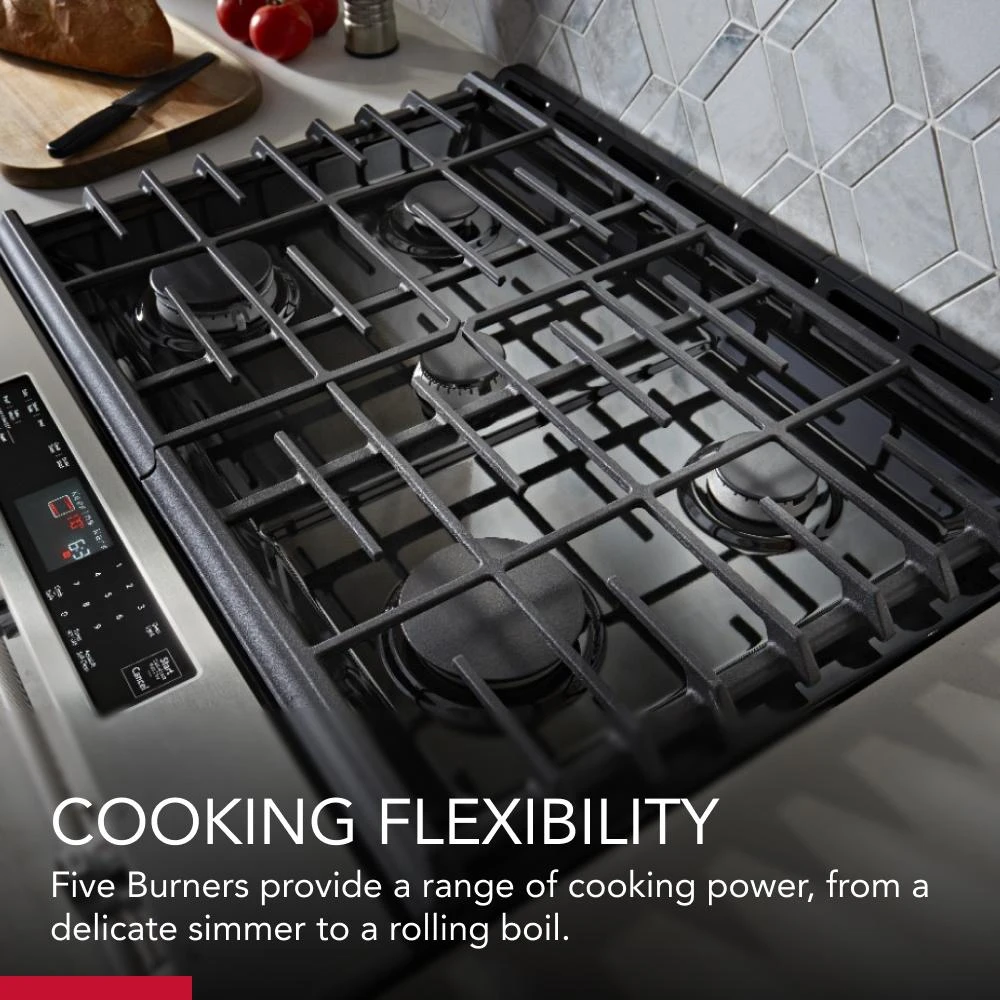

5 Burners (5k, 8k, 9.2k, 15k and 17k)

Provides the perfect range of cooking power from 5,000 to 17,000 BTU, so you can go from a rolling boil to a delicate simmer.

FIT Guarantee

Is our promise to flawlessly fit slide-in ranges designed for an existing cutout of 30" width, countertop depth of 24"-25", cabinet depth of 23"-24" and countertop height of 36".

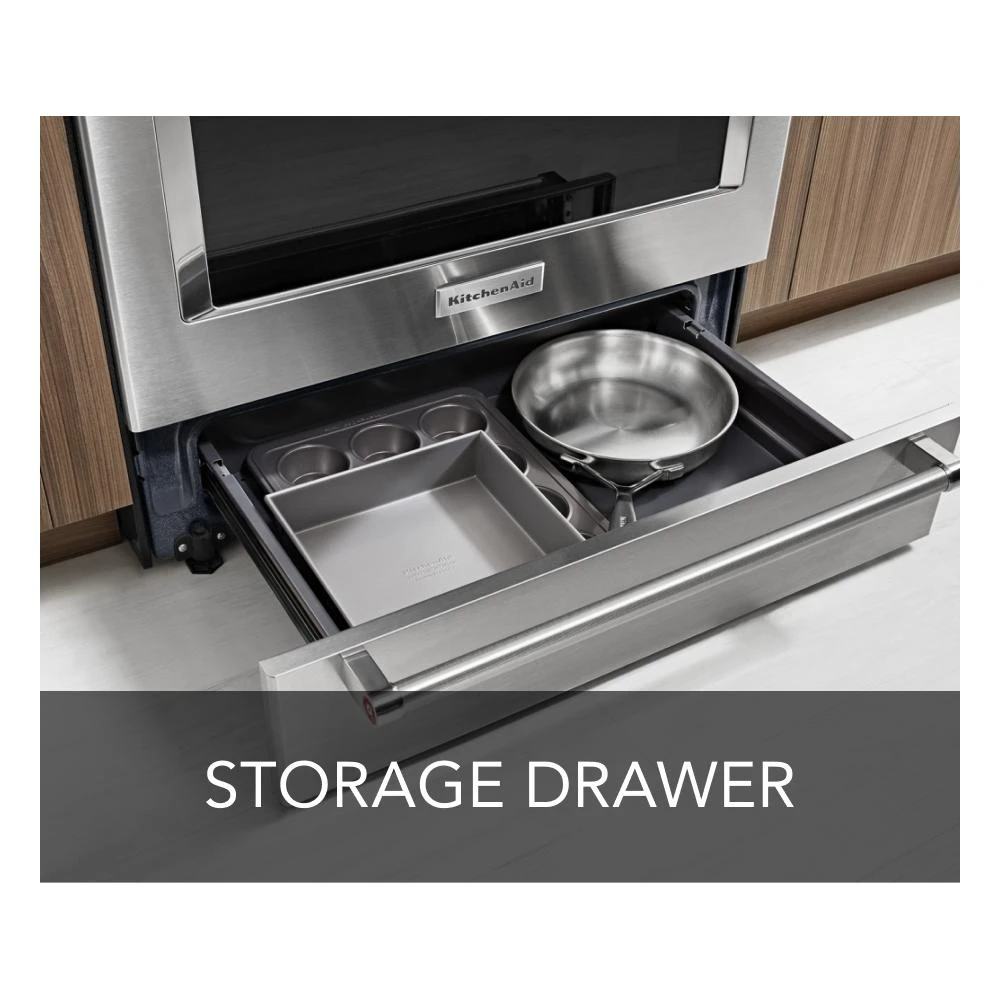

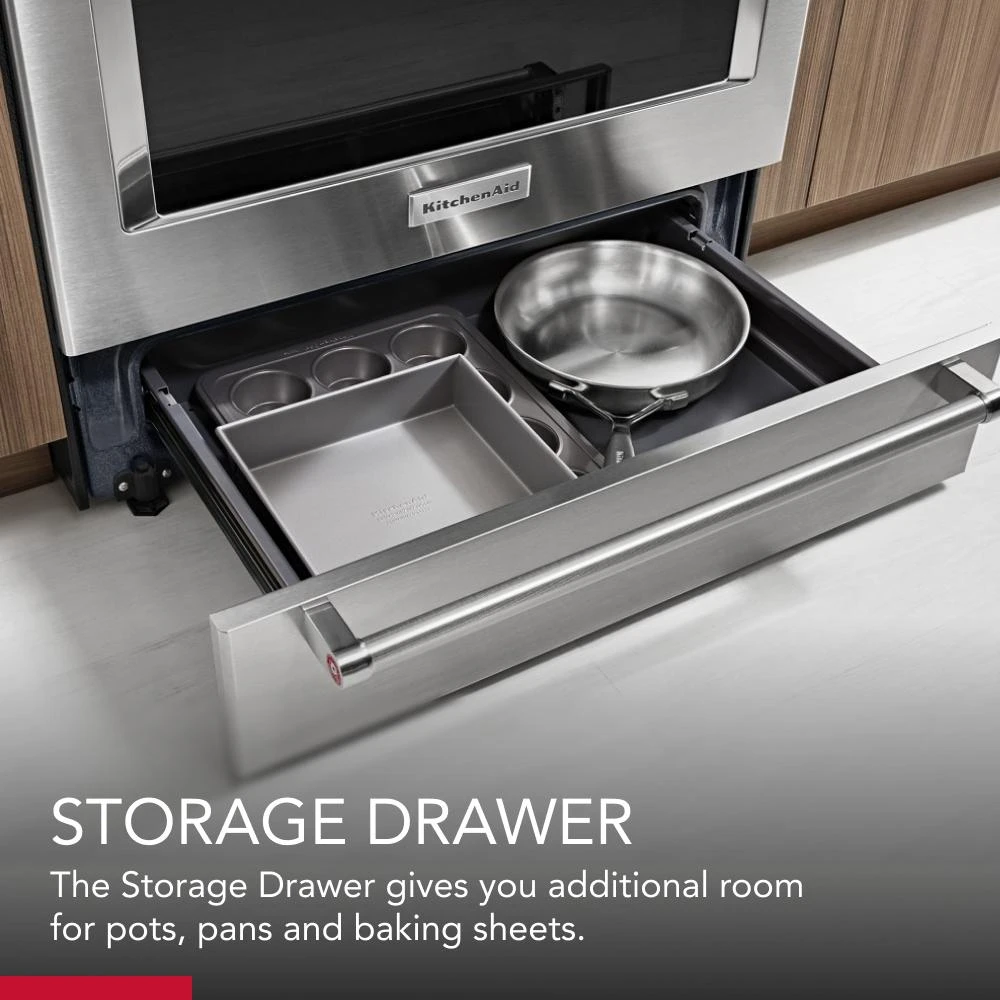

Storage Drawer

Adds additional storage space that’s perfect for pots, pans and baking sheets.

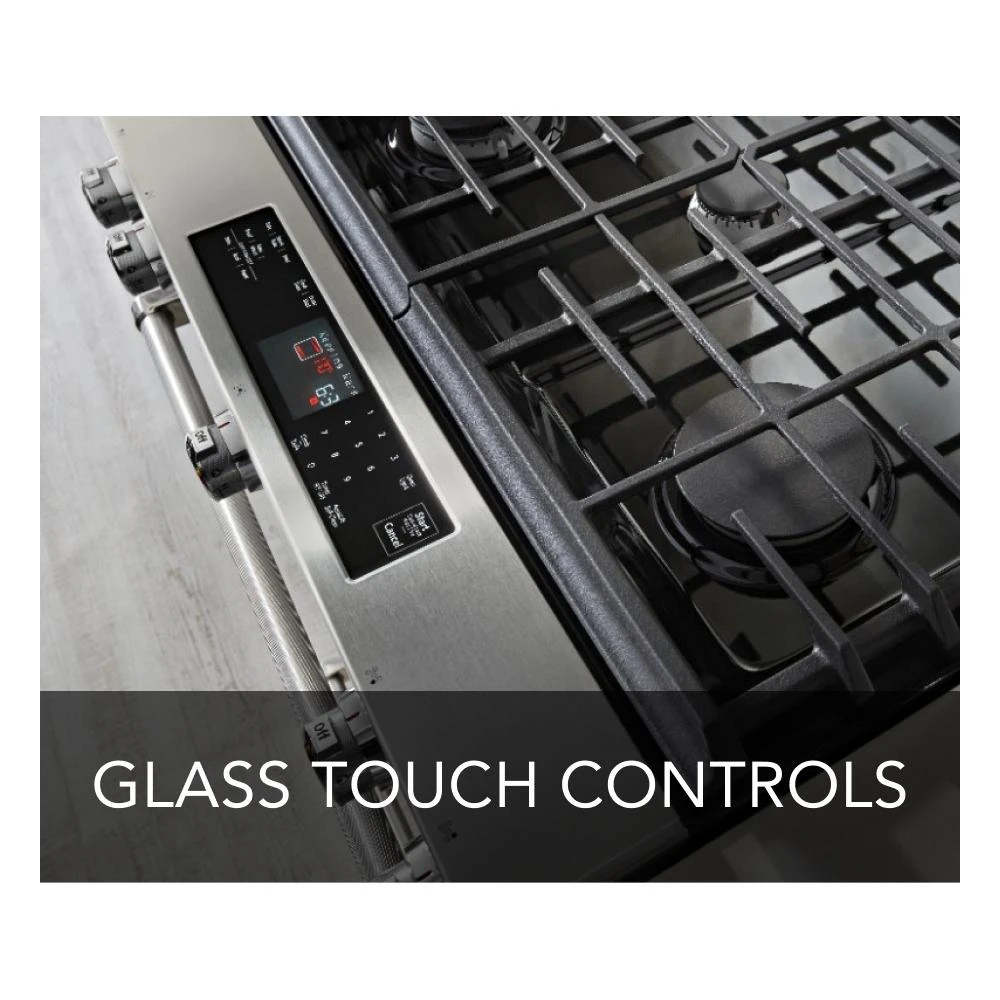

Glass Touch Controls

Offer an intuitive, easy-to-use touch screen experience.

Aqualift®

Cleans your oven in less than an hour without odors and at a temperature below 200°F. This innovative system combines low heat with water to release baked-on spills.

EasyConvect™ Conversion

Takes the guesswork out of convection cooking by converting conventional settings for recipes to convection settings for you.

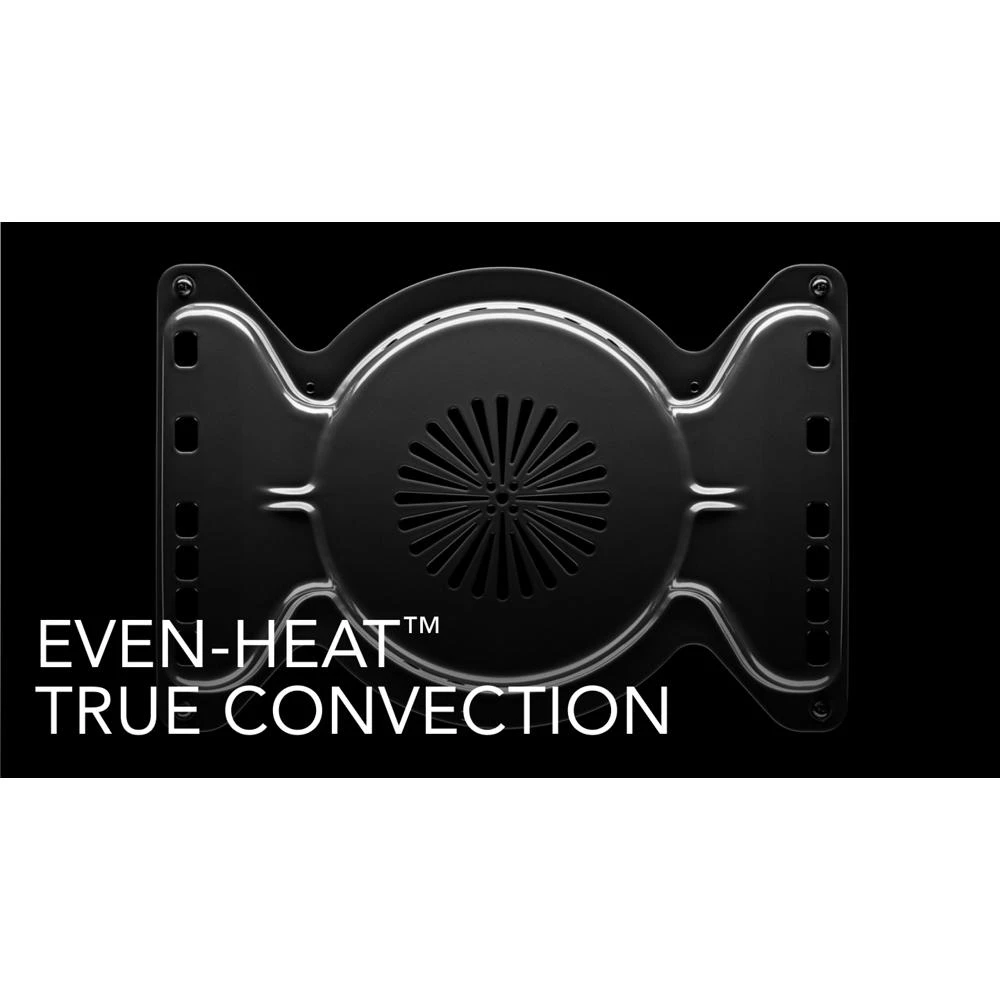

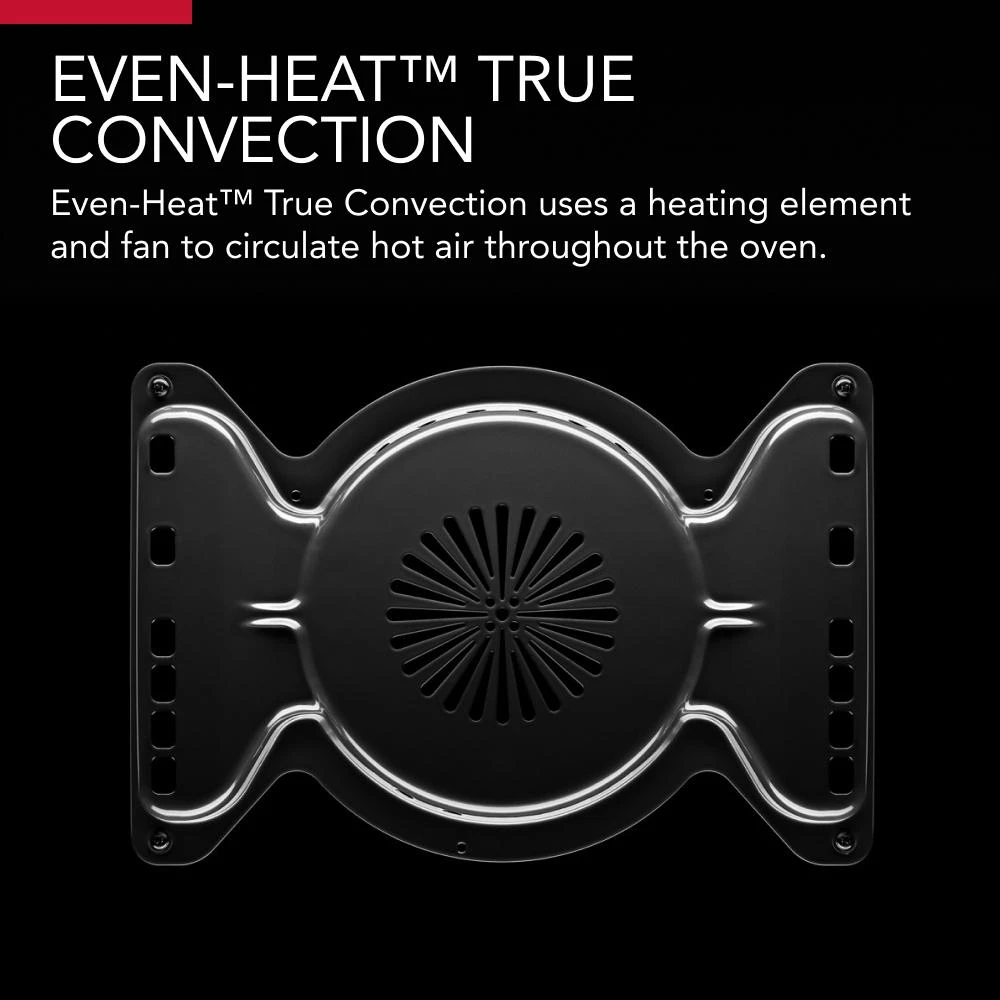

Even-Heat™ True Convection

Features a unique bow-tie design with heating element and fan that circulates hot air throughout the entire oven, providing optimal temperatures combined with airflow for crisp, flaky baked goods, juicy, well-browned roasts and caramelized vegetables.

Specifications

Cooktop Details

Auto Re-ignitionNo
Cooktop Surface ColorBlack
Ignition TypeElectronic
Cooktop Surface MaterialPorcelain Coated Steel
Heating Element On Indicator LightNo
Hot Surface Indicator LightNo

Certifications

ADA CompliantADA Height and Operation Compliant
ULYes
prop65Standard

Electrical

Power Cord IncludedYes

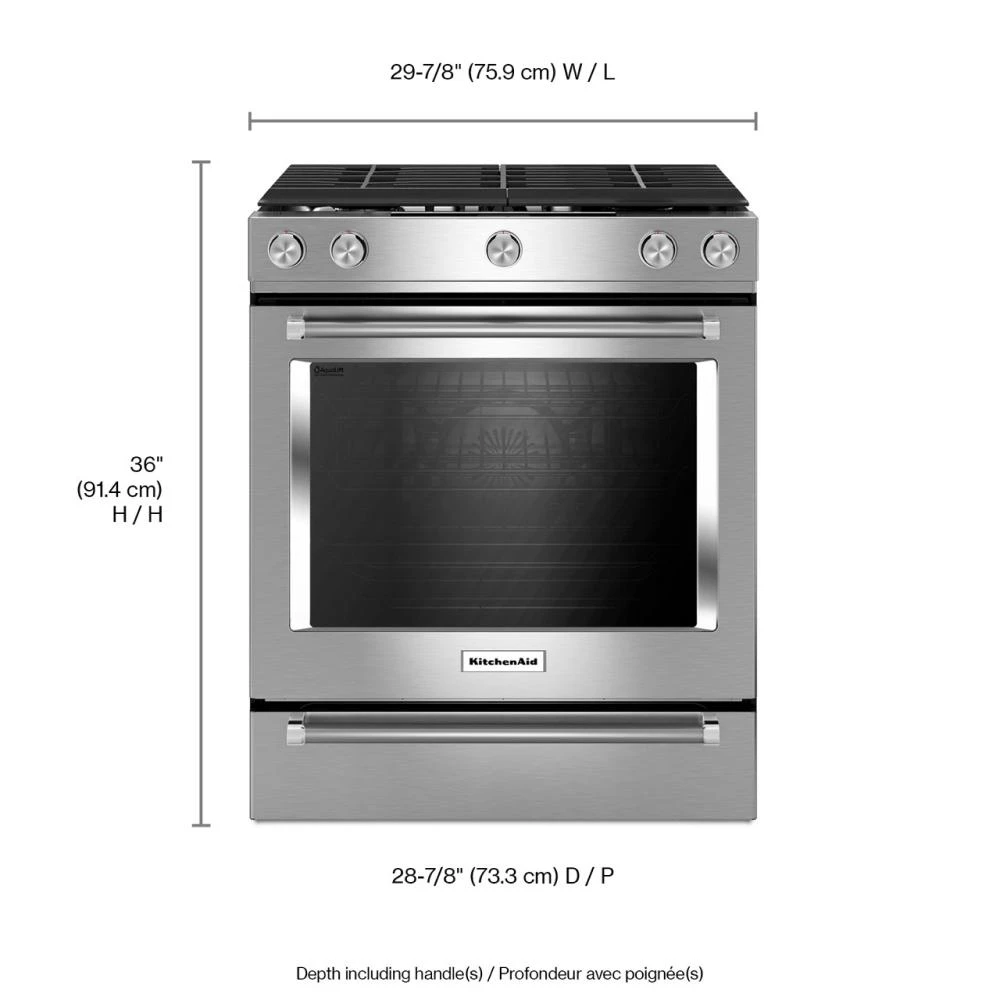

Dimensions & Weight

Width29.88 in.
Height36 in.
Length28.88 in.
Weight227 lbs.
Carton Depth30 9/16
Carton Height43 1/2
Carton Width31 1/2
Depth Closed Excluding Handles26 3/8
Depth Closed Including Handles28 7/8
Depth With Door Open 90 Degree48 3/4
Gross Weight227
Net Weight215.0
Depth Closed Excluding Handles(IN,inches)26.3750
Depth Closed Including Handles(IN,inches)28.8750
Depth With Door Open 90 Degree(IN,inches)48.7500
Net Weight(LB,pounds)215
Carton Depth(IN,inches)30.5625
Carton Height(IN,inches)43.5000
Carton Width(IN,inches)31.5000
Gross Weight(LB,pounds)227

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes1
Shipping Width34.88 in.
Shipping Height41 in.
Shipping Length33.88 in.
Shipping Weight267 lbs.
Total of Shipping Weight267 lbs.
SourceCalculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement17.97 ft³
Dimensional Weight223.46 lbs.
Total of Cubes17.97 ft³
Total of Dimensional Weight223.46 lbs.

Controls

Display ColorRed; White

Details

Automatic Convection Conversion Temperature AdjustYes
Fuel TypeGas
LP ConvertibleYes
Oven ConfigurationSingle Oven
Oven SelectionsClock; Cook Time Indicator; Delay Start; Keep Warm Setting; Proofing; Sabbath Mode; Steam Bake; Warm Zone
Power On Indicator LightYes
Power Outage CompatibleNo
Range ConfigurationSlide-In
Range Drawer TypeStorage Drawer
Range TypeSlide-in

Dimensions

Depth Closed Excluding Handles26.375
Depth Closed Including Handles28.875
Depth With Door Open 90 Degree48.75
Oven Interior Depth20.625
Oven Interior Height22.125
Oven Interior Width24.125
carton depth30.51
carton height43.5
carton width31.5
net weight215
gross weight227

Element/Burner Details

Center Rear Element-Burner Power8, 000 BTU
Center Rear Element-Burner TypeSealed Burner
Cooktop Element StyleGas Burner
Left Front Element-Burner Power17, 000 BTU
Left Front Element-Burner TypeSealed Burner
Left Rear Element-Burner Power5, 000 BTU
Left Rear Element-Burner TypeSealed Burner
Number of Cooking Element-Burners5
Right Front Element-Burner Power15, 000 BTU
Right Front Element-Burner TypeSealed Burner
Right Rear Element-Burner Power9, 200 BTU
Right Rear Element-Burner TypeSealed Burner

Exterior Details

Door TypeMetal & Glass
Oven Control TypeElectronic Touch
Oven Window SizeLarge
Handle ColorStainless Steel
Handle MaterialMetal
Handle TypeTowel Bar
Knob ColorStainless Steel
Knob TypeMetal

Grate Details

Grate DetailsCast Iron Grates; Continuous; Dishwasher Safe; Matte Finish
Number of Grates2

Oven Details

Bake Element Power18, 000 BTU

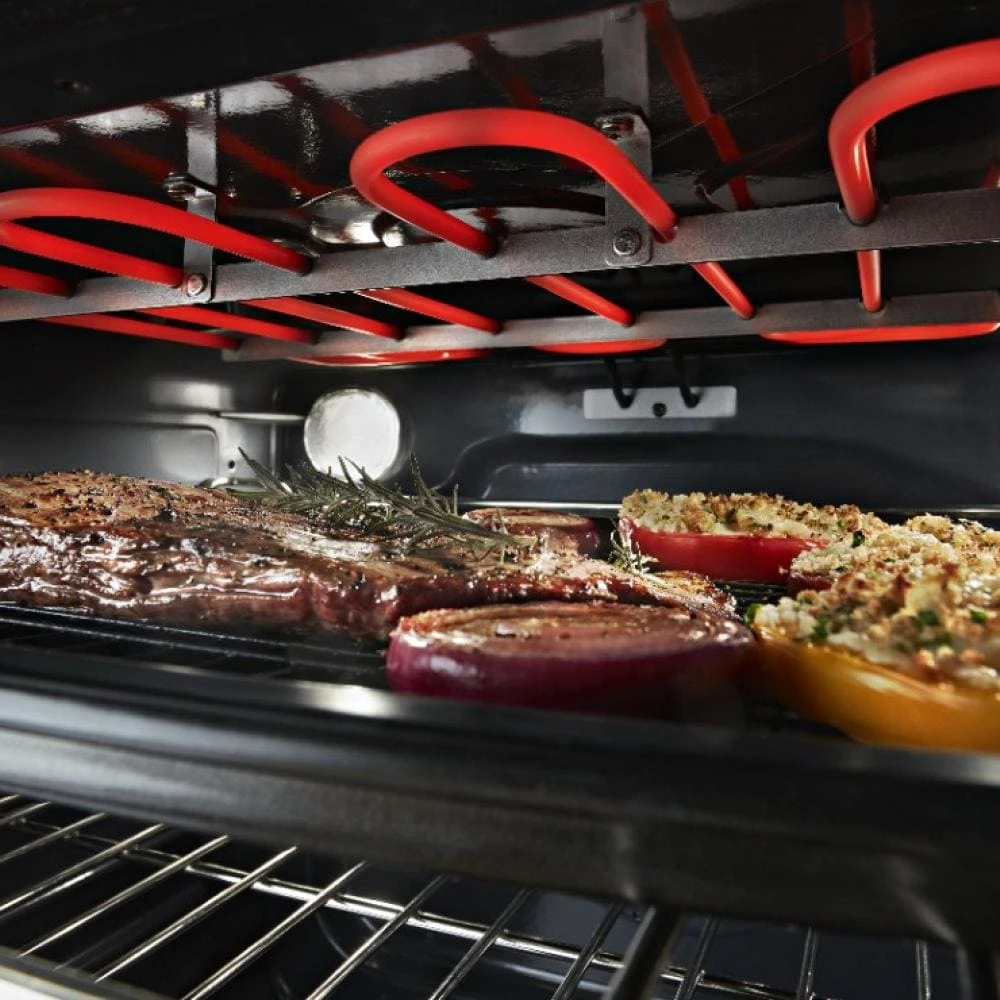

Broiler Element Power13, 000 BTU
Broiler LocationTop of Oven
Convection Element Power900
Convection Element TypeFan
Convection FunctionsBake; Broil; Roast

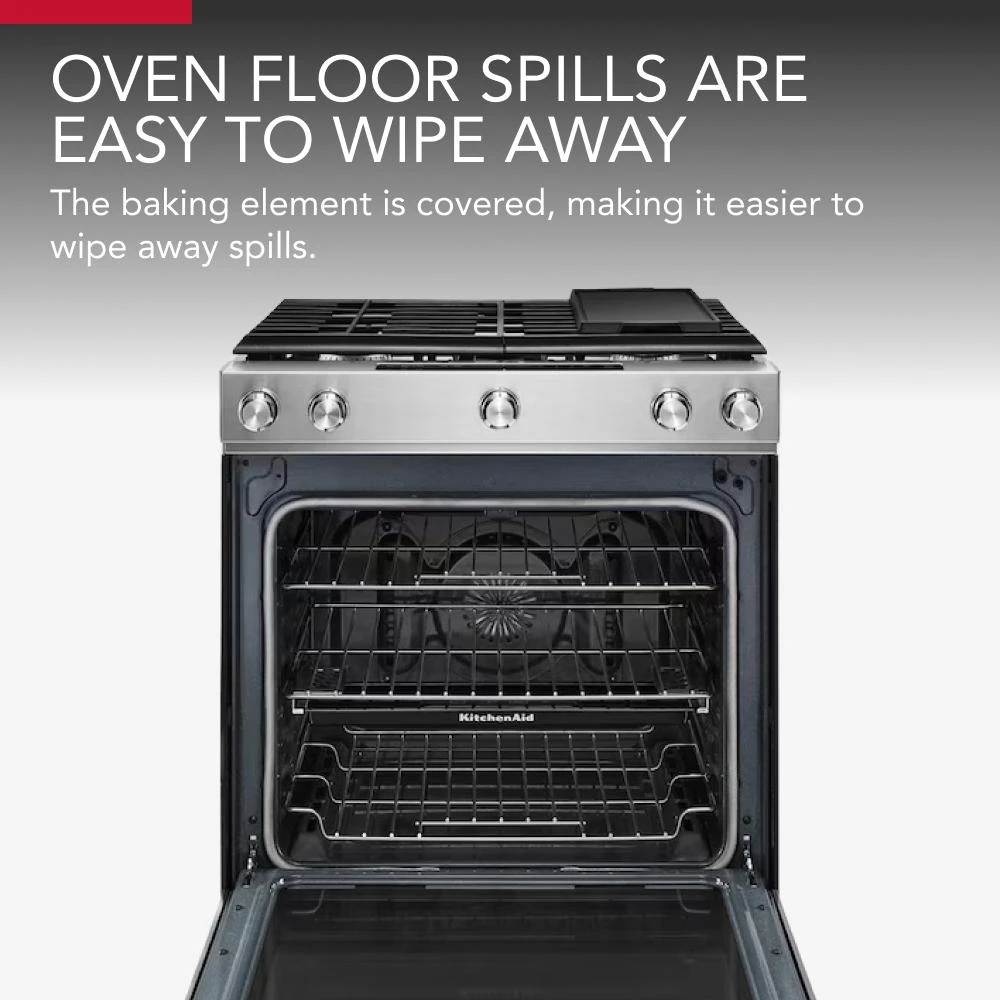

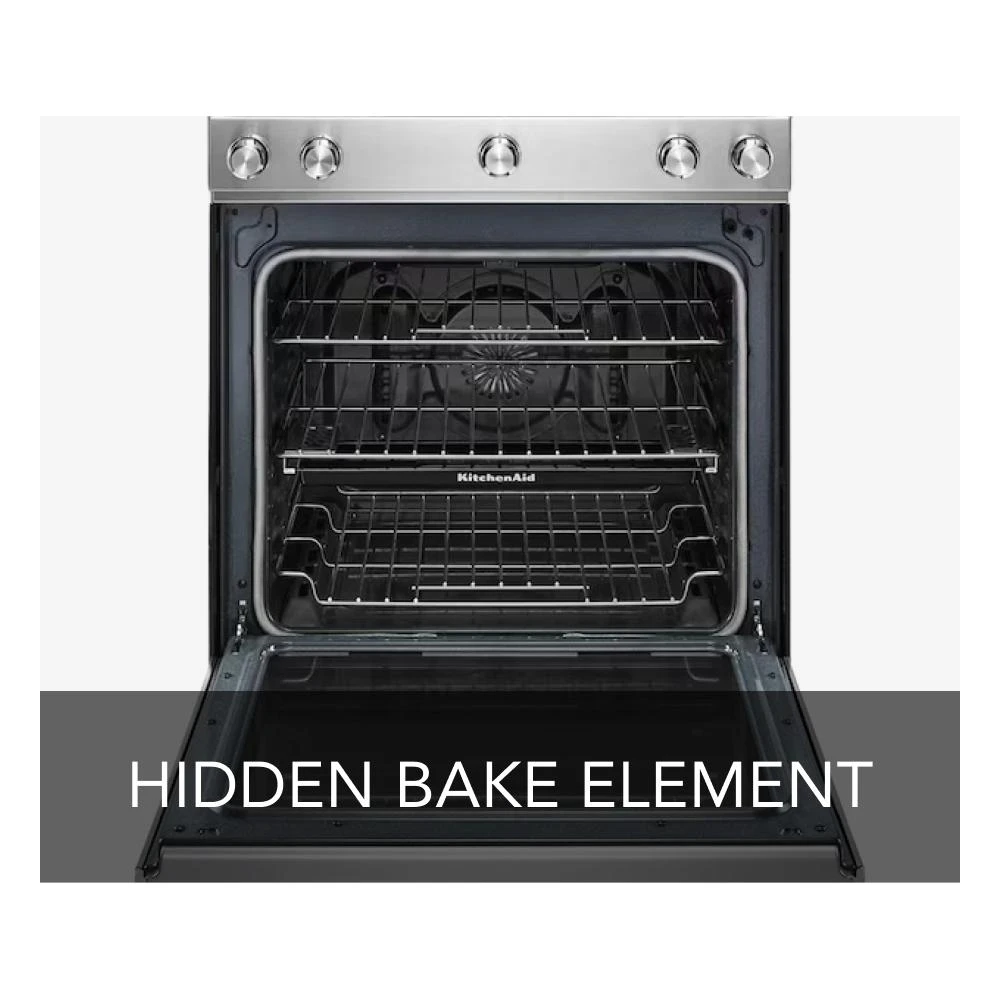

Hidden Bake ElementYes
Number of Oven Lights2
Number of Oven Racks3
Number of Rack Guides7
Oven Cleaning TypeAquaLift® Steam Clean
Oven Cooking SystemConvection
Oven Light TypeIncandescent
Oven Rack TypeHeavy Duty; Max Capacity; Steam Rack
Interior ColorGrey

Product Details

Range FeaturesADA Compliant; EasyConvect™ Conversion; Even-Heat™ True Convection; FIT System; Steam Rack
