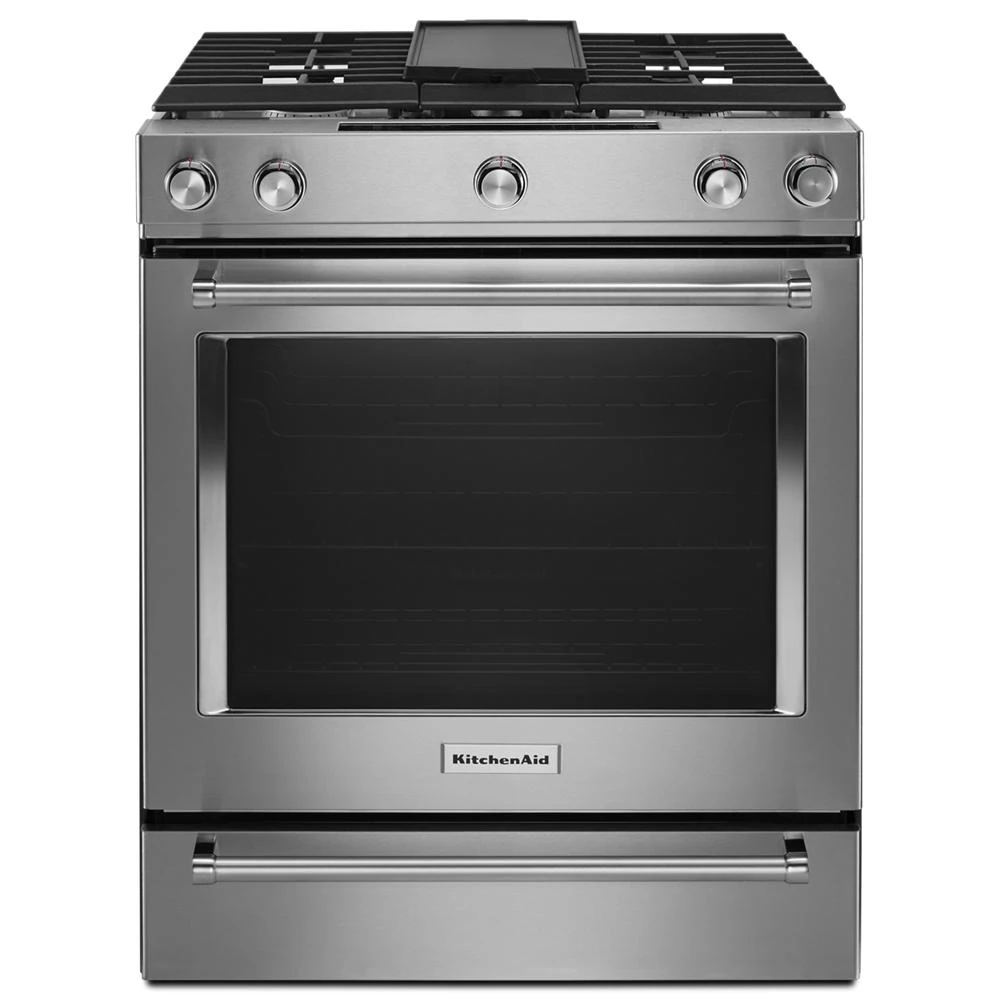

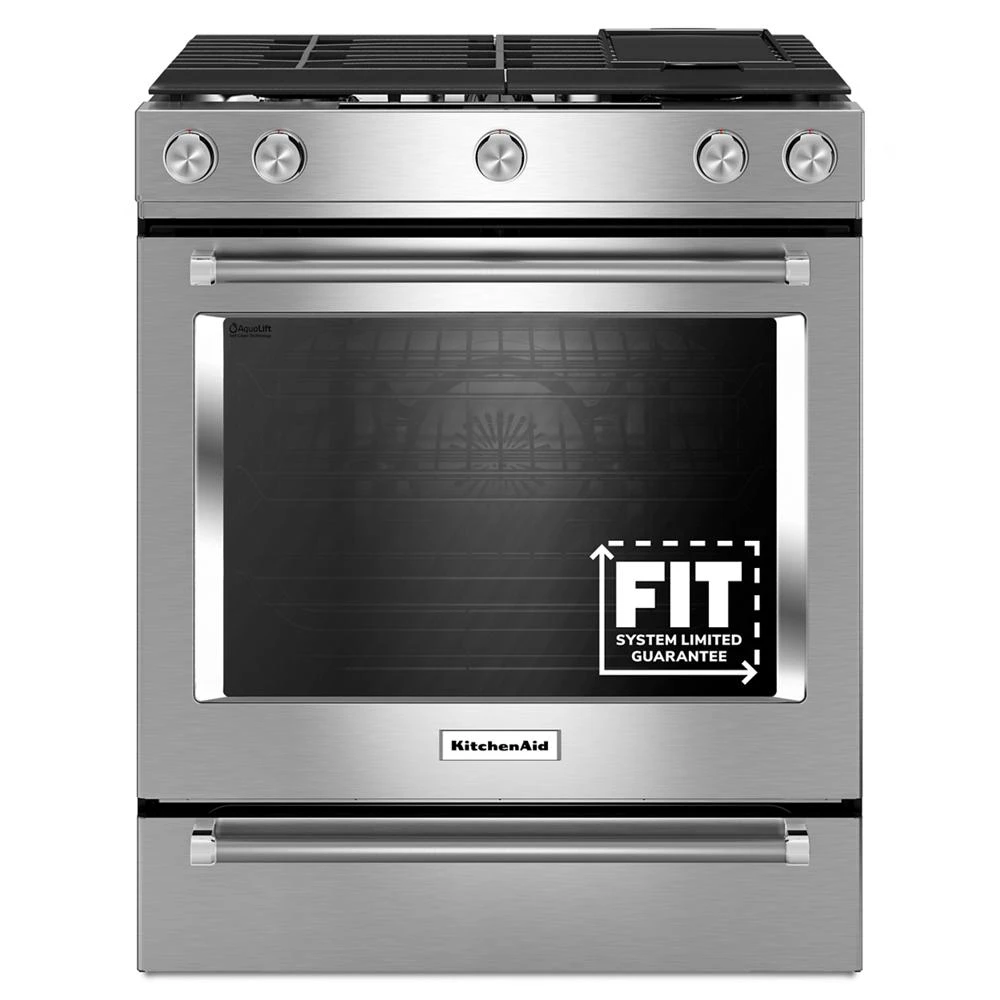

30" 5-Burner Dual Fuel Convection Slide-In Range with Baking Drawer - KSDB900ESS

30" 5-Burner Dual Fuel Convection Slide-In Range with Baking Drawer

Model: KSDB900ESS

30" 5-Burner Dual Fuel Convection Slide-In Range with Baking Drawer KSDB900ESS30" 5-Burner Dual Fuel Convection Slide-In Range with Baking Drawer KSDB900ESS30" 5-Burner Dual Fuel Convection Slide-In Range with Baking Drawer KSDB900ESS30" 5-Burner Dual Fuel Convection Slide-In Range with Baking Drawer KSDB900ESS30" 5-Burner Dual Fuel Convection Slide-In Range with Baking Drawer KSDB900ESS30" 5-Burner Dual Fuel Convection Slide-In Range with Baking Drawer KSDB900ESS30" 5-Burner Dual Fuel Convection Slide-In Range with Baking Drawer KSDB900ESS30" 5-Burner Dual Fuel Convection Slide-In Range with Baking Drawer KSDB900ESS30" 5-Burner Dual Fuel Convection Slide-In Range with Baking Drawer KSDB900ESS30" 5-Burner Dual Fuel Convection Slide-In Range with Baking Drawer KSDB900ESS30" 5-Burner Dual Fuel Convection Slide-In Range with Baking Drawer KSDB900ESS30" 5-Burner Dual Fuel Convection Slide-In Range with Baking Drawer KSDB900ESS30" 5-Burner Dual Fuel Convection Slide-In Range with Baking Drawer KSDB900ESS30" 5-Burner Dual Fuel Convection Slide-In Range with Baking Drawer KSDB900ESS30" 5-Burner Dual Fuel Convection Slide-In Range with Baking Drawer KSDB900ESS30" 5-Burner Dual Fuel Convection Slide-In Range with Baking Drawer KSDB900ESS30" 5-Burner Dual Fuel Convection Slide-In Range with Baking Drawer KSDB900ESS30" 5-Burner Dual Fuel Convection Slide-In Range with Baking Drawer KSDB900ESS30" 5-Burner Dual Fuel Convection Slide-In Range with Baking Drawer KSDB900ESS30" 5-Burner Dual Fuel Convection Slide-In Range with Baking Drawer KSDB900ESS30" 5-Burner Dual Fuel Convection Slide-In Range with Baking Drawer KSDB900ESS30" 5-Burner Dual Fuel Convection Slide-In Range with Baking Drawer KSDB900ESS
30" 5-Burner Dual Fuel Convection Slide-In Range with Baking Drawer KSDB900ESS
30" 5-Burner Dual Fuel Convection Slide-In Range with Baking Drawer KSDB900ESS
30" 5-Burner Dual Fuel Convection Slide-In Range with Baking Drawer KSDB900ESS
30" 5-Burner Dual Fuel Convection Slide-In Range with Baking Drawer KSDB900ESS
30" 5-Burner Dual Fuel Convection Slide-In Range with Baking Drawer KSDB900ESS
+17more

360 View

360 icon

$3,148.00

Was$3,499.00Save $351.00 (10%)

rebate iconRebate Available

Color : Stainless Steel

30" 5-Burner Dual Fuel Convection Slide-In Range with Baking Drawer KSDB900ESS

$3,148.00

Stainless Steel

Type : Dual Fuel

Current Rebates

KitchenAid + NMG: Up to $4,000 Exclusive Rebate
Expires: July 08, 2026

Key Features

  • Baking Drawer

  • Glass Touch Controls

  • Side Trim Accessory Kit

  • Continuous Interlocking Grates

  • Steam Rack

  • 5 burners (5k, 8k, 9.2k, 15k and 19k)

  • 8K Center Oval Burner

  • FIT Guarantee

Read More

Description

KitchenAid 30" Dual Fuel Range with Even-Heat™ True Convection 7.1 Cu. Ft. Oven and Baking Drawer

Available from Mark's Appliance, serving customers throughout Southern IL & St. Louis, MO.

Features
Specifications

Features

Baking Drawer

Adds more cooking options to the oven. The separate compartment allows you to keep warm, slow cook or bake at a different temperature and keep dishes warm.

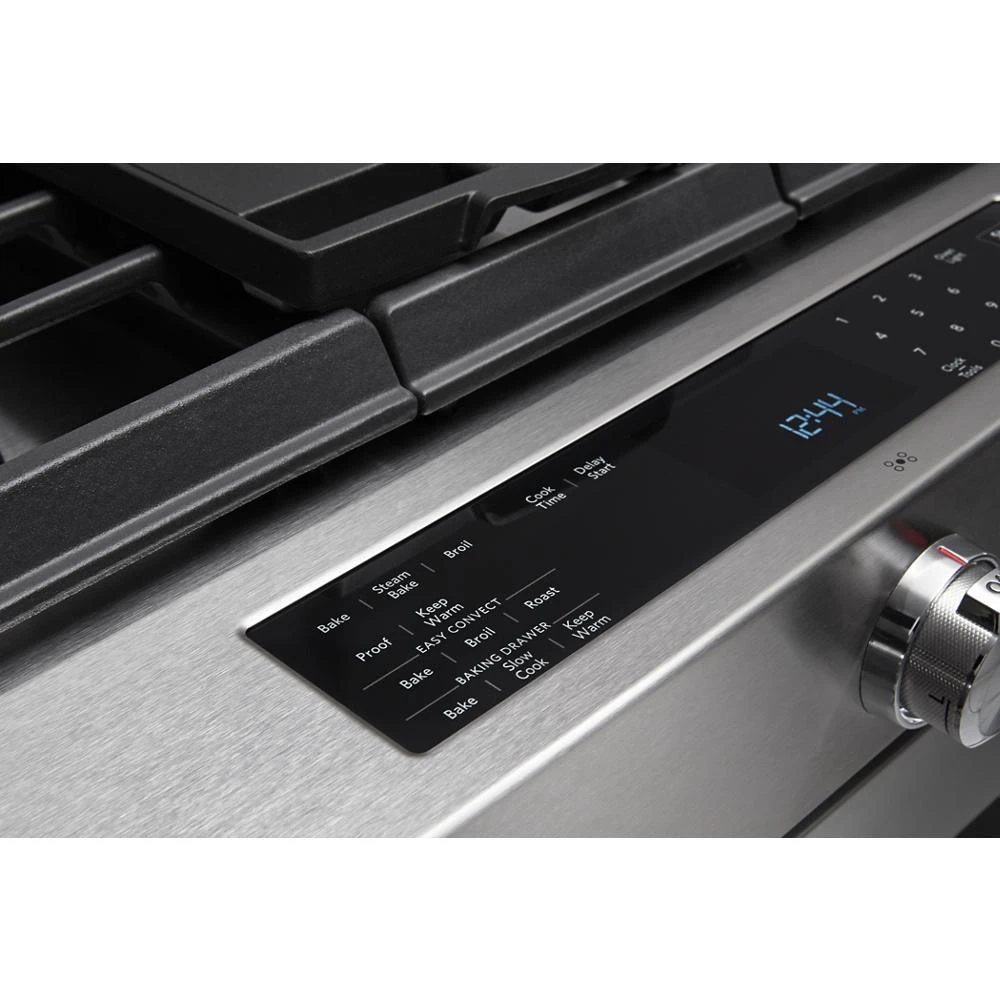

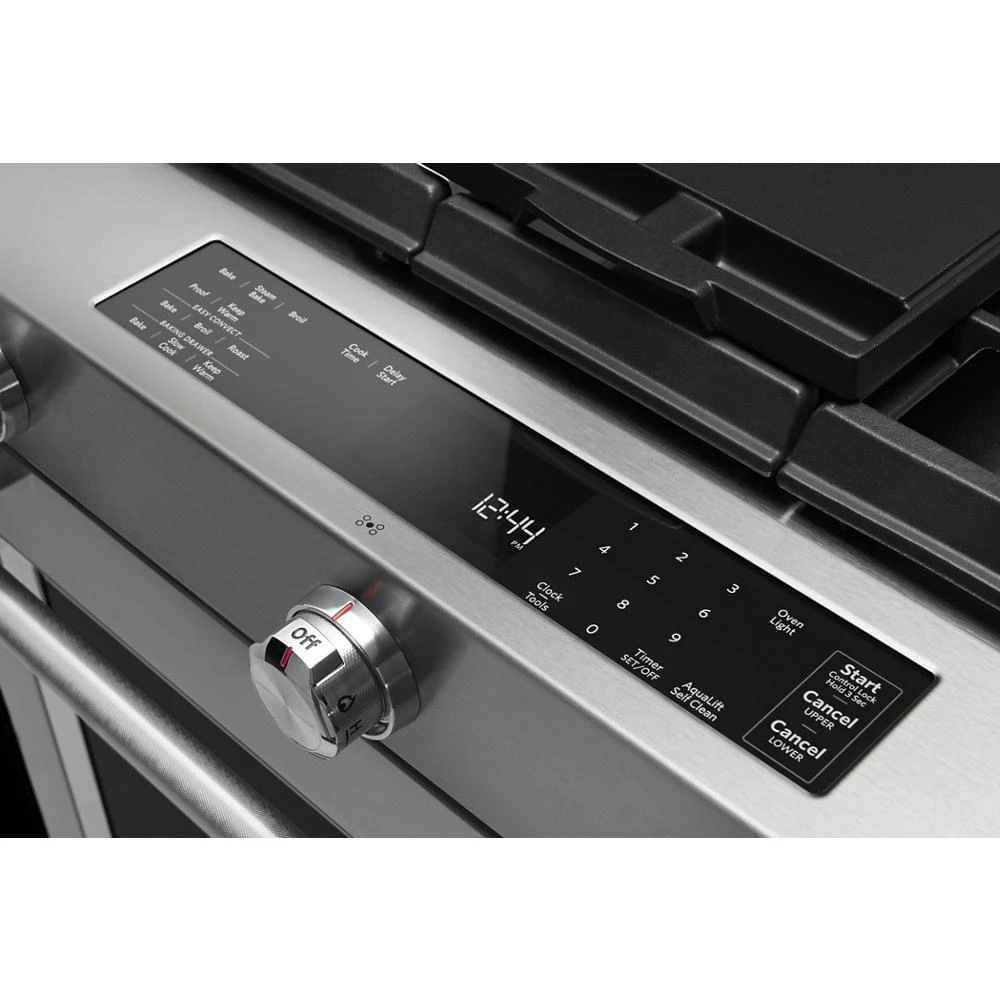

Glass Touch Controls

Offer an intuitive, easy-to-use touch screen experience.

Side Trim Accessory Kit

This optional accessory kit will cover damaged countertops and unfinished edges from an old slide- in range to make them beautiful again. Trim pieces come in black, white and stainless to seamlessly match your new range.

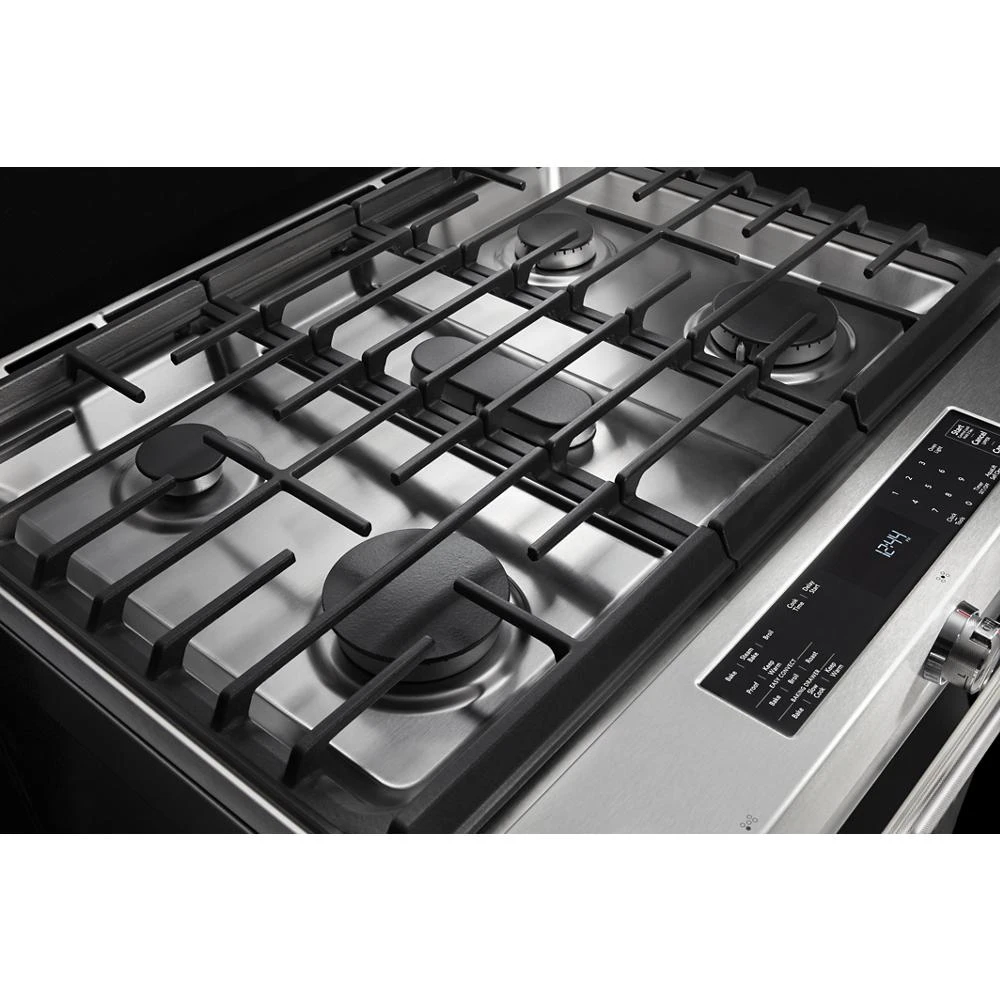

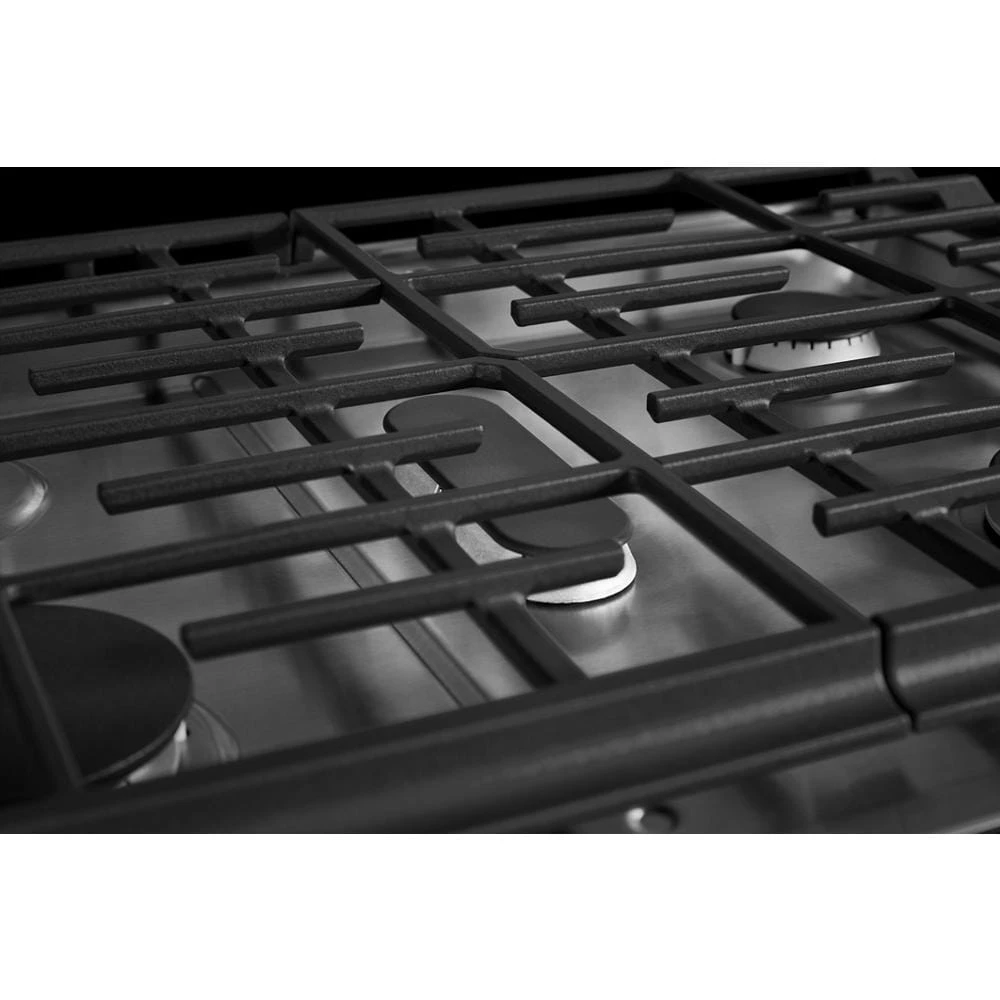

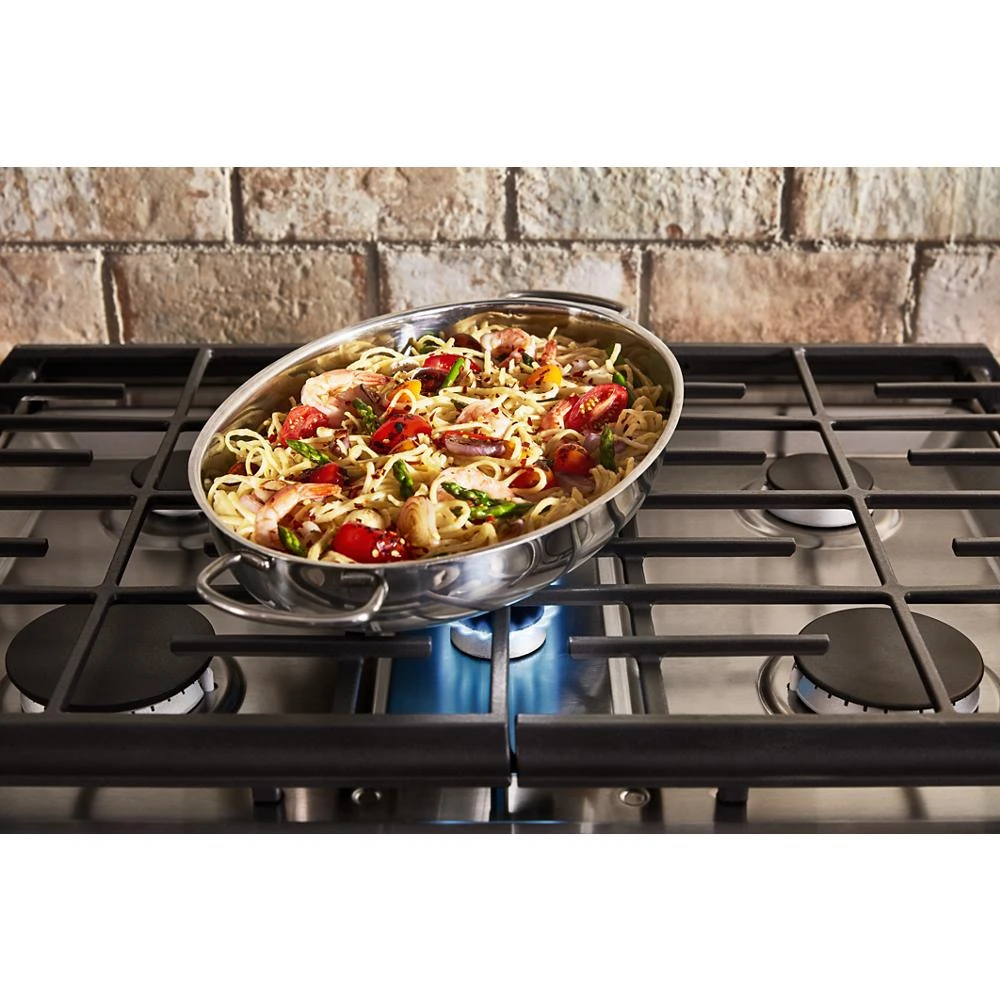

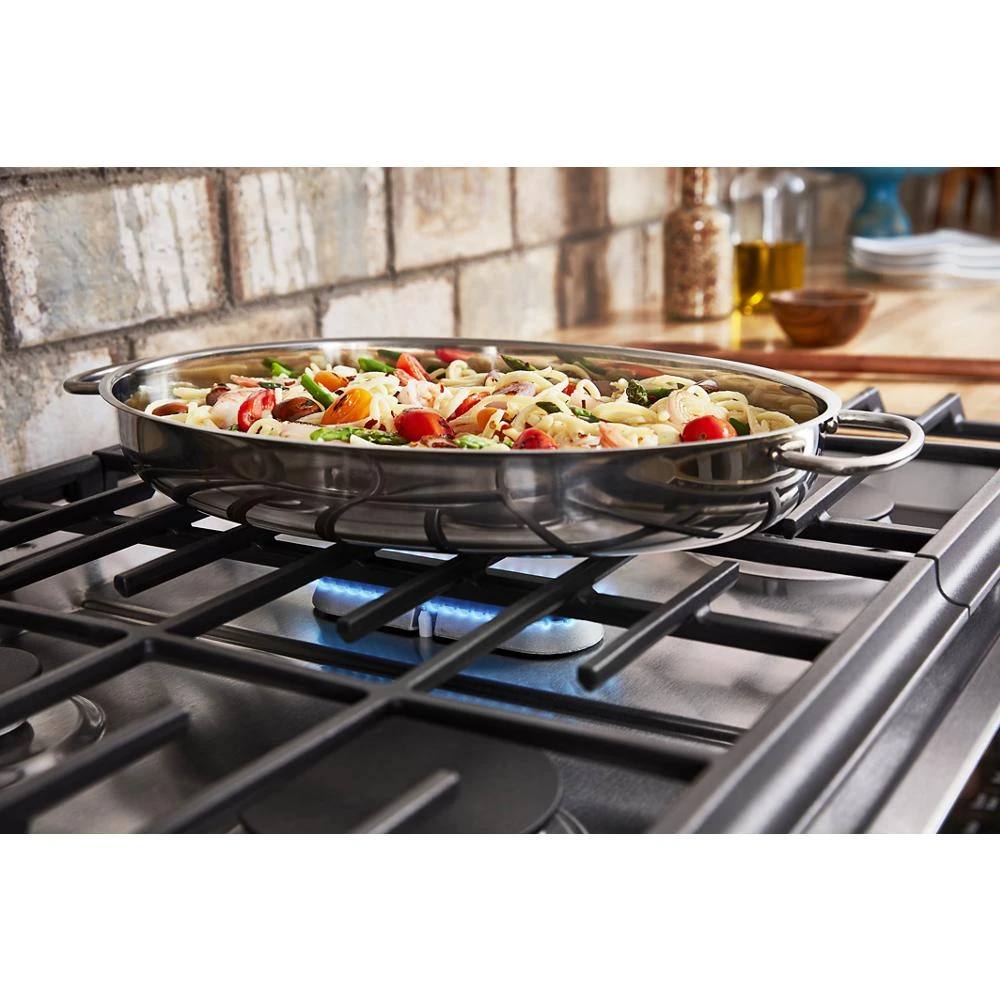

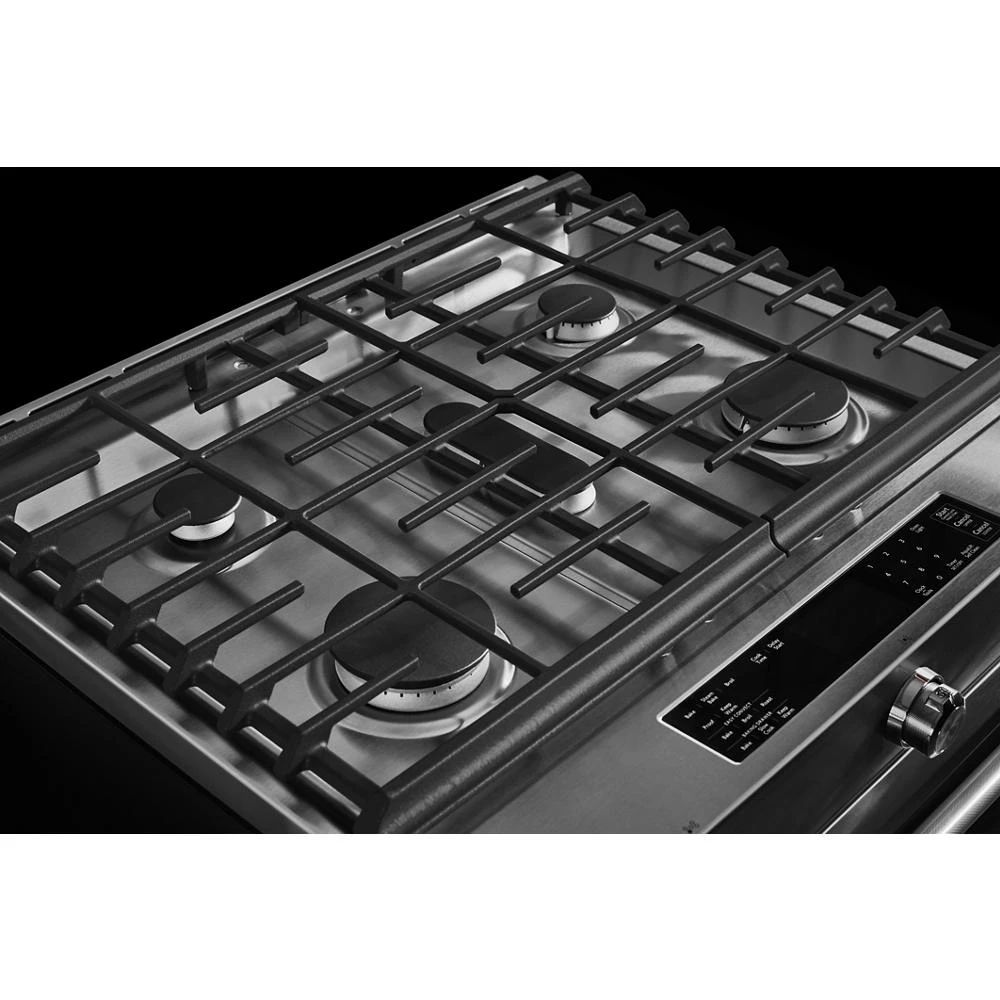

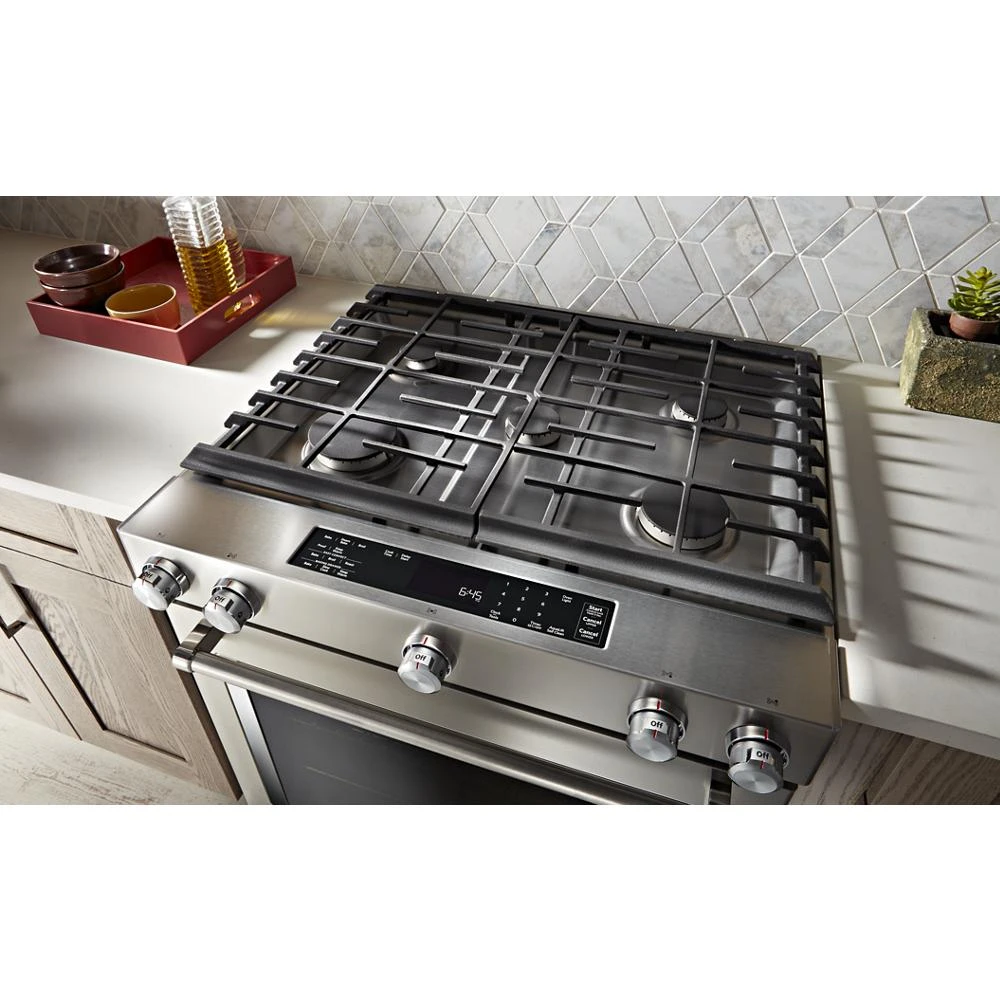

Continuous Interlocking Grates

Provide a level cooking surface that lets you easily change burners and move pots and pans across the entire range.

Steam Rack

Offers the ability to provide additional moisture to the inside of the oven, enhancing cooking results.

5 burners (5k, 8k, 9.2k, 15k and 19k)

Provides the perfect range of cooking power from 5,000 to19,000 BTU, so you can go from a rolling boil to a delicate simmer.

8K Center Oval Burner

Fits large griddles and other longer cookware on this 8,000 BTU fifth burner so they heat evenly on the range top.

FIT Guarantee

Is our promise to flawlessly fit slide-in ranges designed for an existing cutout of 30" width, countertop depth of 24"-25", cabinet depth of 23"-24" and countertop height of 36".

7.1 Cu Ft. Total Capacity

This slide-in range provide an extra-large cooking capacity in the oven for multiple dishes at once and gives you the flexibility of a separate temperature zone in the baking drawer.

Aqualift®

Cleans your oven in less than an hour without odors and at a temperature below 200°F. This innovative system combines low heat with water to release baked-on spills.

EasyConvect™ Conversion

Takes the guesswork out of convection cooking by converting conventional settings for recipes to convection settings for you.

Even-Heat™ True Convection

Features a unique bow-tie design with heating element and fan that circulates hot air throughout the entire oven, providing optimal temperatures combined with airflow for crisp, flaky baked goods, juicy, well-browned roasts and caramelized vegetables.

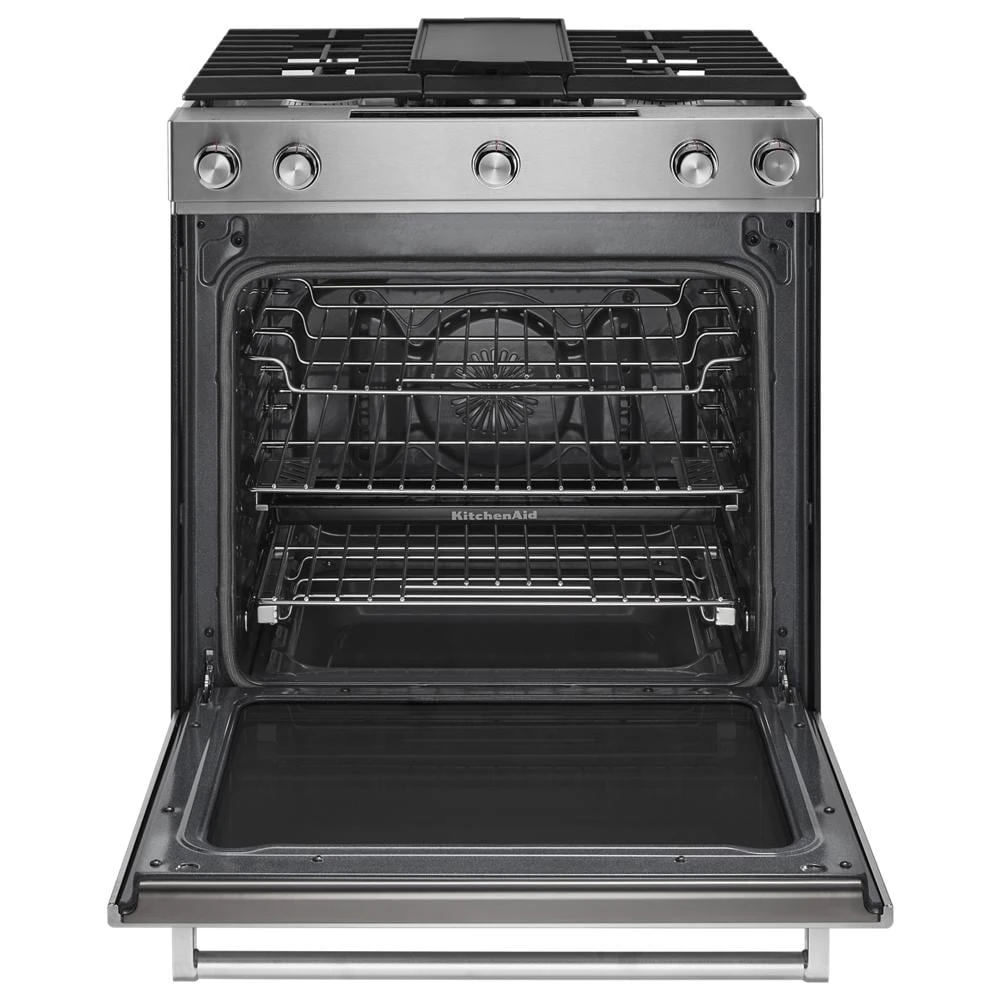

SatinGlide® Max Racks

Move smoothly in and out, allowing effortless loading and unloading, even with large or heavy dishes.

Max Capacity Rack (Sold separately)

The Max Capacity Rack dips down so you have plenty of room for cooking your largest dishes.

Specifications

Controls

Display ColorRed, White
Electronic Display TypeDigital

Cooktop Details

Auto Re-ignitionNo
Cooktop Surface ColorColor Coordinated
Ignition TypeElectronic
Cooktop Surface MaterialStainless Steel
Heating Element On Indicator LightNo
Hot Surface Indicator LightNo
Griddle IncludedNo

Certifications

ADA CompliantADA Height and Operation Compliant
Prop 65Standard
ULYes

Electrical

Amps40
Power Cord IncludedNo
Volts240

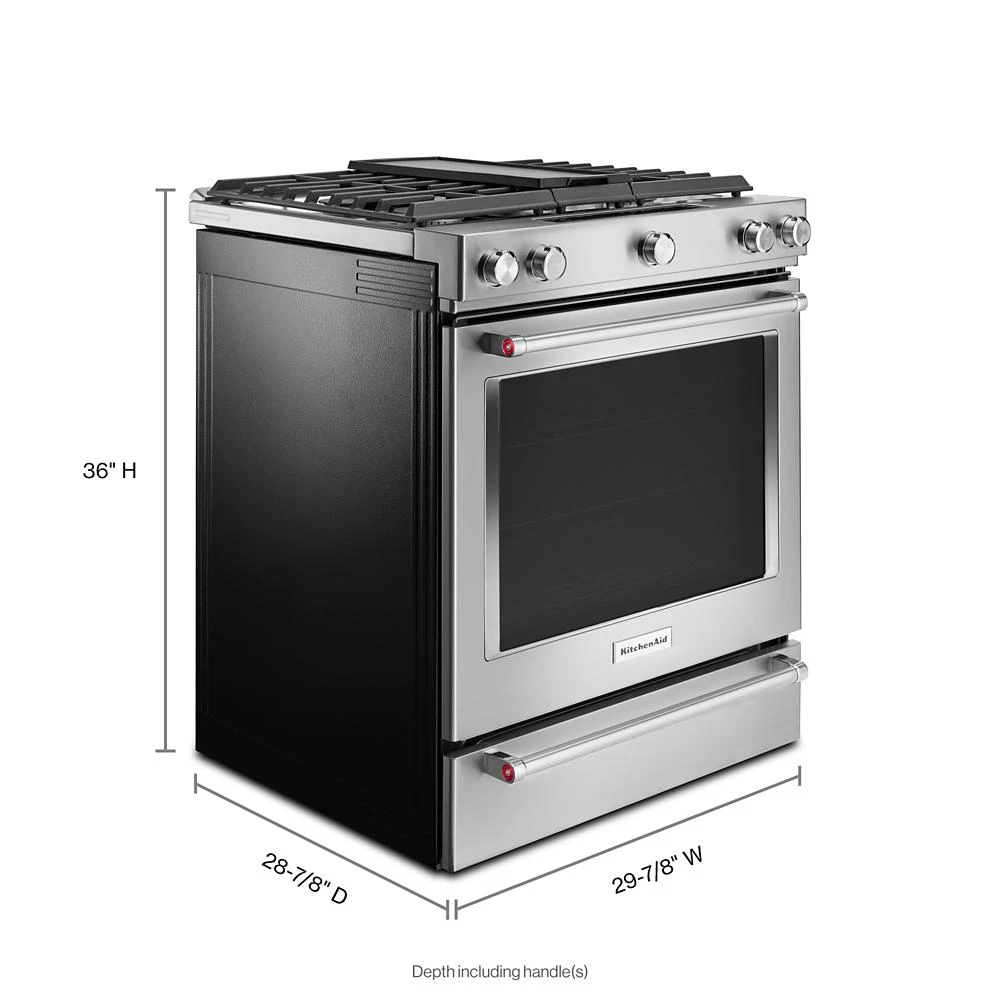

Dimensions & Weight

Width29.88 in.
Height36 in.
Length28.88 in.
Weight251 lbs.
Carton Depth30 9/16
Carton Height43 1/2
Carton Width31 1/2
Depth Closed Excluding Handles26 3/8
Depth Closed Including Handles28 7/8
Depth With Door Open 90 Degree48 3/4
Gross Weight251
Net Weight233.0
Depth Closed Excluding Handles(IN,inches)26.3750
Depth Closed Including Handles(IN,inches)28.8750
Depth With Door Open 90 Degree(IN,inches)48.7500
Net Weight(LB,pounds)233
Carton Depth(IN,inches)30.5625
Carton Height(IN,inches)43.5000
Carton Width(IN,inches)31.5000
Gross Weight(LB,pounds)251

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes1
Shipping Width34.88 in.
Shipping Height41 in.
Shipping Length33.88 in.
Shipping Weight291 lbs.
Total of Shipping Weight291 lbs.
SourceCalculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement17.97 ft³
Dimensional Weight223.42 lbs.
Total of Cubes17.97 ft³
Total of Dimensional Weight223.42 lbs.

Details

Fuel TypeDual Fuel
LP ConvertibleYes
Oven ConfigurationSingle Oven
Power On Indicator LightYes
Power Outage CompatibleNo
Range ConfigurationSlide-In
Range TypeSlide-in

Element/Burner Details

Center Rear Element-Burner TypeSealed Burner
Cooktop Element StyleGas Burner
Left Front Element-Burner TypeSealed Burner
Left Rear Element-Burner TypeSealed Burner
Number of Cooking Element-Burners5
Right Front Element-Burner TypeSealed Burner
Right Rear Element-Burner TypeSealed Burner
Center Rear Element-Burner Power8,000 BTU
Left Front Element-Burner Power19,000 BTU
Left Rear Element-Burner Power5,000 BTU
Number of Grates2
Right Front Element-Burner Power15,000 BTU
Right Rear Element-Burner Power9,200 BTU

Exterior Details

Door TypeMetal & Glass
Oven Control TypeElectronic Touch
Oven Window SizeLarge
Handle ColorStainless Steel
Handle MaterialMetal
Handle TypeTowel Bar
Knob ColorStainless Steel
Knob TypeMetal

Grate Details

Number of Grates2
Grate DetailsCast Iron Grates, Continuous, Dishwasher Safe, Matte Finish

Oven Cavity Details

Automatic Convection Conversion Temperature AdjustYes
Bake Element Power3,600 W
Broiler Element Power4,000 W
Broiler LocationTop of Oven
Convection Element TypeFan
Convection FunctionsBake, Broil, Roast
Hidden Bake ElementYes
Interior ColorGrey
Number of Oven Lights2
Number of Rack Guides7
Oven Cleaning TypeAquaLift® Self Clean
Oven Cooking SystemConvection
Oven Light TypeIncandescent
Convection Element Power3,200 w
Number of Oven Racks2
Oven Rack Type1 Steam Rack, 1 Gliding Roll-out Rack

Features

Range FeaturesADA Compliant, Baking Drawer, EasyConvect™ Conversion, Even-Heat™ True Convection, FIT System, SatinGlide™ Racks, Steam Clean

Dimensions

Capacity7.1 cu. ft.
Common Size30 in
Depth28-7/8 in
Depth Closed Excluding Handles26-3/8 in
Depth Closed Including Handles28-7/8 in
Depth With Door Open 90 Degree48-3/4 in
Gross Weight251 lbs
Height36 in
Net Weight233 lbs
Oven Interior Depth20-1/8 in
Oven Interior Height22-1/8 in
Oven Interior Width24-1/8 in
Width29-7/8 in
