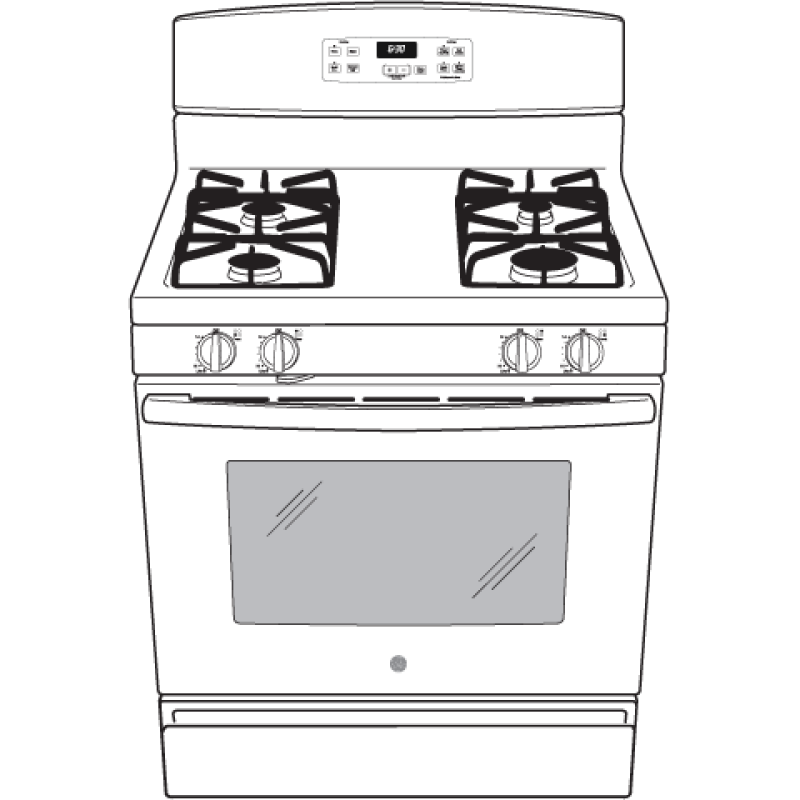

30" Free-Standing Gas Range - JGBS60DEFBB
30" Free-Standing Gas Range
Model: JGBS60DEFBB
Product Video
30" Free-Standing Gas Range
Model: JGBS60DEFBB
Color : Black
Key Features
12,500 BTU burner
Precise Simmer burner
Sealed cooktop burners
Standard clean oven
4.8 cu. ft. oven capacity
Description
Available from Mark's Appliance, serving customers throughout Southern IL & St. Louis, MO.
Features

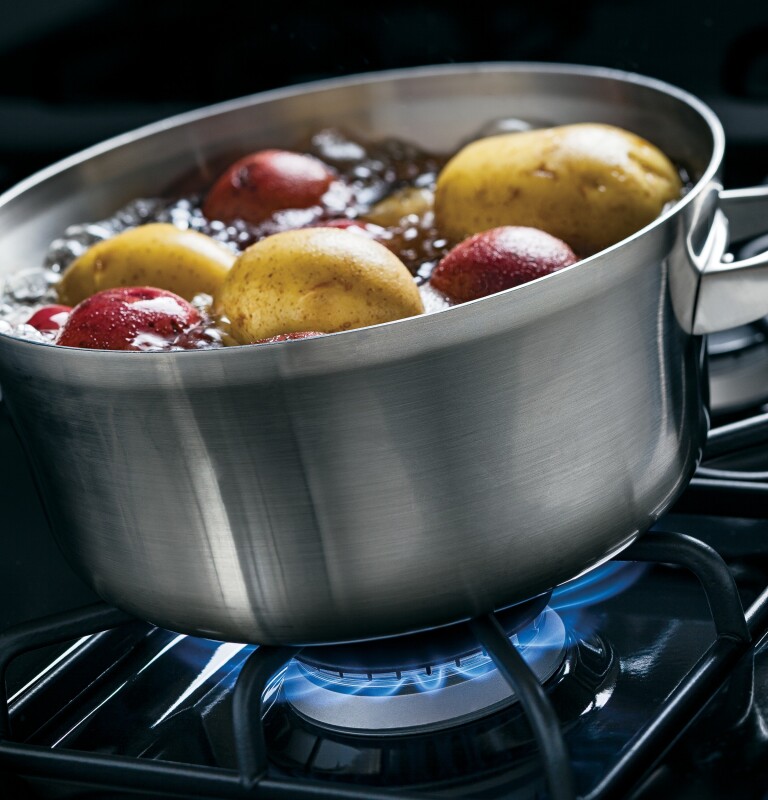

12,500 BTU burner
Quickly produces high heat

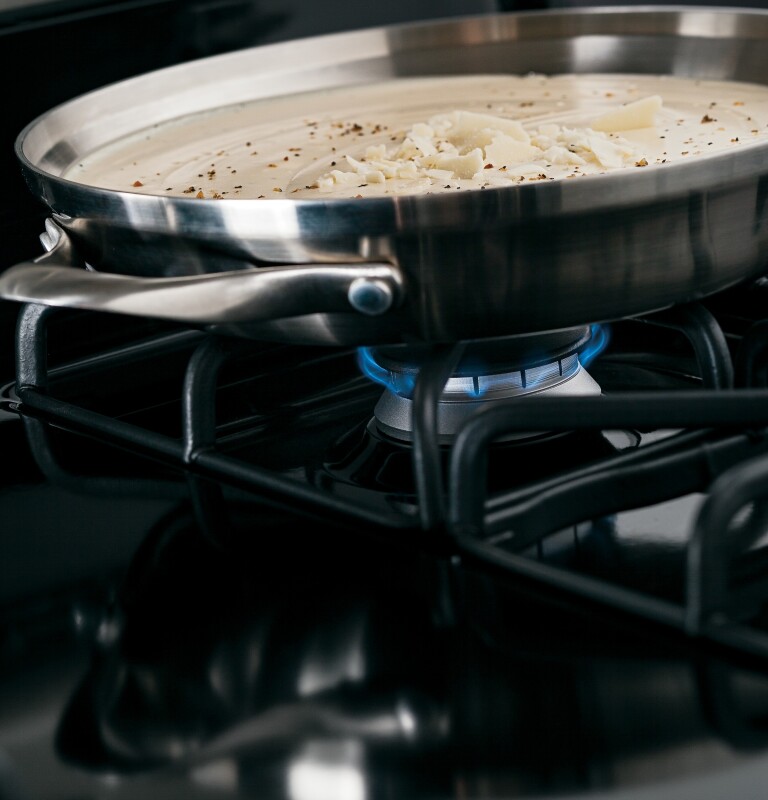

Precise Simmer burner
Delicate foods don’t burn with low, even heat

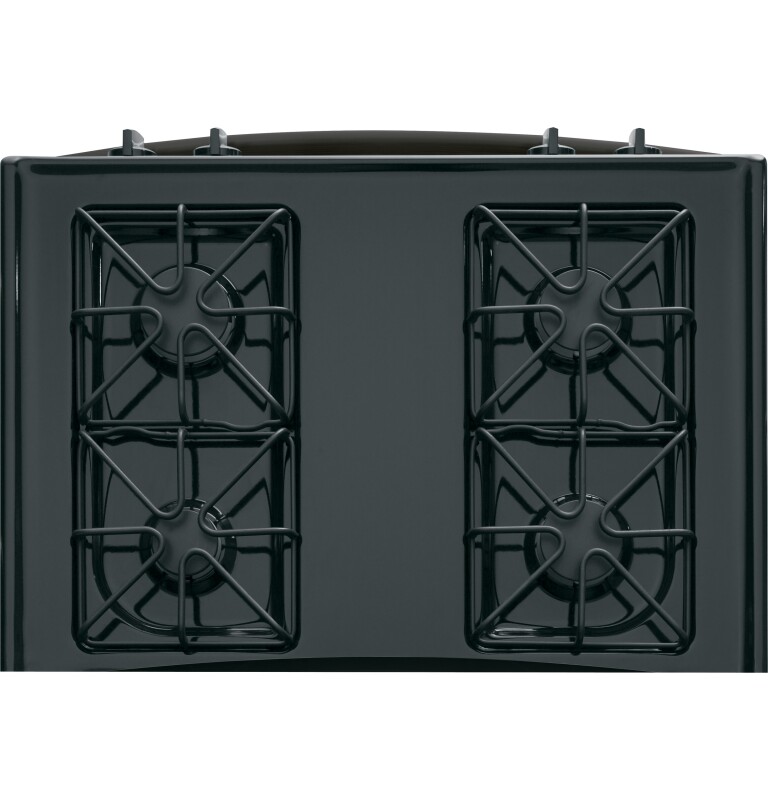

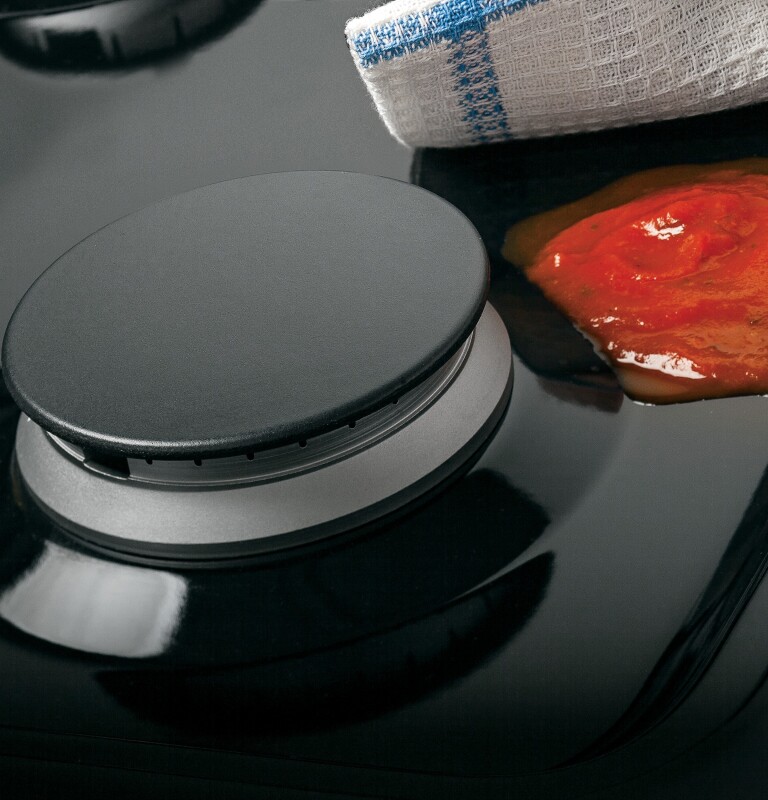

Sealed cooktop burners
Contains spills and make cleaning quick and easy
Standard clean oven
Smooth surface and rounded corners make clean-up quick and easy

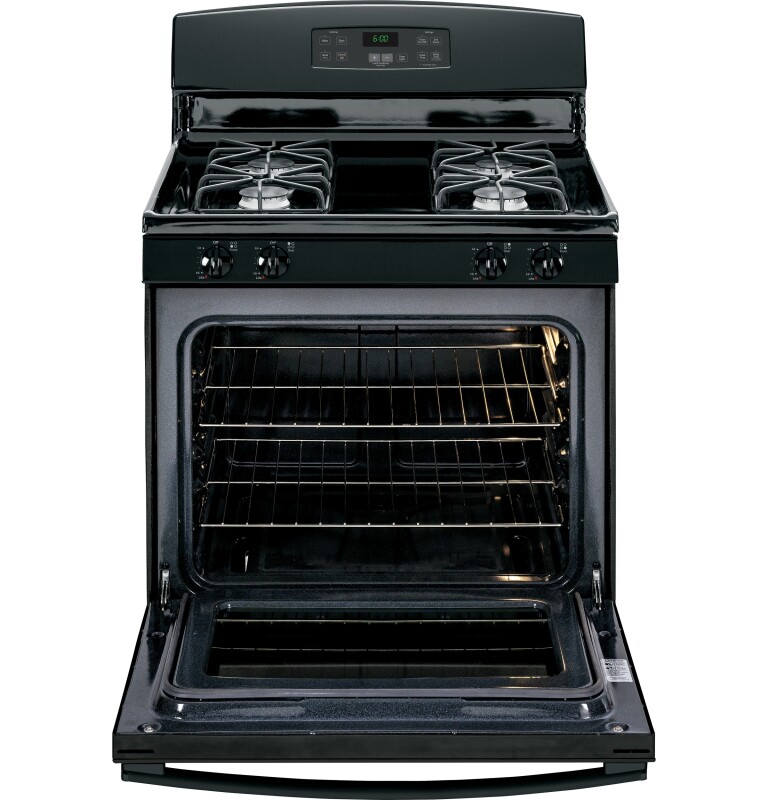

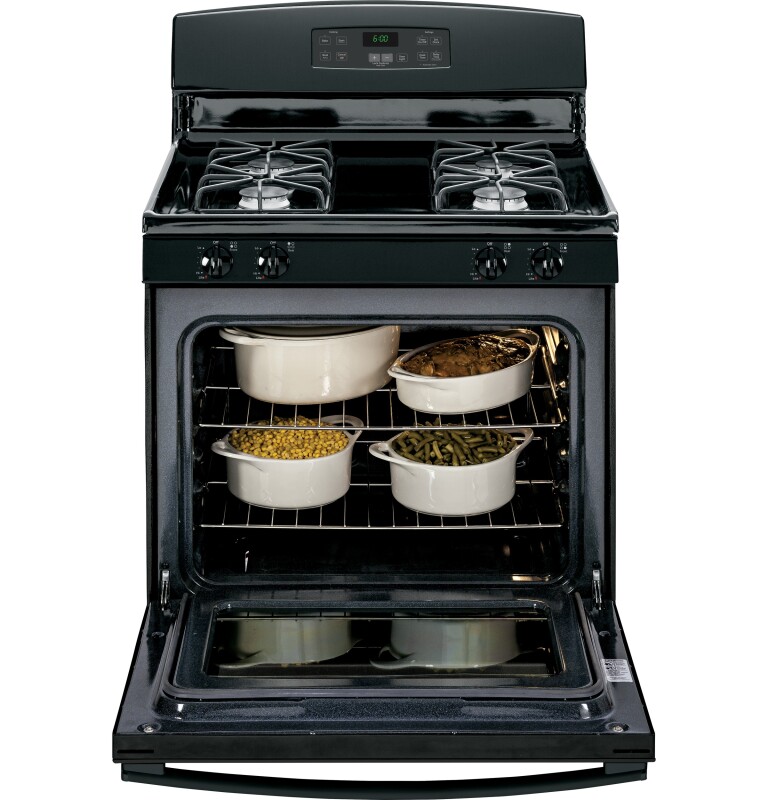

4.8 cu. ft. oven capacity
Enough room to cook an entire meal at once
Certifications
California Prop 65
Specifications
Warranty
| Parts | 1 Year |
| Labor | 1 Year |
WEIGHTS & DIMENSIONS
| Overall Width | 30 in |
| Net Weight | 150 lb |
| Depth Without Handle | 26.25 in |
| Cabinet Width | 30 in |
| Approximate Shipping Weight | 172 lb |
| Depth with Door Open | 46.25 in |
| Oven Interior Dimensions (W x H x D) (in.) | 24 x 18-1/2 x 19 |
| Overall Depth | 28 3/4 in |
| Overall Height | 46 1/4 in |
| Height to Cooking Surface (in.) | 36 - 36.25 |
Other
| Oven Interior Dimensions (W x H x D) (in.) | 24 x 18-1/2 x 19 |
Dimensions & Weight
| Width | 30 in. |
| Height | 46.25 in. |
| Length | 28.75 in. |
| Weight | 150 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 35 in. |
| Shipping Height | 51.25 in. |
| Shipping Length | 33.75 in. |
| Shipping Weight | 190 lbs. |
| Total of Shipping Weight | 190 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 23.08 ft³ |
| Dimensional Weight | 286.98 lbs. |
| Total of Cubes | 23.08 ft³ |
| Total of Dimensional Weight | 286.98 lbs. |
APPEARANCE
| Cooktop Burner Grate Color | Matte Black |
| Handle | Designer Style |
| Oven Door Features | Big View Oven Window |
| Control Knobs | Color-Matched |
| Color Appearance | Black on Black |
| Handle | Color-Matched |
FEATURES
| Ignition System | Electronic |
| Burner - Right Rear | 5,000 BTU Precise Simmer |
| Oven Rack Features | Embossed Rack Positions |
| Burner - Left Rear | 9,500 BTU |
| Oven Cleaning Type | Standard Clean |

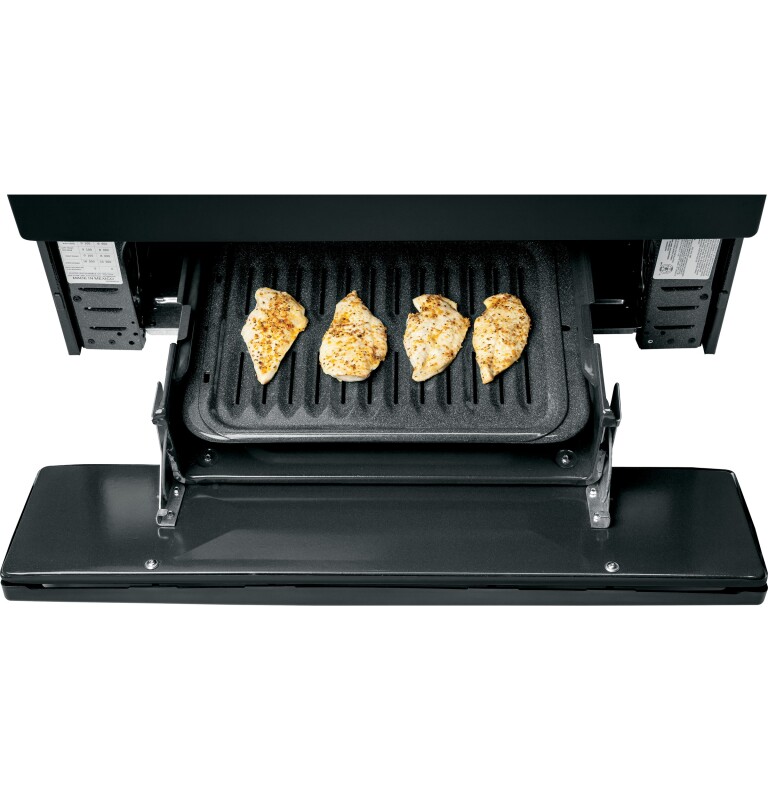

| Slide - Out Broiler Drawer | Yes |
| Product Type | Free-Standing Single Oven |
| Cooktop Type | Standard Grates |
| Cooktop Burner Grate Material | Heavy Steel |
| Fuel Type | Natural Gas |
| Interior Oven Light | 1 Incandescent |
| Control Type | Electronic Touch |
| Burner - Left Front | 9,500 BTU |
| Cooking Technology | Traditional |
| Configuration | Range with Broiler Drawer |
| Cooktop Burner Type | Sealed |
| Burner - Right Front | 12,500 BTU |
| Oven Rack Positions (Single or Upper/Lower) | 6 |
| One-Piece Drip Pans | Optional Accessory |
| Drawer Type | Broiler |
| Cooktop Surface | One-Piece Upswept |
| Oven Control Features | Auto Oven Shut-Off |
| Oven Control Features | Sabbath Mode |
| Cooktop Surface | Porcelain-Enamel |
| Cooktop Surface | Black |
| Oven Control Features | Audible Preheat Signal |
| Oven Control Features | Delay Bake Option |
| Oven Control Features | Electronic Clock and Timer |
| Oven Control Features | Hi / Low Broil |
| Oven Control Features | Oven Control Lock Capability |
| Oven Rack Features | 2 Oven Racks |
POWER / RATINGS
| Top Burner BTU Rating - Nat. Gas (000's BTU's) | (4) 9.5 |
| Volts/Hertz/Amps | 120v; 60Hz; 15A |
| Top Burner BTU Rating - LP (000's BTU's) | (2) 9.5; (1) 11.0; (1) 5.0 |
| Bake/Broiler BTU Rating - Nat. Gas (000's BTU's) | 18.0 Bake / 18.0 Broiler |
| Bake/Broiler BTU Rating - LP (000's BTU's) | 16.5 Bake / 16.5 Broiler |
WARRANTY
| Parts Warranty | Limited 1-year entire appliance |
| Labor Warranty | Limited 1-year entire appliance |
| Warranty Notes | See written warranty for full details |
ACCESSORIES
| LP Conversion Kit | Included |
CAPACITY
| Total Capacity (cubic feet) | 4.80 cu ft |
