30" Free-Standing Electric Range - JBP72DMBB

GEGE brand logo
This product has been discontinued by the manufacture and is no longer available.

30" Free-Standing Electric Range

Model: JBP72DMBB

30" Free-Standing Electric Range JBP72DMBB30" Free-Standing Electric Range JBP72DMBB30" Free-Standing Electric Range JBP72DMBB
30" Free-Standing Electric Range JBP72DMBB
30" Free-Standing Electric Range JBP72DMBB
30" Free-Standing Electric Range JBP72DMBB

Color : Black

30" Free-Standing Electric Range JBP72DMBB
Black

Type : Electric

ElectricGas

Key Features

  • Self-clean oven

  • Super-large oven capacity

  • TrueTemp oven system

  • Dual-size ribbon element

  • Warming zone (fifth element warming zone)

  • QuickSet oven controls

  • Big hearth window

Description

Remarkably large oven interior is ideal for holidays, dinner parties and everyday family cooking.This feature helps ensure the temperature you set is the temperature you get, with less variance, to give you the baking and broiling performance you desire.46 7/8 H x 29 7/8 W x 27 3/4 D
Read More

Available from Mark's Appliance, serving customers throughout Southern IL & St. Louis, MO.

Features
Specifications
Certifications

Features

Self-clean oven

Self-clean allows you to spare yourself from the trouble and effort it takes to scrub the oven interior

Super-large oven capacity

Remarkably large oven interior is ideal for holidays, dinner parties and everyday family cooking

TrueTemp oven system

This feature helps ensure the temperature you set is the temperature you get, with less variance, to give you the baking and broiling performance you desire

Dual-size ribbon element

Two heating elements in one allows you to choose a heating area for your cookware

Warming zone (fifth element warming zone)

Simplify meals by keeping foods fresh from the oven warm and ready to serve

QuickSet oven controls

Electronic touch pads on the control panel make controlling your oven effortless

Big hearth window

Elegant shaped window makes it easy to monitor the progress of food

Certifications

California Prop 65 certification

California Prop 65

Specifications

Other

Oven Interior Dimensions (W x H x D) (in.)24-1/8 x 19-1/2 x 19-3/8

Dimensions & Weight

Width29.88 in.
Height46.88 in.
Length27.75 in.
Weight157 lbs.

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes1
Shipping Width34.88 in.
Shipping Height51.88 in.
Shipping Length32.75 in.
Shipping Weight197 lbs.
Total of Shipping Weight197 lbs.
SourceCalculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement22.49 ft³
Dimensional Weight279.57 lbs.
Total of Cubes22.49 ft³
Total of Dimensional Weight279.57 lbs.

FEATURES

ConfigurationRange with Storage Drawer
Oven FeaturesDual-Element Bake
Cleaning TimeVariable with Delay Clean Option
Storage Drawer FeaturesRemovable Full-Width
Interior Oven LightYes
5"/8" Dual Heating Element1 Ribbon (1,900W)
Warming Zone1-6" Ribbon (120W)
Cooktop Burner TypeSmoothtop
Oven Rack Features2 Oven Racks
Infinite Heat ControlsYes
Temperature Management SystemTrue Temp System
6" Heating Element(s)2 Ribbon (1,500W)
Oven Cleaning TypeSelf-Clean
Hot Surface Indicator Lights1, Cooktop
StyleSmoothtop
Heating Element "ON" Indicator LightYes
9"/12" Dual Heating Element1 Ribbon (3,000W)
Cooktop SurfacePatterned Graphite on Black Glass Ceramic
Preheated Oven LightDisplay
Control LocationBacksplash
Dishwasher Safe KnobsYes
Cooking TechnologyTraditional
Control TypeQuickSet IV
Oven Control FeaturesAuto Oven Shut-Off with Override
Oven Control FeaturesVariable Broil
Control TypeTouchpads
Control TypeDigiTemp Temperature Display
Cooktop Burner TypeRadiant
Cooktop SurfaceOne-Piece Upswept
Oven Control FeaturesDelay Bake Option (Time Bake)
Oven Control FeaturesC° or F° Programmable
Oven Control FeaturesAudible Preheat Signal
Oven Control FeaturesAuto Self Clean
Oven Control FeaturesElectronic Clock & Kitchen Timer
Oven Control FeaturesStart Pad
Oven Control FeaturesSelf-Cleaning Cycling Light
Oven Control FeaturesSelf-Clean Cool Down Time Display
Oven Control FeaturesOven "ON" Light
Oven Control FeaturesSabbath Mode
Oven Control FeaturesDelay Clean Option
Oven Control FeaturesMis-Wire Detection
Oven Features6-Pass Power Bake Element

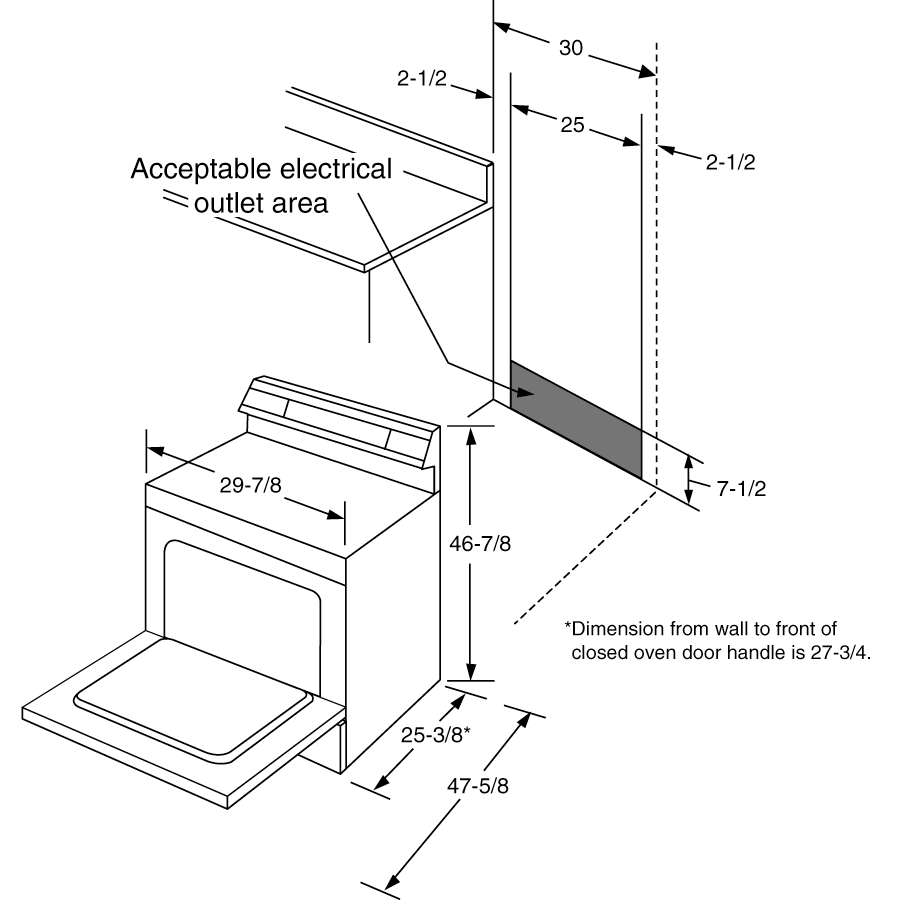

WEIGHTS & DIMENSIONS

Net Weight157 lb
Depth Without Handle25.375 in
Oven Interior Dimensions (W x H x D) (in.)24-1/8 x 19-1/2 x 19-3/8
Depth with Door Open47.625 in
Cabinet Width30 in
Approximate Shipping Weight177 lb
Overall Depth27 3/4 in
Overall Height46 7/8 in
Overall Width29 7/8 in

POWER / RATINGS

KW Rating at 240V11.9
Amp Rating at 208V40
KW Rating at 208V8.9
Amp Rating at 240V40

CAPACITY

Unit CapacitySuper Large Oven
Total Capacity (cubic feet)5.30 cu ft

APPEARANCE

HandleColor-Matched Sculptured
Textured Steel Side PanelsYes
Color AppearanceBlack on Black
Oven Door FeaturesBlack Frameless Glass Door
Oven Door FeaturesFrameless Lift-off Oven Door
Oven Door FeaturesBig Hearth Oven Window

WARRANTY

Labor WarrantyLimited 1-year entire appliance
Parts WarrantyLimited 1-year entire appliance
Warranty NotesSee written warranty for full details
Warranty NotesFor models produced on or after January 1, 2006

ACCESSORIES

Cooktop CleaningIncluded
Cooktop CleaningSponge
Cooktop CleaningCream
