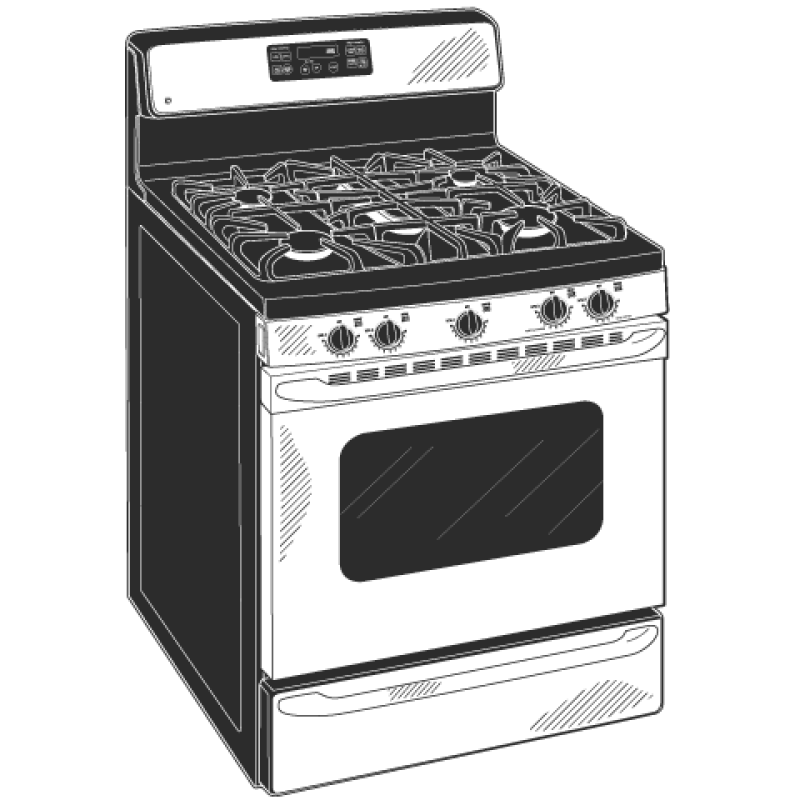

30" Free-Standing Gas Range - JGBP86SEKSS
30" Free-Standing Gas Range
Model: JGBP86SEKSS






30" Free-Standing Gas Range
Model: JGBP86SEKSS
Key Features
Self-clean oven
Extra-large oven capacity
Center oval burner
Non-stick griddle
Power Boil 16,000 BTU Burner
Electronic pilotless ignition
Audible preheat signal
Interior oven light
Description
Available from Mark's Appliance, serving customers throughout Southern IL & St. Louis, MO.
Features
Self-clean oven
Conveniently cleans the oven cavity without need of scrubbing
Extra-large oven capacity
Provides a large oven interior ideal for cooking more items at once
Center oval burner
Adds a fifth element to the center of the cooktop, ideal for griddle or odd-size cookware
Non-stick griddle
Offers a flat cooking surface, placed over the center oval burner, for cooking multiple foods at once
Power Boil 16,000 BTU Burner
Delivers 16,000 BTUs of forceful heat for rapid boiling
Electronic pilotless ignition
Provides reliable burner ignition operation, eliminating the need for a standing pilot
Audible preheat signal
Features an audible signal that activates when the oven has reached the desired cooking temperature
Interior oven light
Supplies light to make viewing the progress of cooking easy and convenient
Six rack positions
Provides flexibility and allows consumers to make the most of available oven capacity
Frameless glass oven door
Offers an easy-to-clean and stylish design that blends seamlessly into existing cabinetry
TrueTemp system
Delivers even heat distribution and maximum oven control
Sealed cooktop burners
Eliminate the space between the burners and the cooktop to help contain spills and boil over liquids, ensuring easy cleanup
Continuous grates
Provide a flat, sturdy surface allowing easy movement of pans between burners
Precise Simmer burner
Delivers a low setting of 140 degrees, ideal for delicate foods and sauces
QuickSet V oven controls
Features an easy to use design that allows you to set precise cooking temperatures
Certifications
California Prop 65
Specifications
WARRANTY
| Labor Warranty | Limited 1-year entire appliance |
| Parts Warranty | Limited 1-year entire appliance |
| Warranty Notes | See written warranty for full details |
| Warranty Notes | For models produced on or after January 1, 2006 |

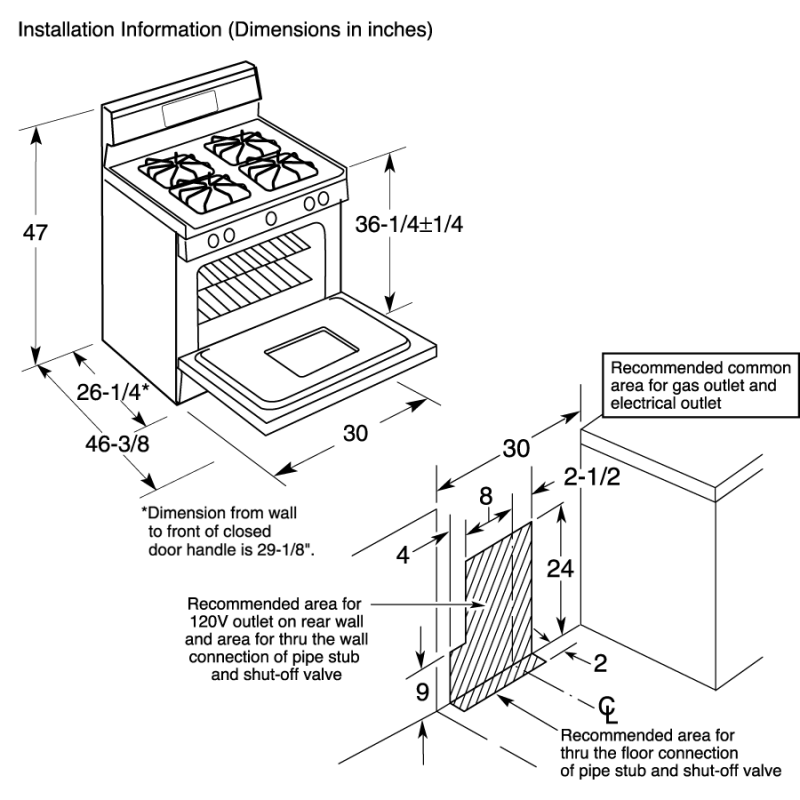

WEIGHTS & DIMENSIONS
| Overall Width | 30 in |
| Net Weight | 205 lb |
| Oven Interior Dimensions (W x H x D) (in.) | 24 x 19 x 19 |
| Depth with Door Open 90° | 46.375 in |
| Cabinet Width | 30 in |
| Approximate Shipping Weight | 225 lb |
| Overall Depth | 26 1/4 in |
| Overall Height | 47 1/2 in |
| Height to Cooking Surface (in.) | 36.25 +/- .25 |
Other
| Oven Interior Dimensions (W x H x D) (in.) | 24 x 19 x 19 |
Dimensions & Weight
| Width | 30 in. |
| Height | 47.5 in. |
| Length | 26.25 in. |
| Weight | 205 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 35 in. |
| Shipping Height | 52.5 in. |
| Shipping Length | 31.25 in. |
| Shipping Weight | 245 lbs. |
| Total of Shipping Weight | 245 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 21.65 ft³ |
| Dimensional Weight | 269.11 lbs. |
| Total of Cubes | 21.65 ft³ |
| Total of Dimensional Weight | 269.11 lbs. |
FEATURES
| Configuration | Range with Warming Drawer |
| Cleaning Time | Variable |
| Ignition System | Electronic |
| Interior Oven Light | Yes |
| Fuel Type | Natural Gas |
| Cooktop Burner Type | Sealed |
| Oven Rack Features | Embossed Rack Positions |
| Power Boil Burner | (1) 16,000 BTU |
| Temperature Management System | True Temp System |
| Oven Cleaning Type | Self-Clean |
| High Output Burner | (1) 11,000 BTU/150F degree simmer |
| Griddle | Non-Stick |
| All-Purpose Burners | (1) 9,100 BTU/150F degree simmer |
| Cooktop Burner Grate Material | Heavy Cast |
| Valves (Degree of Turn) | 270 |
| Cooktop Burner Grate Features | Dishwasher Safe |
| Backguard | Scratch-Resistant |
| Center Oval Burner | (1) 6,000 BTU |
| Cooktop Surface | Porcelain-Enamel Recessed |
| Oven Rack Positions (Single or Upper/Lower) | 6 |
| Leveling System | 4 Leveling Legs |
| Control Type | QuickSet V |
| Precise Simmer Burner | (1) 5,000 BTU/140F degree simmer |
| Self-Clean Oven Door Lock | Manual |
| Oven Control Features | Auto Oven Shut-Off |
| Oven Control Features | Self-Clean Cool Down Time Display |
| Control Type | Digital Temperature Display |
| Cooktop Burner Grate Features | Continuous Grates |
| Cooktop Surface | One-Piece Upswept |
| Oven Control Features | Delay Bake Option (Time Bake) |
| Oven Control Features | Audible Preheat Signal |
| Oven Control Features | Auto Self Clean |
| Oven Control Features | Electronic Clock and Timer |
| Oven Control Features | Automatic Oven Timer (Time Bake) |
| Oven Control Features | Sabbath Mode |
| Oven Control Features | Control Lock Capability |
| Oven Control Features | Delay Clean Option |
| Oven Control Features | Hi / Low Broil |
| Oven Control Features | In-Oven Broiling |
| Oven Rack Features | 2 Oven Racks |
| Backguard | Porcelain-Enameled |
APPEARANCE
| Cooktop Burner Grate Color | Black |
| Oven Door Features | Big Clear View Oven Window |
| Handle | Designer Style |
| Frameless Oven Door(s) | Stainless Steel |
| Control Knobs | Designer-Style |
| Color Appearance | Stainless Steel |
CAPACITY
| Unit Capacity | Extra Large Oven |
| Total Capacity (cubic feet) | 5.00 cu ft |
ACCESSORIES
| LP Conversion Kit | Included |
POWER / RATINGS
| Top Burner BTU Rating - Nat. Gas (000's BTU's) | (1) 16.0; (1) 11.0; (1) 9.1; (1) 6.0; (1) 5.0 |
| Volts/Hertz/Amps | 120V; 60Hz; 5A |
| Bake/Broiler BTU Rating - Nat. Gas (000's BTU's) | 16.0 Bake / 12.5 Broiler |
| Bake/Broiler BTU Rating - LP (000's BTU's) | 16.0 Bake / 12.0 Broiler |
