30" Free-Standing Electric Range - JBP80DMBB
30" Free-Standing Electric Range
Model: JBP80DMBB
30" Free-Standing Electric Range
Model: JBP80DMBB
Color : Black
Key Features
Self-clean oven
Super-large oven capacity
TrueTemp oven system
9"/6" Power Boil element
Dual-size ribbon element
Warming zone (fifth element warming zone)
Self-clean, heavy-duty oven racks
QuickSet oven controls
Description
Available from Mark's Appliance, serving customers throughout Southern IL & St. Louis, MO.
Features
Self-clean oven
Self-clean allows you to spare yourself from the trouble and effort it takes to scrub the oven interior
Super-large oven capacity
Remarkably large oven interior is ideal for holidays, dinner parties and everyday family cooking
TrueTemp oven system
This feature helps ensure the temperature you set is the temperature you get, with less variance, to give you the baking and broiling performance you desire
9"/6" Power Boil element
Accommodates various-size pots or pans and 3,000 Watts of power speeds the boiling process
Dual-size ribbon element
Two heating elements in one allows you to choose a heating area for your cookware
Warming zone (fifth element warming zone)
Simplify meals by keeping foods fresh from the oven warm and ready to serve
Self-clean, heavy-duty oven racks
Tough, double-coated racks can stay in the oven during the self-clean cycle to eliminate hand cleaning
QuickSet oven controls
Electronic touch pads on the control panel make controlling your oven effortless
Certifications
California Prop 65
Specifications
Other
| Oven Interior Dimensions (W x H x D) (in.) | 24-1/8 x 19-1/2 x 19-3/8 |
Dimensions & Weight
| Width | 29.88 in. |
| Height | 46.88 in. |
| Length | 27.75 in. |
| Weight | 155 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 34.88 in. |
| Shipping Height | 51.88 in. |
| Shipping Length | 32.75 in. |
| Shipping Weight | 195 lbs. |
| Total of Shipping Weight | 195 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 22.49 ft³ |
| Dimensional Weight | 279.57 lbs. |
| Total of Cubes | 22.49 ft³ |
| Total of Dimensional Weight | 279.57 lbs. |
FEATURES
| 6"/9" Dual Heating Element | 1 Ribbon (3,000W Power Boil) |
| Configuration | Range with Storage Drawer |
| Oven Features | Dual-Element Bake |
| Cleaning Time | Variable with Delay Clean Option |
| Storage Drawer Features | Removable Full-Width |
| Interior Oven Light | Yes |
| Warming Zone | 1-6" Ribbon (120W) |
| Cooktop Burner Type | Smoothtop |
| Oven Rack Features | 2 Self-Clean Heavy-Duty Oven Racks |
| Infinite Heat Controls | Yes |
| Temperature Management System | True Temp System |
| 6" Heating Element(s) | 2 Ribbon (1,500W) |
| Oven Cleaning Type | Self-Clean |
| Hot Surface Indicator Lights | 1, Cooktop |
| Style | Smoothtop |
| Heating Element "ON" Indicator Light | Yes |
| 9"/12" Dual Heating Element | 1 Ribbon (3,000W) |
| Cooktop Surface | Patterned Graphite on Black Glass Ceramic |
| Preheated Oven Light | Display |
| Control Location | Backsplash |
| Dishwasher Safe Knobs | Yes |
| Cooking Technology | Traditional |
| Control Type | QuickSet IV |
| Oven Control Features | Auto Oven Shut-Off with Override |
| Oven Control Features | Variable Broil |
| Control Type | Touchpads |
| Control Type | DigiTemp Temperature Display |
| Cooktop Burner Type | Radiant |
| Cooktop Surface | One-Piece Upswept |
| Oven Control Features | Delay Bake Option (Time Bake) |
| Oven Control Features | C° or F° Programmable |
| Oven Control Features | Audible Preheat Signal |
| Oven Control Features | Auto Self Clean |
| Oven Control Features | Electronic Clock & Kitchen Timer |
| Oven Control Features | Start Pad |
| Oven Control Features | Self-Cleaning Cycling Light |
| Oven Control Features | Self-Clean Cool Down Time Display |
| Oven Control Features | Oven "ON" Light |
| Oven Control Features | Sabbath Mode |
| Oven Control Features | Delay Clean Option |
| Oven Control Features | Mis-Wire Detection |
| Oven Features | 6-Pass Power Bake Element |

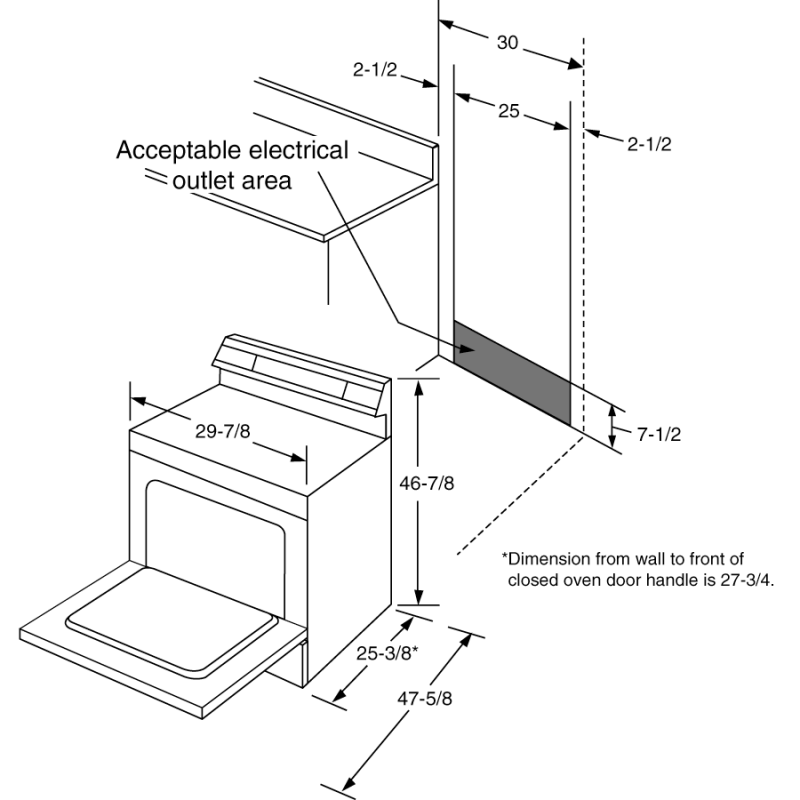

WEIGHTS & DIMENSIONS
| Net Weight | 155 lb |
| Depth Without Handle | 25.375 in |
| Oven Interior Dimensions (W x H x D) (in.) | 24-1/8 x 19-1/2 x 19-3/8 |
| Depth with Door Open | 47.625 in |
| Cabinet Width | 30 in |
| Approximate Shipping Weight | 175 lb |
| Overall Depth | 27 3/4 in |
| Overall Height | 46 7/8 in |
| Overall Width | 29 7/8 in |
POWER / RATINGS
| KW Rating at 240V | 13.0 |
| Amp Rating at 208V | 40 |
| KW Rating at 208V | 9.8 |
| Amp Rating at 240V | 40 |
CAPACITY
| Unit Capacity | Super Large Oven |
| Total Capacity (cubic feet) | 5.30 cu ft |
APPEARANCE
| Handle | Color-Matched Sculptured |
| Textured Steel Side Panels | Yes |
| Color Appearance | Black on Black |
| Oven Door Features | Black Frameless Glass Door |
| Oven Door Features | Frameless Lift-off Oven Door |
| Oven Door Features | Big Hearth Oven Window |
WARRANTY
| Labor Warranty | Limited 1-year entire appliance |
| Parts Warranty | Limited 1-year entire appliance |
| Warranty Notes | See written warranty for full details |
| Warranty Notes | For models produced on or after January 1, 2006 |
ACCESSORIES
| Cooktop Cleaning | Included |
| Cooktop Cleaning | Sponge |
| Cooktop Cleaning | Cream |
