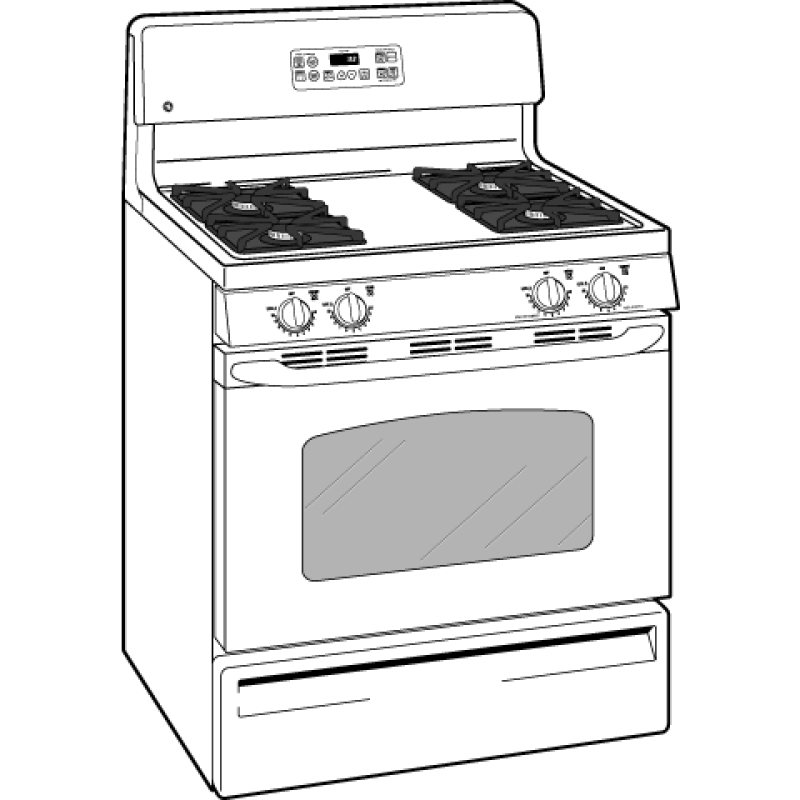

30" Free-Standing Gas Range - JGBP33BELBB
30" Free-Standing Gas Range
Model: JGBP33BELBB
30" Free-Standing Gas Range
Model: JGBP33BELBB
Color : Black
Key Features
Self-clean oven
Extra-large oven capacity
TrueTemp system
QuickSet IV oven controls
High output burner
Precise Simmer burner
Big hearth window
Frameless glass oven door
Description
Available from Mark's Appliance, serving customers throughout Southern IL & St. Louis, MO.
Features
Self-clean oven
Conveniently cleans the oven cavity without need of scrubbing
Extra-large oven capacity
Provides a large oven interior ideal for cooking more items at once
TrueTemp system
Delivers even heat distribution and your maximum oven control
QuickSet IV oven controls
Feature an easy to use design which allows you to set precise cooking temperatures
High output burner
Provides a powerful burner output for efficient heat-up and boiling
Precise Simmer burner
Offers a low setting of 600 BTUs, ensuring more temperature control for simmering
Big hearth window
Features an enhanced shape to add an elegant appearance and make viewing trouble-free
Frameless glass oven door
Offers an easy-to-clean and stylish design that blends seamlessly into existing cabinetry
Medium cast grates
Constructed from a durable cast iron material for long-lasting performance and reliability
Sealed cooktop burners
Eliminate the space between the burners and the cooktop to help contain spills and boil over liquids, ensuring easy cleanup
All purpose burners
Deliver a wide range of heat output ideal for most cooking needs
Certifications
California Prop 65
Specifications
Warranty
| Parts | 1 Year |
| Labor | 1 Year |

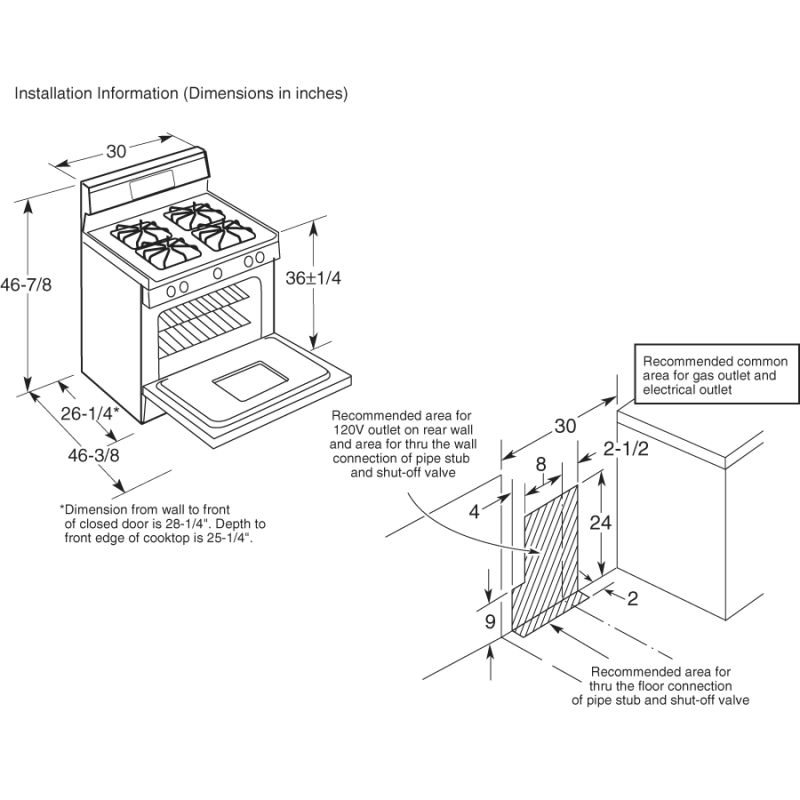

WEIGHTS & DIMENSIONS
| Overall Width | 30 in |
| Net Weight | 205 lb |
| Oven Interior Dimensions (W x H x D) (in.) | 24 x 18-1/2 x 19 |
| Cabinet Width | 30 in |
| Approximate Shipping Weight | 225 lb |
| Overall Depth | 26 1/4 in |
| Overall Height | 46 7/8 in |
Other
| Oven Interior Dimensions (W x H x D) (in.) | 24 x 18-1/2 x 19 |
Dimensions & Weight
| Width | 30 in. |
| Height | 46.88 in. |
| Length | 26.25 in. |
| Weight | 205 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 35 in. |
| Shipping Height | 51.88 in. |
| Shipping Length | 31.25 in. |
| Shipping Weight | 245 lbs. |
| Total of Shipping Weight | 245 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 21.36 ft³ |
| Dimensional Weight | 265.57 lbs. |
| Total of Cubes | 21.36 ft³ |
| Total of Dimensional Weight | 265.57 lbs. |
FEATURES
| Configuration | Range with Storage Drawer |
| Cleaning Time | Variable |
| Ignition System | Electronic |
| Interior Oven Light | Yes |
| Fuel Type | Natural Gas |
| Cooktop Burner Type | Sealed |
| Oven Rack Features | Embossed Rack Positions |
| Temperature Management System | True Temp System |
| Oven Cleaning Type | Self-Clean |
| High Output Burner | (1) 13,000/1,000 BTU |
| All-Purpose Burners | (2) 9,500/850 BTU |
| Cooktop Burner Grate Material | Standard Cast |
| Valves (Degree of Turn) | 270 |
| Backguard | Scratch-Resistant |
| Cooktop Surface | Porcelain-Enamel |
| Oven Rack Positions (Single or Upper/Lower) | 6 |
| Leveling System | 4 Leveling Legs |
| Control Type | QuickSet IV |
| Precise Simmer Burner | (1) 5,000/600 BTU |
| One-Piece Drip Pans | Black Porcelain-Enameled |
| Oven Control Features | Auto Oven Shut-Off |
| Oven Control Features | Self-Clean Cool Down Time Display |
| Control Type | Digital Temperature Display |
| Cooktop Burner Grate Material | Square |
| Cooktop Surface | One-Piece Upswept |
| Oven Control Features | Delay Bake Option (Time Bake) |
| Oven Control Features | Audible Preheat Signal |
| Oven Control Features | Auto Self Clean |
| Oven Control Features | Electronic Clock and Timer |
| Oven Control Features | Automatic Oven Timer (Time Bake) |
| Oven Control Features | Sabbath Mode |
| Oven Control Features | Delay Clean Option |
| Oven Control Features | In-Oven Broiling |
| Oven Rack Features | 3 Oven Racks |
| Backguard | Porcelain-Enameled |
APPEARANCE
| Cooktop Burner Grate Color | Black |
| Oven Door Features | Big Hearth Oven Window |
| Handle | High-Gloss Color-Matched Sculptured |
| Frameless Oven Door(s) | Black Glass |
| Control Knobs | Designer-Style |
| Color Appearance | Black on Black |
POWER / RATINGS
| Top Burner BTU Rating - Nat. Gas (000's BTU's) | (1) 13.0; (2) 9.5; (1) 5.0 |
| Volts/Hertz/Amps | 120V; 60Hz; 5A |
| Top Burner BTU Rating - LP (000's BTU's) | (1) 11.0; (2) 9.5; (1) 5.0 |
| Bake/Broiler BTU Rating - Nat. Gas (000's BTU's) | 16.0 Bake / 12.5 Broiler |
| Bake/Broiler BTU Rating - LP (000's BTU's) | 16.0 Bake / 12.0 Broiler |
CAPACITY
| Unit Capacity | Extra Large Oven |
| Total Capacity (cubic feet) | 4.80 cu ft |
WARRANTY
| Labor Warranty | Limited 1-year entire appliance |
| Parts Warranty | Limited 1-year entire appliance |
| Warranty Notes | See written warranty for full details |
