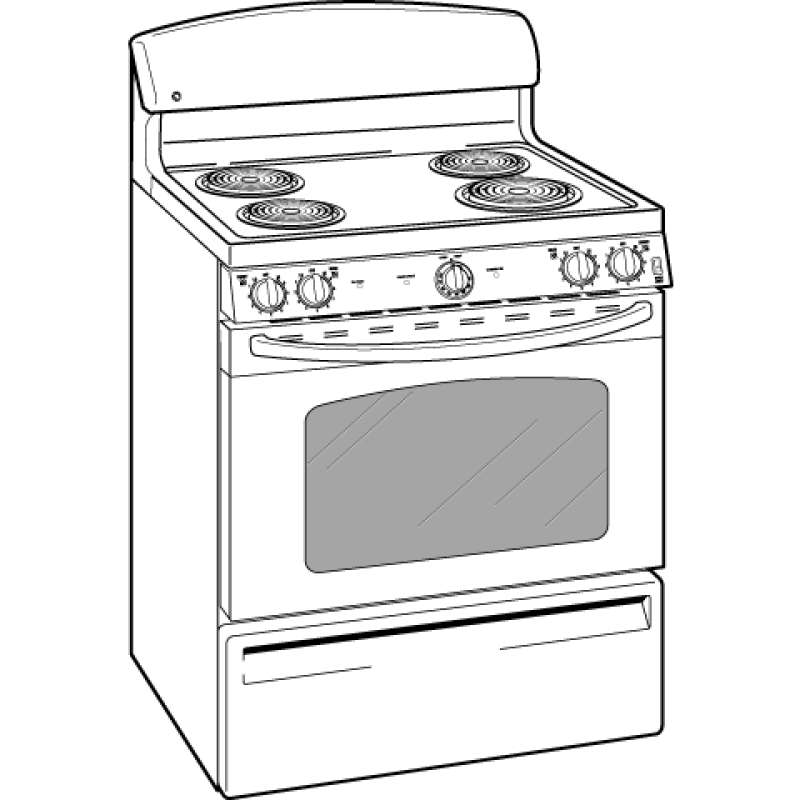

30" Free-Standing Electric Range - JBP15DMBB
30" Free-Standing Electric Range
Model: JBP15DMBB
Product Video
30" Free-Standing Electric Range
Model: JBP15DMBB
Color : Black
Key Features
Self-clean oven
Upfront controls
5.0 cu. ft. oven capacity
Coil heating elements
Big hearth window
Description
Available from Mark's Appliance, serving customers throughout Southern IL & St. Louis, MO.
Features
Self-clean oven
Cleans the oven cavity without the need for scrubbing
Upfront controls
Controls are within easy reach
5.0 cu. ft. oven capacity
Enough room to cook an entire meal at once
Coil heating elements
Provide even heat and easy cleanup
Big hearth window
Makes monitoring of foods easy
Certifications
ADA Compliant
California Prop 65
Specifications

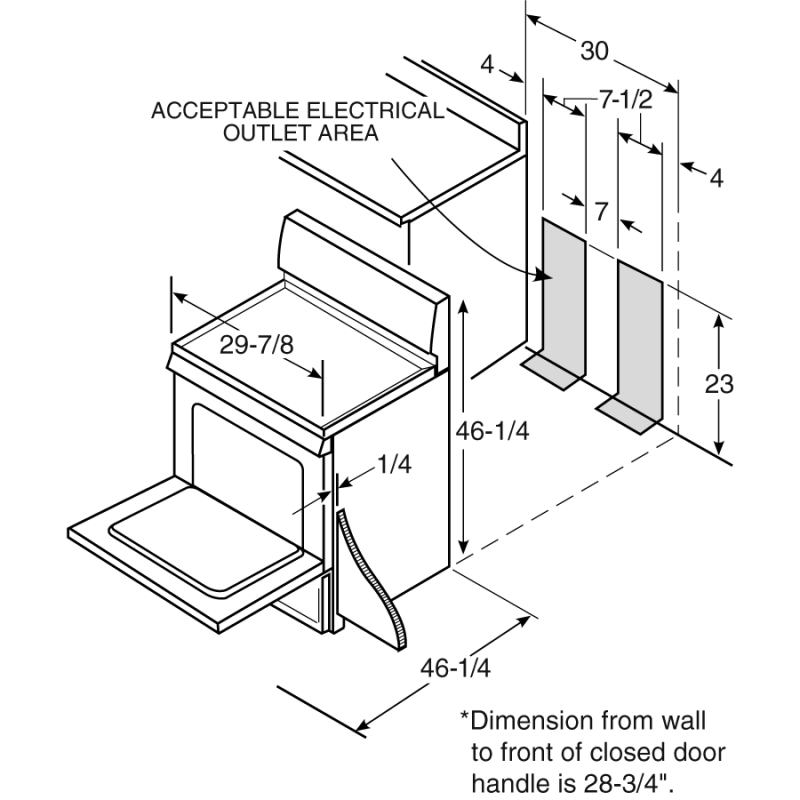

WEIGHTS & DIMENSIONS
| Overall Width | 29.875 in |
| Overall Height | 46.875 in |
| Overall Depth | 27.125 in |
| Net Weight | 149 lb |
| Depth Without Handle | 26.25 in |
| Oven Interior Dimensions (W x H x D) (in.) | 22-3/4 x 15-3/4 x 17 |
| Depth with Door Open | 46.25 in |
| Cabinet Width | 30 in |
| Approximate Shipping Weight | 170 lb |
FEATURES
| Configuration | Range with Storage Drawer |
| Element - Right Front | 8" 2600W 5-turn |
| Oven Features | Dual-Element Bake |
| Lift-Up Cooktop With Support Rods | Yes |
| Removable One-Piece Drip Bowls | Black Porcelain Enameled |
| Storage Drawer Features | Removable Full-Width |
| Oven Interior | Interior Oven Light |
| Cooktop Burner Type | Coil |
| Oven Rack Features | 2 Oven Racks |
| Element - Left Front | 6" 1500W 3-turn |
| Infinite Heat Controls | Yes |
| Oven Cleaning Type | Self-Clean |
| Heating Element "ON" Indicator Light | Yes |
| Element - Left Rear | 6" 1500W 3-turn |
| Element - Right Rear | 6" 1500W 3-turn |
| Cooktop Surface | Porcelain-Enamel |
| Cooking Technology | Traditional |
| Oven Control Features | Self-Cleaning Cycling Light |
POWER / RATINGS
| KW Rating at 240V | 9.8 |
| Amp Rating at 208V | 40 |
| KW Rating at 208V | 7.4 |
| Amp Rating at 240V | 40 |
APPEARANCE
| Oven Door Features | Black Glass Frameless Lift-off Oven Door |
| Textured Steel Side Panels | Yes |
| Handle Design | D-shaped |
| Handle Color | Color-Matched |
| Color Appearance | Black on Black |
WARRANTY
| Labor Warranty | Limited 1-year entire appliance |
| Parts Warranty | Limited 1-year entire appliance |
| Warranty Notes | See written warranty for full details |
CAPACITY
| Total Capacity (cubic feet) | 5 cu ft |
Other
| Oven Interior Dimensions (W x H x D) (in.) | 22-3/4 x 15-3/4 x 17 |
Dimensions & Weight
| Width | 29.88 in. |
| Height | 46.88 in. |
| Length | 27.13 in. |
| Weight | 149 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 34.88 in. |
| Shipping Height | 51.88 in. |
| Shipping Length | 32.13 in. |
| Shipping Weight | 189 lbs. |
| Total of Shipping Weight | 189 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 21.98 ft³ |
| Dimensional Weight | 273.28 lbs. |
| Total of Cubes | 21.98 ft³ |
| Total of Dimensional Weight | 273.28 lbs. |
