Heated Cabinet, Single Section Upright, Full Stainless Door with Lock - HC1AFS

HoshizakiHoshizaki brand logo

Heated Cabinet, Single Section Upright, Full Stainless Door with Lock

Model: HC1AFS

HC1A-FS, Heated Cabinet, Single Section Upright, Full Stainless Door with LockTitle HC1AFSHC1A-FS, Heated Cabinet, Single Section Upright, Full Stainless Door with LockTitle HC1AFSHC1A-FS, Heated Cabinet, Single Section Upright, Full Stainless Door with LockTitle HC1AFSHC1A-FS, Heated Cabinet, Single Section Upright, Full Stainless Door with LockTitle HC1AFSHC1A-FS, Heated Cabinet, Single Section Upright, Full Stainless Door with LockTitle HC1AFS
HC1A-FS, Heated Cabinet, Single Section Upright, Full Stainless Door with LockTitle HC1AFS
HC1A-FS, Heated Cabinet, Single Section Upright, Full Stainless Door with LockTitle HC1AFS
HC1A-FS, Heated Cabinet, Single Section Upright, Full Stainless Door with LockTitle HC1AFS
HC1A-FS, Heated Cabinet, Single Section Upright, Full Stainless Door with LockTitle HC1AFS
HC1A-FS, Heated Cabinet, Single Section Upright, Full Stainless Door with LockTitle HC1AFS

Color : Stainless Steel

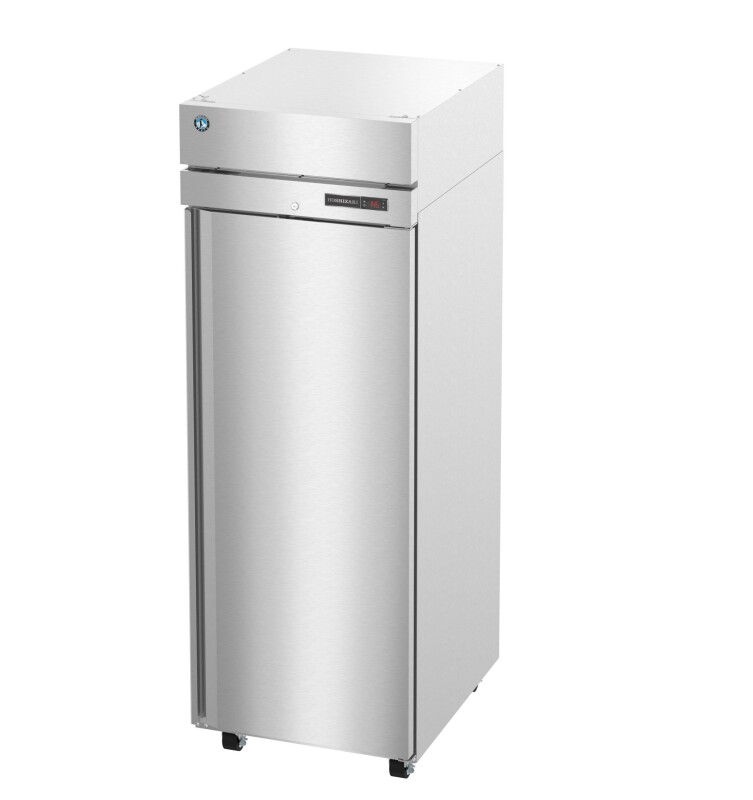

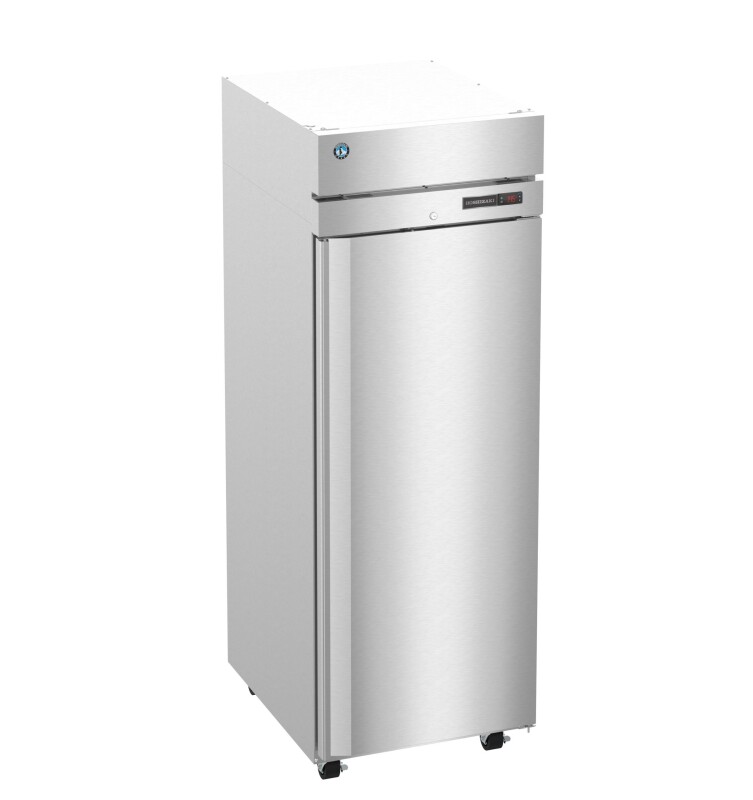

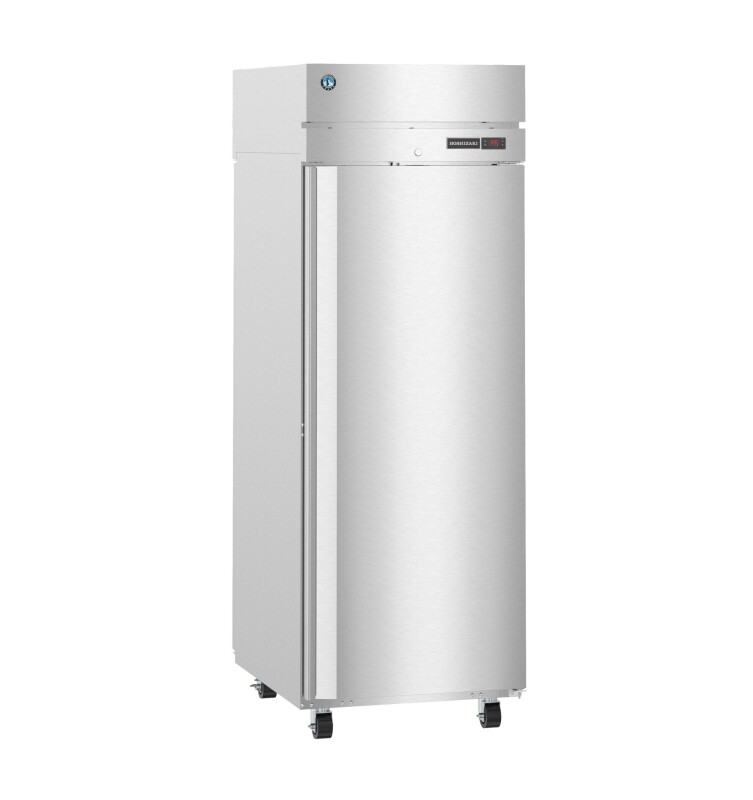

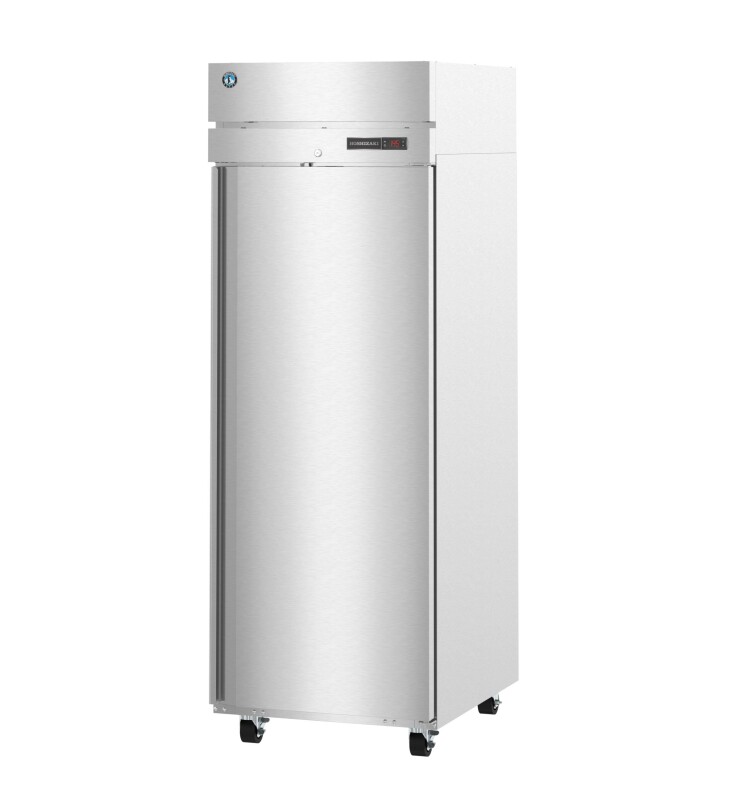

product image
Stainless Steel

Key Features

  • Interior capacity of 22.7 cubic feet

  • Top-mounted heating element with fan to circulate heat through cabinet

  • Stainless steel exterior (front, sides, top) and a stainless steel interior

  • One piece, full door length, extruded aluminum flush mount door handle

  • Lockable Full Stainless Door

  • Two interior LED light strips mounted vertically

  • 115v/60/1, 10 ft. cord and plug

  • Additional storage fits 12 sheet pans

Read More

Description

The HC1A-FS Steelheart Series Upright single section heated cabinet with a full stainless door is a space saving workhorse. Solid state digital controller with temperature alarms and LED display (°F or °C). With an interior capacity of 22.7 cubic feet this efficient upright heated cabinet provides maximum interior storage with a small external footprint. The HC1A-FS is constructed of stainless steel, which protects this unit from accidental damage and is easy to clean.
Read More

Available from Mark's Appliance, serving customers throughout Southern IL & St. Louis, MO.

Features
Specifications

Features

Interior capacity of 22.7 cubic feet

Top-mounted heating element with fan to circulate heat through cabinet

Stainless steel exterior (front, sides, top) and a stainless steel interior

One piece, full door length, extruded aluminum flush mount door handle

Lockable Full Stainless Door

Two interior LED light strips mounted vertically

115v/60/1, 10 ft. cord and plug

Additional storage fits 12 sheet pans

ENERGY STAR® Qualified

7-7-7 Warranty (seven years labor, seven years parts, seven years compressor)

Specifications

Dimensions & Weight

Width-
Height-
Length-
Weight340 lbs.
Width27.5 in.
Depth33.5 in.
Height79.5 in.

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes1
Shipping Width-
Shipping Height-
Shipping Length-
Shipping Weight380 lbs.
Total of Shipping Weight380 lbs.
SourceCalculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement-
Dimensional Weight-
Total of Cubes-
Total of Dimensional Weight-

Product Details

Electrical SpecsElectrical Connection: 5 – 15P NEMA, 115v/60/1, 10 ft. cord and plug, Energy Consumption: kwh/day, Amperage: 10, Max Fuse/HACR Breaker: 15 A
Operating LimitsAmbient Temp Range: 45 – 100°F, Voltage Range: 104 – 126V, Control Setpoint Range: 140 – 180°F, Refrigerant:
Shipping Weight340
Storage SpecsInterior storage capacity: 22.7 ft3, Door opening: 21.75″ W x 59.25″ H, Depth with both doors fully extended: 59.25″ D, Shelves included: 3

Warranty

Parts7 Years
Labor7 Years
Compressor7 Years
