Refrigerator, Two Section Undercounter, Stainless Drawers - UR48BD4

HoshizakiHoshizaki brand logo

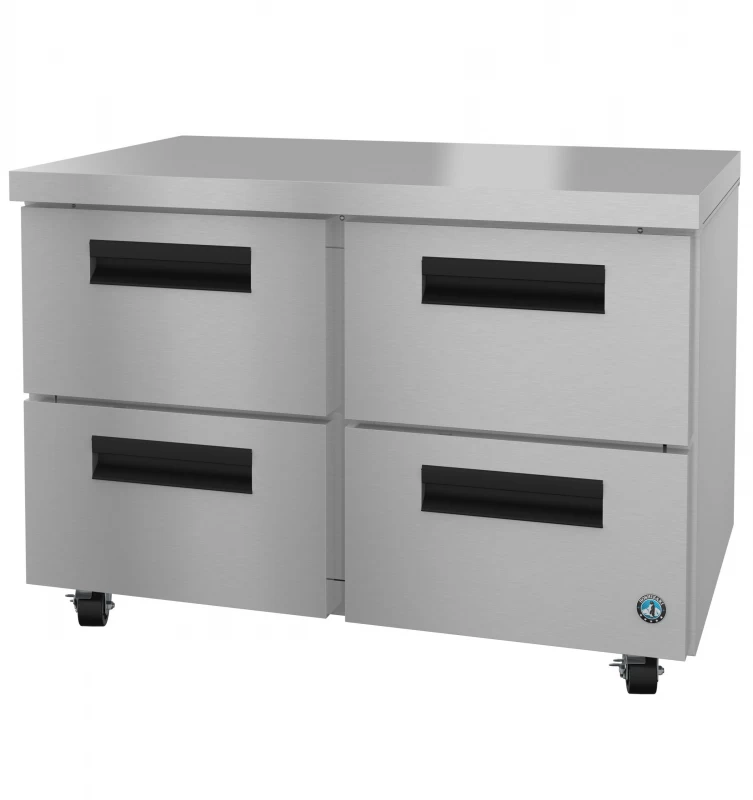

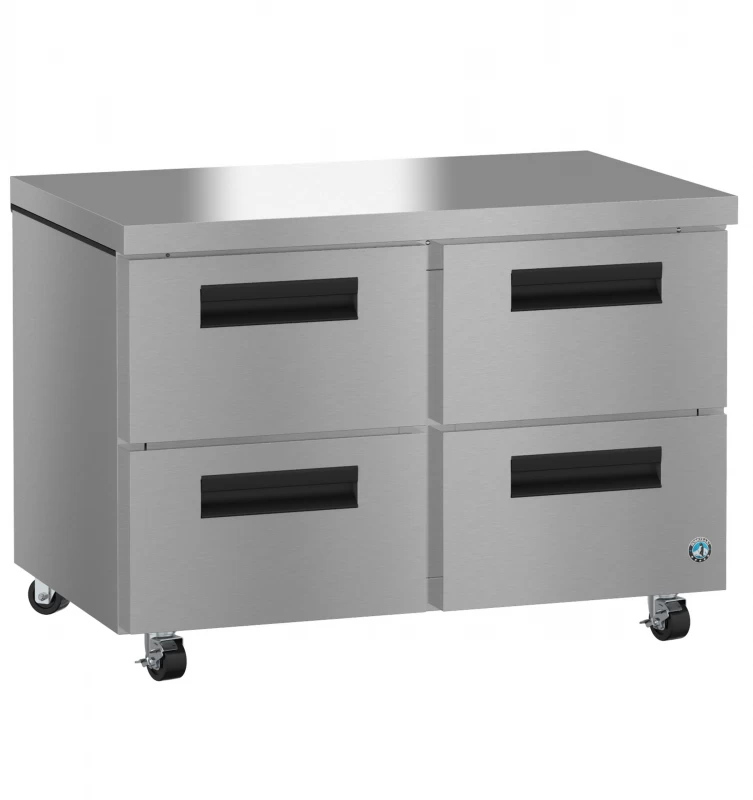

Refrigerator, Two Section Undercounter, Stainless Drawers

Model: UR48BD4

UR48B-D4, Refrigerator, Two Section Undercounter, Stainless DrawersTitle UR48BD4UR48B-D4, Refrigerator, Two Section Undercounter, Stainless DrawersTitle UR48BD4UR48B-D4, Refrigerator, Two Section Undercounter, Stainless DrawersTitle UR48BD4
UR48B-D4, Refrigerator, Two Section Undercounter, Stainless DrawersTitle UR48BD4
UR48B-D4, Refrigerator, Two Section Undercounter, Stainless DrawersTitle UR48BD4
UR48B-D4, Refrigerator, Two Section Undercounter, Stainless DrawersTitle UR48BD4

Color : Stainless Steel

product image
Stainless Steel

Key Features

  • Innovative air distribution system distributes air evenly to maintain product temperature

  • Net capacity of 12 cubic feet

  • Enamel coated evaporator coil for extended life

  • Stainless steel exterior (front, sides, top) and a stainless steel interior

  • The drawer slides are constructed of 16 gauge stainless steel with durable acetal rollers

  • Extruded aluminum flush mount drawer handle

  • (4) stainless steel drawers, fully welded construction and securely fastened in the cabinet

  • R290 refrigerant

Read More

Description

The UR48B-D4 Steelheart Series Undercounter two section refrigerator with stainless drawers is a space saving workhorse. Engineered to maintain food safe temperatures in 100°F ambient conditions. With a net capacity of 12 cubic feet this efficient undercounter refrigerator and front air flow design is perfect for hot/tight kitchens. The UR48B-D4 is constructed of stainless steel, which protects this unit from accidental damage and rust. Plus, it is easy to clean.
Read More

Available from Mark's Appliance, serving customers throughout Southern IL & St. Louis, MO.

Features
Specifications

Features

Innovative air distribution system distributes air evenly to maintain product temperature

Net capacity of 12 cubic feet

Enamel coated evaporator coil for extended life

Stainless steel exterior (front, sides, top) and a stainless steel interior

The drawer slides are constructed of 16 gauge stainless steel with durable acetal rollers

Extruded aluminum flush mount drawer handle

(4) stainless steel drawers, fully welded construction and securely fastened in the cabinet

R290 refrigerant

Nominal Compres. of 798 BTU/hr at 1/5 HP

115v/60/1, 10 ft. cord and plug

Automatic off-cycle defrost

7-7-7 Warranty (seven years labor, seven years parts, seven years compressor)

Specifications

Dimensions & Weight

Width-
Height-
Length-
Weight314 lbs.
Width48 in.
Depth30 in.
Height33.75 in.

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes1
Shipping Width-
Shipping Height-
Shipping Length-
Shipping Weight354 lbs.
Total of Shipping Weight354 lbs.
SourceCalculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement-
Dimensional Weight-
Total of Cubes-
Total of Dimensional Weight-

Product Details

Electrical SpecsElectrical Connection: 5 – 15P NEMA, 115v/60/1, 10 ft. cord and plug, Energy Consumption: 1.05 kwh/day, Amperage: 3, Max Fuse/HACR Breaker: 15 A
Operating LimitsAmbient Temp Range: 45 – 100°F, Voltage Range: 104 – 126V, Control Setpoint Range: 32 – 52°F, Refrigerant: R290
Refrigeration DataNominal Compres. of 798 BTU/hr at 1/5 HP, Heat Rejection: 278 BTU/hr
Shipping Weight314
Storage SpecsNominal storage capacity: 13.66 ft3, Interior storage capacity: 12 ft3, Drawer opening: ” W x ” H, Depth with drawer fully extended: 52″ D, Drawers included: 4

Warranty

Parts7 Years
Labor7 Years
Compressor7 Years
