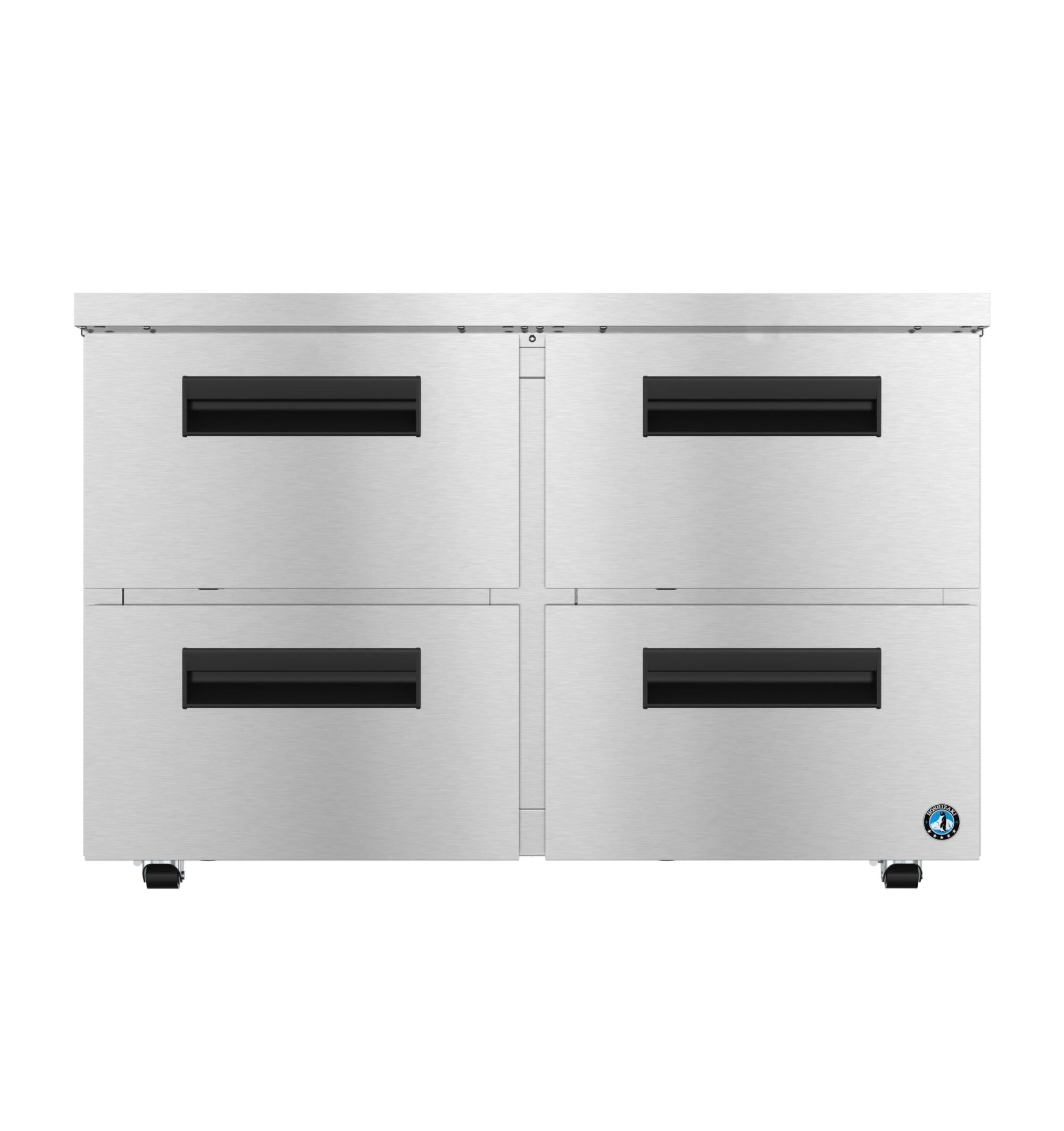

Low Profile Freezer, Two Section Undercounter, Stainless Drawers - UF48BLPD4
Color : Stainless Steel
Key Features
Net capacity of 12 cubic feet
Innovative air distribution system distributes air evenly to maintain product temperature
Enamel coated evaporator coil for extended life
Stainless steel exterior (front, sides, top) and a stainless steel interior
The drawer slides are constructed of 14 gauge stainless steel with durable acetal rollers
Extruded aluminum flush mount drawer handles
(4) stainless steel drawers, fully welded construction and securely fastened in the cabinet
Drawers capacity: Bottom drawers will accommodate (1) 1/2 size pan and (1) 1/3 size pan. Top drawers will accommodate (1) 1/2, (1) 1/3, (1) 1/4 , and (1) 1/6 size pans. Alternate pan orientation (top drawers only) provides (1) full size pan positioned front-to-back and (3) 1/9 size pans (pans by others)
Description
Available from Mark's Appliance, serving customers throughout Southern IL & St. Louis, MO.
Features
Net capacity of 12 cubic feet
Innovative air distribution system distributes air evenly to maintain product temperature
Enamel coated evaporator coil for extended life
Stainless steel exterior (front, sides, top) and a stainless steel interior
The drawer slides are constructed of 14 gauge stainless steel with durable acetal rollers
Extruded aluminum flush mount drawer handles
(4) stainless steel drawers, fully welded construction and securely fastened in the cabinet
Drawers capacity: Bottom drawers will accommodate (1) 1/2 size pan and (1) 1/3 size pan. Top drawers will accommodate (1) 1/2, (1) 1/3, (1) 1/4 , and (1) 1/6 size pans. Alternate pan orientation (top drawers only) provides (1) full size pan positioned front-to-back and (3) 1/9 size pans (pans by others)
R290 refrigerant
Nominal Compres. of 1426 BTU/hr at 1/3+ HP
115v/60/1, 10 ft. cord and plug
7-7-7 Warranty (seven years labor, seven years parts, seven years compressor)
Specifications
Dimensions & Weight
| Width | - |
| Height | - |
| Length | - |
| Weight | 331 lbs. |
| Width | 48 in. |
| Depth | 30 in. |
| Height | 31.9 in. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | - |
| Shipping Height | - |
| Shipping Length | - |
| Shipping Weight | 371 lbs. |
| Total of Shipping Weight | 371 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | - |
| Dimensional Weight | - |
| Total of Cubes | - |
| Total of Dimensional Weight | - |
Product Details
| Electrical Specs | Electrical Connection: 5 – 15P NEMA, 115v/60/1, 10 ft. cord and plug, Energy Consumption: 3.6 kwh/day, Amperage: 4, Max Fuse/HACR Breaker: 15 A |
| Operating Limits | Ambient Temp Range: 45 – 100°F, Voltage Range: 104 – 126V, Control Setpoint Range: -18 – +10°F, Refrigerant: R290 |
| Refrigeration Data | Nominal Compres. of 1426 BTU/hr at 1/3 HP, Heat Rejection: 756 BTU/hr |
| Shipping Weight | 331 |
| Storage Specs | Nominal storage capacity: 12 ft3, Interior storage capacity: 12 ft3, Drawer opening: 19.5″ W x 23″ H, Depth with drawer fully extended: 51″ D, Drawers included: 4 |
Warranty
| Parts | 7 Years |
| Labor | 7 Years |
| Compressor | 7 Years |
