Freezer, Two Section Undercounter, Stainless Doors with Lock - UF48B01

HoshizakiHoshizaki brand logo

Freezer, Two Section Undercounter, Stainless Doors with Lock

Model: UF48B01

UF48B-01, Freezer, Two Section Undercounter, Stainless Doors with LockTitle UF48B01UF48B-01, Freezer, Two Section Undercounter, Stainless Doors with LockTitle UF48B01UF48B-01, Freezer, Two Section Undercounter, Stainless Doors with LockTitle UF48B01
UF48B-01, Freezer, Two Section Undercounter, Stainless Doors with LockTitle UF48B01
UF48B-01, Freezer, Two Section Undercounter, Stainless Doors with LockTitle UF48B01
UF48B-01, Freezer, Two Section Undercounter, Stainless Doors with LockTitle UF48B01

Color : Stainless Steel

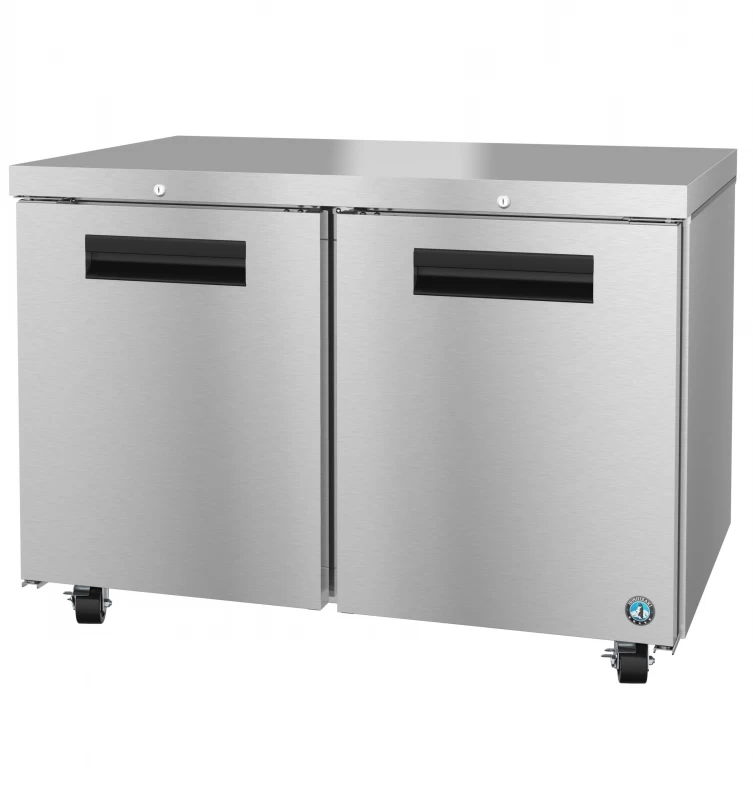

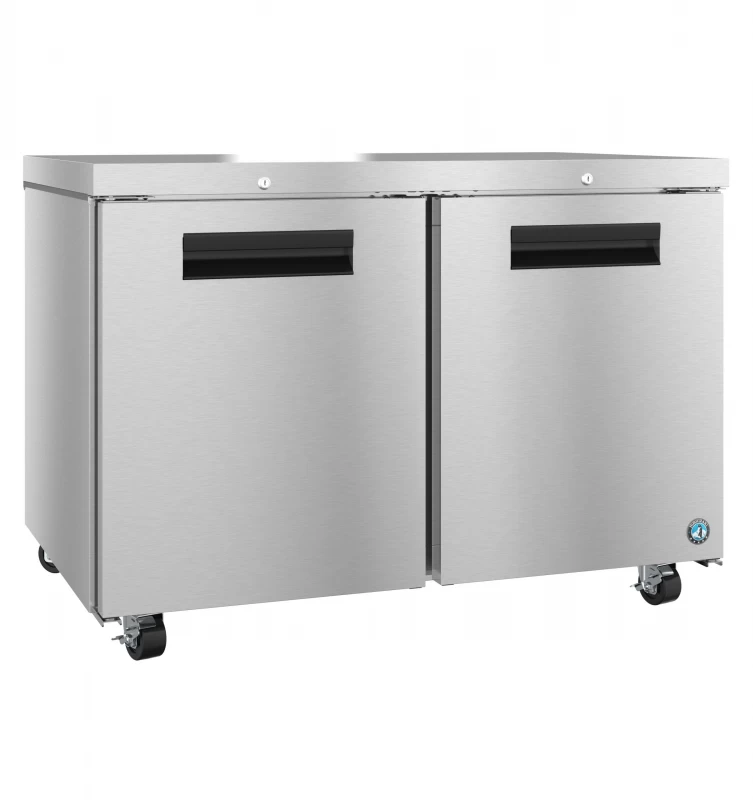

product image
Stainless Steel

Key Features

  • Net capacity of 12 cubic feet

  • Innovative air distribution system distributes air evenly to maintain product temperature

  • Enamel coated evaporator coil for extended life

  • Stainless steel exterior (front, sides, top) and a stainless steel interior

  • Extruded aluminum flush mount door handle

  • (2) stainless steel doors with ABS interior liner

  • R290 refrigerant

  • Includes cylinder locks (-01) (factory installed)

Read More

Description

The UF48B-01 Steelheart Series Undercounter two section freezer with stainless doors is a space saving workhorse. Engineered to maintain food safe temperatures in 100°F ambient conditions. With a net capacity of 12 cubic feet this efficient undercounter freezer and front air flow design is perfect for hot/tight kitchens. The UF48B-01 is constructed of stainless steel, which protects this unit from accidental damage and rust. Plus, it is easy to clean.
Read More

Available from Mark's Appliance, serving customers throughout Southern IL & St. Louis, MO.

Features
Specifications

Features

Net capacity of 12 cubic feet

Innovative air distribution system distributes air evenly to maintain product temperature

Enamel coated evaporator coil for extended life

Stainless steel exterior (front, sides, top) and a stainless steel interior

Extruded aluminum flush mount door handle

(2) stainless steel doors with ABS interior liner

R290 refrigerant

Includes cylinder locks (-01) (factory installed)

115v/60/1, 10 ft. cord and plug

Nominal Compres. of 2431 BTU/hr at 1/3 HP

Automatic time-initiated heated defrost

7-7-7 Warranty (seven years labor, seven years parts, seven years compressor)

Specifications

Dimensions & Weight

Width-
Height-
Length-
Weight258 lbs.
Width48 in.
Depth30 in.
Height33.75 in.

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes1
Shipping Width-
Shipping Height-
Shipping Length-
Shipping Weight298 lbs.
Total of Shipping Weight298 lbs.
SourceCalculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement-
Dimensional Weight-
Total of Cubes-
Total of Dimensional Weight-

Product Details

Electrical SpecsElectrical Connection: 5 – 15P NEMA, 115v/60/1, 10 ft. cord and plug, Energy Consumption: 3.6 kwh/day, Amperage: 3.6, Max Fuse/HACR Breaker: 15 A
Operating LimitsAmbient Temp Range: 45 – 100°F, Voltage Range: 104 – 126V, Control Setpoint Range: -10 – +10°F, Refrigerant: R290
Refrigeration DataNominal Compres. of 2431 BTU/hr at 1/3 HP, Heat Rejection: 756 BTU/hr
Shipping Weight258
Storage SpecsNominal storage capacity: 13.66 ft3, Interior storage capacity: 12 ft3, Door opening: 19.5″ W x 23″ H, Depth with door fully extended: 52.5″ D, Shelves included: 2

Warranty

Parts7 Years
Labor7 Years
Compressor7 Years
