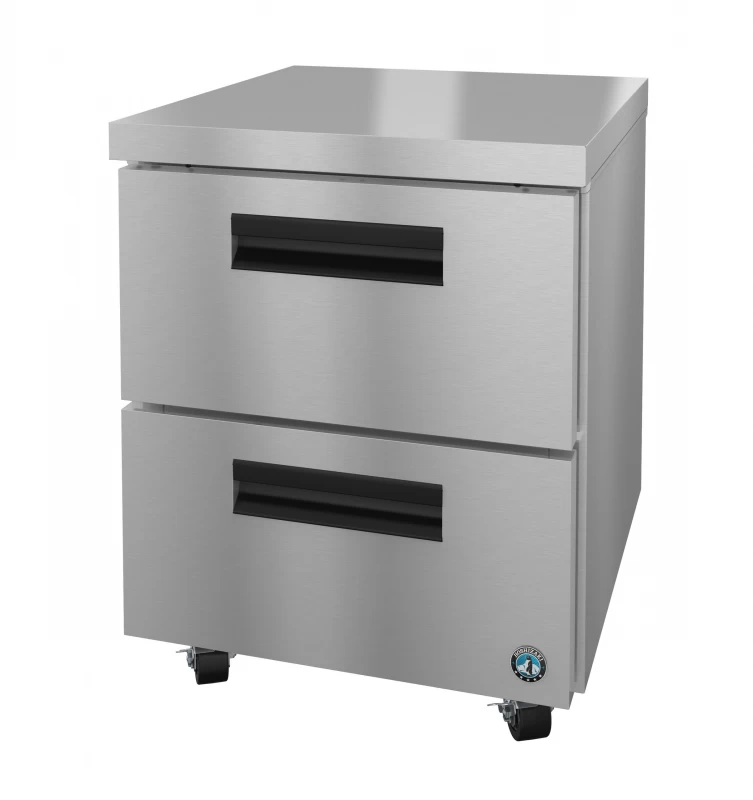

Freezer, Single Section Undercounter, Stainless Drawers - UF27BD2

HoshizakiHoshizaki brand logo

Freezer, Single Section Undercounter, Stainless Drawers

Model: UF27BD2

UF27B-D2, Freezer, Single Section Undercounter, Stainless DrawersTitle UF27BD2UF27B-D2, Freezer, Single Section Undercounter, Stainless DrawersTitle UF27BD2
UF27B-D2, Freezer, Single Section Undercounter, Stainless DrawersTitle UF27BD2
UF27B-D2, Freezer, Single Section Undercounter, Stainless DrawersTitle UF27BD2

Color : Stainless Steel

product image
Stainless Steel

Key Features

  • Net capacity of 6.21 cubic feet

  • Stainless steel exterior (front, sides, top) and a stainless steel interior

  • The drawer slides are constructed of 16 gauge stainless steel with durable acetal rollers

  • Innovative air distribution system distributes air evenly to maintain product temperature

  • Enamel coated evaporator coil for extended life

  • (2) stainless steel drawers, fully welded construction and securely fastened in the cabinet

  • Nominal Compres. of 1354 BTU/hr at 1/5 HP

  • R290 refrigerant

Read More

Description

The UF27B-D2 Steelheart Series Undercounter single section freezer with stainless drawers is a space saving workhorse. Engineered to maintain food safe temperatures in 100°F ambient conditions. With a net capacity of 6.21 cubic feet this efficient undercounter freezer and front air flow design is perfect for hot/tight kitchens. The UF27B-D2 is constructed of stainless steel, which protects this unit from accidental damage and rust. Plus, it is easy to clean.
Read More

Available from Mark's Appliance, serving customers throughout Southern IL & St. Louis, MO.

Features
Specifications

Features

Net capacity of 6.21 cubic feet

Stainless steel exterior (front, sides, top) and a stainless steel interior

The drawer slides are constructed of 16 gauge stainless steel with durable acetal rollers

Innovative air distribution system distributes air evenly to maintain product temperature

Enamel coated evaporator coil for extended life

(2) stainless steel drawers, fully welded construction and securely fastened in the cabinet

Nominal Compres. of 1354 BTU/hr at 1/5 HP

R290 refrigerant

115v/60/1, 10 ft. cord and plug

Automatic time-initiated heated defrost

Extruded aluminum flush mount drawer handles

7-7-7 Warranty (seven years labor, seven years parts, seven years compressor)

Specifications

Dimensions & Weight

Width-
Height-
Length-
Weight207 lbs.
Width27 in.
Depth30 in.
Height33.75 in.

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes1
Shipping Width-
Shipping Height-
Shipping Length-
Shipping Weight247 lbs.
Total of Shipping Weight247 lbs.
SourceCalculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement-
Dimensional Weight-
Total of Cubes-
Total of Dimensional Weight-

Product Details

Electrical SpecsElectrical Connection: 5 – 15P NEMA, 115v/60/1, 10 ft. cord and plug, Energy Consumption: 2.4 kwh/day, Amperage: 3, Max Fuse/HACR Breaker: 15 A
Operating LimitsAmbient Temp Range: 45 – 100°F, Voltage Range: 104 – 126V, Control Setpoint Range: -10 – +10°F, Refrigerant: R290
Refrigeration DataNominal Compres. of 1354 BTU/hr at 1/5 HP, Heat Rejection: 489 BTU/hr
Shipping Weight207
Storage SpecsNominal storage capacity: 7.21 ft3, Interior storage capacity: 6.21 ft3, Drawer opening: ” W x ” H, Depth with drawer fully extended: 52″ D, Drawers included: 2

Warranty

Parts7 Years
Labor7 Years
Compressor7 Years
