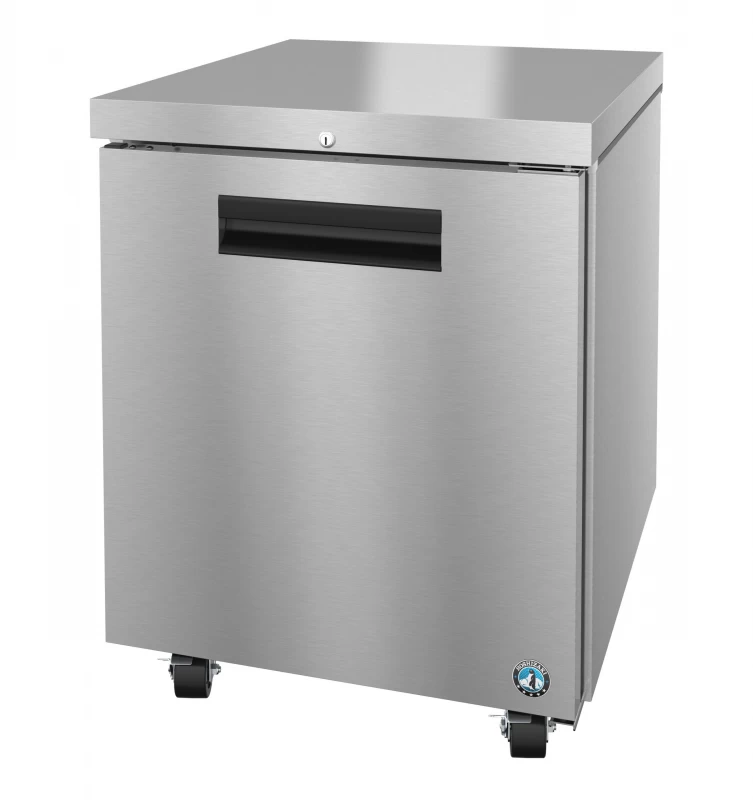

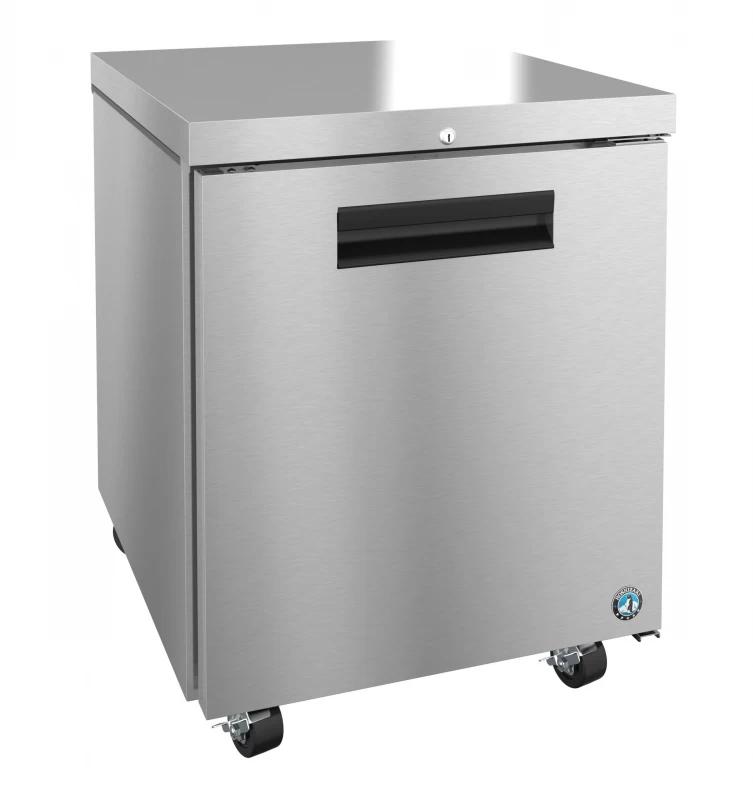

Freezer, Single Section Undercounter, Stainless Door with Lock - UF27B01

HoshizakiHoshizaki brand logo

Freezer, Single Section Undercounter, Stainless Door with Lock

Model: UF27B01

UF27B-01, Freezer, Single Section Undercounter, Stainless Door with LockTitle UF27B01UF27B-01, Freezer, Single Section Undercounter, Stainless Door with LockTitle UF27B01UF27B-01, Freezer, Single Section Undercounter, Stainless Door with LockTitle UF27B01
UF27B-01, Freezer, Single Section Undercounter, Stainless Door with LockTitle UF27B01
UF27B-01, Freezer, Single Section Undercounter, Stainless Door with LockTitle UF27B01
UF27B-01, Freezer, Single Section Undercounter, Stainless Door with LockTitle UF27B01

Color : Stainless Steel

product image
Stainless Steel

Key Features

  • Innovative air distribution system distributes air evenly to maintain product temperature

  • Net capacity of 6.21 cubic feet

  • Stainless steel exterior (front, sides, top) and a stainless steel interior

  • Extruded aluminum flush mount door handle

  • (1) stainless steel door with ABS interior liner

  • Enamel coated evaporator coil for extended life

  • R290 refrigerant

  • Includes cylinder locks (-01) (factory installed)

Read More

Description

The UF27B-01 Steelheart Series Undercounter single section freezer with a stainless door is a space saving workhorse. Engineered to maintain food safe temperatures in 100°F ambient conditions. With a net capacity of 6.21 cubic feet this efficient undercounter freezer and front air flow design is perfect for hot/tight kitchens. The UF27B-01 is constructed of stainless steel, which protects this unit from accidental damage and rust. Plus, it is easy to clean.
Read More

Available from Mark's Appliance, serving customers throughout Southern IL & St. Louis, MO.

Features
Specifications

Features

Innovative air distribution system distributes air evenly to maintain product temperature

Net capacity of 6.21 cubic feet

Stainless steel exterior (front, sides, top) and a stainless steel interior

Extruded aluminum flush mount door handle

(1) stainless steel door with ABS interior liner

Enamel coated evaporator coil for extended life

R290 refrigerant

Includes cylinder locks (-01) (factory installed)

Nominal Compres. of 798 BTU/hr at 1/5 HP

115v/60/1, 10 ft. cord and plug

Automatic time-initiated heated defrost

7-7-7 Warranty (seven years labor, seven years parts, seven years compressor)

Specifications

Dimensions & Weight

Width-
Height-
Length-
Weight175 lbs.
Width27 in.
Depth30 in.
Height33.75 in.

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes1
Shipping Width-
Shipping Height-
Shipping Length-
Shipping Weight215 lbs.
Total of Shipping Weight215 lbs.
SourceCalculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement-
Dimensional Weight-
Total of Cubes-
Total of Dimensional Weight-

Product Details

Electrical SpecsElectrical Connection: 5 – 15P NEMA, 115v/60/1, 10 ft. cord and plug, Energy Consumption: 2.4 kwh/day, Amperage: 2.4, Max Fuse/HACR Breaker: 15 A
Operating LimitsAmbient Temp Range: 45 – 100°F, Voltage Range: 104 – 126V, Control Setpoint Range: -10 – +10°F, Refrigerant: R290
Refrigeration DataNominal Compres. of 798 BTU/hr at 1/5 HP, Heat Rejection: 489 BTU/hr
Shipping Weight175
Storage SpecsNominal storage capacity: 7.21 ft3, Interior storage capacity: 6.21 ft3, Door opening: 22.75″ W x 23″ H, Depth with door fully extended: 55.5″ D, Shelves included: 1

Warranty

Parts7 Years
Labor7 Years
Compressor7 Years
