19" Wide Compact Medical Refrigerator, Certified to NSF/ANSI 456 Vaccine Storage Standard - ACR162GNSF456

This product has been discontinued by the manufacture and is no longer available.

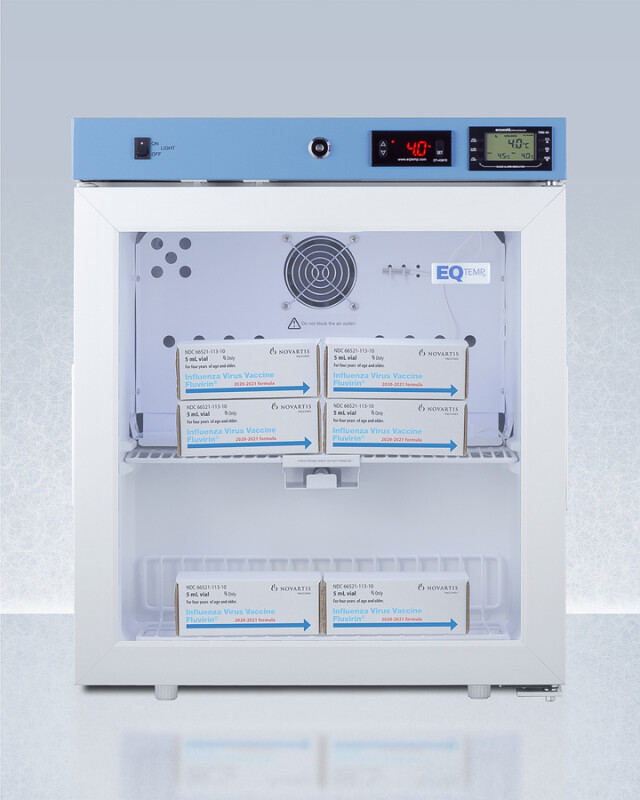

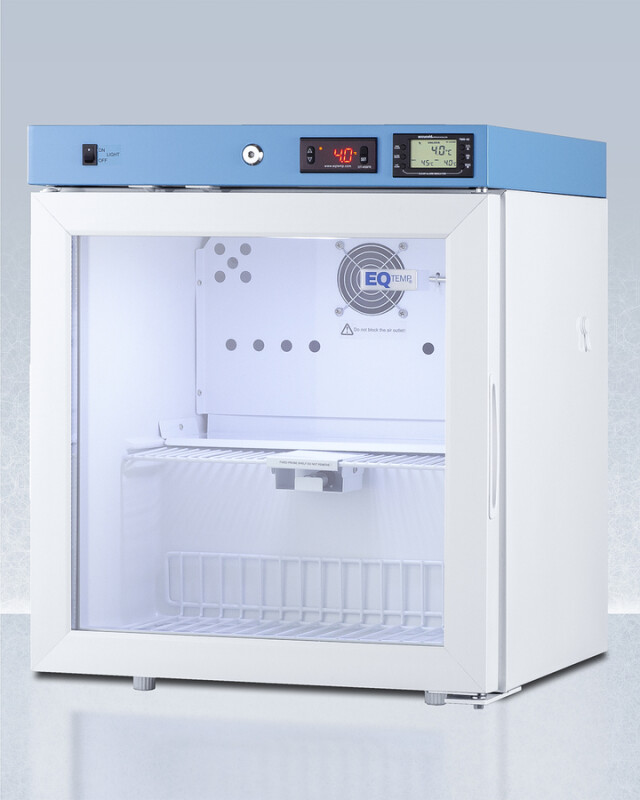

19" Wide Compact Medical Refrigerator, Certified to NSF/ANSI 456 Vaccine Storage Standard

Model: ACR162GNSF456

19" Wide Compact Medical Refrigerator, Certified to NSF/ANSI 456 Vaccine Storage Standard ACR162GNSF45619" Wide Compact Medical Refrigerator, Certified to NSF/ANSI 456 Vaccine Storage Standard ACR162GNSF45619" Wide Compact Medical Refrigerator, Certified to NSF/ANSI 456 Vaccine Storage Standard ACR162GNSF45619" Wide Compact Medical Refrigerator, Certified to NSF/ANSI 456 Vaccine Storage Standard ACR162GNSF45619" Wide Compact Medical Refrigerator, Certified to NSF/ANSI 456 Vaccine Storage Standard ACR162GNSF45619" Wide Compact Medical Refrigerator, Certified to NSF/ANSI 456 Vaccine Storage Standard ACR162GNSF45619" Wide Compact Medical Refrigerator, Certified to NSF/ANSI 456 Vaccine Storage Standard ACR162GNSF45619" Wide Compact Medical Refrigerator, Certified to NSF/ANSI 456 Vaccine Storage Standard ACR162GNSF45619" Wide Compact Medical Refrigerator, Certified to NSF/ANSI 456 Vaccine Storage Standard ACR162GNSF45619" Wide Compact Medical Refrigerator, Certified to NSF/ANSI 456 Vaccine Storage Standard ACR162GNSF45619" Wide Compact Medical Refrigerator, Certified to NSF/ANSI 456 Vaccine Storage Standard ACR162GNSF45619" Wide Compact Medical Refrigerator, Certified to NSF/ANSI 456 Vaccine Storage Standard ACR162GNSF456
19" Wide Compact Medical Refrigerator, Certified to NSF/ANSI 456 Vaccine Storage Standard ACR162GNSF456
19" Wide Compact Medical Refrigerator, Certified to NSF/ANSI 456 Vaccine Storage Standard ACR162GNSF456
19" Wide Compact Medical Refrigerator, Certified to NSF/ANSI 456 Vaccine Storage Standard ACR162GNSF456
19" Wide Compact Medical Refrigerator, Certified to NSF/ANSI 456 Vaccine Storage Standard ACR162GNSF456
19" Wide Compact Medical Refrigerator, Certified to NSF/ANSI 456 Vaccine Storage Standard ACR162GNSF456
+7more

Color : Glass

product image
Glass

Key Features

  • Certificate of calibration included

  • EQTemp Medical Refrigerator

  • Certified to NSF/ANSI 456 Vaccine Storage Standard

  • Temperature Range: 2º to 8ºC

  • Compact size

  • External temperature readout

  • High/low temperature alarm

  • Buffered temperature probe

Read More

Description

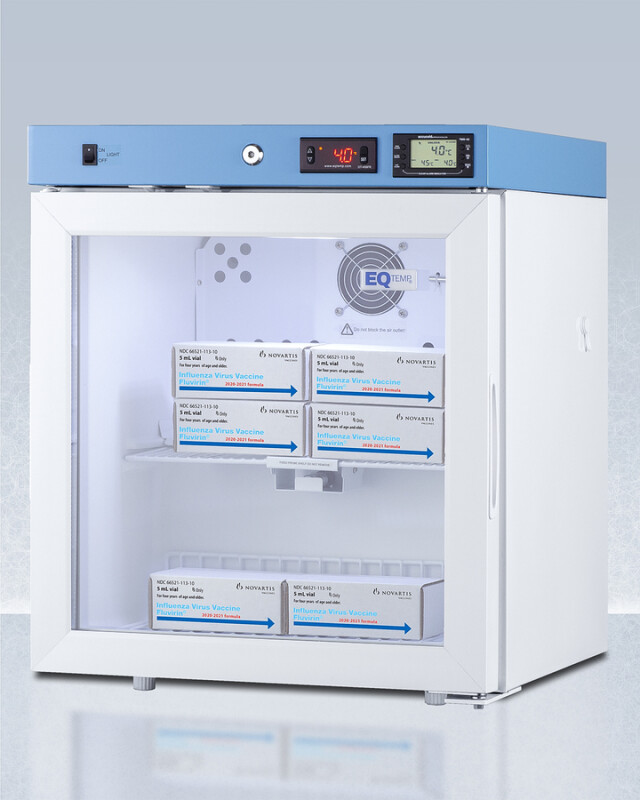

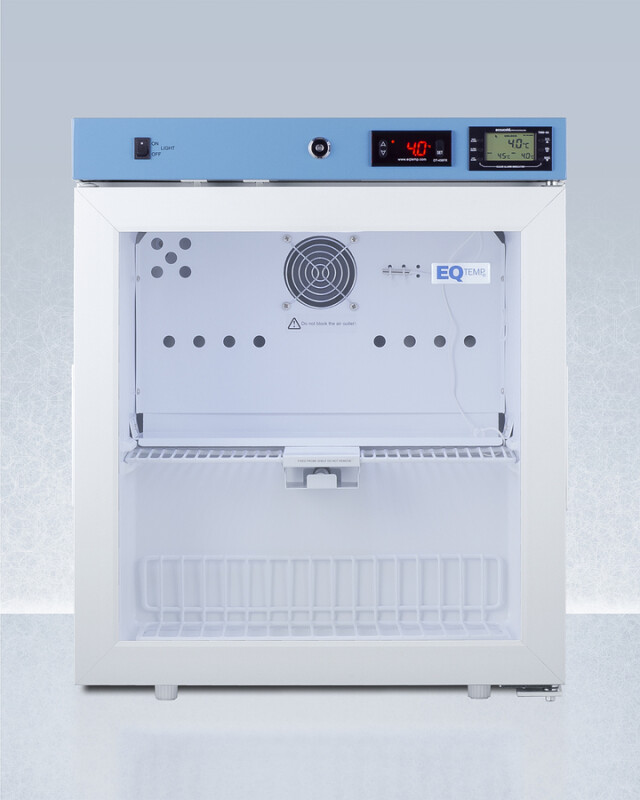

EQTemp introduces a new series of NSF/ANSI 456 certified medical refrigeration designed to store a variety of materials in healthcare facilities. Model ACR162GNSF456 is a compact 1.58 cu.ft. all-refrigerator. It features a clean white exterior and a blue-accented control panel. The glass door is equipped with a self-closing mechanism to help protect stored items from being overexposed to room temperature. A factory-installed lock offers added security, and the hospital-grade cord with a 'green dot' plug ensures a secure connection for high-traffic areas. The ACR162GNSF456 includes an external readout of the interior temperature, as well as the high/low temperature as required for data records. The buffered temperature probe is encased in a bottle filled with glass beads for improved accuracy and calibrated to NIST standards in our in-house ISO/IEC 17025:2017 certified laboratory. The digital temperature controls allow you to set the interior between 2 and 8ºC. An audible alarm sounds if the temperature goes out of range. We also include a pre-installed 3/8" access port for users to add their own monitoring equipment if preferred. The interior includes one wire shelf in the center to hold the temperature probe and additional adjustable shelves to accommodate different sizes. Internal LED lighting provides an efficient and convenient view. Automatic defrost reduces user maintenance and an internal fan ensures powerful temperature recovery after door openings. EQTemp's series of ACR refrigeration is certified to the NSF/ANSI 456 Vaccine Storage Standard. All models feature hydrocarbon refrigerant for a greener footprint. Additional sizes are available, as well as more advanced cold storage equipment purpose-built for laboratory and life science storage. Browse the full product line to explore our extensive selection. Note: EQTemp's ACR Series refrigerators are intended for a wide variety of healthcare storage applications. Storage of high-value vaccines, life science materials, and medical/clinical biologicals require a product offering tighter temperature control and/or alarms, monitoring, and backup. For these applications, browse Accucold's purpose-built PHARMA-VAC line or contact our product specialists at 1-888-4-MED-LAB.
Read More

Available from Mark's Appliance, serving customers throughout Southern IL & St. Louis, MO.

Features
Specifications

Features

Certificate of calibration included

The temperature monitoring device (TMD) is calibrated to NIST standards in our ISO/IEC 17025:2017 certified calibration laboratory and ships with a 2-year certificate of calibration for your records

EQTemp Medical Refrigerator

All-refrigerator designed to operate between 2 and 8ºC for a variety of storage application in medical offices and other healthcare facilities

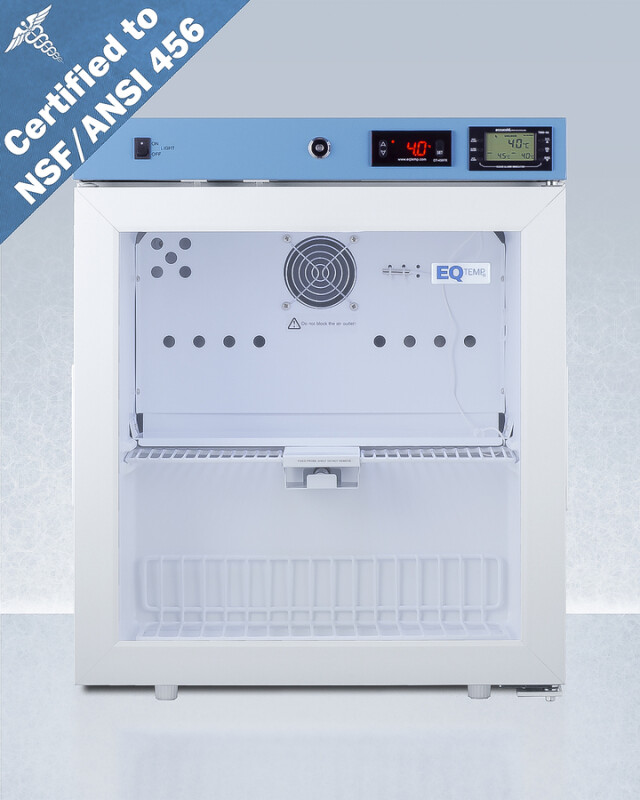

Certified to NSF/ANSI 456 Vaccine Storage Standard

Tested to comply with the latest standards

Temperature Range: 2º to 8ºC

Preset to 5ºC as recommended for many storage applications

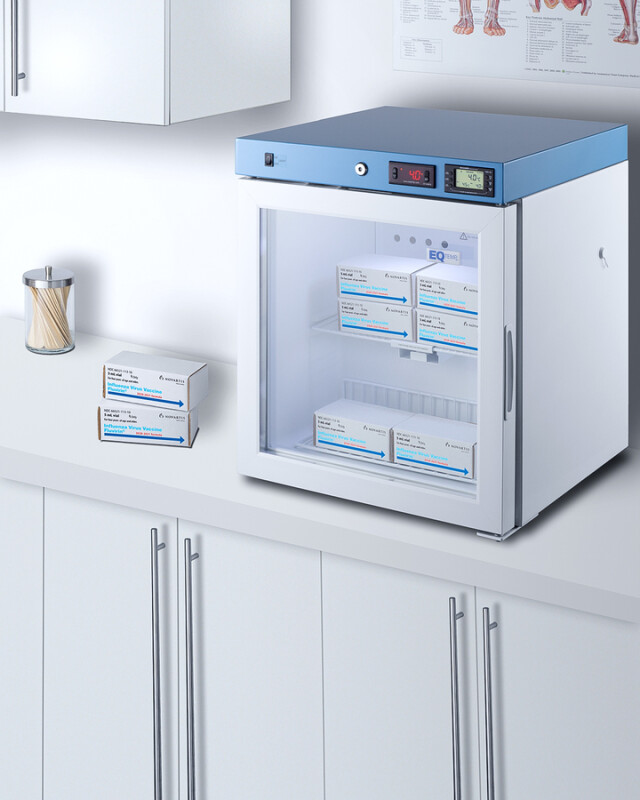

Compact size

Full 1.58 cu.ft. capacity inside conveniently slim footprint

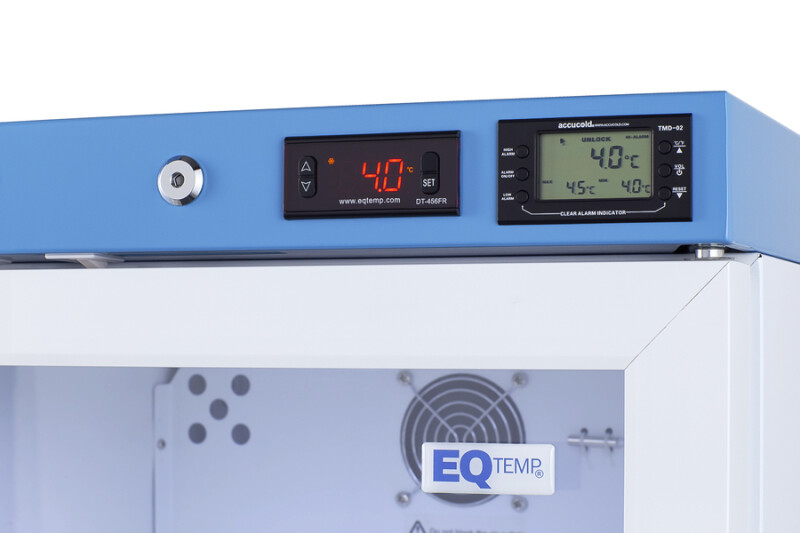

External temperature readout

Includes continuous display of the current interior and high/low temperature, and can be switched from Celsius to Fahrenheit at the touch of a button

High/low temperature alarm

Audible alarm sounds if the interior temperature rises or falls out of set range

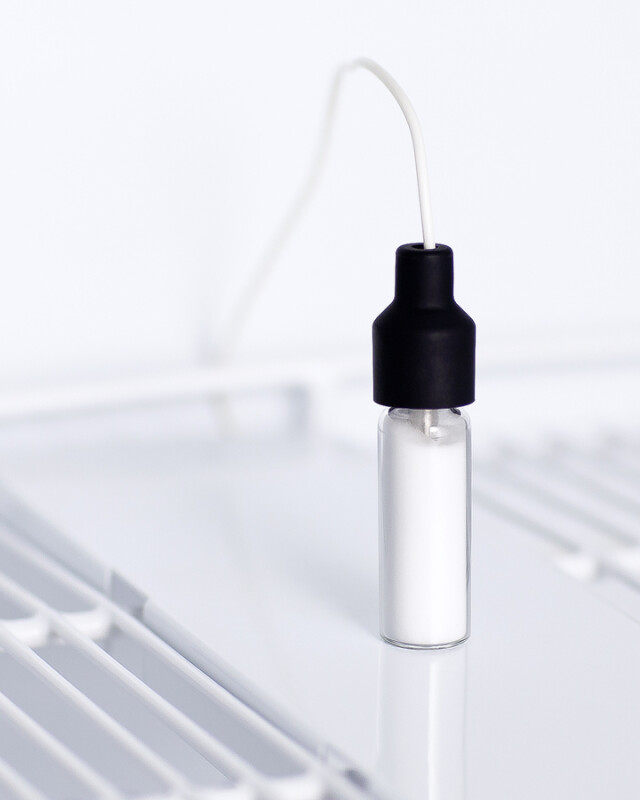

Buffered temperature probe

Thermometer probe is encased in a glass bead-filled bottle and stored in a fixed box on the center shelf. This is the ideal way to produce temperature readings closest to stored contents, as recommended by the CDC and VFC's guidelines

Factory installed lock

Keyed lock for a secure interior (2 keys included)

Automatic defrost

Reduced user maintenance with automatic defrost

Internal fan

Fan-forced cooling ensures the unit is evenly cooled from top to bottom

Hospital grade cord with 'green dot' plug

Secure three-pronged cord for added unit safety in high traffic areas

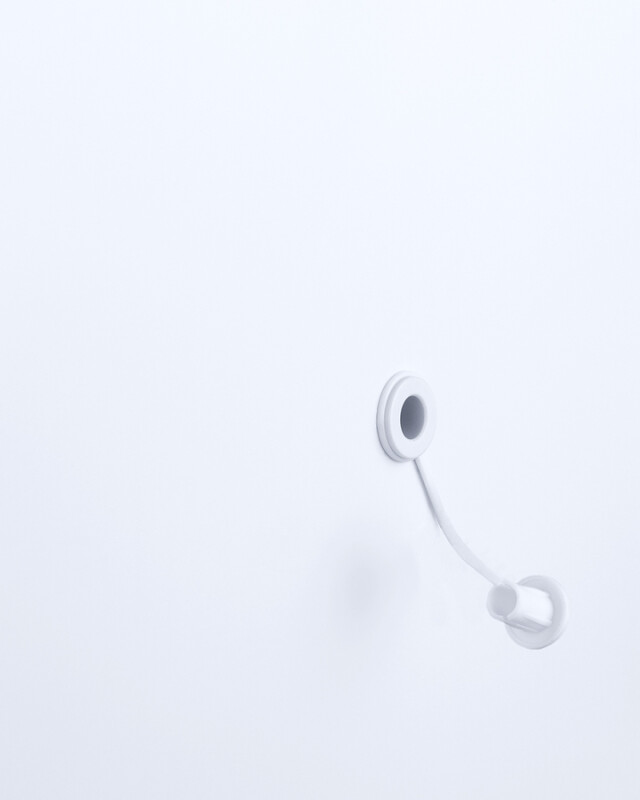

Access port

3/8" probe hole with cover is pre-installed in unit's side to allow easy installation of user-provided monitoring equipment

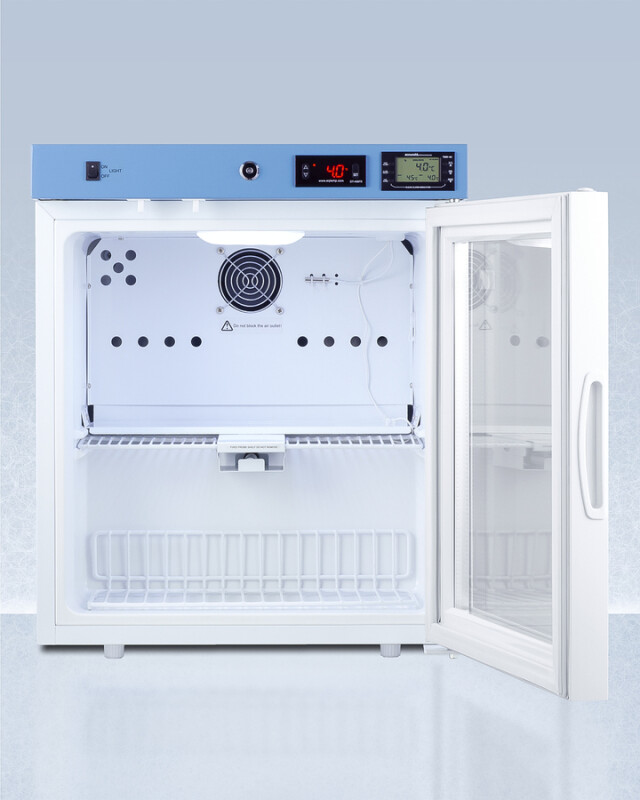

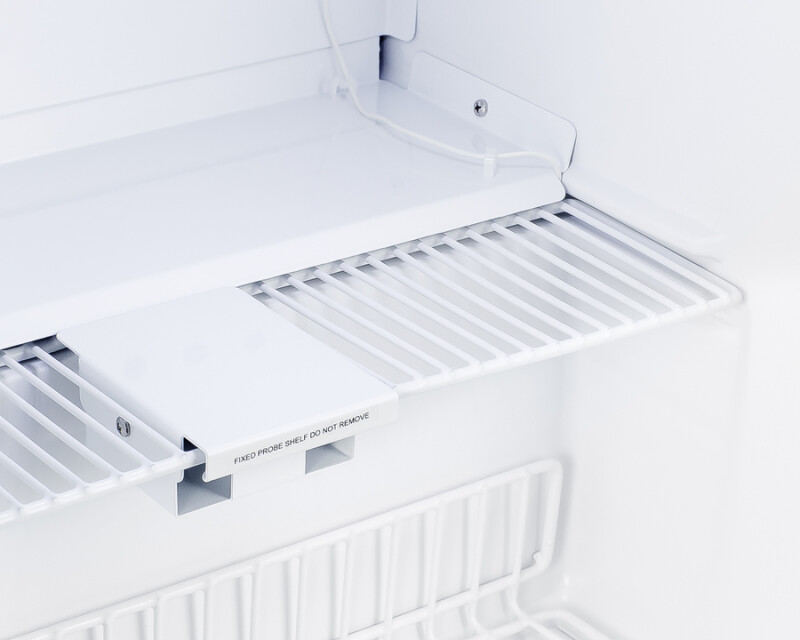

Fixed center shelf

Center shelf is fixed in place in order to provide the optimum position for the TMD to provide the most accurate temperature readings

Flat door liner

No door storage to allow for the interior to accommodate deeper trays

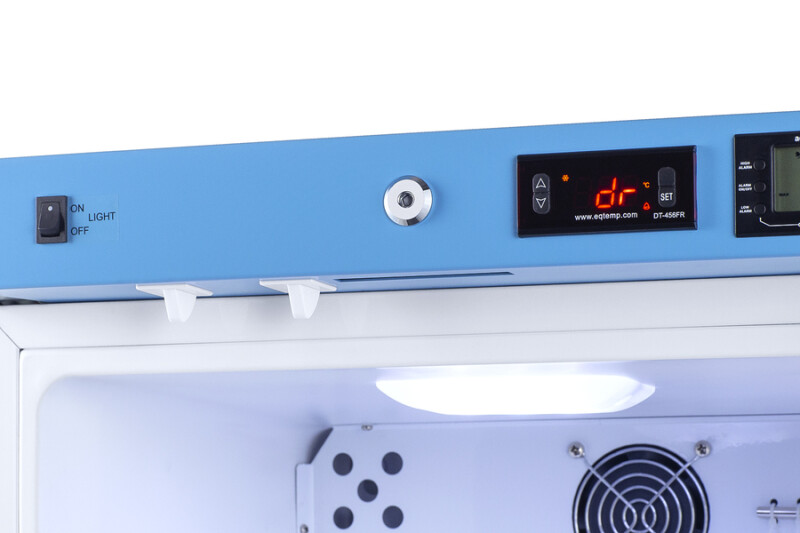

LED lighting

Attractively illuminates the interior in a gentle white hue for easy viewing

Foamed-in-place cabinet

Quality design ensures efficiently insulated interior

Temperature memory function

Unit will retain its last settings when power is restored in the event of power loss

Self-closing door

Door will automatically close when left ajar, preventing items from accidentally being left exposed to ambient temperatures

Open door alarm

Audible alarm sounds if the door is left open for more than one minute

Digital thermostat

Digital microprocessor for easy and precise temperature management, with all controls externally located for added convenience

Pocket handle

Handle is recessed into the side of the door to ensure no added depth

Magnetic door gasket

Quality door gaskets ensure a tight seal for energy savings and improved performance

Fully finished white cabinet

Allows the unit to be used freestanding

100% CFC free

Environmentally friendly design without ozone-damaging chemicals

CARB Compliant

Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

Specifications

Overview

Nominal Height23.0" (58 cm)
Height of Cabinet22.88" (58 cm)
Nominal Width19.0" (48 cm)
Width18.75" (48 cm)
Width with Door Open19.25" (49 cm)
Nominal Depth18.0" (46 cm)
Depth18.0" (46 cm)
Depth with door at 90°33.75" (86 cm)
Capacity1.58 cu.ft. (45 L)
Defrost TypeAutomatic
DoorGlass
CabinetWhite
US Electrical SafetyETL
Canadian Electrical SafetyETL-C
SanitationETL-S to NSF 456
Amps0.6
Voltage/Frequency115 V AC/60 Hz
Weight49.6 lbs. (22 kg)
Parts & Labor Warranty1 Year
Compressor Warranty5 Years
UPC761101083124

Refrigerator Features

Door SwingRHD
ReversibleFactory Reversible
Shelf TypeWire
Shelf Qty1
Thermostat TypeDigital
Fan TypeInterior
Refrigerant TypeR600a
Refrigerant Amount0.85oz.
High Side PSI1.45
Low Side PSI0.85
Level Legs Qty2
Interior LightYes
Temperature Range2º to 8ºC
Sound Level35.4 dB

Dimensions

Interior Height16.63" (42 cm)
Interior Width15.63" (40 cm)
Interior Depth12.13" (31 cm)
Compressor Step Height7.75" (20 cm)
Compressor Step Width15.63" (40 cm)
Compressor Step Depth5.25" (13 cm)

Dimensions & Weight

Width18.75 in.
Height22.88 in.
Length18 in.
Weight49.6 lbs.

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes1
Shipping Width23.75 in.
Shipping Height27.88 in.
Shipping Length23 in.
Shipping Weight89.6 lbs.
Total of Shipping Weight89.6 lbs.
SourceCalculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement4.47 ft³
Dimensional Weight55.55 lbs.
Total of Cubes4.47 ft³
Total of Dimensional Weight55.55 lbs.

Overview Refrigerator Features Dimensions

Nominal Height23.0" (58 cm)
Height of Cabinet22.88" (58 cm)
Nominal Width19.0" (48 cm)
Width18.75" (48 cm)
Width with Door Open19.25" (49 cm)
Nominal Depth18.0" (46 cm)
Depth18.0" (46 cm)
Depth with door at 90°33.75" (86 cm)
Capacity1.58 cu.ft. (45 L)
Defrost TypeAutomatic
DoorGlass
CabinetWhite
US Electrical SafetyETL
Canadian Electrical SafetyETL-C
SanitationETL-S to NSF 456
Amps0.6
Voltage/Frequency115 V AC/60 Hz
Weight49.6 lbs. (22 kg)
Parts & Labor Warranty1 Year
Compressor Warranty5 Years
UPC761101083124
Door SwingRHD
ReversibleFactory Reversible
Shelf TypeWire
Shelf Qty1
Thermostat TypeDigital
Fan TypeInterior
Refrigerant TypeR600a
Refrigerant Amount0.85oz.
High Side PSI1.45
Low Side PSI0.85
Level Legs Qty2
Interior LightYes
Temperature Range2º to 8ºC
Sound Level35.4 dB
Interior Height16.63" (42 cm)
Interior Width15.63" (40 cm)
Interior Depth12.13" (31 cm)
Compressor Step Height7.75" (20 cm)
Compressor Step Width15.63" (40 cm)
Compressor Step Depth5.25" (13 cm)
