Crescent Cuber Icemaker, Remote-cooled, 3 Phase - KMS1402MLJ3
Color : Stainless Steel
Key Features
Up to 1474 lbs of ice produced per 24 hours
Remote-cooled with SRK-15J3
Dimensions: 30″ W x 24″ D x 28″ H
Durable stainless steel exterior

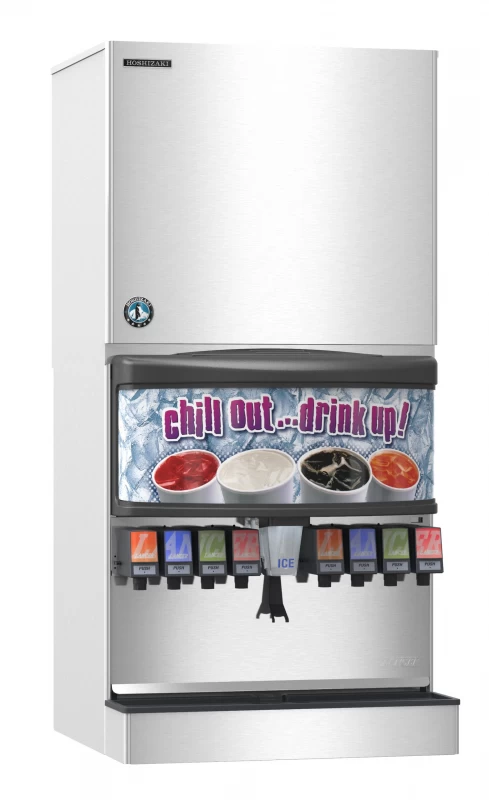

Compatible bins & dispensers, sold separately: Beverage Dispensers, B-250, B-500, B-700, B-800, B-900, B-1150, B-1300
R-404A refrigerant (7.1 oz. / 200 g)
Produces crescent shaped ice cubes
Ambient temperature range: 45 – 100°F
Description
Available from Mark's Appliance, serving customers throughout Southern IL & St. Louis, MO.
Features
Up to 1474 lbs of ice produced per 24 hours
Remote-cooled with SRK-15J3
Dimensions: 30″ W x 24″ D x 28″ H
Durable stainless steel exterior
Compatible bins & dispensers, sold separately: Beverage Dispensers, B-250, B-500, B-700, B-800, B-900, B-1150, B-1300
R-404A refrigerant (7.1 oz. / 200 g)
Produces crescent shaped ice cubes
Ambient temperature range: 45 – 100°F
Water temperature range: 45 – 90°F
Water pressure: 10 – 113psig
Voltage range: 104 – 127V
9.2 amps (20 Amp Max fuse)
4.55 kwh/100 lbs.@ 90/70
Three phase, See Remote Condenser (115V supply for the KMS icemaker is supplied from the 230V SRK-15J3 Remote Condenser)
Clean ice and easy maintenance lead to longer unit life span
Five Years: Parts & Labor warranty on evaporator.
EverCheck™ alert system
CycleSaver™ design
Heat Rejection:28000 BTU/hr
Three Years: Parts & Labor warranty on entire machine.
Specifications
Product Details
| Electrical Specs | Three phase, See Remote Condenser (115V supply for the KMS icemaker is supplied from the 230V SRK-15J3 Remote Condenser), Amperage: 9.2, Max Fuse/HACR Breaker: 20 A |
| Utility Consumption | 4.55 kWh per 100 lbs @ 90/70, 22 gal of Potable Water per 100 lbs @ 90/70 |
| Operating Limits | Ambient Temp Range: 45 – 100°F, Water Temp Range: 45 – 90°F, Water Pressure: 10 – 113psig, Voltage Range: 104 – 127V, Heat Rejection: 28000 BTU/hr, Refrigerant Charge: R-404A, (7.1 oz. / 200 |
| Plumbing Specs | 1/2″ FPT Inlet, Minimum 3/8″ Nominal ID Copper Water Tubing or Equivalent, 3/4″ FPT Outlet, Minimum 3/4″ Nominal ID Hard Pipe or Equivalent |
| Shipping Weight | 185 |
Dimensions & Weight
| Width | - |
| Height | - |
| Length | - |
| Weight | 185 lbs. |
| Width | 30 in. |
| Depth | 24 in. |
| Height | 28 in. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | - |
| Shipping Height | - |
| Shipping Length | - |
| Shipping Weight | 225 lbs. |
| Total of Shipping Weight | 225 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | - |
| Dimensional Weight | - |
| Total of Cubes | - |
| Total of Dimensional Weight | - |
Warranty
| Parts | 3 Years |
| Labor | 3 Years |
| Parts (Compressor) | 5 Years |
