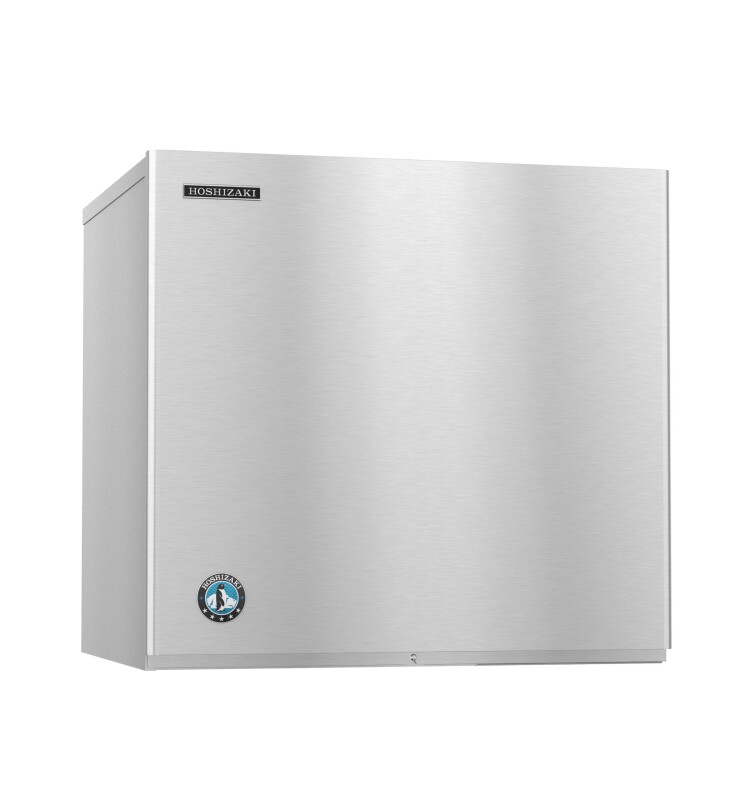

Name: Crescent® Cuber Icemaker, Remote-cooled
Brand: Hoshizaki
SKU: KMD860MRJZ
Availability: BackOrder

Crescent® Cuber Icemaker, Remote-cooled

Model : #KMD860MRJZ

Crescent® Cuber Icemaker, Remote-cooled

Model: KMD860MRJZ

Crescent® Cuber Icemaker, Remote-cooled

Model: KMD860MRJZ

Color : Stainless Steel

Key Features

Up to 967 lbs of ice produced per 24 hours
Mount 2 units side-by-side for 2x the ice production
Produces crescent shaped ice cubes
Durable stainless steel exterior
Compatible bins & dispensers, sold separately: B-250, BD-500, B-700, B-800, B-900, B-1150, B-1300, B-1500, B-1650
R-404A refrigerant (5 lbs. 15.9 oz. / 2719 g)
12.5 amps (20 Amp Max fuse)
5.05 kwh/100 lbs.@ 90/70

Description

The KMD-860MRJZ is capable of producing approximately 967 lbs of crescent cubed ice. The energy efficient KMEdge™ design incorporates a dual-sided stainless steel evaporator. Its ice on beverage design makes it ideal for use in busy self-serve areas, fast food restaurants, employee break rooms and more. This Remote-cooled icemaker features a CycleSaver™ design and includes the EverCheck™ alert system making the unit energy efficient and simple to maintain. The KMD-860MRJZ requires a Single phase, 208-230v/60/1, 3 wire, including ground. Must be hardwired at site, no cord/plug included electrical connection that is hard-wired at the installation site. Please consult the Specification Sheet for additional details.

Documents

Instruction Manual

View | Download

PDF, 3.20 MB

Specification Sheet

View | Download

PDF, 2.21 MB

Warranty Statement

View | Download

PDF, 999.31 KB

Available from Mark's Appliance, serving customers throughout Southern IL & St. Louis, MO.

Features

Specifications

Features

Up to 967 lbs of ice produced per 24 hours

Mount 2 units side-by-side for 2x the ice production

Produces crescent shaped ice cubes

Durable stainless steel exterior

Compatible bins & dispensers, sold separately: B-250, BD-500, B-700, B-800, B-900, B-1150, B-1300, B-1500, B-1650

R-404A refrigerant (5 lbs. 15.9 oz. / 2719 g)

12.5 amps (20 Amp Max fuse)

5.05 kwh/100 lbs.@ 90/70

Single phase, 208-230v/60/1, 3 wire, including ground. Must be hardwired at site, no cord/plug included

Clean ice and easy maintenance lead to longer unit life span

EverCheck™ alert system

CycleSaver™ design

Heat Rejection: 13000 BTU/hr

Three Years: Parts & Labor warranty on entire machine

Five Years: Parts & Labor warranty on evaporator

Specifications

Product Details

Electrical Specs	Single phase, 208-230v/60/1, 3 wire, including ground. Must be hardwired at site, no cord/plug included, Amperage: 12.5, Max Fuse/HACR Breaker: 20 A
Utility Consumption	5.05 kWh per 100 lbs @ 90/70, 18 gal of Potable Water per 100 lbs @ 90/70
Operating Limits	Ambient Temp Range: 45 – 100°F, Water Temp Range: 45 – 90°F, Water Pressure: 10 – 113psig, Voltage Range: 187 – 253V, Heat Rejection: 13000 BTU/hr, Refrigerant Charge: R-404A, (5 lbs. 15.9 oz
Plumbing Specs	1/2″ FPT Inlet, Minimum 1/4″ Nominal ID Copper Water Tubing or Equivalent, 3/4″ FPT Outlet, Minimum 3/4″ Nominal ID Hard Pipe or Equivalent
Shipping Weight	256

Dimensions & Weight
