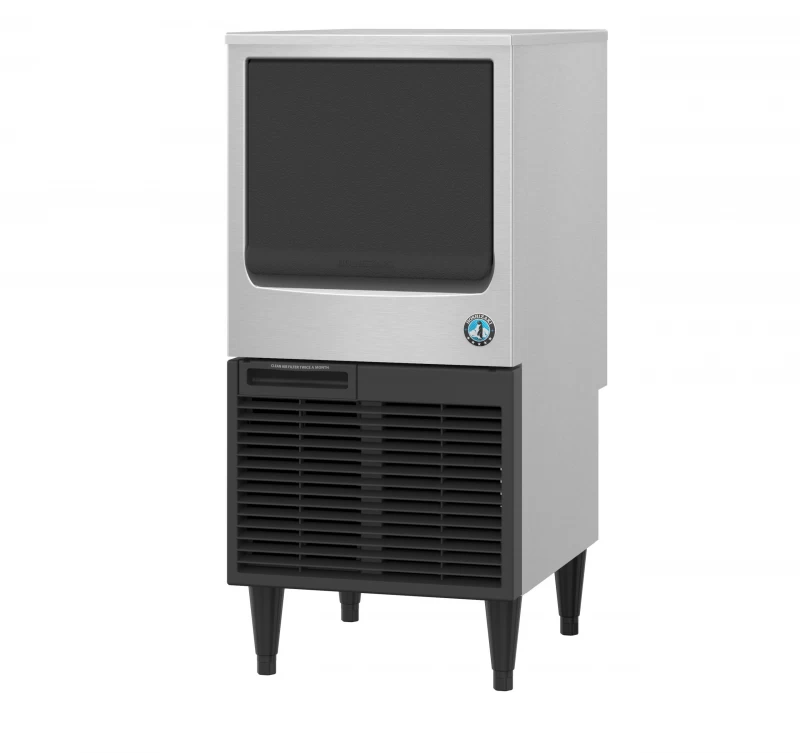

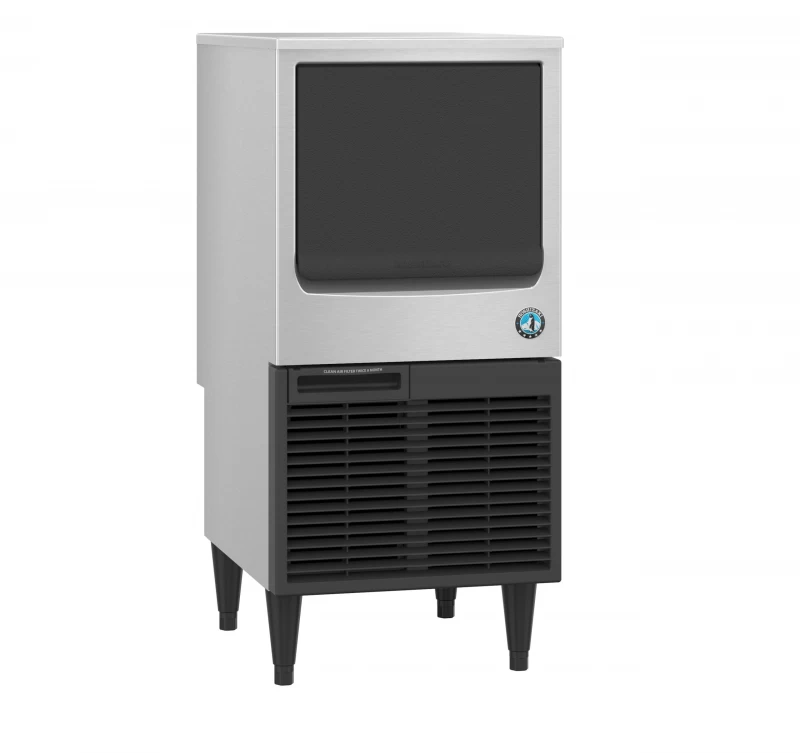

Crescent® Cuber Icemaker, Air-cooled, Built in Storage Bin - KM81BAJ

HoshizakiHoshizaki brand logo

Crescent® Cuber Icemaker, Air-cooled, Built in Storage Bin

Model: KM81BAJ

KM-81BAJ, Crescent Cuber Icemaker, Air-cooled, Built in Storage BinTitle KM81BAJKM-81BAJ, Crescent Cuber Icemaker, Air-cooled, Built in Storage BinTitle KM81BAJKM-81BAJ, Crescent Cuber Icemaker, Air-cooled, Built in Storage BinTitle KM81BAJKM-81BAJ, Crescent Cuber Icemaker, Air-cooled, Built in Storage BinTitle KM81BAJKM-81BAJ, Crescent Cuber Icemaker, Air-cooled, Built in Storage BinTitle KM81BAJ
KM-81BAJ, Crescent Cuber Icemaker, Air-cooled, Built in Storage BinTitle KM81BAJ
KM-81BAJ, Crescent Cuber Icemaker, Air-cooled, Built in Storage BinTitle KM81BAJ
KM-81BAJ, Crescent Cuber Icemaker, Air-cooled, Built in Storage BinTitle KM81BAJ
KM-81BAJ, Crescent Cuber Icemaker, Air-cooled, Built in Storage BinTitle KM81BAJ
KM-81BAJ, Crescent Cuber Icemaker, Air-cooled, Built in Storage BinTitle KM81BAJ

Color : Stainless Steel

product image
Stainless Steel

Key Features

  • Up to 38 lbs of built-in storage capacity (1.3ft3)

  • Slide in door with durable stainless steel exterior

  • Up to 86 lbs of ice produced per 24 hours

  • Produces crescent shaped ice cubes

  • Front in, front out airflow

  • HS-5061 drain pump assembly, sold separately

  • R-134a refrigerant (7.1 oz. / 201 g)

  • 3.5 amps (15 Amp Max fuse)

Read More

Description

The KM-81BAJ is capable of producing approximately 86 lbs of crescent cubed ice. This Undercounter Air-cooled, Built in Storage Bin icemaker stores up to 38 lbs of ice*, which makes it ideal for small bars, hotel lobbies, and office break rooms. It features the CycleSaver™ design and includes the EverCheck™ alert system making the unit simple to maintain. The KM-81BAJ requires a Single phase, 115v/60/1, 6.5 ft cord with NEMA 5-15 plug electrical connection. Front in, front out airflow. ENERGY STAR® qualified. Please consult the Specification Sheet for additional details.*Rated in accordance with AHRI Standard 820(I-P). Capacity based on 100% of total volume x 30 lb/ft3 average density of ice.
Read More

Available from Mark's Appliance, serving customers throughout Southern IL & St. Louis, MO.

Features
Specifications

Features

Up to 38 lbs of built-in storage capacity (1.3ft3)

Slide in door with durable stainless steel exterior

Up to 86 lbs of ice produced per 24 hours

Produces crescent shaped ice cubes

Front in, front out airflow

HS-5061 drain pump assembly, sold separately

R-134a refrigerant (7.1 oz. / 201 g)

3.5 amps (15 Amp Max fuse)

7.95 kwh/100 lbs.@ 90/70

Single phase, 115v/60/1, 6.5 ft cord with NEMA 5-15 plug

EverCheck™ alert system

CycleSaver™ design

ENERGY STAR® qualified

Heat Rejection: 1350 BTU/hr

Three Years: Parts & Labor warranty on entire machine

Five Years: Parts & Labor warranty on evaporator

Specifications

Product Details

Utility Consumption7.95 kWh per 100 lbs @ 90/70, 18.2 gal of Potable Water per 100 lbs @ 90/70
Electrical SpecsSingle phase, 115v/60/1, 6.5 ft cord with NEMA 5-15 plug, Amperage: 3.5, Max Fuse/HACR Breaker: 15 A
Operating LimitsAmbient Temp Range: 45 – 100°F, Water Temp Range: 45 – 90°F, Water Pressure: 10 – 113psig, Voltage Range: 104 – 127V, Heat Rejection: 1350 BTU/hr, Refrigerant Charge: R-134a, (7.1 oz. / 201 g
Plumbing Specs1/2″ FPT Inlet, Minimum 1/4″ Nominal ID Copper Water Tubing or Equivalent, 3/4″ FPT Outlet, Minimum 3/4″ Nominal ID Hard Pipe or Equivalent
Shipping Weight125

Dimensions & Weight

Width-
Height-
Length-
Weight125 lbs.
Width17.75 in.
Depth24 in.
Height39 in.

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes1
Shipping Width-
Shipping Height-
Shipping Length-
Shipping Weight165 lbs.
Total of Shipping Weight165 lbs.
SourceCalculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement-
Dimensional Weight-
Total of Cubes-
Total of Dimensional Weight-

Warranty

Parts3 Years
Labor3 Years
Parts (Compressor)5 Years
