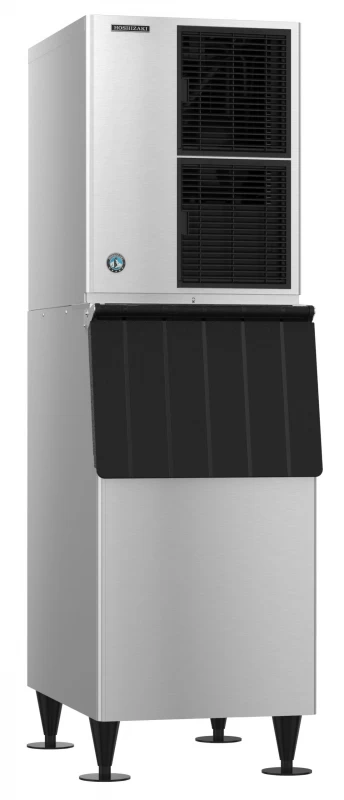

Crescent® Cuber Icemaker, Air-cooled, 50Hz Electrical - KM660MAJE
Color : Stainless Steel
Key Features
Up to 280 kg of ice produced per 24 hours
Mount 2 units side-by-side for 2x the ice production
Produces crescent shaped ice cubes
Dimensions: 559 mm W x 695 mm D x 711 mm H
Durable stainless steel exterior

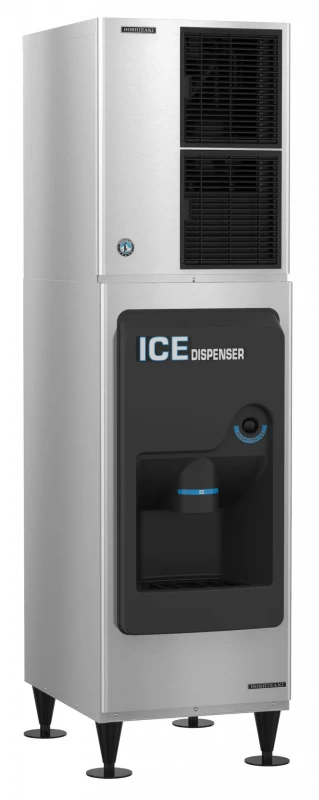

Compatible bins & dispensers, sold separately: B-250, B-300, B-500, B-700, B-800, B-900, B-1150, B-1300, DB-130H, DB-200H, DM-200B
R-404A refrigerant (760 g)
8.4 amps (15 Amp Max fuse)
Description
Available from Mark's Appliance, serving customers throughout Southern IL & St. Louis, MO.
Features
Up to 280 kg of ice produced per 24 hours
Mount 2 units side-by-side for 2x the ice production
Produces crescent shaped ice cubes
Dimensions: 559 mm W x 695 mm D x 711 mm H
Durable stainless steel exterior
Compatible bins & dispensers, sold separately: B-250, B-300, B-500, B-700, B-800, B-900, B-1150, B-1300, DB-130H, DB-200H, DM-200B
R-404A refrigerant (760 g)
8.4 amps (15 Amp Max fuse)
4.85 kwh/100 lbs.@ 90/70
50Hz electrical, 220-240v/50/1, 3000 mm long cord with Type G plug
Clean ice and easy maintenance lead to longer unit life span
EverCheck™ alert system
CycleSaver™ design
“-E”: 50Hz Electrical Model
Heat Rejection: 7300 BTU/hr
Warranty: Contact factory for warranty information
Specifications
Product Details
| Plumbing Specs | 12.7 mm FPT Inlet, Minimum 6 mm Nominal OD Copper Water Tubing or Equivalent, 19.05 mm FPT Outlet, Minimum 18 mm Nominal OD Hard Pipe or Equivalent |
| Electrical Specs | 50Hz electrical, 220-240v/50/1, 3000 mm long cord with Type G plug, Amperage: 8.4, Max Fuse/HACR Breaker: 15 A |
| Utility Consumption | 4.85 kWh per 100 lbs @ 90/70, 52 gal of Potable Water per 100 lbs @ 90/70 |
| Operating Limits | Ambient Temp Range: 7 – 38°C, Water Temp Range: 7 – 32°C, Water Pressure: 69 – 779kpa, Voltage Range: 198 – 254V, Heat Rejection: 7300 BTU/hr, Refrigerant Charge: R-404A, (1 lbs. 10.8 oz. / 7 |
| Shipping Weight | 185 |
| Warranty | Warranty: Contact factory for warranty information. |
Dimensions & Weight
| Width | - |
| Height | - |
| Length | - |
| Weight | 185 lbs. |
| Width | 22 in. |
| Depth | 27.375 in. |
| Height | 28 in. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | - |
| Shipping Height | - |
| Shipping Length | - |
| Shipping Weight | 225 lbs. |
| Total of Shipping Weight | 225 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | - |
| Dimensional Weight | - |
| Total of Cubes | - |
| Total of Dimensional Weight | - |
