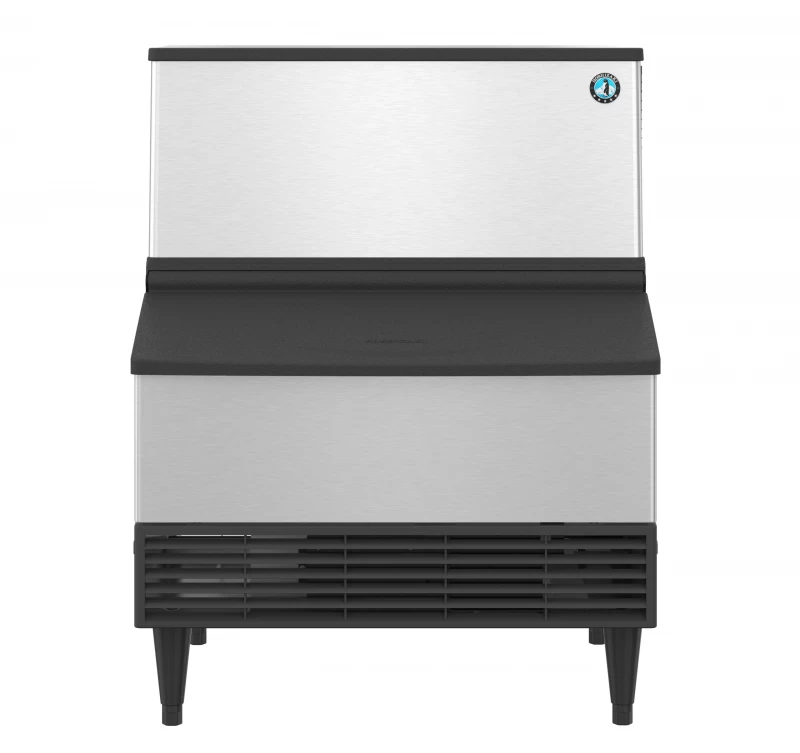

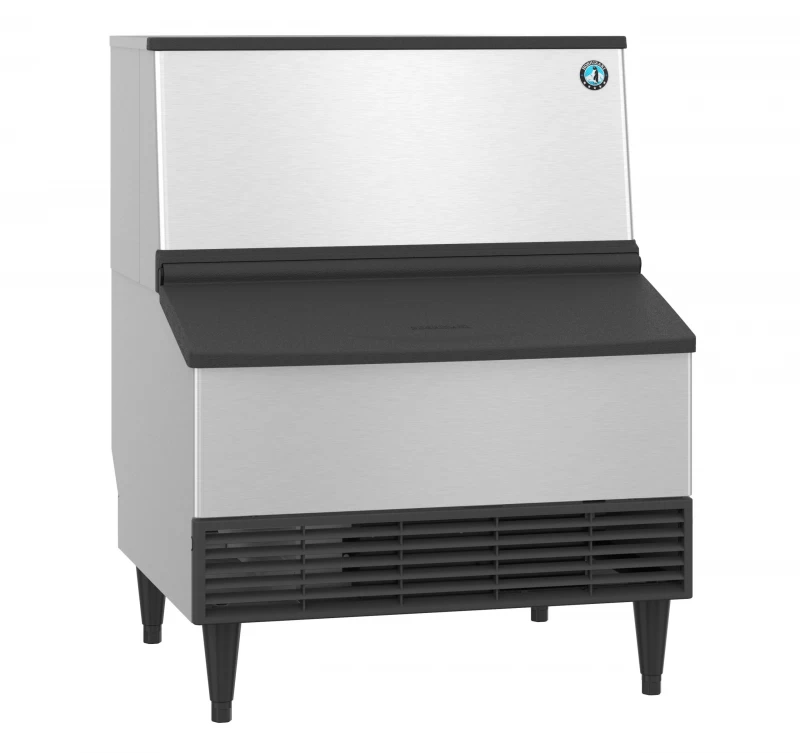

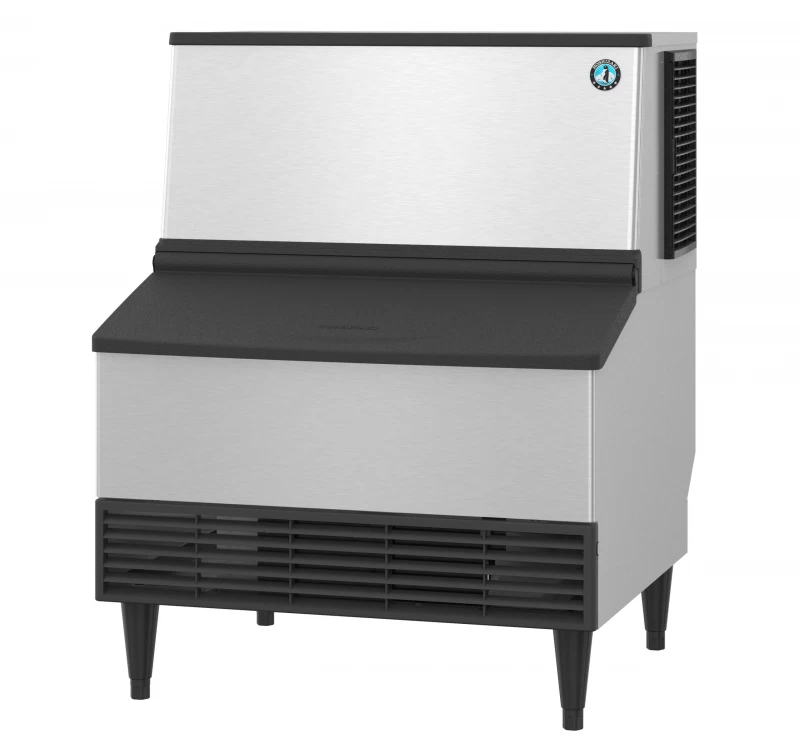

Crescent® Cuber Icemaker, Air-cooled, Built in Storage Bin - KM301BAJ

HoshizakiHoshizaki brand logo

Crescent® Cuber Icemaker, Air-cooled, Built in Storage Bin

Model: KM301BAJ

KM-301BAJ, Crescent Cuber Icemaker, Air-cooled, Built in Storage BinTitle KM301BAJKM-301BAJ, Crescent Cuber Icemaker, Air-cooled, Built in Storage BinTitle KM301BAJKM-301BAJ, Crescent Cuber Icemaker, Air-cooled, Built in Storage BinTitle KM301BAJKM-301BAJ, Crescent Cuber Icemaker, Air-cooled, Built in Storage BinTitle KM301BAJKM-301BAJ, Crescent Cuber Icemaker, Air-cooled, Built in Storage BinTitle KM301BAJKM-301BAJ, Crescent Cuber Icemaker, Air-cooled, Built in Storage BinTitle KM301BAJKM-301BAJ, Crescent Cuber Icemaker, Air-cooled, Built in Storage BinTitle KM301BAJ
KM-301BAJ, Crescent Cuber Icemaker, Air-cooled, Built in Storage BinTitle KM301BAJ
KM-301BAJ, Crescent Cuber Icemaker, Air-cooled, Built in Storage BinTitle KM301BAJ
KM-301BAJ, Crescent Cuber Icemaker, Air-cooled, Built in Storage BinTitle KM301BAJ
KM-301BAJ, Crescent Cuber Icemaker, Air-cooled, Built in Storage BinTitle KM301BAJ
KM-301BAJ, Crescent Cuber Icemaker, Air-cooled, Built in Storage BinTitle KM301BAJ
+2more

Color : Stainless Steel

product image
Stainless Steel

Key Features

  • Up to 290 lbs of ice produced per 24 hours

  • Durable stainless steel exterior

  • Front in, front out airflow

  • Up to 100 lbs of built-in storage capacity (3.3ft3)

  • Produces crescent shaped ice cubes

  • Ice bin opening is ADA compliant

  • R-404A refrigerant (13.4 oz. / 380 g)

  • 8.4 amps (15 Amp Max fuse)

Read More

Description

The KM-301BAJ is capable of producing approximately 290 lbs of crescent cubed ice. This Undercounter Air-cooled, Built in Storage Bin icemaker stores up to 100 lbs of ice*, which makes it ideal for small bars, hotel lobbies, and office break rooms. It features the CycleSaver™ design and includes the EverCheck™ alert system making the unit simple to maintain. The KM-301BAJ requires a Single phase, 115v/60/1, 6.5 ft cord with NEMA 5-15 plug electrical connection. Front in, front out airflow. Please consult the Specification Sheet for additional details.*Rated in accordance with AHRI Standard 820(I-P). Capacity based on 100% of total volume x 30 lb/ft3 average density of ice.
Read More

Available from Mark's Appliance, serving customers throughout Southern IL & St. Louis, MO.

Features
Specifications

Features

Up to 290 lbs of ice produced per 24 hours

Durable stainless steel exterior

Front in, front out airflow

Up to 100 lbs of built-in storage capacity (3.3ft3)

Produces crescent shaped ice cubes

Ice bin opening is ADA compliant

R-404A refrigerant (13.4 oz. / 380 g)

8.4 amps (15 Amp Max fuse)

Single phase, 115v/60/1, 6.5 ft cord with NEMA 5-15 plug

Clean ice and easy maintenance lead to longer unit life span

7.1 kwh/100 lbs.@ 90/70

EverCheck™ alert system

CycleSaver™ design

Heat Rejection: 4200 BTU/hr

Three Years: Parts & Labor warranty on entire machine

Five Years: Parts & Labor warranty on evaporator

Specifications

Product Details

Electrical SpecsSingle phase, 115v/60/1, 6.5 ft cord with NEMA 5-15 plug, Amperage: 8.4, Max Fuse/HACR Breaker: 15 A
Utility Consumption7.1 kWh per 100 lbs @ 90/70, 22 gal of Potable Water per 100 lbs @ 90/70
Operating LimitsAmbient Temp Range: 45 – 100°F, Water Temp Range: 45 – 90°F, Water Pressure: 10 – 113psig, Voltage Range: 104 – 127V, Heat Rejection: 4200 BTU/hr, Refrigerant Charge: R-404A, (13.4 oz. / 380
Plumbing Specs1/2″ FPT Inlet, Minimum 1/4″ Nominal ID Copper Water Tubing or Equivalent, 3/4″ FPT Outlet, Minimum 3/4″ Nominal ID Hard Pipe or Equivalent
Shipping Weight210

Dimensions & Weight

Width-
Height-
Length-
Weight210 lbs.
Width30 in.
Depth28 in.
Height39 in.

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes1
Shipping Width-
Shipping Height-
Shipping Length-
Shipping Weight250 lbs.
Total of Shipping Weight250 lbs.
SourceCalculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement-
Dimensional Weight-
Total of Cubes-
Total of Dimensional Weight-

Warranty

Parts3 Years
Labor3 Years
Parts (Compressor)5 Years
