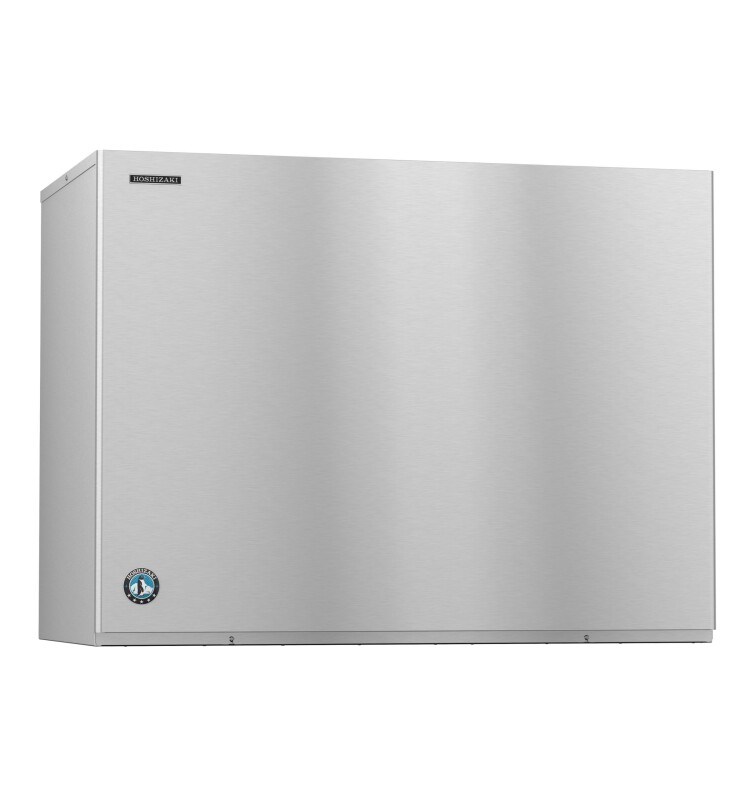

Crescent® Cuber Icemaker, Remote-cooled, 3 Phase - KM2600SRJZ3

Crescent® Cuber Icemaker, Remote-cooled, 3 Phase

Model: KM2600SRJZ3

KM-2600SRJZ3 with URC-26JZ, Crescent Cuber Icemaker, Remote-cooledTitle KM2600SRJZ3KM-2600SRJZ3 with URC-26JZ, Crescent Cuber Icemaker, Remote-cooledTitle KM2600SRJZ3KM-2600SRJZ3 with URC-26JZ, Crescent Cuber Icemaker, Remote-cooledTitle KM2600SRJZ3KM-2600SRJZ3 with URC-26JZ, Crescent Cuber Icemaker, Remote-cooledTitle KM2600SRJZ3
KM-2600SRJZ3 with URC-26JZ, Crescent Cuber Icemaker, Remote-cooledTitle KM2600SRJZ3
KM-2600SRJZ3 with URC-26JZ, Crescent Cuber Icemaker, Remote-cooledTitle KM2600SRJZ3
KM-2600SRJZ3 with URC-26JZ, Crescent Cuber Icemaker, Remote-cooledTitle KM2600SRJZ3
KM-2600SRJZ3 with URC-26JZ, Crescent Cuber Icemaker, Remote-cooledTitle KM2600SRJZ3

Color : Stainless Steel

product image
Stainless Steel

Key Features

  • Up to 2617 lbs of ice produced per 24 hours

  • Stack 2 units for 2x the ice production

  • Produces crescent shaped ice cubes

  • Durable stainless steel exterior

  • Compatible bins & dispensers, sold separately: B-800, B-900, B-1150, B-1300, B-1500, B-1650

  • R-404A refrigerant (19 lbs. 13.5 oz. / 9000 g)

  • 20.6 amps (30 Amp Max fuse)

  • 3.61 kwh/100 lbs.@ 90/70

Read More

Description

The KM-2600SRJZ3 is capable of producing approximately 2617 lbs of Crescent Cube style ice cubes per day, and the built-in dispensing system holds up to lbs of insulated storage to ensure you always have enough ice on hand! This commercial Remote-cooled icemaker is the only one-piece dispenser design on the market! This makes it easy to install and service, and a quiet operating system makes it ideal for use in hotels and similar applications. EverCheck™ alert system. This sanitary icemaker/dispenser features a user-friendly dispensing mechanism that allows clean, individual, crescent ice cubes to be dispensed with a simple push of a button. This model features CycleSaver™ design and is ENERGY STAR® qualified. The KM-2600SRJZ3 requires a Single phase, 208-230v/60/1, 4 wire, including ground. If neutral is not available transformer kit (HS-5030) is required electrical connection and comes with a cord and plug.
Read More

Available from Mark's Appliance, serving customers throughout Southern IL & St. Louis, MO.

Features
Specifications

Features

Up to 2617 lbs of ice produced per 24 hours

Stack 2 units for 2x the ice production

Produces crescent shaped ice cubes

Durable stainless steel exterior

Compatible bins & dispensers, sold separately: B-800, B-900, B-1150, B-1300, B-1500, B-1650

R-404A refrigerant (19 lbs. 13.5 oz. / 9000 g)

20.6 amps (30 Amp Max fuse)

3.61 kwh/100 lbs.@ 90/70

Three phase, 208-230v/60/3 4 wire, including ground. Must be hardwired at site, no cord/plug included

EverCheck™ alert system

CycleSaver™ design

ENERGY STAR® qualified

Integrated ultrasonic bin control

Simple, one-hour cleaning and assisted cleaning process with CleanAssist

Heat Rejection: 36000 BTU/hr

Three Years: Parts & Labor warranty on entire machine

Five Years: Parts & Labor warranty on evaporator

Specifications

Product Details

Electrical SpecsThree phase, 208-230v/60/3 4 wire, including ground. Must be hardwired at site, no cord/plug included, Amperage: 20.6, Max Fuse/HACR Breaker: 30 A
Utility Consumption3.61 kWh per 100 lbs @ 90/70, 16 gal of Potable Water per 100 lbs @ 90/70
Operating LimitsAmbient Temp Range: 45 – 100°F, Water Temp Range: 45 – 90°F, Water Pressure: 10 – 113psig, Voltage Range: 187 – 253V, Heat Rejection: 36000 BTU/hr, Refrigerant Charge: R-404A, (19 lbs. 13.5 o
Plumbing Specs1/2″ FPT Inlet, Minimum 3/8″ Nominal ID Copper Water Tubing or Equivalent, 3/4″ FPT Outlet, Minimum 3/4″ Nominal ID Drain Hard Pipe or Equivalent
Shipping Weight440

Dimensions & Weight

Width-
Height-
Length-
Weight440 lbs.
Width48 in.
Depth27.375 in.
Height36.438 in.

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes1
Shipping Width-
Shipping Height-
Shipping Length-
Shipping Weight480 lbs.
Total of Shipping Weight480 lbs.
SourceCalculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement-
Dimensional Weight-
Total of Cubes-
Total of Dimensional Weight-

Warranty

Parts3 Years
Labor3 Years
Parts (Compressor)5 Years
