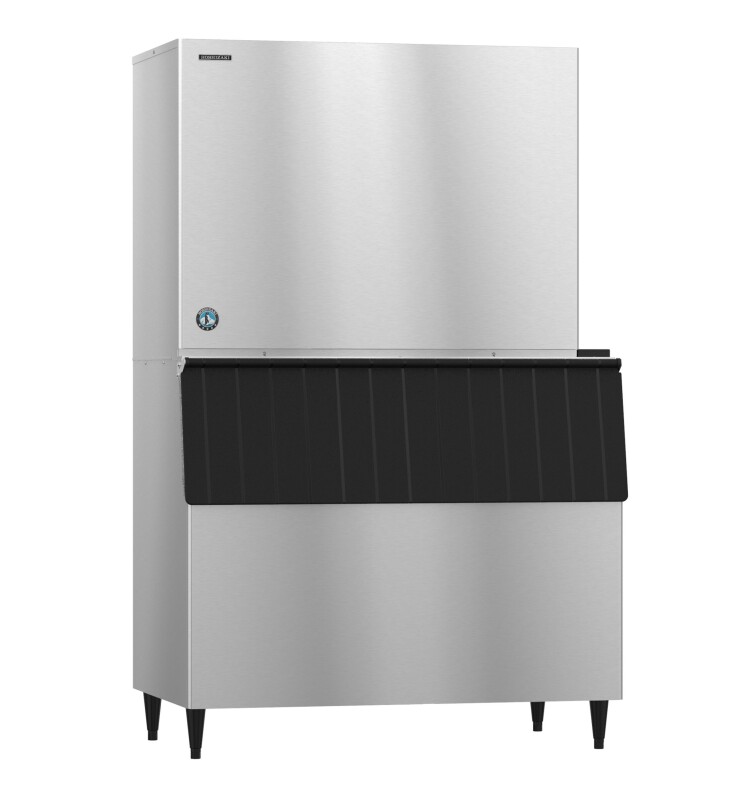

Crescent® Cuber Icemaker, Remote-cooled, 3 Phase - KM2200SRJZ3
Color : Stainless Steel
Key Features
Stack 2 units for 2x the ice production
Produces crescent shaped ice cubes
Up to 2206 lbs of ice produced per 24 hours
Durable stainless steel exterior
Compatible bins & dispensers, sold separately: B-800, B-900, B-1150, B-1300, B-1500, B-1650
R-404A refrigerant (8 lbs. 6 oz. / 3800 g)
15.9 amps (20 Amp Max fuse)
3.75 kwh/100 lbs.@ 90/70
Description
Available from Mark's Appliance, serving customers throughout Southern IL & St. Louis, MO.
Features
Stack 2 units for 2x the ice production
Produces crescent shaped ice cubes
Up to 2206 lbs of ice produced per 24 hours
Durable stainless steel exterior
Compatible bins & dispensers, sold separately: B-800, B-900, B-1150, B-1300, B-1500, B-1650
R-404A refrigerant (8 lbs. 6 oz. / 3800 g)
15.9 amps (20 Amp Max fuse)
3.75 kwh/100 lbs.@ 90/70
Three phase, 208-230v/60/3 4 wire, including ground. Must be hardwired at site, no cord/plug included
EverCheck™ alert system
CycleSaver™ design
ENERGY STAR® qualified
Dimensions: 48″ W x 27-3/8″ D x 36-7/16″ H
Integrated ultrasonic bin control
Simple, one-hour cleaning and assisted cleaning process with CleanAssist
Heat Rejection: 26700 BTU/hr
Three Years: Parts & Labor warranty on entire machine
Five Years: Parts & Labor warranty on evaporator
Specifications
Product Details
| Electrical Specs | Three phase, 208-230v/60/3 4 wire, including ground. Must be hardwired at site, no cord/plug included, Amperage: 15.9, Max Fuse/HACR Breaker: 20 A |
| Utility Consumption | 3.75 kWh per 100 lbs @ 90/70, 15 gal of Potable Water per 100 lbs @ 90/70 |
| Operating Limits | Ambient Temp Range: 45 – 100°F, Water Temp Range: 45 – 90°F, Water Pressure: 10 – 113psig, Voltage Range: 187 – 253V, Heat Rejection: 26700 BTU/hr, Refrigerant Charge: R-404A, (8 lbs. 6 oz. / |
| Plumbing Specs | 1/2″ FPT Inlet, Minimum 3/8″ Nominal ID Copper Water Tubing or Equivalent, 3/4″ FPT Outlet, Minimum 3/4″ Nominal ID Drain Hard Pipe or Equivalent |
| Shipping Weight | 400 |
Dimensions & Weight
| Width | - |
| Height | - |
| Length | - |
| Weight | 400 lbs. |
| Width | 48 in. |
| Depth | 27.375 in. |
| Height | 36.438 in. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | - |
| Shipping Height | - |
| Shipping Length | - |
| Shipping Weight | 440 lbs. |
| Total of Shipping Weight | 440 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | - |
| Dimensional Weight | - |
| Total of Cubes | - |
| Total of Dimensional Weight | - |
Warranty
| Parts | 3 Years |
| Labor | 3 Years |
| Parts (Compressor) | 5 Years |
