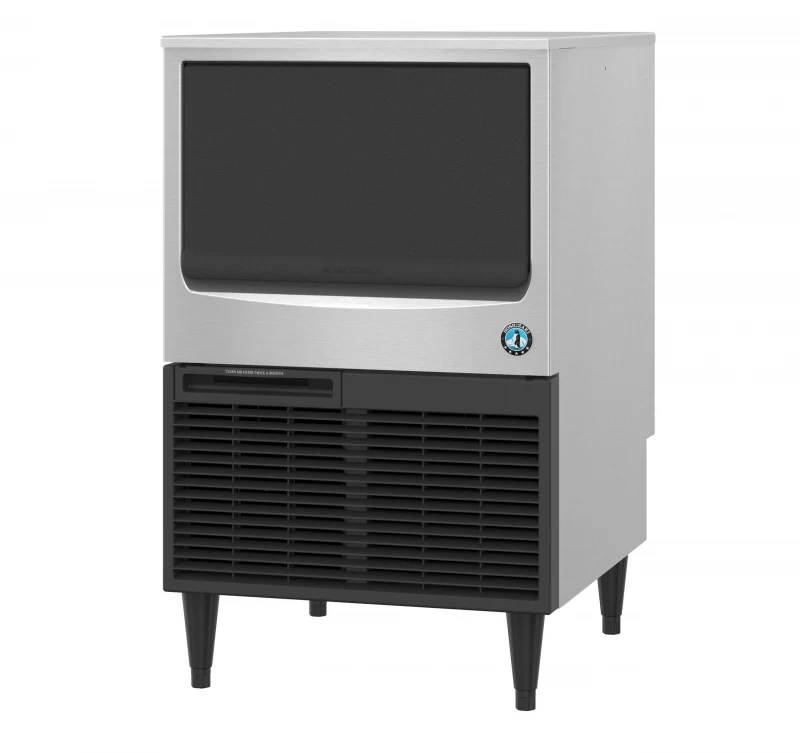

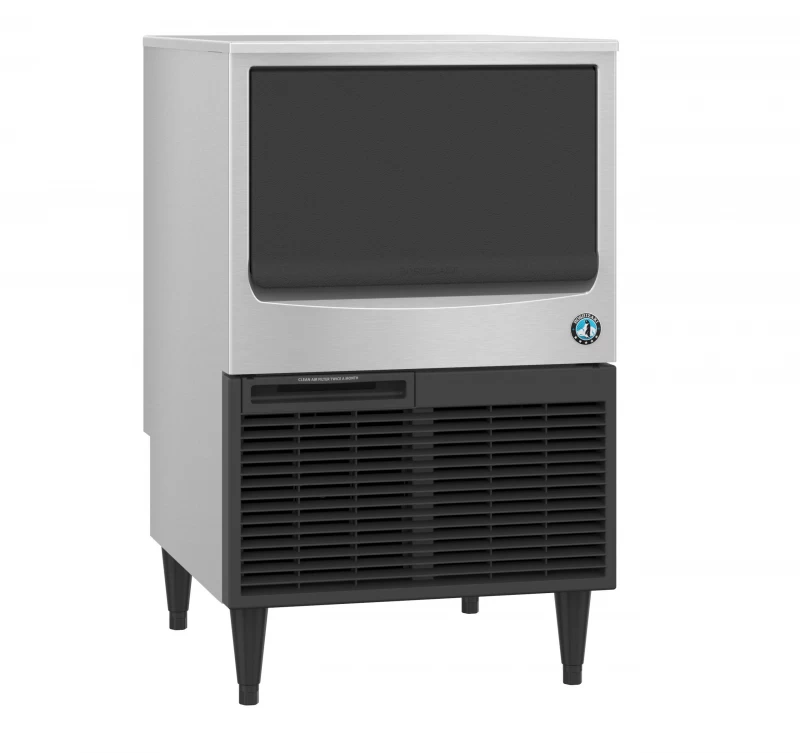

Crescent® Cuber Icemaker, Water-cooled, Built in Storage Bin - KM161BWJ
Color : Stainless Steel
Key Features
Front in, front out airflow
Up to 78 lbs of built-in storage capacity (2.6ft3)
Up to 157 lbs of ice produced per 24 hours
Durable stainless steel exterior
Produces crescent shaped ice cubes
Slide in door, ice bin opening is ADA compliant
R-134a refrigerant (10.6 oz. / 301 g)
6.4 amps (15 Amp Max fuse)
Description
Available from Mark's Appliance, serving customers throughout Southern IL & St. Louis, MO.
Features
Front in, front out airflow
Up to 78 lbs of built-in storage capacity (2.6ft3)
Up to 157 lbs of ice produced per 24 hours
Durable stainless steel exterior
Produces crescent shaped ice cubes
Slide in door, ice bin opening is ADA compliant
R-134a refrigerant (10.6 oz. / 301 g)
6.4 amps (15 Amp Max fuse)
6.23 kwh/100 lbs.@ 90/70
Single phase, 115v/60/1, 6.5 ft cord with NEMA 5-15 plug
Clean ice and easy maintenance lead to longer unit life span
EverCheck™ alert system
CycleSaver™ design
Heat Rejection: 2900 BTU/hr
Three Years: Parts & Labor warranty on entire machine
Five Years: Parts & Labor warranty on evaporator
Specifications
Product Details
| Electrical Specs | Single phase, 115v/60/1, 6.5 ft cord with NEMA 5-15 plug, Amperage: 6.4, Max Fuse/HACR Breaker: 15 A |
| Utility Consumption | 6.23 kWh per 100 lbs @ 90/70, 23.9 gal of Potable Water per 100 lbs @ 90/70 |
| Operating Limits | Ambient Temp Range: 45 – 100°F, Water Temp Range: 45 – 90°F, Water Pressure: 10 – 113psig, Voltage Range: 104 – 127V, Heat Rejection: 2900 BTU/hr, Refrigerant Charge: R-134a, (10.6 oz. / 301 |
| Plumbing Specs | 1/2″ FPT Inlet, Minimum 1/4″ Nominal ID Copper Water Tubing or Equivalent, 1/2″ FPT Outlet, Minimum 1/4″ Nominal ID Hard Pipe or Equivalent, Minimum 1/4″ Nominal ID Copper Water Tubing or Equ |
| Shipping Weight | 160 |
Dimensions & Weight
| Width | - |
| Height | - |
| Length | - |
| Weight | 160 lbs. |
| Width | 23.75 in. |
| Depth | 28 in. |
| Height | 39 in. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | - |
| Shipping Height | - |
| Shipping Length | - |
| Shipping Weight | 200 lbs. |
| Total of Shipping Weight | 200 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | - |
| Dimensional Weight | - |
| Total of Cubes | - |
| Total of Dimensional Weight | - |
Warranty
| Parts | 3 Years |
| Labor | 3 Years |
| Parts (Compressor) | 5 Years |
