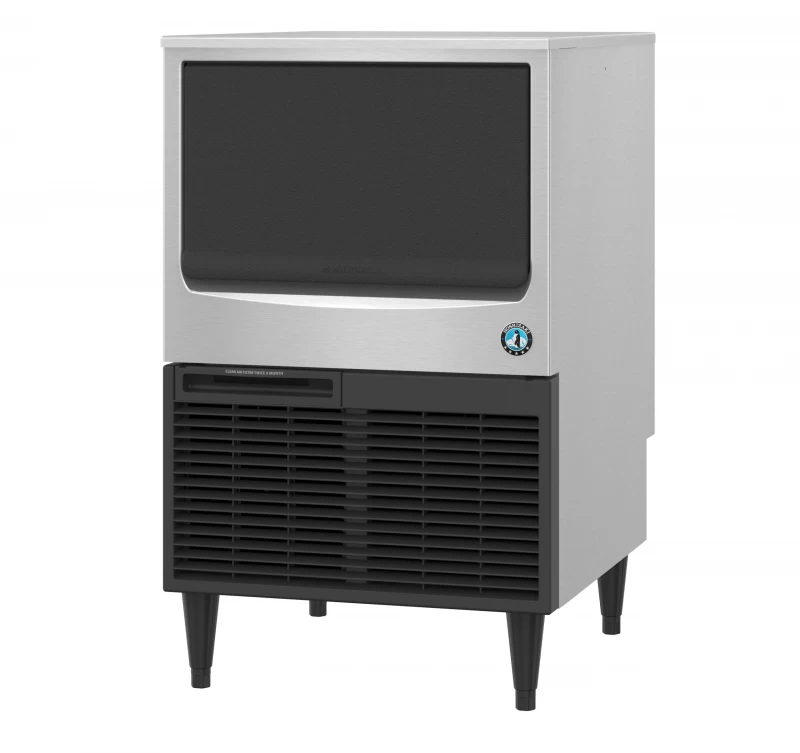

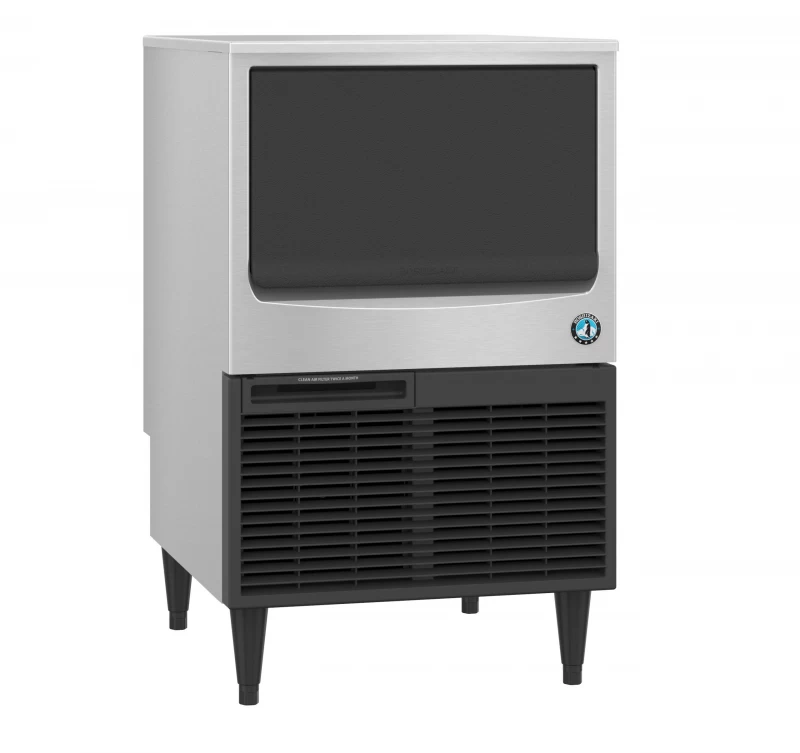

Crescent® Cuber Icemaker, Air-cooled, Built in Storage Bin - KM116BAJ
Color : Stainless Steel
Key Features
Up to 125 lbs of ice produced per 24 hours
Up to 53 lbs of built-in storage capacity (1.8ft3)
Produces crescent shaped ice cubes
Slide in door with durable stainless steel exterior
Front in, front out airflow
HS-5061 drain pump assembly, sold separately
R-134a refrigerant (7.8 oz. / 221 g)
5.5 amps (15 Amp Max fuse)
Description
Available from Mark's Appliance, serving customers throughout Southern IL & St. Louis, MO.
Features
Up to 125 lbs of ice produced per 24 hours
Up to 53 lbs of built-in storage capacity (1.8ft3)
Produces crescent shaped ice cubes
Slide in door with durable stainless steel exterior
Front in, front out airflow
HS-5061 drain pump assembly, sold separately
R-134a refrigerant (7.8 oz. / 221 g)
5.5 amps (15 Amp Max fuse)
8.1 kwh/100 lbs.@ 90/70
Single phase, 115v/60/1, 6.5 ft cord with NEMA 5-15 plug
EverCheck™ alert system
CycleSaver™ design
ENERGY STAR® qualified
Heat Rejection: 2100 BTU/hr
Three Years: Parts & Labor warranty on entire machine
Five Years: Parts & Labor warranty on evaporator
Specifications
Product Details
| Electrical Specs | Single phase, 115v/60/1, 6.5 ft cord with NEMA 5-15 plug, Amperage: 5.5, Max Fuse/HACR Breaker: 15 A |
| Utility Consumption | 8.1 kWh per 100 lbs @ 90/70, 20 gal of Potable Water per 100 lbs @ 90/70 |
| Operating Limits | Ambient Temp Range: 45 – 100°F, Water Temp Range: 45 – 90°F, Water Pressure: 10 – 113psig, Voltage Range: 104 – 127V, Heat Rejection: 2100 BTU/hr, Refrigerant Charge: R-134a, (7.8 oz. / 221 g |
| Plumbing Specs | 1/2″ FPT Inlet, Minimum 1/4″ Nominal ID Copper Water Tubing or Equivalent, 3/4″ FPT Outlet, Minimum 3/4″ Nominal ID Hard Pipe or Equivalent |
| Shipping Weight | 145 |
Dimensions & Weight
| Width | - |
| Height | - |
| Length | - |
| Weight | 145 lbs. |
| Width | 23.75 in. |
| Depth | 24 in. |
| Height | 39 in. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | - |
| Shipping Height | - |
| Shipping Length | - |
| Shipping Weight | 185 lbs. |
| Total of Shipping Weight | 185 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | - |
| Dimensional Weight | - |
| Total of Cubes | - |
| Total of Dimensional Weight | - |
Warranty
| Parts | 3 Years |
| Labor | 3 Years |
| Parts (Compressor) | 5 Years |
