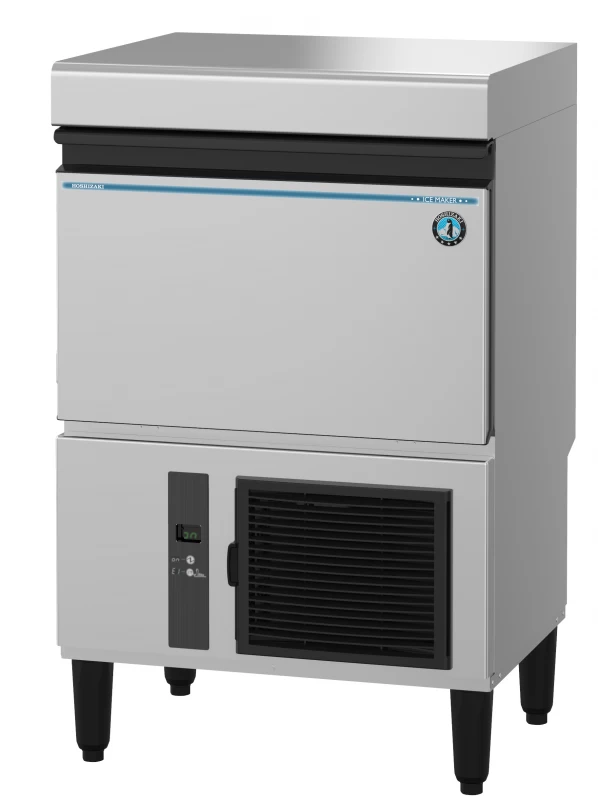

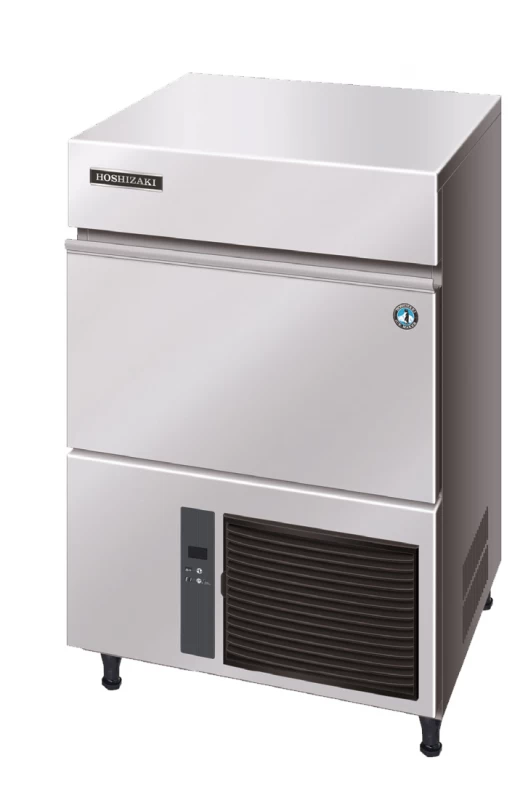

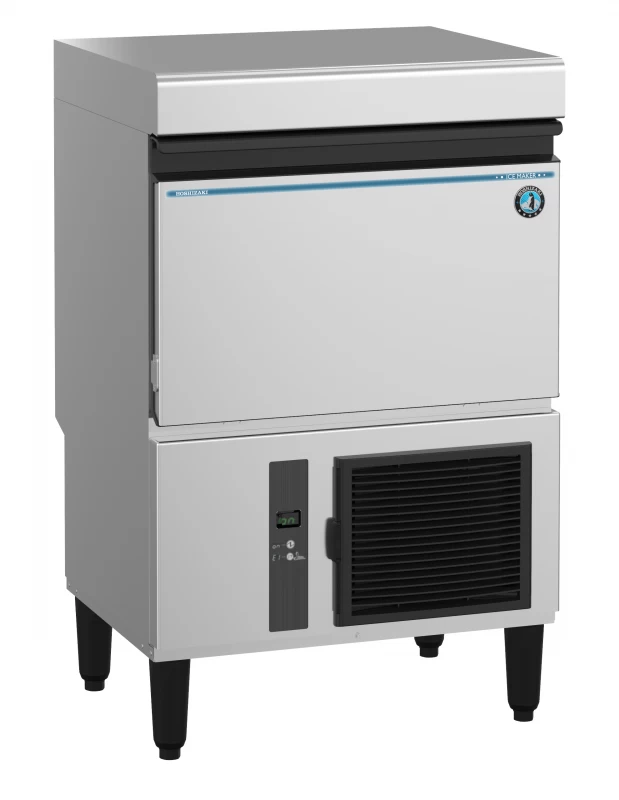

Sphere Cube Icemaker, Air-cooled, Built in Storage Bin - IM50BAAQ
Color : Stainless Steel
Key Features
Up to 50 lbs or 500 spheres of ice produced per 24 hours
Up to 36 lbs of built-in storage capacity (ft3)
Produces individual sphere cubes
Durable stainless steel exterior
Front in, back out airflow
Ice scoop included
Foam injected polyurethane for insulation (HFC free)
Nozzle injects water into the sphere ice forming chamber of the evaporator, making 15 spheres at a time
Description
Available from Mark's Appliance, serving customers throughout Southern IL & St. Louis, MO.
Features
Up to 50 lbs or 500 spheres of ice produced per 24 hours
Up to 36 lbs of built-in storage capacity (ft3)
Produces individual sphere cubes
Durable stainless steel exterior
Front in, back out airflow
Ice scoop included
Foam injected polyurethane for insulation (HFC free)
Nozzle injects water into the sphere ice forming chamber of the evaporator, making 15 spheres at a time
R-134a refrigerant (7.1 oz. / 201 g)
5 amps (15 Amp Max fuse)
15.7 kwh/100 lbs.@ 90/70
Single phase, 115v/60/1, 6.5 ft. cord with NEMA 5-15 plug
Clean ice and easy maintenance lead to longer unit life span
Five Years: Parts warranty on Compressor, air-cooled condenser coil.
Dimensions: 24-3/4″ W x 20-3/4″ D x 39- 1/2 ” H
Heat Rejection:1500 BTU/hr
Three Years: Parts & Labor warranty on entire machine.
Specifications
Product Details
| Utility Consumption | 15.7 kWh per 100 lbs @ 90/70, 69 gal of Potable Water per 100 lbs @ 90/70 |
| Electrical Specs | Single phase, 115v/60/1, 6′ 5″ ft cord with NEMA 5-15 plug, Amperage: 5, Max Fuse/HACR Breaker: 15 A |
| Operating Limits | Ambient Temp Range: 45 – 100°F, Water Temp Range: 45 – 90°F, Water Pressure: 7 – 113psig, Voltage Range: 104 – 127V, Heat Rejection: 1500 BTU/hr, Refrigerant Charge: R-134a, (7.1 oz. / 201 g) |
| Plumbing Specs | 1/2″ FPT Inlet, Minimum 1/2″ Nominal ID Copper Water Tubing or Equivalent, 3/4″ FPT Outlet, Minimum 3/4″ Nominal ID Hard Pipe or Equivalent |
Dimensions & Weight
| Width | - |
| Height | - |
| Length | - |
| Weight | - |
| Width | 24.75 in. |
| Depth | 20.75 in. |
| Height | 39.5 in. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | - |
| Shipping Height | - |
| Shipping Length | - |
| Shipping Weight | - |
| Total of Shipping Weight | - |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | - |
| Dimensional Weight | - |
| Total of Cubes | - |
| Total of Dimensional Weight | - |
Warranty
| Parts | 3 Years |
| Labor | 3 Years |
| Parts (Condenser) | 5 Years |
