Cubelet Icemaker, Remote-cooled, Serenity Series - FS1022MLJC
Color : Stainless Steel
Key Features
Up to 830 lbs of ice produced per 24 hours
Durable stainless steel exterior

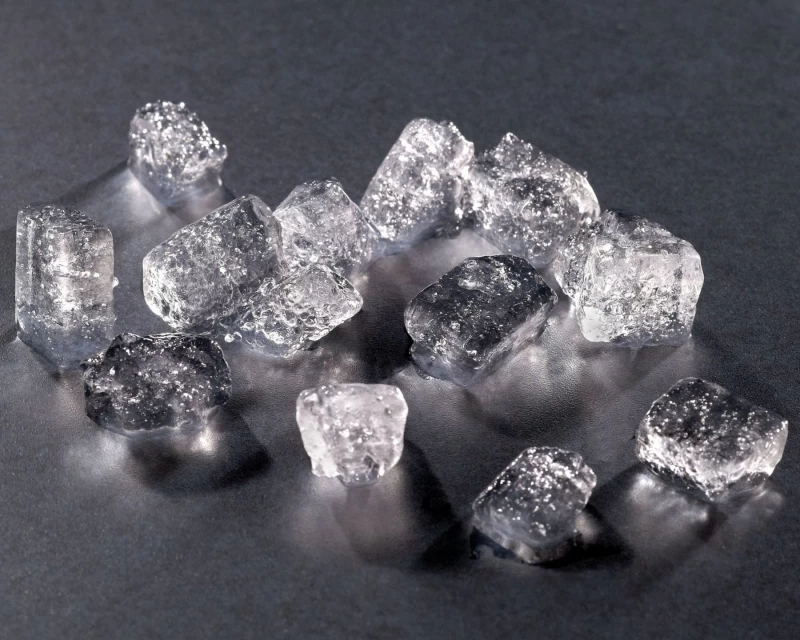

Produces small cubelet nugget-style ice
Compatible bins & dispensers, sold separately: Beverage Dispensers
Ice removed from evaporator after every shut down cycle
Reduces heat in the kitchen and minimizes noise
R-404A refrigerant (4 oz. / 113 g)
5.96 kwh/100 lbs.@ 90/70
Description
Available from Mark's Appliance, serving customers throughout Southern IL & St. Louis, MO.
Features
Up to 830 lbs of ice produced per 24 hours
Durable stainless steel exterior
Produces small cubelet nugget-style ice
Compatible bins & dispensers, sold separately: Beverage Dispensers
Ice removed from evaporator after every shut down cycle
Reduces heat in the kitchen and minimizes noise
R-404A refrigerant (4 oz. / 113 g)
5.96 kwh/100 lbs.@ 90/70
Single phase, See Remote Condenser, *115V supply for the FS Icemaker is supplied from the 230V SRC Remote Condenser
Clean ice and easy maintenance lead to longer unit life span
9.3 amps (20 Amp Max fuse)
Mount units side-by-side for x the ice production
Advanced CleanCycle24™ design
Heat Rejection: 9800 BTU/hr
Three Years: Parts & Labor warranty on entire machine (Serial numbers VxxxxxJ and after)
Five Years: Parts warranty on Compressor, air-cooled condenser coil
Specifications
Product Details
| Utility Consumption | 5.96 kWh per 100 lbs @ 90/70, 12 gal of Potable Water per 100 lbs @ 90/70 |
| Electrical Specs | Single phase, See Remote Condenser *115V supply for the FS Icemaker is supplied from the 230V SRC Remote Condenser, Amperage: 9.3, Max Fuse/HACR Breaker: 20 A |
| Operating Limits | Ambient Temp Range: 45 – 100°F, Water Temp Range: 45 – 90°F, Water Pressure: 10 – 113psig, Voltage Range: 104 – 127V, Heat Rejection: 9800 BTU/hr, Refrigerant Charge: R-404A, (4 oz. / 113 g) |
| Plumbing Specs | 1/2″ FPT Inlet, Minimum 1/4″ Nominal ID Copper Water Tubing or Equivalent, 3/4″ FPT Outlet, Minimum 3/4″ Nominal ID Hard Pipe or Equivalent |
| Shipping Weight | 140 |
Dimensions & Weight
| Width | - |
| Height | - |
| Length | - |
| Weight | 140 lbs. |
| Width | 22 in. |
| Depth | 16.5 in. |
| Height | 26 in. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | - |
| Shipping Height | - |
| Shipping Length | - |
| Shipping Weight | 180 lbs. |
| Total of Shipping Weight | 180 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | - |
| Dimensional Weight | - |
| Total of Cubes | - |
| Total of Dimensional Weight | - |
Warranty
| Parts | 3 Years |
| Labor | 3 Years |
