Cubelet Icemaker, Remote-cooled, Serenity Series - FS1001MLJC
Color : Stainless Steel
Key Features
Up to 851 lbs of ice produced per 24 hours
Durable stainless steel exterior

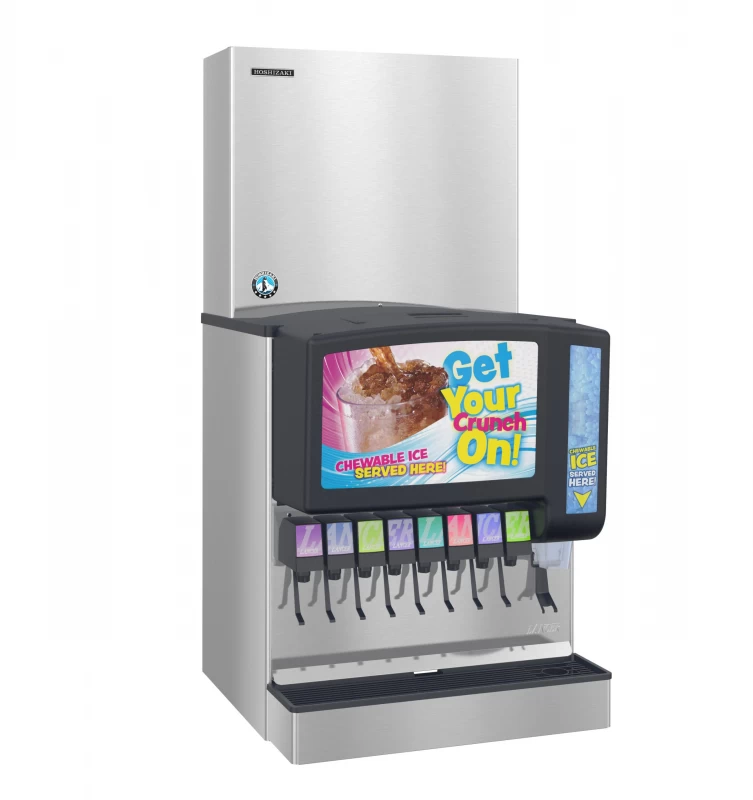

Compatible bins & dispensers, sold separately: Beverage Dispensers
Produces small cubelet nugget-style ice
Remote cooled models reduces heat in the kitchen and minimizes noise
R-404A refrigerant (3.5 oz. / 99 g)
Ice removed from evaporator after every shut down cycle
9.3 amps (20 Amp Max fuse)
Description
Available from Mark's Appliance, serving customers throughout Southern IL & St. Louis, MO.
Features
Up to 851 lbs of ice produced per 24 hours
Durable stainless steel exterior
Compatible bins & dispensers, sold separately: Beverage Dispensers
Produces small cubelet nugget-style ice
Remote cooled models reduces heat in the kitchen and minimizes noise
R-404A refrigerant (3.5 oz. / 99 g)
Ice removed from evaporator after every shut down cycle
9.3 amps (20 Amp Max fuse)
5.07 kwh/100 lbs.@ 90/70

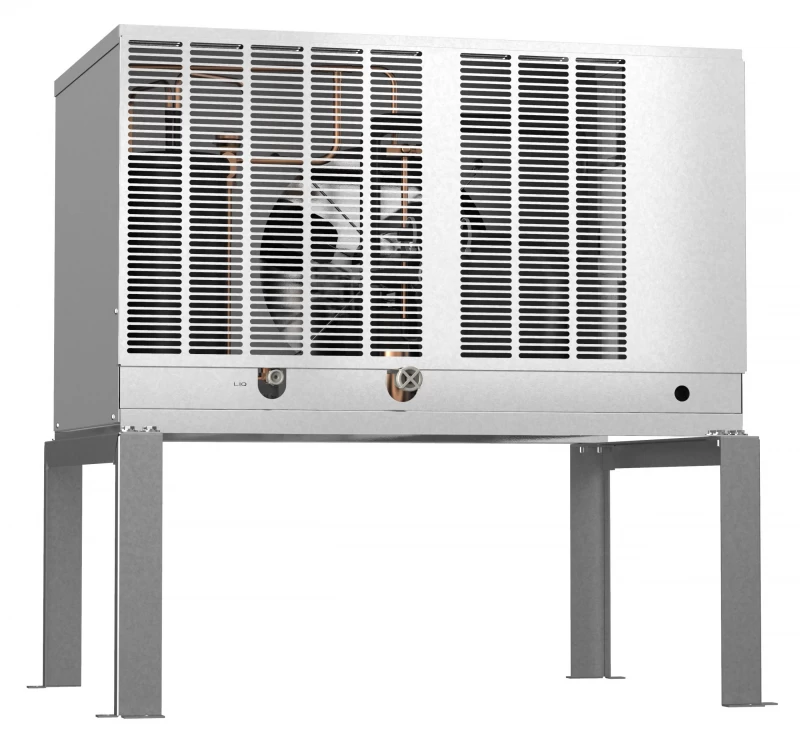

Single phase, See Remote Condenser, *115V supply for the FS Icemaker is supplied from the 230V SRC Remote Condenser
Clean ice and easy maintenance lead to longer unit life span
Mount units side-by-side for x the ice production
Advanced CleanCycle24™ design
Heat Rejection: 9800 BTU/hr
Three Years: Parts & Labor warranty on entire machine
Five Years: Parts warranty on Compressor, air-cooled condenser coil
Specifications
Product Details
| Utility Consumption | 5.07 kWh per 100 lbs @ 90/70, 12 gal of Potable Water per 100 lbs @ 90/70 |
| Electrical Specs | Single phase, See Remote Condenser *115V supply for the FS Icemaker is supplied from the 230V SRC Remote Condenser, Amperage: 9.3, Max Fuse/HACR Breaker: 20 A |
| Operating Limits | Ambient Temp Range: 45 – 100°F, Water Temp Range: 45 – 90°F, Water Pressure: 10 – 113psig, Voltage Range: 104 – 127V, Heat Rejection: 9800 BTU/hr, Refrigerant Charge: R-404A, (3.5 oz. / 99 g) |
| Plumbing Specs | 1/2″ FPT Inlet, Minimum 1/4″ Nominal ID Copper Water Tubing or Equivalent, 3/4″ FPT Outlet, Minimum 3/4″ Nominal ID Hard Pipe or Equivalent |
| Shipping Weight | 140 |
Dimensions & Weight
| Width | - |
| Height | - |
| Length | - |
| Weight | 140 lbs. |
| Width | 30 in. |
| Depth | 11 in. |
| Height | 26 in. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | - |
| Shipping Height | - |
| Shipping Length | - |
| Shipping Weight | 180 lbs. |
| Total of Shipping Weight | 180 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | - |
| Dimensional Weight | - |
| Total of Cubes | - |
| Total of Dimensional Weight | - |
Warranty
| Parts | 3 Years |
| Labor | 3 Years |
