Cubelet Icemaker, Water-cooled - FD650MWJC
Color : Stainless Steel
Key Features
Up to 622 lbs of ice produced per 24 hours
Mount 2 units side-by-side for 2x the ice production
Produces small cubelet nugget-style ice
Durable stainless steel exterior

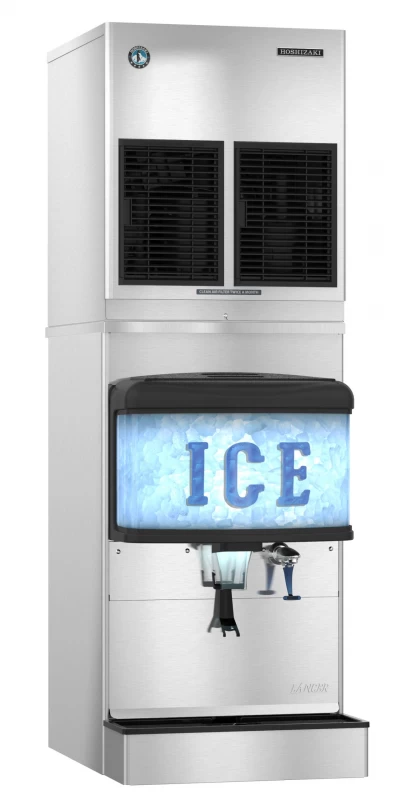

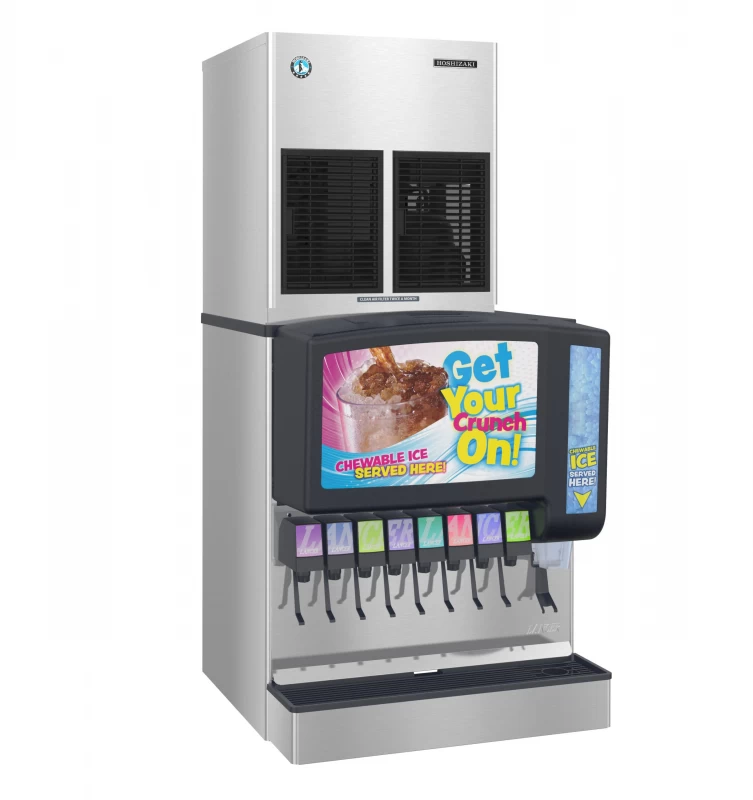

Compatible bins & dispensers, sold separately: B-250, BD-300, B-500, B-700, B-800, B-900
2 second rinse every hour to remove sediment
R-404A refrigerant (13.3 oz. oz. / 377 g g )
7.8 amps (20 Amp Max fuse)
Description
Available from Mark's Appliance, serving customers throughout Southern IL & St. Louis, MO.
Features
Up to 622 lbs of ice produced per 24 hours
Mount 2 units side-by-side for 2x the ice production
Produces small cubelet nugget-style ice
Durable stainless steel exterior
Compatible bins & dispensers, sold separately: B-250, BD-300, B-500, B-700, B-800, B-900
2 second rinse every hour to remove sediment
R-404A refrigerant (13.3 oz. oz. / 377 g g )
7.8 amps (20 Amp Max fuse)
3.81 kwh/100 lbs.@ 90/70
Single phase, 115v/60/1, 3 wire, including ground
Clean ice and easy maintenance lead to longer unit life span
Three Years: Parts & Labor warranty on entire machine. (Serial numbers VxxxxxJ and after).
Five Years: Parts warranty on Compressor, air-cooled condenser coil.
Advanced CleanCycle24™ design
Heat Rejection:5400 BTU/hr
Specifications
Product Details
| Utility Consumption | 3.81 kWh per 100 lbs @ 90/70, 12 gal of Potable Water per 100 lbs @ 90/70 |
| Electrical Specs | Single phase, 115v/60/1 3 wire, including ground, Amperage: 7.8, Max Fuse/HACR Breaker: 20 A |
| Operating Limits | Ambient Temp Range: 45 – 100°F, Water Temp Range: 45 – 90°F, Water Pressure: 10 – 113psig, Voltage Range: 104 – 127V, Heat Rejection: 5400 BTU/hr, Refrigerant Charge: R-404A, (13.3 oz. / 377 |
| Plumbing Specs | 1/2″ FPT Inlet, Minimum 1/4″ Nominal ID Copper Water Tubing or Equivalent, 3/8″ FPT Outlet, Minimum 1/4″ Nominal ID Hard Pipe or Equivalent, Minimum 1/4″ Nominal ID Copper Water Tubing or Equ |
| Shipping Weight | 185 |
Dimensions & Weight
| Width | - |
| Height | - |
| Length | - |
| Weight | 185 lbs. |
| Width | 22 in. |
| Depth | 24 in. |
| Height | 26 in. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | - |
| Shipping Height | - |
| Shipping Length | - |
| Shipping Weight | 225 lbs. |
| Total of Shipping Weight | 225 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | - |
| Dimensional Weight | - |
| Total of Cubes | - |
| Total of Dimensional Weight | - |
Warranty
| Parts | 3 Years |
| Labor | 3 Years |
