Name: Cubelet Icemaker, Air-cooled
Brand: Hoshizaki
SKU: F801MAJC
Availability: BackOrder

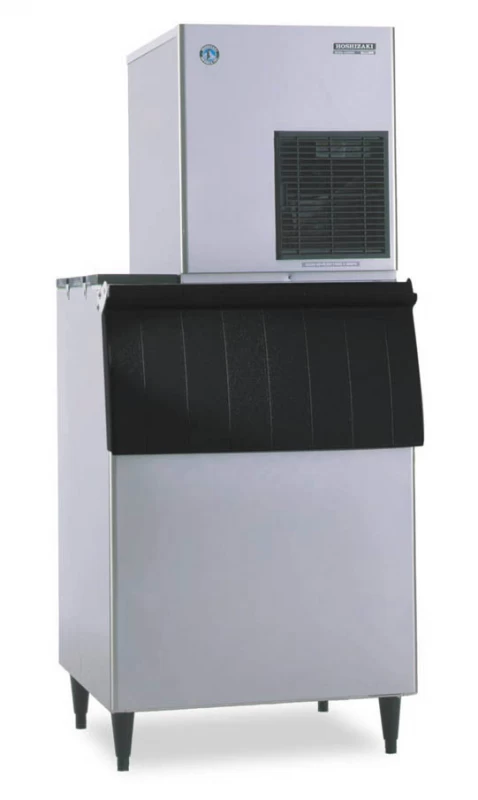

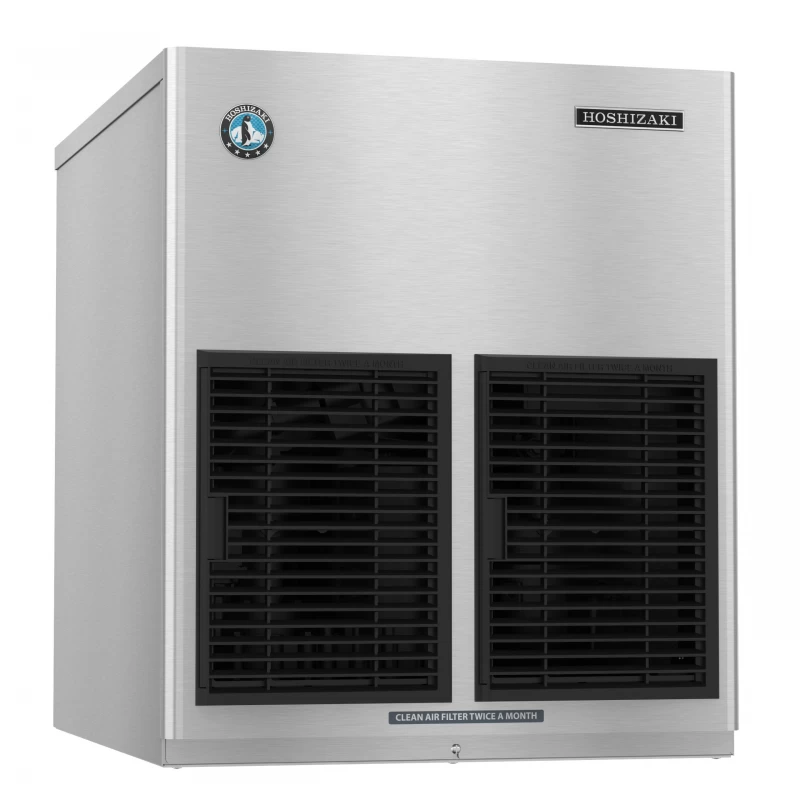

Cubelet Icemaker, Air-cooled

Model : #F801MAJC

Cubelet Icemaker, Air-cooled

Model: F801MAJC

Cubelet Icemaker, Air-cooled

Model: F801MAJC

Color : Stainless Steel

Key Features

Up to 632 lbs of ice produced per 24 hours
Mount 2 units side-by-side for 2x the ice production
Durable stainless steel exterior
Compatible bins & dispensers, sold separately: B-250, B-300, B-500, B-700, B-800, B-900, B-1150, B-1300, B-1500, B-1650, B-1150, B-1300, B-1500, B-1650
2 second rinse every hour to remove sediment for cleaner ice
Produces small cubelet nugget-style ice
Infrared bin control for easy cleaning and reliability
R-404A refrigerant (1 lbs. 12 oz. / 790 g)

Description

The F-801MAJ-C is capable of producing approximately 632 lbs of cubelet (nugget-style) ice per day. Cubelet ice is the most popular ice for drinks – as it cools the beverage quickly and absorbs the flavor making an easy-to-chew treat. This Air-cooled, Slim Line Modular icemaker features the Advanced CleanCycle24™ design plus a greaseless bearing auger construction making it simple to maintain. The F-801MAJ-C requires a Single phase, 115v/60/1, 3 wire, including ground. Must be hardwired at site, no cord/plug included electrical connection that is hard-wired at the installation site. Compatible bins & dispensers, sold separately: B-250, B-300, B-500, B-700, B-800, B-900, B-1150, B-1300, B-1500, B-1650, B-1150, B-1300, B-1500, B-1650. ENERGY STAR® qualified. Please consult the Specification Sheet for additional details.

Documents

Specification Sheet

View | Download

PDF, 1.21 MB

Parts Manual

View | Download

PDF, 4.67 MB

Warranty Statement

View | Download

PDF, 1022.59 KB

Service Manual

View | Download

PDF, 6.24 MB

Instruction Manual

View | Download

PDF, 6.71 MB

Available from Mark's Appliance, serving customers throughout Southern IL & St. Louis, MO.

Features

Specifications

Features

Up to 632 lbs of ice produced per 24 hours

Mount 2 units side-by-side for 2x the ice production

Durable stainless steel exterior

Compatible bins & dispensers, sold separately: B-250, B-300, B-500, B-700, B-800, B-900, B-1150, B-1300, B-1500, B-1650, B-1150, B-1300, B-1500, B-1650

2 second rinse every hour to remove sediment for cleaner ice

Produces small cubelet nugget-style ice

Infrared bin control for easy cleaning and reliability

R-404A refrigerant (1 lbs. 12 oz. / 790 g)

11.8 amps (15 Amp Max fuse)

5 kwh/100 lbs.@ 90/70

Single phase, 115v/60/1, 3 wire, including ground. Must be hardwired at site, no cord/plug included

Three Years: Parts & Labor warranty on entire machine.

Five Years: Parts warranty on Compressor, air-cooled condenser coil.

Advanced CleanCycle24™ design

Heat Rejection: BTU/hr

ENERGY STAR® qualified

Specifications

Product Details

Utility Consumption	5 kWh per 100 lbs @ 90/70, 12 gal of Potable Water per 100 lbs @ 90/70
Electrical Specs	Single phase, 115v/60/1, 3 wire, including ground. Must be hardwired at site, no cord/plug included, Amperage: 11.8, Max Fuse/HACR Breaker: 15 A
Operating Limits	Ambient Temp Range: 45 – 100°F, Water Temp Range: 45 – 90°F, Water Pressure: 10 – 113psig, Voltage Range: 104 – 127V, Heat Rejection: BTU/hr, Refrigerant Charge: R-404A, (1 lbs. 12 oz. / 790
Plumbing Specs	1/2″ FPT Inlet, Minimum 1/4″ Nominal ID Copper Water Tubing or Equivalent, 3/4″ FPT Outlet, Minimum 3/4″ Nominal ID Hard Pipe or Equivalent
Shipping Weight	200

Dimensions & Weight
