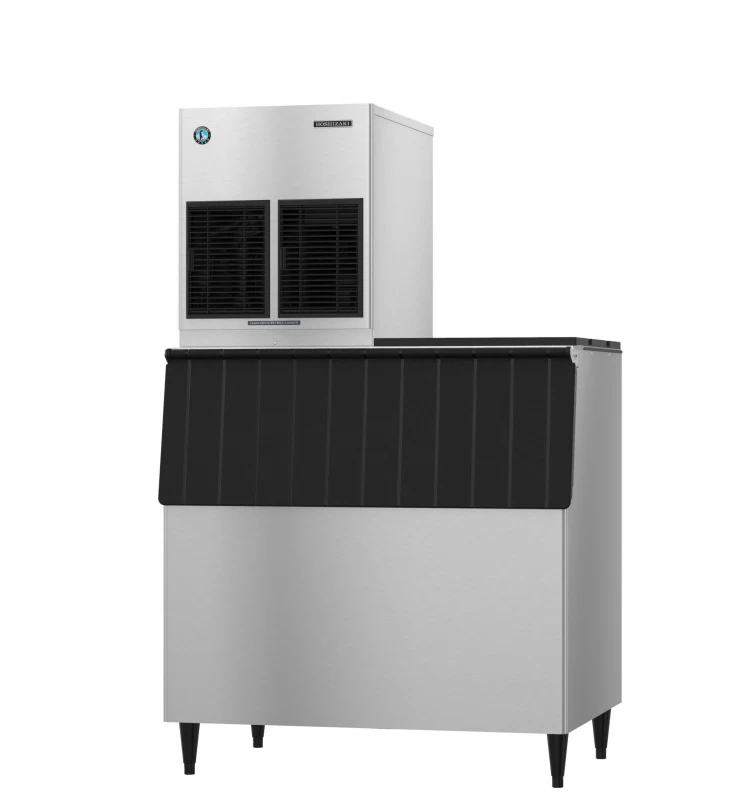

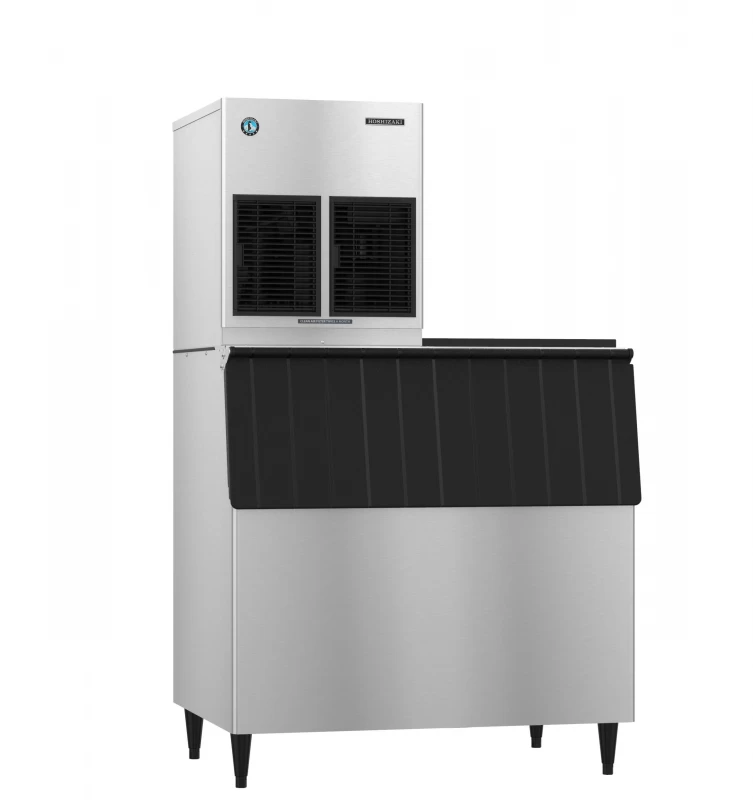

Flaker Icemaker, Remote-cooled - F1002MRJZ
Color : Stainless Steel
Key Features
Up to 907 lbs of ice produced per 24 hours
Mount 2 units side-by-side for 2x the ice production
Durable stainless steel exterior
Compatible bins & dispensers, sold separately: B-250, B-300, B-500, B-700, B-800, B-900, B-1150, B-1300, B-1500SS, B-1650SS
2 second rinse every hour to remove sediment
Produces flaked ice
R-404A refrigerant (2 lbs. 3.3 oz. / 1001 g)
15.23 amps (20 Amp Max fuse)
Description
Available from Mark's Appliance, serving customers throughout Southern IL & St. Louis, MO.
Features
Up to 907 lbs of ice produced per 24 hours
Mount 2 units side-by-side for 2x the ice production
Durable stainless steel exterior
Compatible bins & dispensers, sold separately: B-250, B-300, B-500, B-700, B-800, B-900, B-1150, B-1300, B-1500SS, B-1650SS
2 second rinse every hour to remove sediment
Produces flaked ice
R-404A refrigerant (2 lbs. 3.3 oz. / 1001 g)
15.23 amps (20 Amp Max fuse)
4.51 kwh/100 lbs.@ 90/70
Single phase, 115v/60/1, 3 wire, including ground. Must be hardwired at site, no cord/plug included
Clean ice and easy maintenance lead to longer unit life span
Advanced CleanCycle24™ design
Heat Rejection: 8600 BTU/hr
Three Years: Parts & Labor warranty on entire machine
Five Years: Parts warranty on Compressor, air-cooled condenser coil
Specifications
Product Details
| Electrical Specs | Single phase, 115v/60/1, 3 wire, including ground. Must be hardwired at site, no cord/plug included, Amperage: 15.23, Max Fuse/HACR Breaker: 20 A |
| Utility Consumption | 4.51 kWh per 100 lbs @ 90/70, 12 gal of Potable Water per 100 lbs @ 90/70 |
| Operating Limits | Ambient Temp Range: 45 – 100°F, Water Temp Range: 45 – 90°F, Water Pressure: 10 – 113psig, Voltage Range: 104 – 127V, Heat Rejection: 8600 BTU/hr, Refrigerant Charge: R-404A, (2 lbs. 3.3 oz. |
| Plumbing Specs | 1/2″ FPT Inlet, Minimum 1/2″ Nominal ID Copper Water Tubing or Equivalent, 3/4″ FPT Outlet, Minimum 3/4″ Nominal ID Hard Pipe or Equivalent |
| Shipping Weight | 210 |
Dimensions & Weight
| Width | - |
| Height | - |
| Length | - |
| Weight | 210 lbs. |
| Width | 22 in. |
| Depth | 27.375 in. |
| Height | 25.938 in. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | - |
| Shipping Height | - |
| Shipping Length | - |
| Shipping Weight | 250 lbs. |
| Total of Shipping Weight | 250 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | - |
| Dimensional Weight | - |
| Total of Cubes | - |
| Total of Dimensional Weight | - |
Warranty
| Parts | 3 Years |
| Labor | 3 Years |
