Home/Refrigeration/Specialty Refrigeration/Beverage Centers/RM10HC

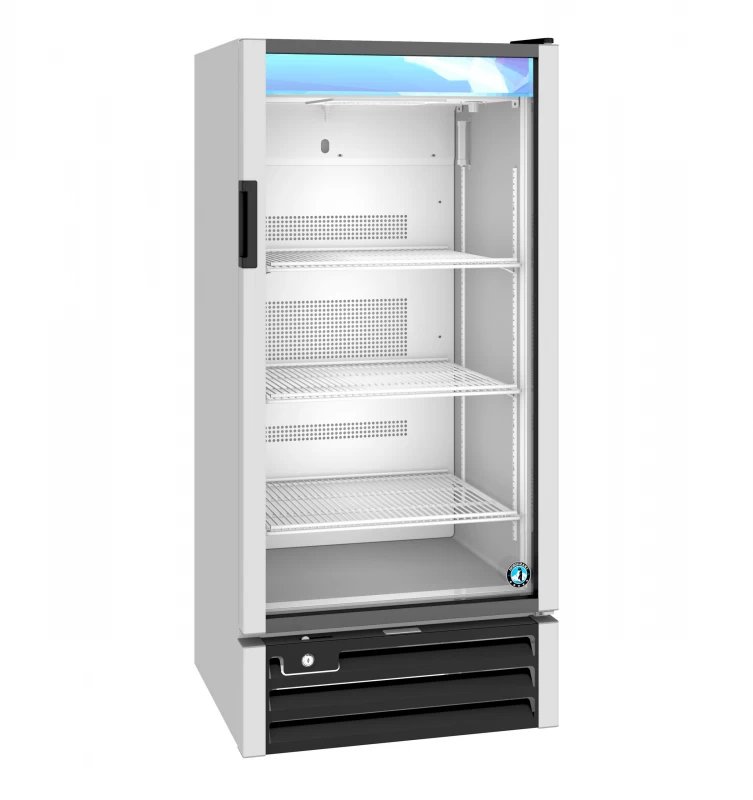

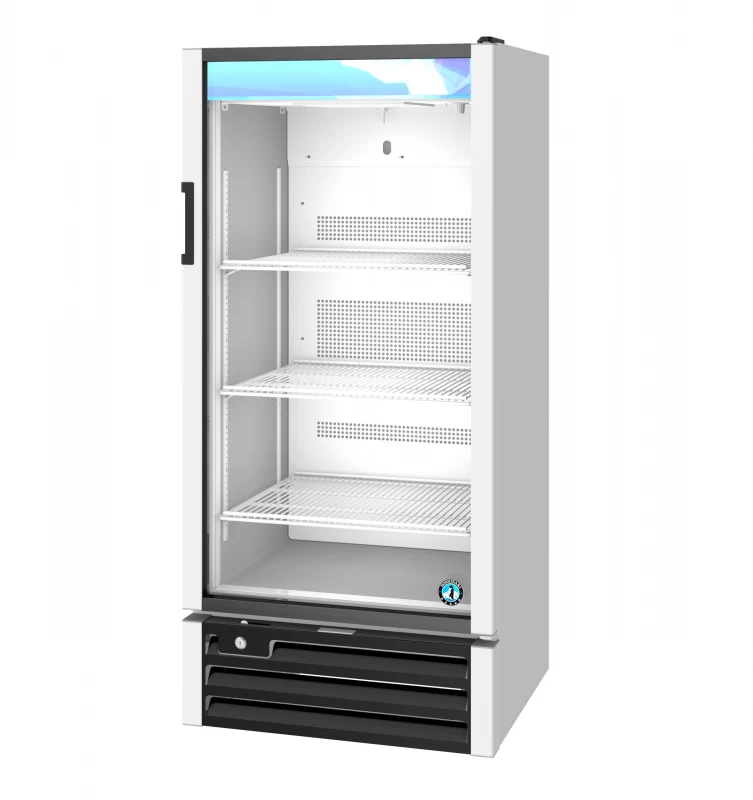

Refrigerator, Single Section Glass Door Merchandiser – Silver Exterior - RM10HC

HoshizakiHoshizaki brand logo

Refrigerator, Single Section Glass Door Merchandiser – Silver Exterior

Model: RM10HC

RM-10-HC, Refrigerator, Single Section Glass Door MerchandiserTitle RM10HCRM-10-HC, Refrigerator, Single Section Glass Door MerchandiserTitle RM10HCRM-10-HC, Refrigerator, Single Section Glass Door MerchandiserTitle RM10HC
RM-10-HC, Refrigerator, Single Section Glass Door MerchandiserTitle RM10HC
RM-10-HC, Refrigerator, Single Section Glass Door MerchandiserTitle RM10HC
RM-10-HC, Refrigerator, Single Section Glass Door MerchandiserTitle RM10HC

Color : Silver

product image
Silver

Key Features

  • Storage capacity of 10ft3 (168: 20oz Bottles, or : 12oz Cans)

  • Nominal Compres. of 841 BTU/hr at 1/5 HP

  • Listed under NSF/ANSI Std 7 for the storage and/or display of packaged or bottled product

  • Large glass swinging door is energy efficient Low-E multi pane glass

  • Door is mounted on heavy duty hinges with self-closing mechanism

  • Door frame recessed handle

  • Forced air evaporator for quick temperature pull down

  • Insulated with environmentally friendly CFC-Free Polyurethane with cyclopentane blowing agent

Read More

Description

The RM-10-HC Glass Door Merchandiser is a single section refrigerator with a full glass swing door is the perfect beverage or packaged product display for any operation. It boasts an impressive storage capacity of 10ft3 (168: 20oz bottles, or : 12oz cans). The durable 1/5 HP motor that powers the compressor in the bottom of this unit efficiently cools the interior cabinet with a forced air evaporator for quick cool down. It’s Automatic hot gas loop on front edge of cabinet prevents condensation particularly in hot humid environments!
Read More

Available from Mark's Appliance, serving customers throughout Southern IL & St. Louis, MO.

Features
Specifications

Features

Storage capacity of 10ft3 (168: 20oz Bottles, or : 12oz Cans)

Nominal Compres. of 841 BTU/hr at 1/5 HP

Listed under NSF/ANSI Std 7 for the storage and/or display of packaged or bottled product

Large glass swinging door is energy efficient Low-E multi pane glass

Door is mounted on heavy duty hinges with self-closing mechanism

Door frame recessed handle

Forced air evaporator for quick temperature pull down

Insulated with environmentally friendly CFC-Free Polyurethane with cyclopentane blowing agent

Silver painted aluminum exterior, white steel interior with stainless steel floor

R290 refrigerant

Energy efficient LED interior product lights

Refrigerant flow is controlled with a capillary tube

Includes (5 per section) white epoxy coated wire coated wire shelves with product stops

115v/60/1, 8 ft. cord and plug

Automatic hot gas loop on front edge of cabinet prevents condensation

Five Years compressor warranty, Three Years parts and labor warranty

Specifications

Dimensions & Weight

Width-
Height-
Length-
Weight230 lbs.
Width25 in.
Depth22.5 in.
Height54.75 in.

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes1
Shipping Width-
Shipping Height-
Shipping Length-
Shipping Weight270 lbs.
Total of Shipping Weight270 lbs.
SourceCalculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement-
Dimensional Weight-
Total of Cubes-
Total of Dimensional Weight-

Product Details

Electrical SpecsElectrical Connection: 5 – 15P NEMA, 115v/60/1, 8 ft. cord and plug, Energy Consumption: 1.24 kwh/day, Amperage: 1.1, Max Fuse/HACR Breaker: 15 A
Operating LimitsAmbient Temp Range: 60 – 86°F, Voltage Range: 104 – 126V, Control Setpoint Range: 32 – 39°F, Refrigerant: R290
Refrigeration DataNominal Compres. of 841 BTU/hr at 1/5 HP, Heat Rejection: N/A BTU/hr
Shipping Weight230
Storage SpecsNominal storage capacity: 10 ft3, 20oz bottle capacity: 168, Door opening: 46.7″ W x 43″ H, Depth with doors fully extended: 26.25″ D, Shelves included: 5 per section

Warranty

Parts3 Years
Labor3 Years
