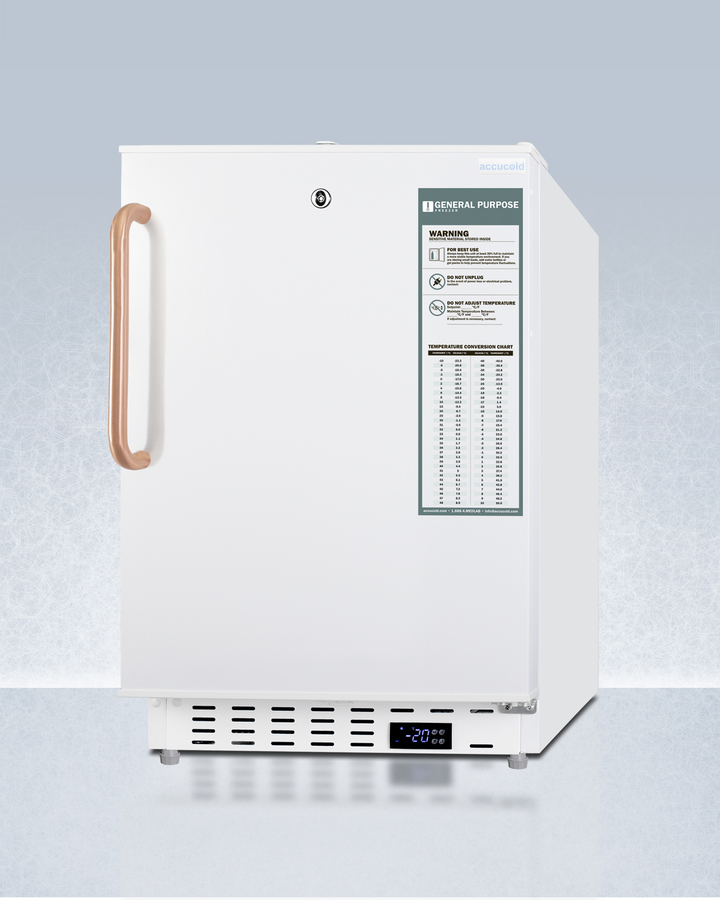

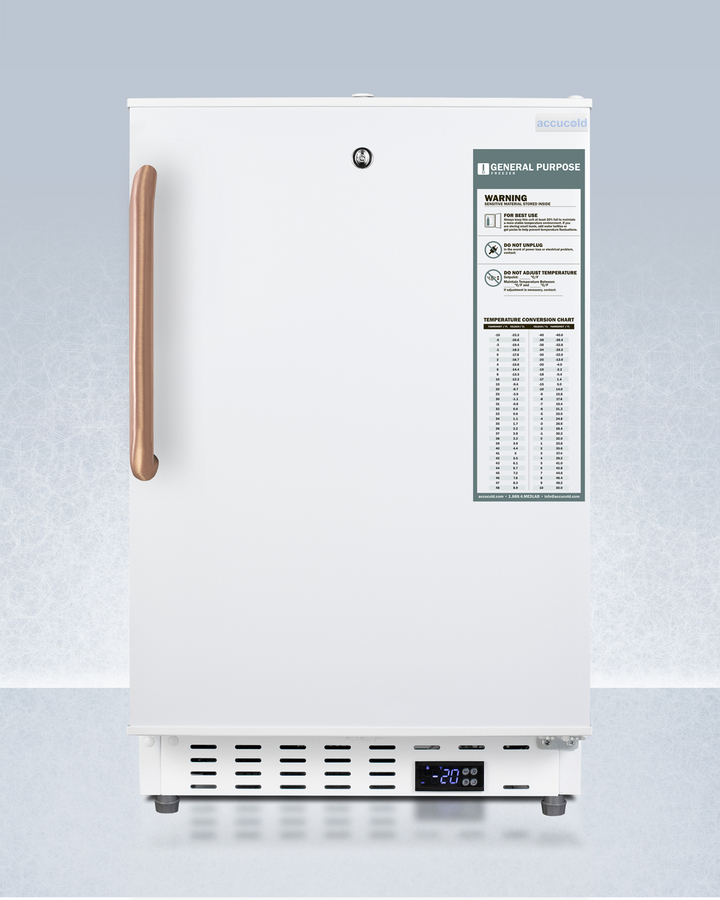

20" Wide Built-In Vaccine All-Freezer, ADA Compliant - ADA305AFTBC
20" Wide Built-In Vaccine All-Freezer, ADA Compliant
Model: ADA305AFTBC













20" Wide Built-In Vaccine All-Freezer, ADA Compliant
Model: ADA305AFTBC
Key Features
Commercially approved
ADA compliant design

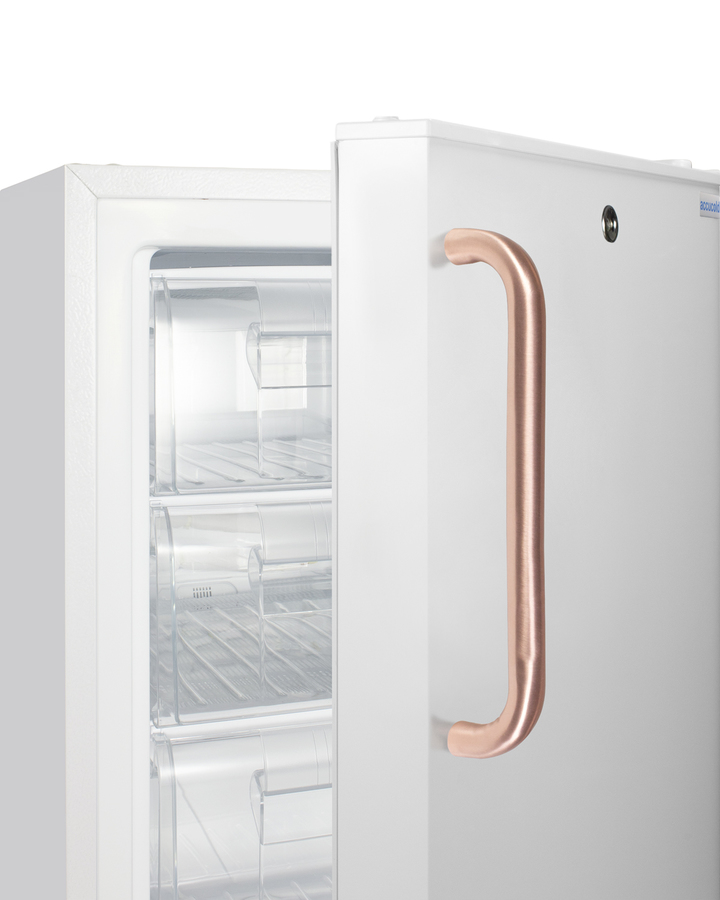

Copper handle

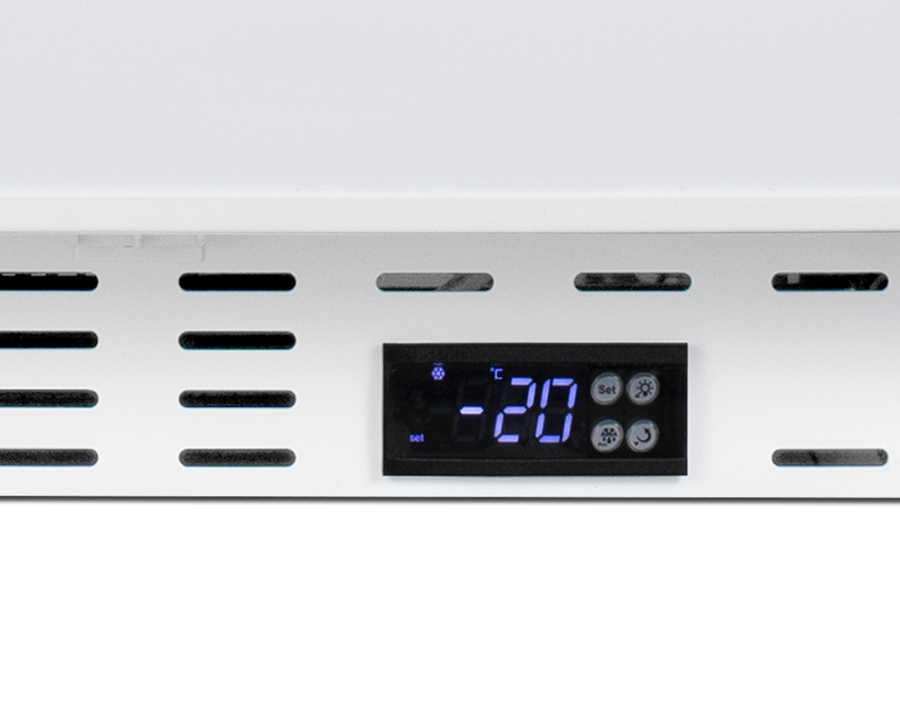

Adjustable digital thermostat

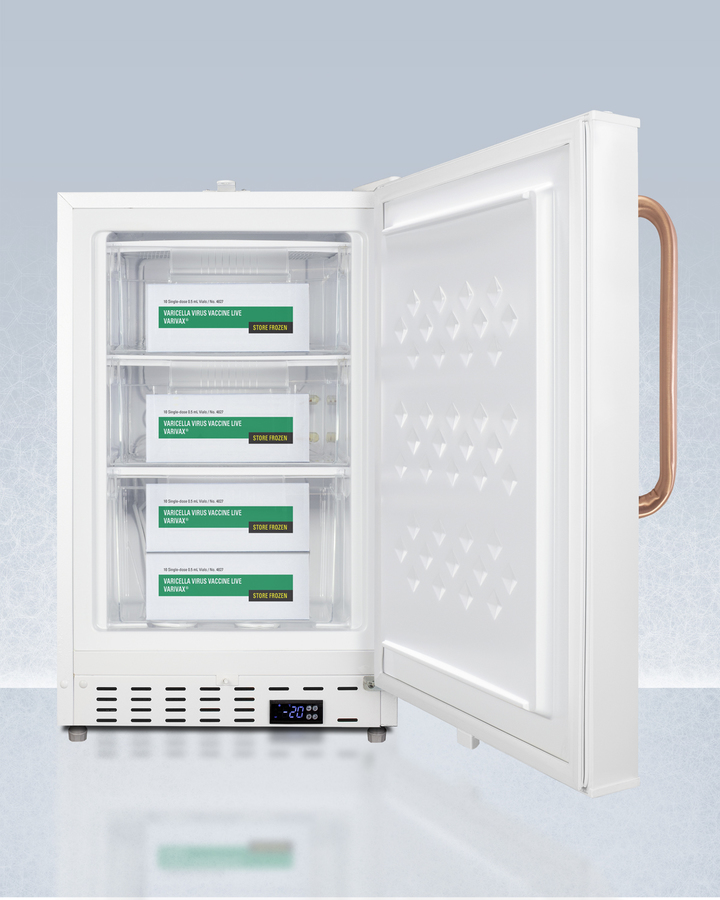

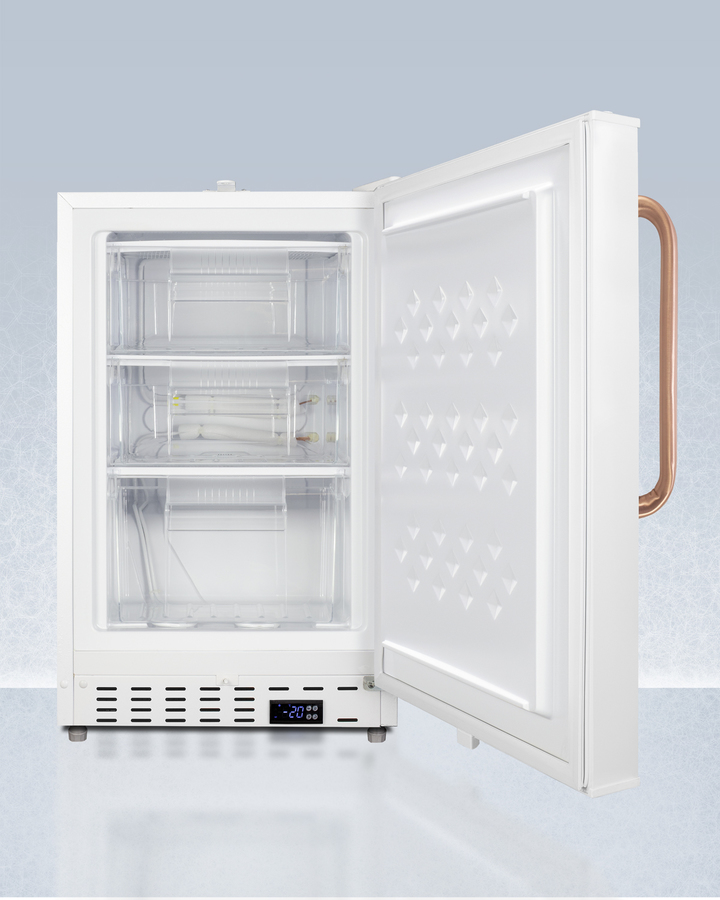

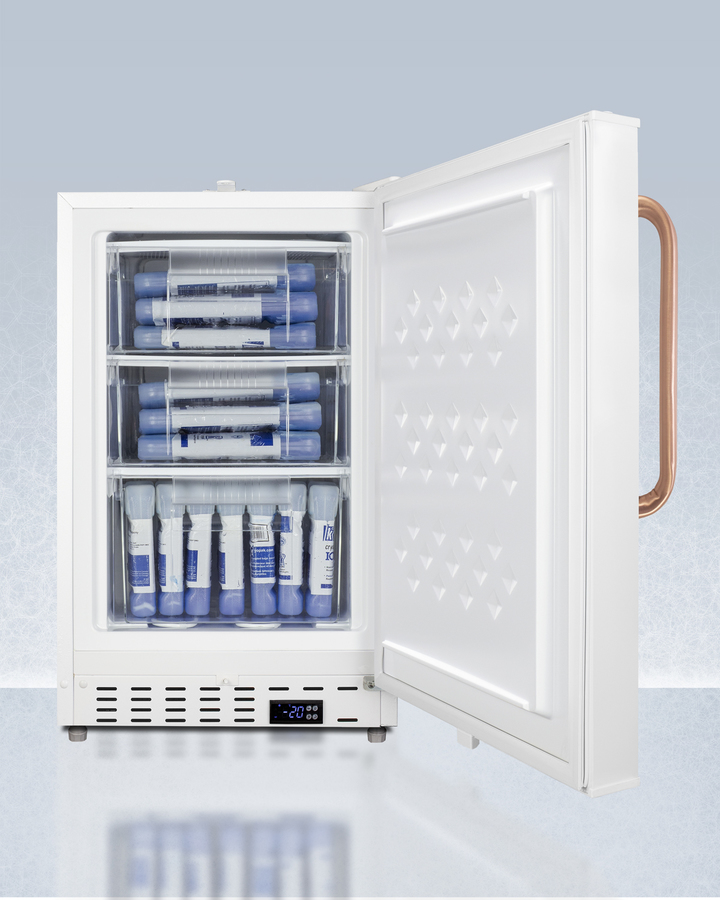

Basket shelves
Built-in capable
-25°C capable
Access port
Description
Available from Mark's Appliance, serving customers throughout Southern IL & St. Louis, MO.
Features
Commercially approved
ADA compliant design
Copper handle
Adjustable digital thermostat
Basket shelves
Built-in capable
-25°C capable
Access port
Temperature alarms
Open door alarm
3" thick door
Factory-installed lock
Manual defrost
Flat door liner
Magnetic door gasket
Matching all-refrigerator
No internal fans

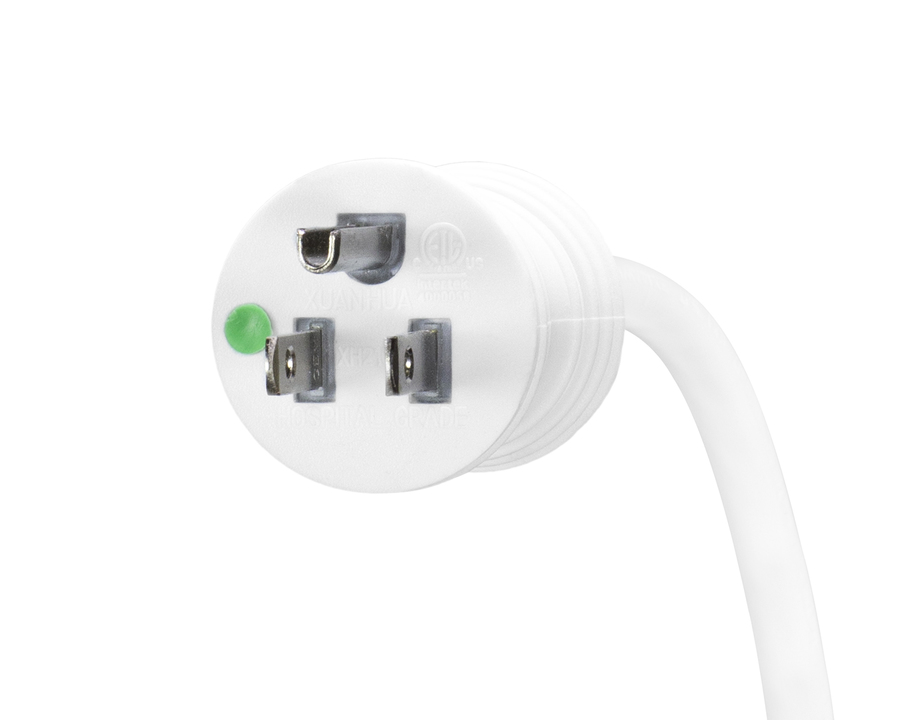

Hospital grade cord with 'green dot' plug
Fully finished white cabinet
100% CFC free
Sealed back
Specifications
Warranty
| Parts | 1 Year |
| Labor | 1 Year |
Overview Freezer
| Nominal Height | 32.0" (81 cm) |
| Height of Cabinet | 31.75" (81 cm) |
| Height to Hinge Cap | 32.0" (81 cm) |
| Nominal Width | 20.0" (51 cm) |
| Width | 19.75" (50 cm) |
| Width with Door Open | 20.25" (51 cm) |
| Nominal Depth | 23.0" (58 cm) |
| Depth | 22.5" (57 cm) |
| Depth with Handle | 25.0" (64 cm) |
| Depth with door at 90° | 40.25" (102 cm) |
| Capacity | 2.47 cu.ft. (70 L) |
| Defrost Type | Manual |
| Door | White |
| Cabinet | White |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Amps | 1.1 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 65.0 lbs. (29 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101077741 |
| Door Swing | RHD |
| Reversible | Factory Reversible |
| Interior Height | 23.75" (60 cm) |
| Interior Width | 14.5" (37 cm) |
| Interior Depth | 17.0" (43 cm) |
| Shelf Type | Drawers |
| Shelf Qty | 3 |
| Thermostat Type | Digital |
| Fan Type | Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 1.34 oz. |
| High Side PSI | 180.0 |
| Low Side PSI | 80.0 |
| Level Legs | 2 |
| Interior Drawers | Yes |
| Drawers Qty | 3 |
| Compressor Step Height | 5.75" (15 cm) |
| Compressor Step Width | 14.5" (37 cm) |
| Compressor Step Depth | 6.0" (15 cm) |
| Temperature Range | -25° to -15°C |
