$1,549.95

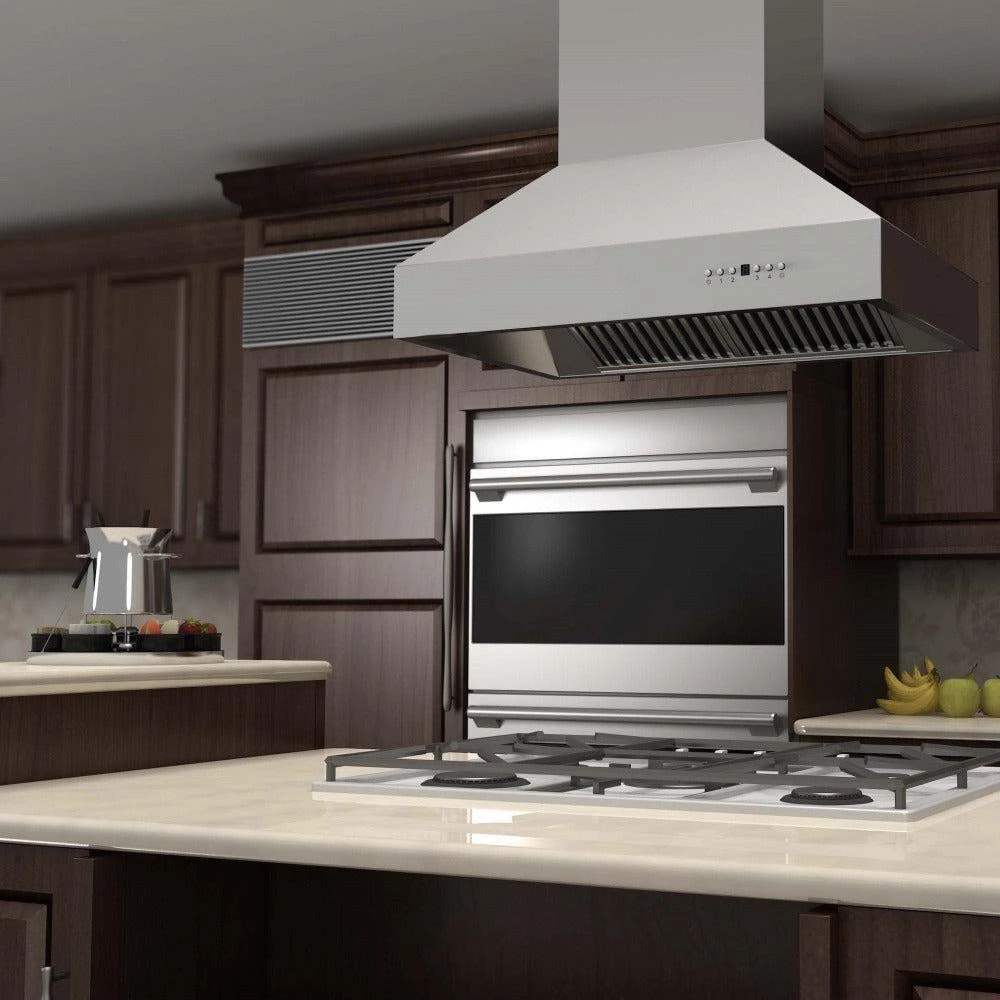

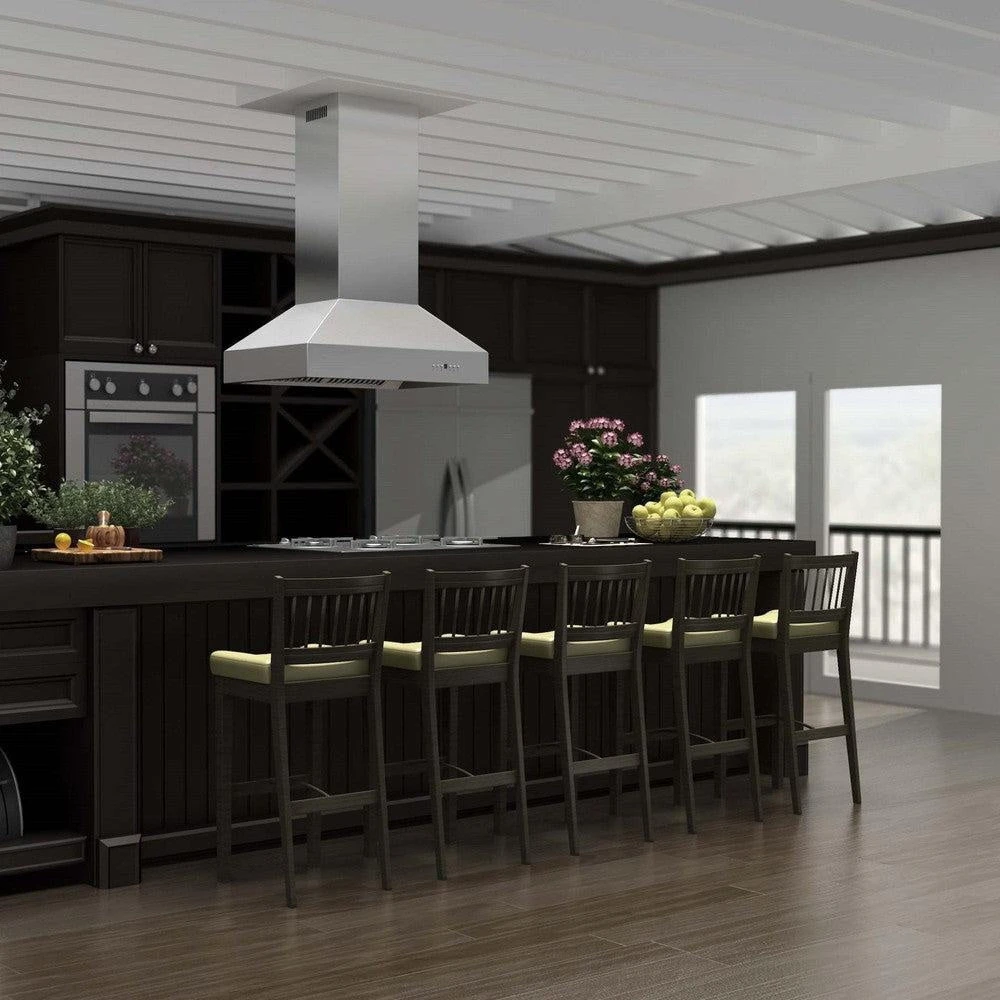

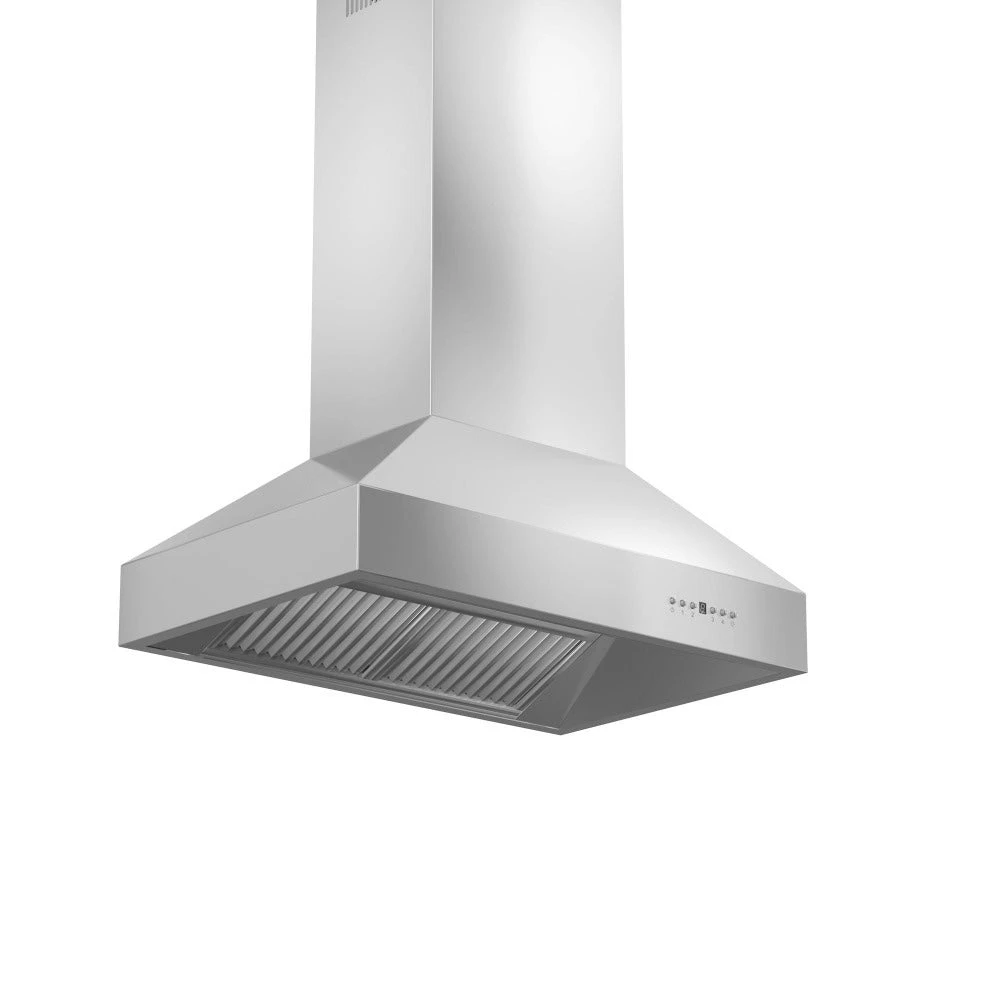

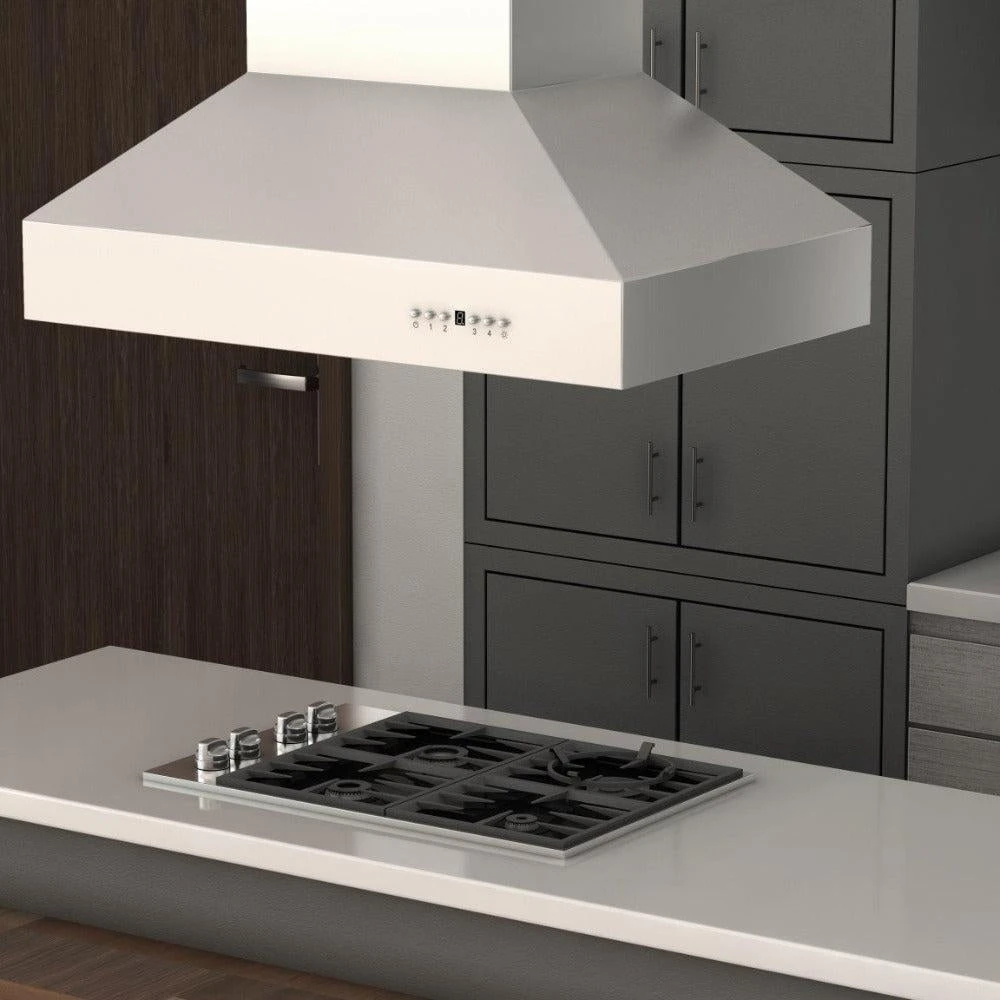

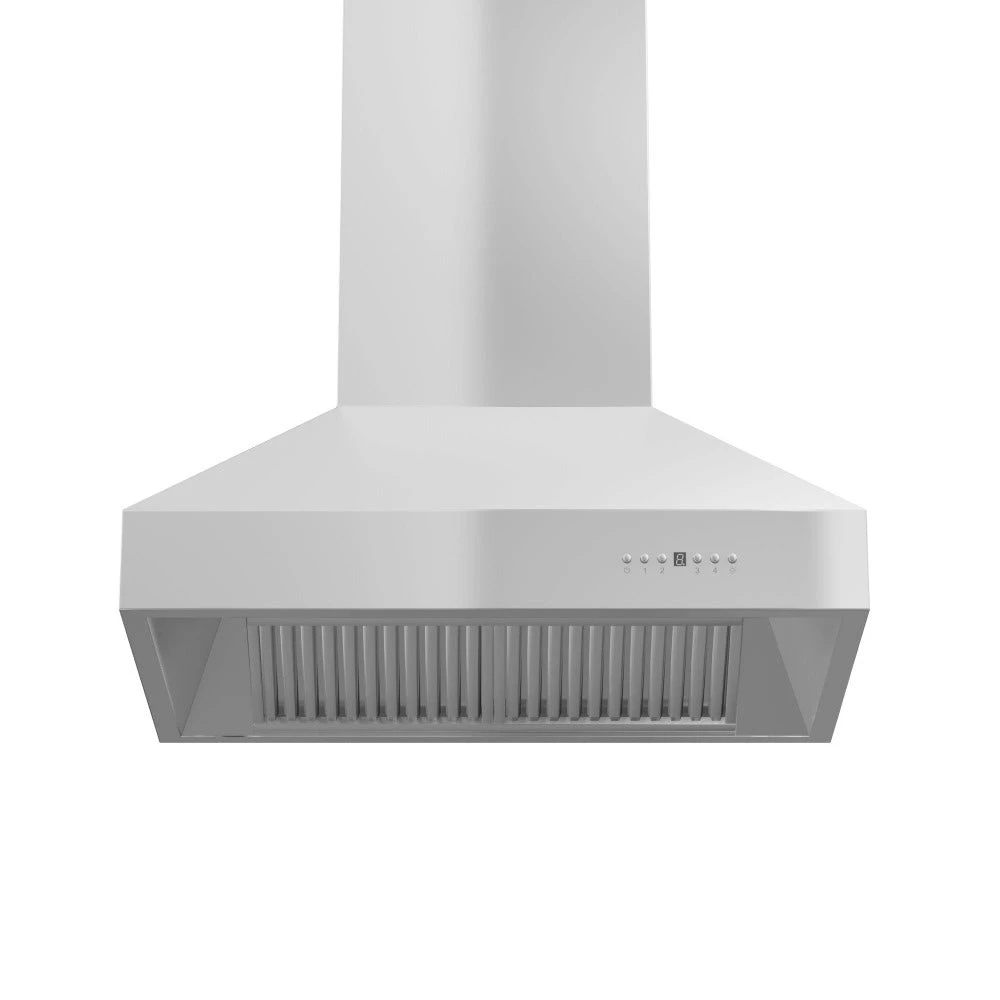

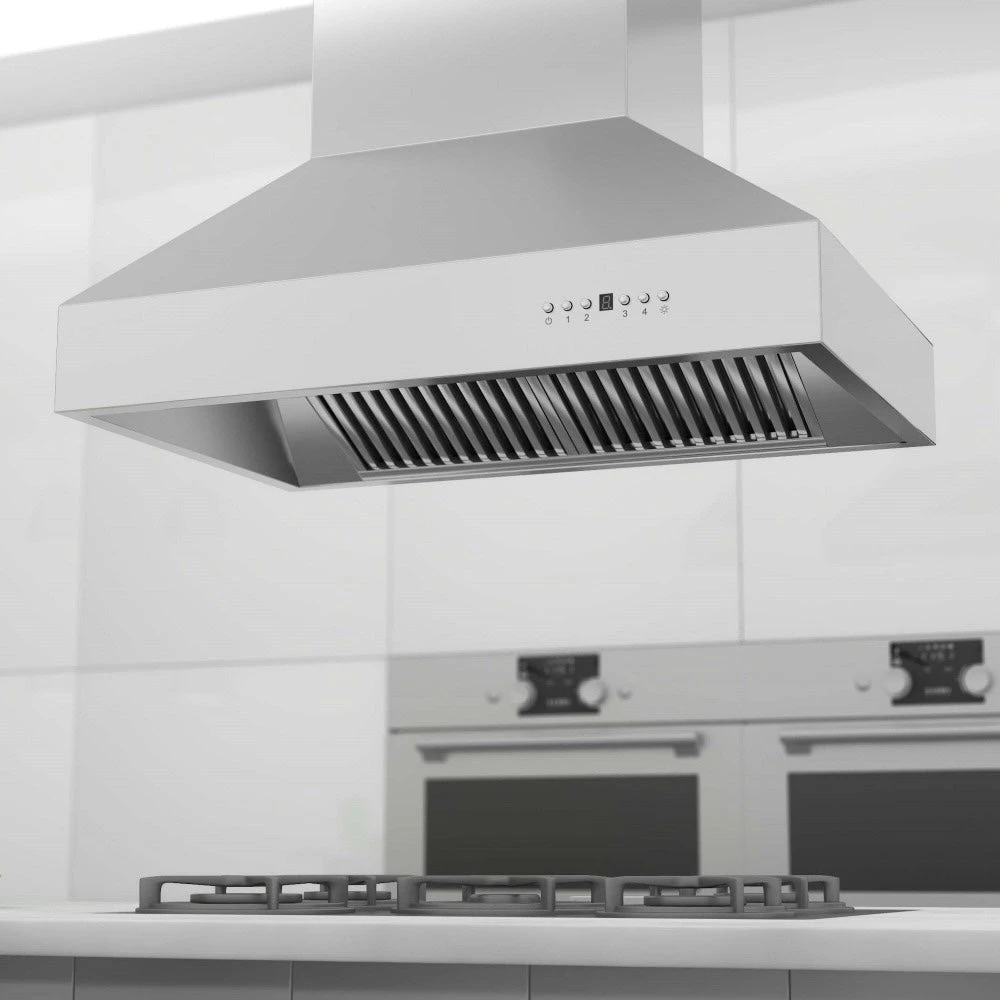

42 in. Ducted Island Mount Range Hood - 697I30442
$1,549.95
Color : Brushed 304 Stainless Steel
Key Features
LIFETIME MOTOR WARRANTY
DISHWASHER SAFE BAFFLE FILTERS
BUILT-IN LED LIGHTING
Available from Mark's Appliance, serving customers throughout Southern IL & St. Louis, MO.
Features
LIFETIME MOTOR WARRANTY
Enjoy the high performance of your ZLINE range hood motor for years to come with an industry-first lifetime motor warranty
DISHWASHER SAFE BAFFLE FILTERS
Reduce cleaning time with durable stainless steel baffle filters that are dishwasher safe
BUILT-IN LED LIGHTING
Easily illuminate your cooking space with bright built-in LED lights
Specifications
Warranty
| Parts | 3 Year |
Other
| Airflow (Q/L/M/H) | 280/420/560/700 |
| Motor | High Performance 700 CFM/4-Speed Motor |
| Noise Level | 30/41/49/52 (Decibles) |
| Filters | Stainless Steel Baffle Filters (Dishwasher Safe) |
| Brand | ZLINE Kitchen and Bath |
| 697i-36 | 36" W x 27.5" D x 15" H |
| 697i-42 | 42" W x 27.5" D x 15" H |
| 697i-48 | 48" W x 27.5" D x 15" H |
| 697i-54 | 54" W x 27.5" D x 15" H |
| 697i-60 | 60" W x 27.5" D x 15" H |
| Venting Size | 8" Outlet (Transition piece with backdraft damper to round ducting included) |
| Lighting | 4 Directional LED Lights (3-Watt) |
| Voltage | 110V/60HZ |
| Speeds | 4 Speeds |
| Control Type | Speed/Timer Panel with LCD (3 Minute AutoTimer with Delayed Shutoff) |
| Material | 21g #430 Stainless Steel |
| Mount Type | Island Mount Range Hood |
| Filters | Stainless Steel Baffle Filters (Dishwasher Safe) Warranty |
Dimensions & Weight
| Width | 42 Inch |
| Height | 12.5 Inch |
| Length | - |
| Weight | 65 lbs |
| Depth | 28 Inch |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 47 Inch |
| Shipping Height | 17.5 Inch |
| Shipping Length | 33 Inch |
| Shipping Weight | 105 lbs |
| Total of Shipping Weight | 105 lbs |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 8.51 ft³ |
| Dimensional Weight | 105.76 Ibs |
| Total of Cubes | 8.51 ft³ |
| Total of Dimensional Weight | 105.76 Ibs |

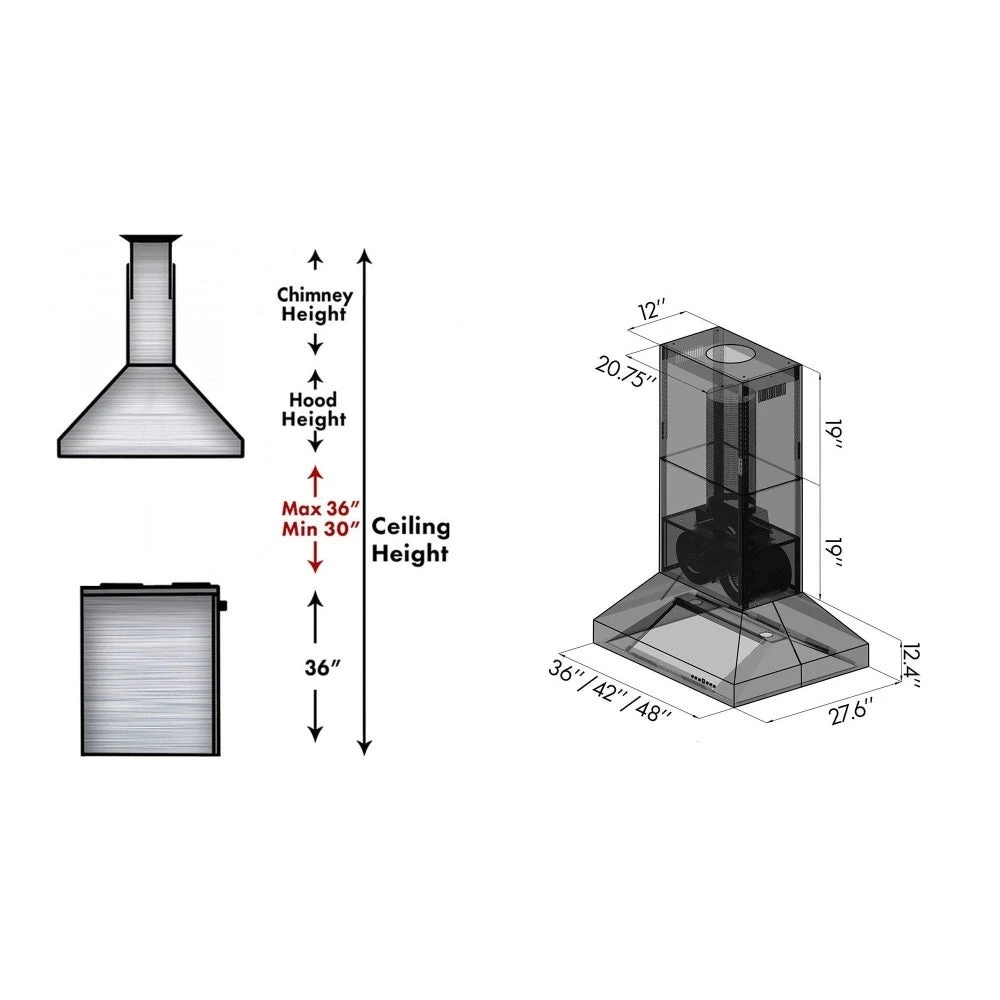

Dimensions
| Dimensions | in. W x 28 in. D x 12.5 in. H |
| Chimney Dimensions | 20.75 in. W x 12 in. D x 16 H (x2) (Telescoping) |
Details
| Appliance Category | Island RH |
| Color/ Finish Family | Brushed 304 Stainless Steel |
| Airflow (Q/L/M/H) | 280/420/560/700 |
| Motor | High Performance 700 CFM/4-Speed Motor |
| Filters | Stainless Steel Baffle Filters (Dishwasher-safe) |
| Mount Type | Wall Mount |
| Number of Lights | 4 |
| Number of Speeds | 4 |
| Control Type | Speed/Timer Panel with LCD (3 Minute AutoTimer with Delayed Shutoff) |
| Button Panel | Push Button Control Panel (4-Speed Fan Control/Lights/3 Minute AutoTimer with Delayed Shutoff) |
| Decibels | 30/41/49/52 |
| Duct Size | 8 |
| Voltage | 110 |
| Amps | 5 |
Warranties & Certifications
| Certifications and Listings | ETL Listed |
| Manufacturer Warranty | 3 year parts, life-time motor warranty |
