CAFÉ™ Dishwasher Double Drawer - CDD420P4TW2

This product has been discontinued by the manufacture and is no longer available.

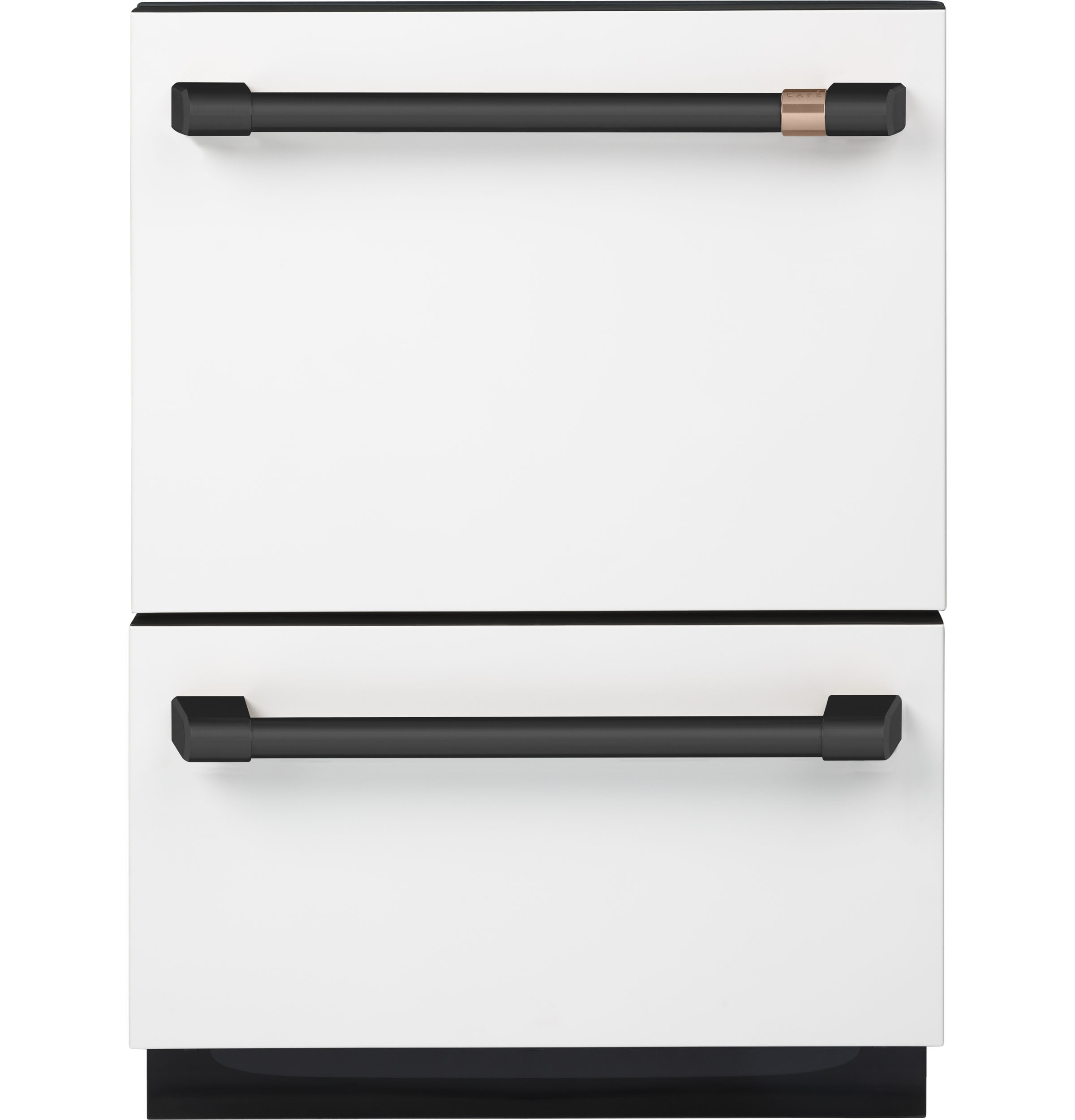

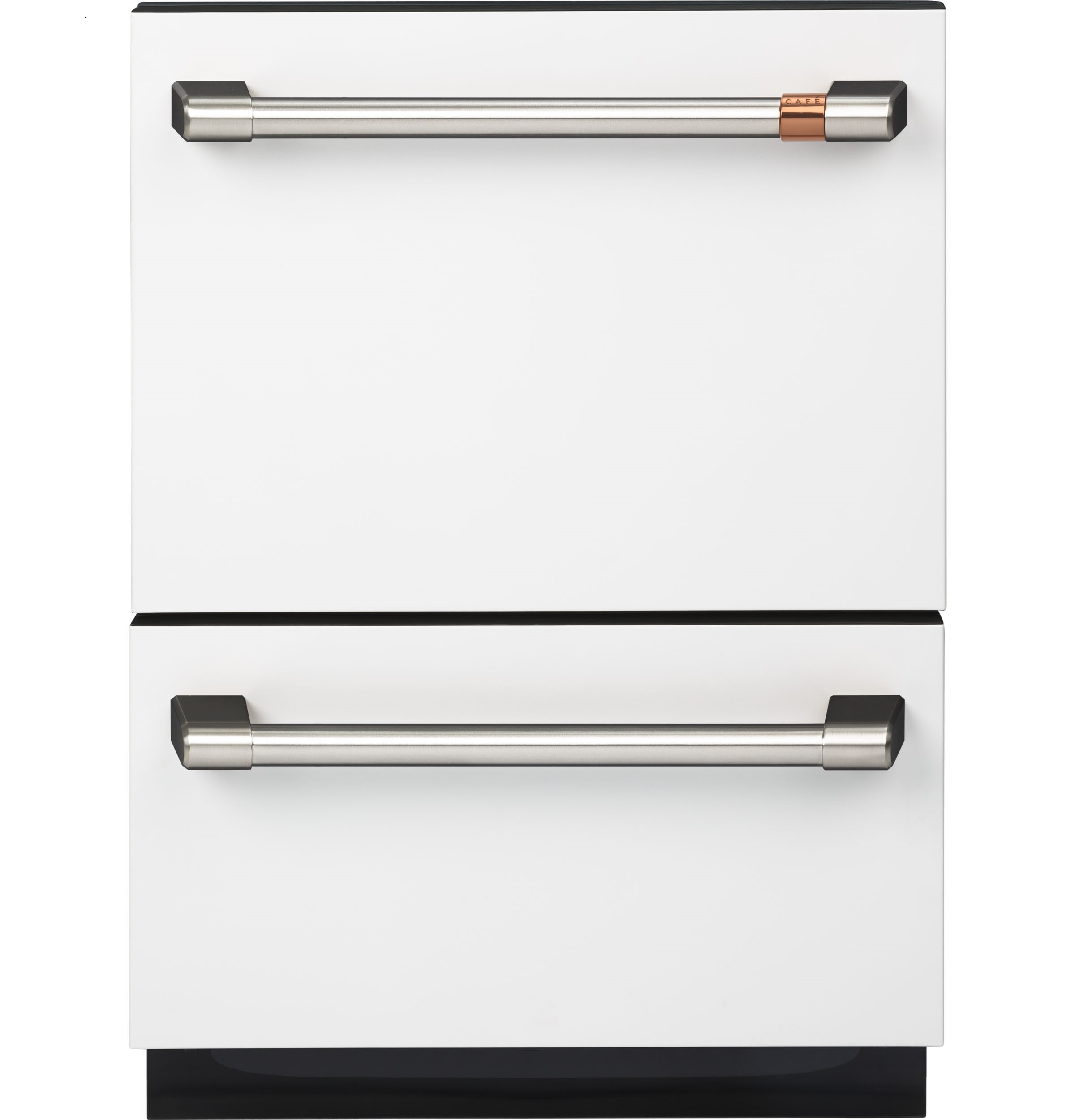

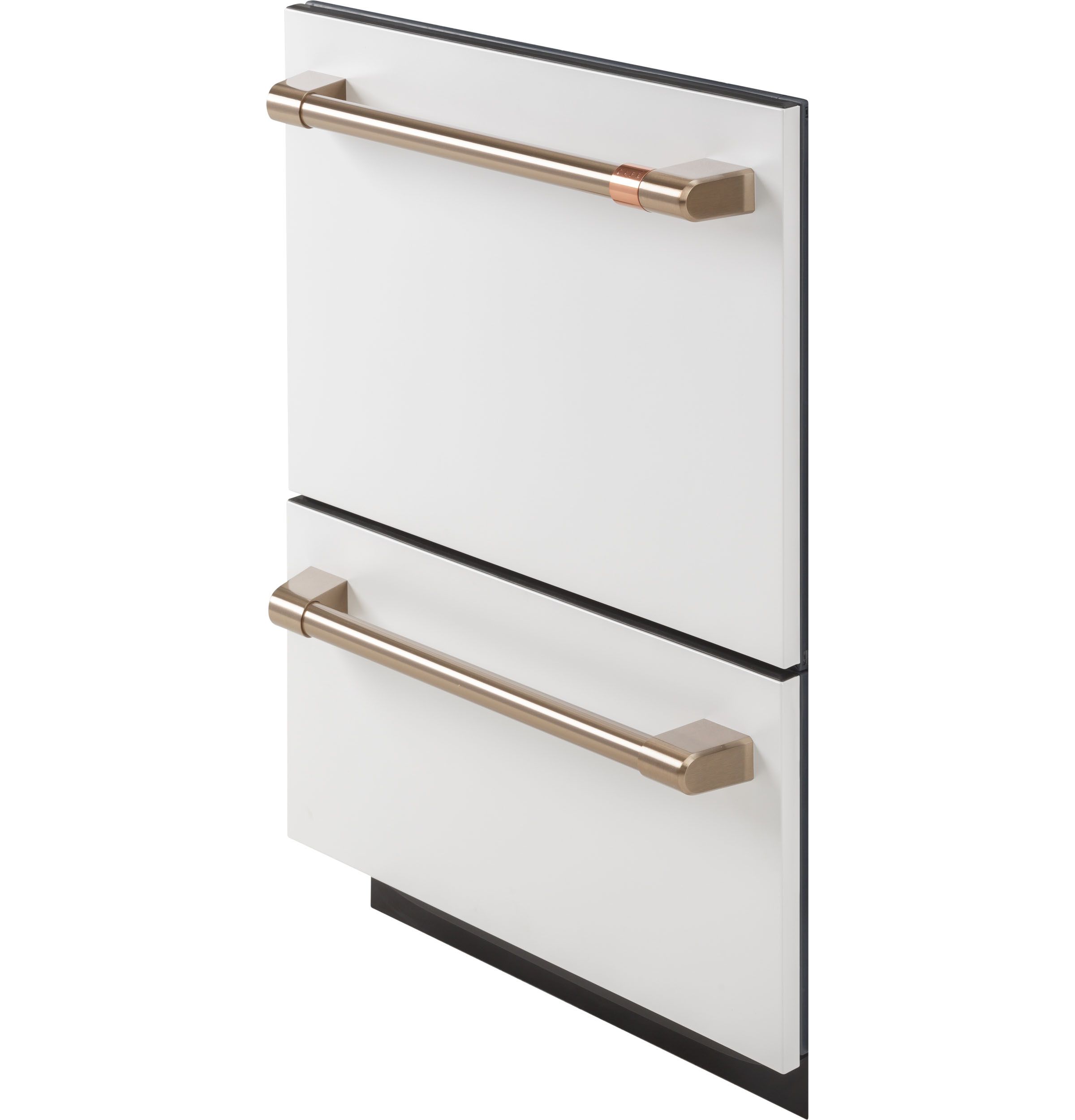

CAFÉ™ Dishwasher Double Drawer

Model: CDD420P4TW2

CAFÉ™ Dishwasher Double Drawer CDD420P4TW2CAFÉ™ Dishwasher Double Drawer CDD420P4TW2CAFÉ™ Dishwasher Double Drawer CDD420P4TW2CAFÉ™ Dishwasher Double Drawer CDD420P4TW2CAFÉ™ Dishwasher Double Drawer CDD420P4TW2CAFÉ™ Dishwasher Double Drawer CDD420P4TW2CAFÉ™ Dishwasher Double Drawer CDD420P4TW2CAFÉ™ Dishwasher Double Drawer CDD420P4TW2CAFÉ™ Dishwasher Double Drawer CDD420P4TW2CAFÉ™ Dishwasher Double Drawer CDD420P4TW2CAFÉ™ Dishwasher Double Drawer CDD420P4TW2CAFÉ™ Dishwasher Double Drawer CDD420P4TW2CAFÉ™ Dishwasher Double Drawer CDD420P4TW2CAFÉ™ Dishwasher Double Drawer CDD420P4TW2CAFÉ™ Dishwasher Double Drawer CDD420P4TW2CAFÉ™ Dishwasher Double Drawer CDD420P4TW2CAFÉ™ Dishwasher Double Drawer CDD420P4TW2CAFÉ™ Dishwasher Double Drawer CDD420P4TW2CAFÉ™ Dishwasher Double Drawer CDD420P4TW2CAFÉ™ Dishwasher Double Drawer CDD420P4TW2CAFÉ™ Dishwasher Double Drawer CDD420P4TW2CAFÉ™ Dishwasher Double Drawer CDD420P4TW2CAFÉ™ Dishwasher Double Drawer CDD420P4TW2CAFÉ™ Dishwasher Double Drawer CDD420P4TW2CAFÉ™ Dishwasher Double Drawer CDD420P4TW2CAFÉ™ Dishwasher Double Drawer CDD420P4TW2CAFÉ™ Dishwasher Double Drawer CDD420P4TW2CAFÉ™ Dishwasher Double Drawer CDD420P4TW2CAFÉ™ Dishwasher Double Drawer CDD420P4TW2CAFÉ™ Dishwasher Double Drawer CDD420P4TW2CAFÉ™ Dishwasher Double Drawer CDD420P4TW2
CAFÉ™ Dishwasher Double Drawer CDD420P4TW2
CAFÉ™ Dishwasher Double Drawer CDD420P4TW2
CAFÉ™ Dishwasher Double Drawer CDD420P4TW2
CAFÉ™ Dishwasher Double Drawer CDD420P4TW2
CAFÉ™ Dishwasher Double Drawer CDD420P4TW2
+26more

Product Video

Cafe CAFÉ™ Dishwasher Double Drawer Matte White CDD420P4TW2 Picture

360 View

360 icon
rebate iconRebate Available

Color : Matte White

CAFÉ™ Dishwasher Double Drawer CDD420P4TW2
Matte White

Current Rebates

Café + NMG: Up to $4,000 Exclusive Rebate
Expires: June 30, 2026

This model is on display at:

Key Features

  • Double Drawer

  • Small Load Setting

  • Knock to Pause Function

  • Easy to Load and Unload

  • Accommodates Large Dish Loads

  • 6 Wash Cycles

  • Water Leak Sensor

  • Fits Standard 24" Cutout

Read More

Available from Mark's Appliance, serving customers throughout Southern IL & St. Louis, MO.

Features
Specifications
Certifications

Features

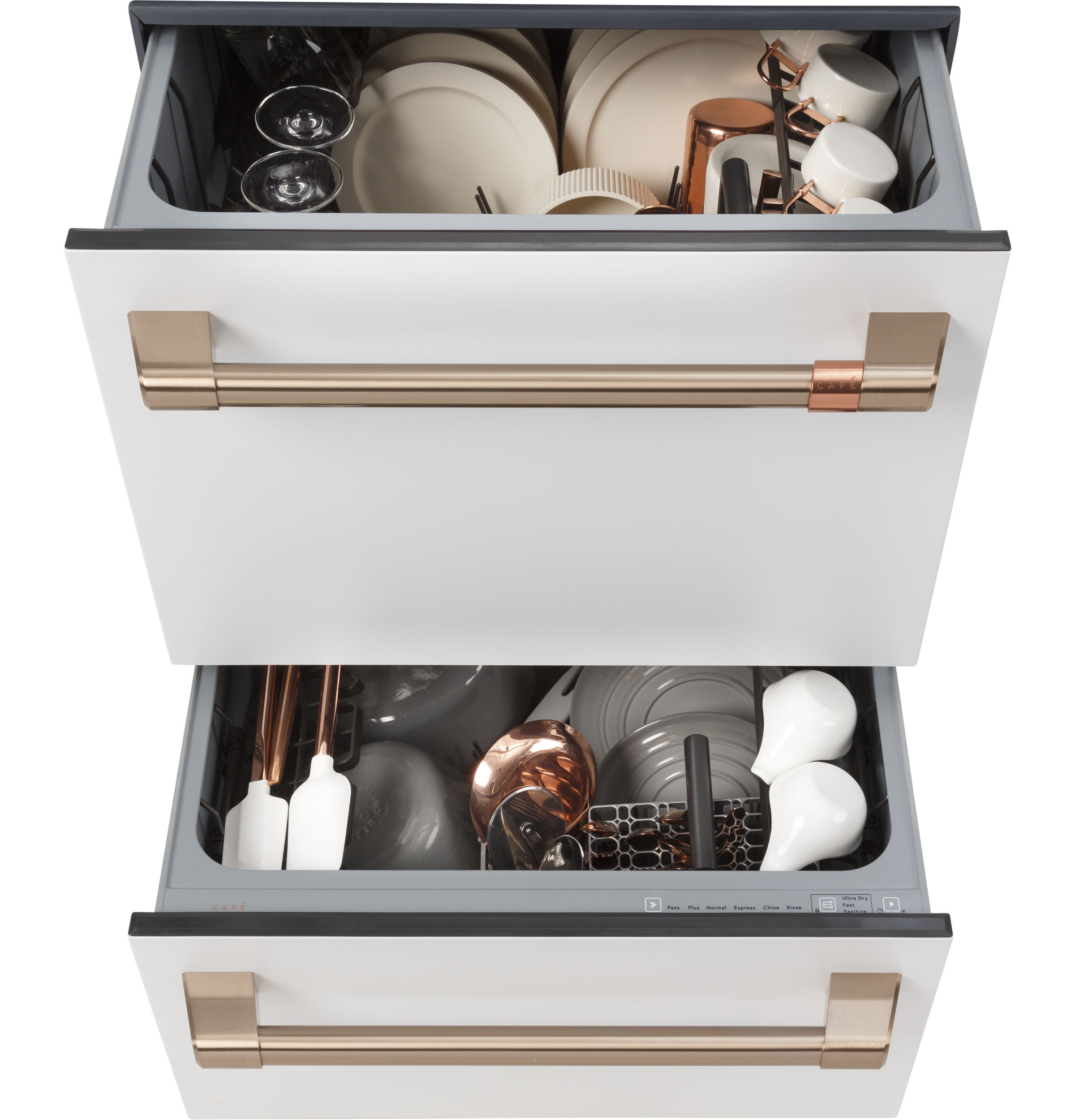

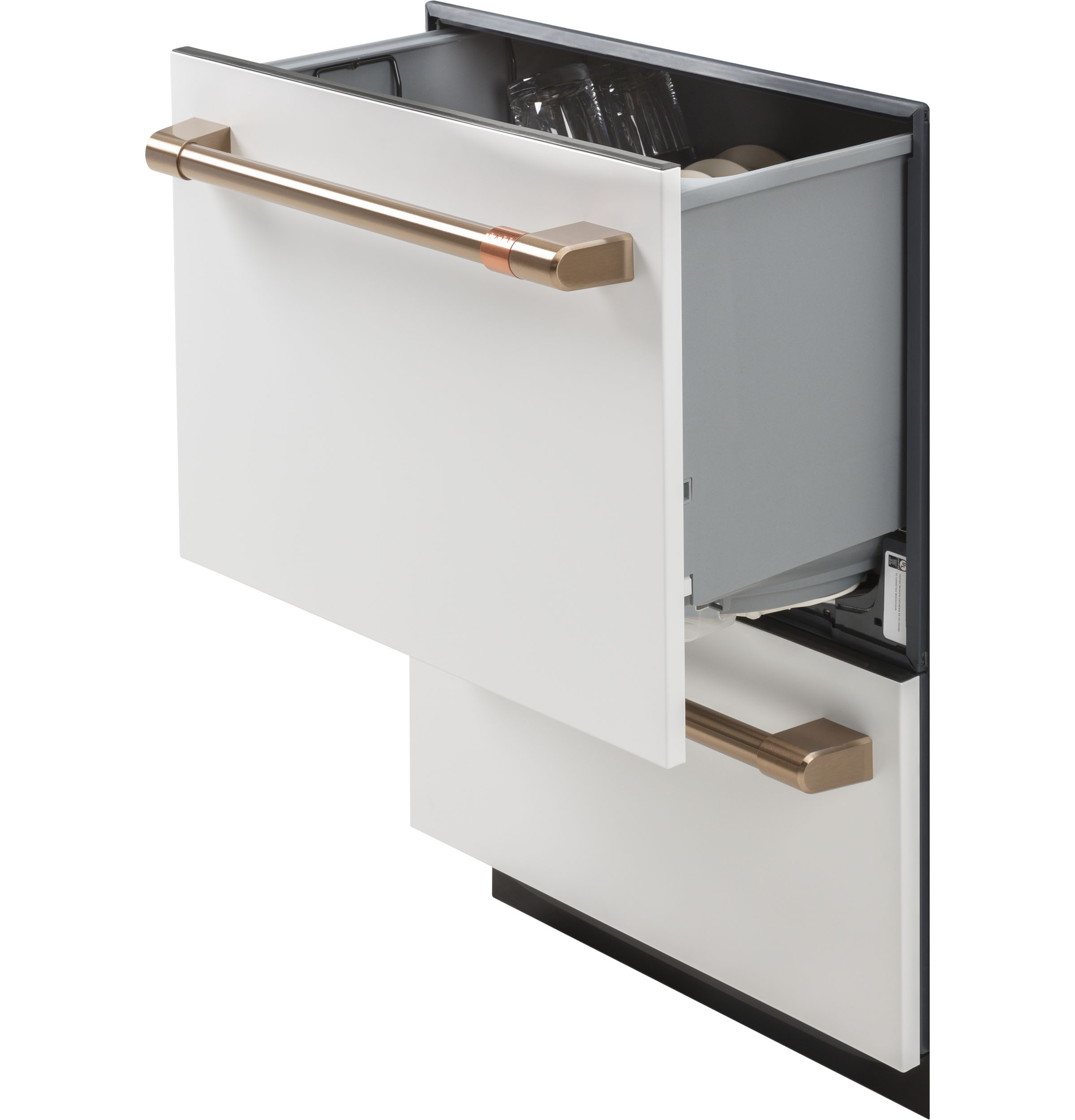

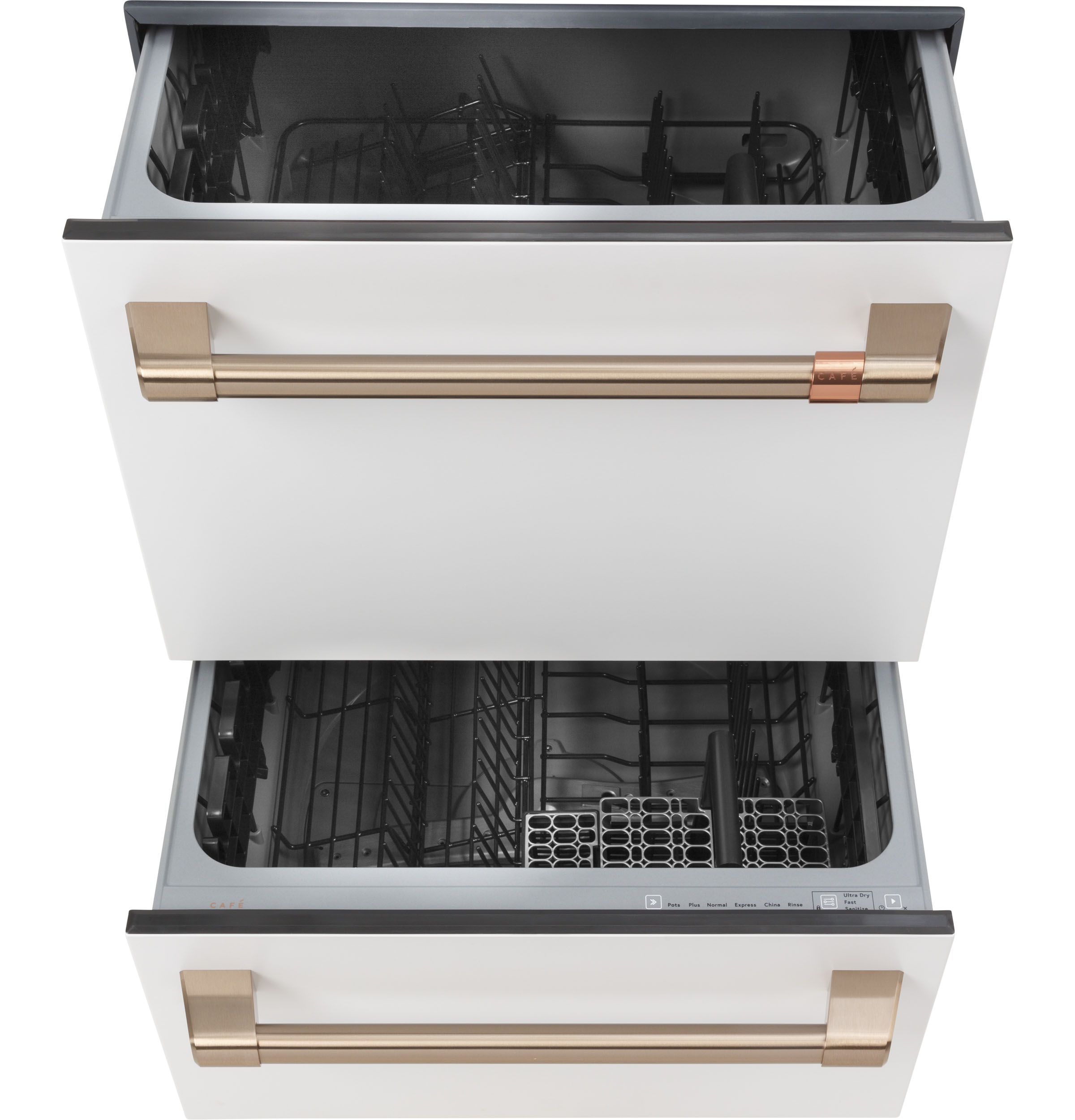

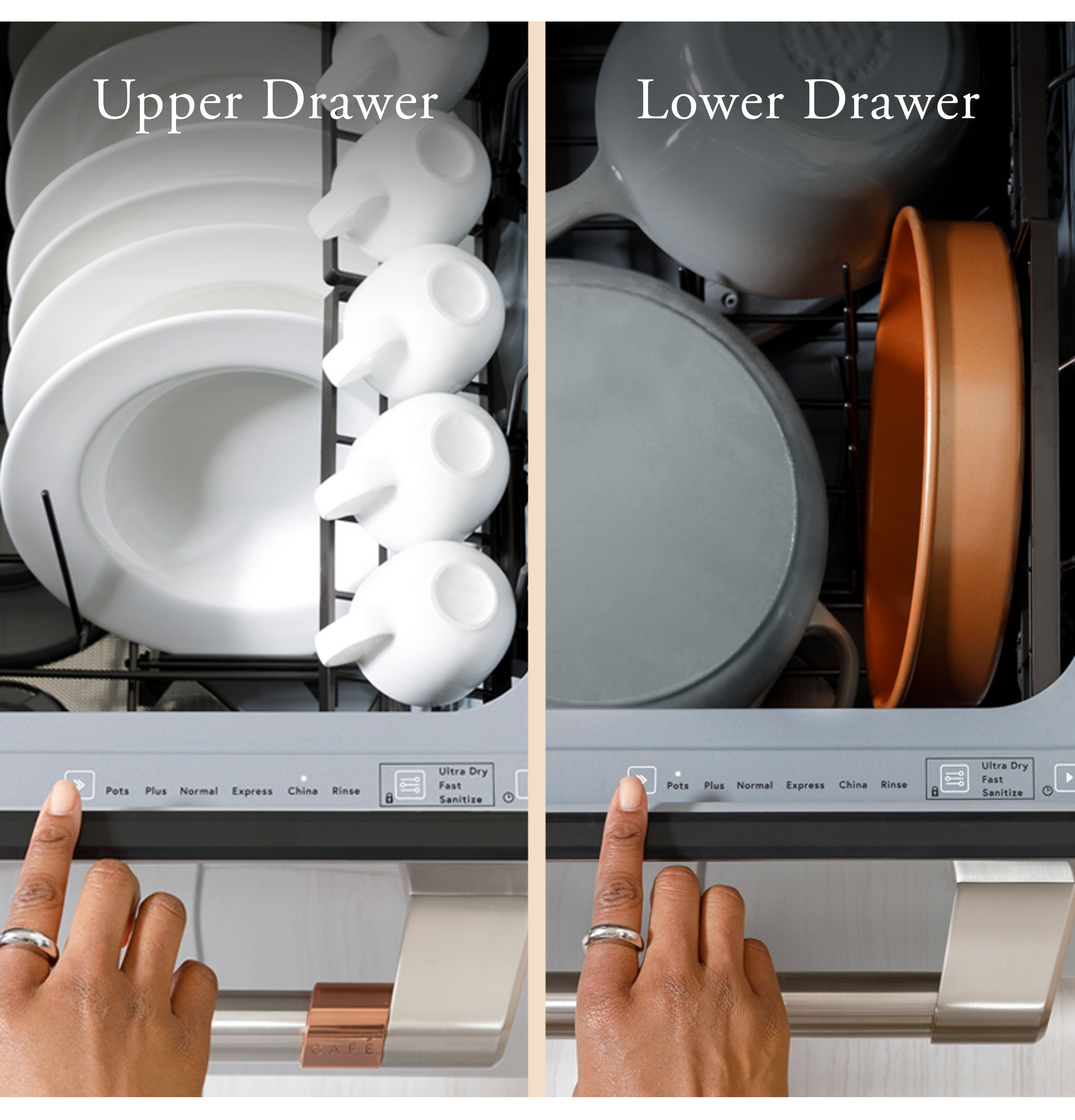

Double Drawer

Experience the convenience of two drawers that you can use independently to wash everything from heirloom place settings to casserole dishes with separate cycles

Small Load Setting

Wash every load with a clean conscience thanks to an energy efficient dishwasher with two special settings for conserving resources. Guilt-free Small Load is ideal for partial loads, while Eco-Cycle was designed to consume less energy and water

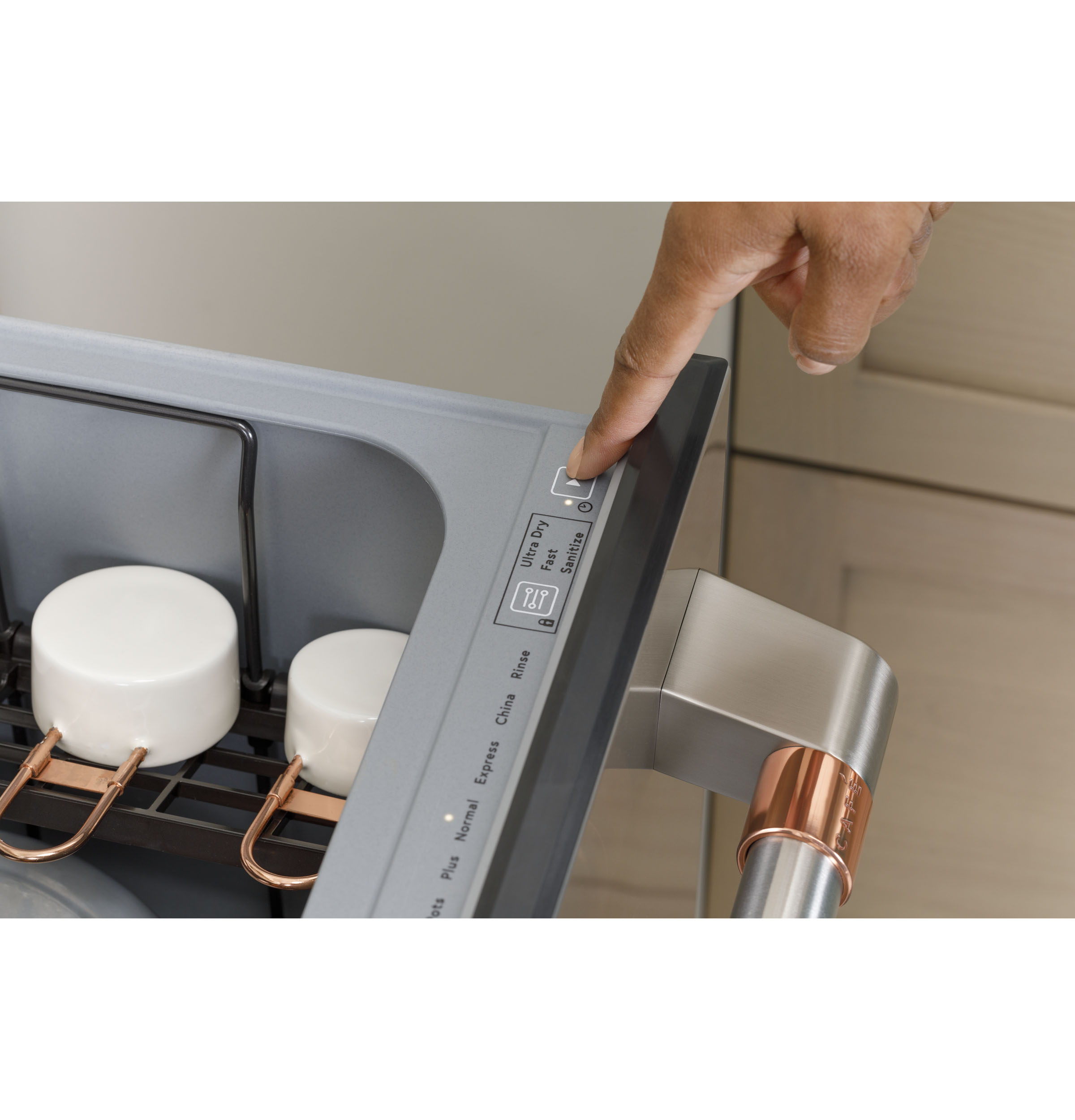

Knock to Pause Function

Pause the dishwasher mid-cycle with a simple knock, then press Start/Play to resume

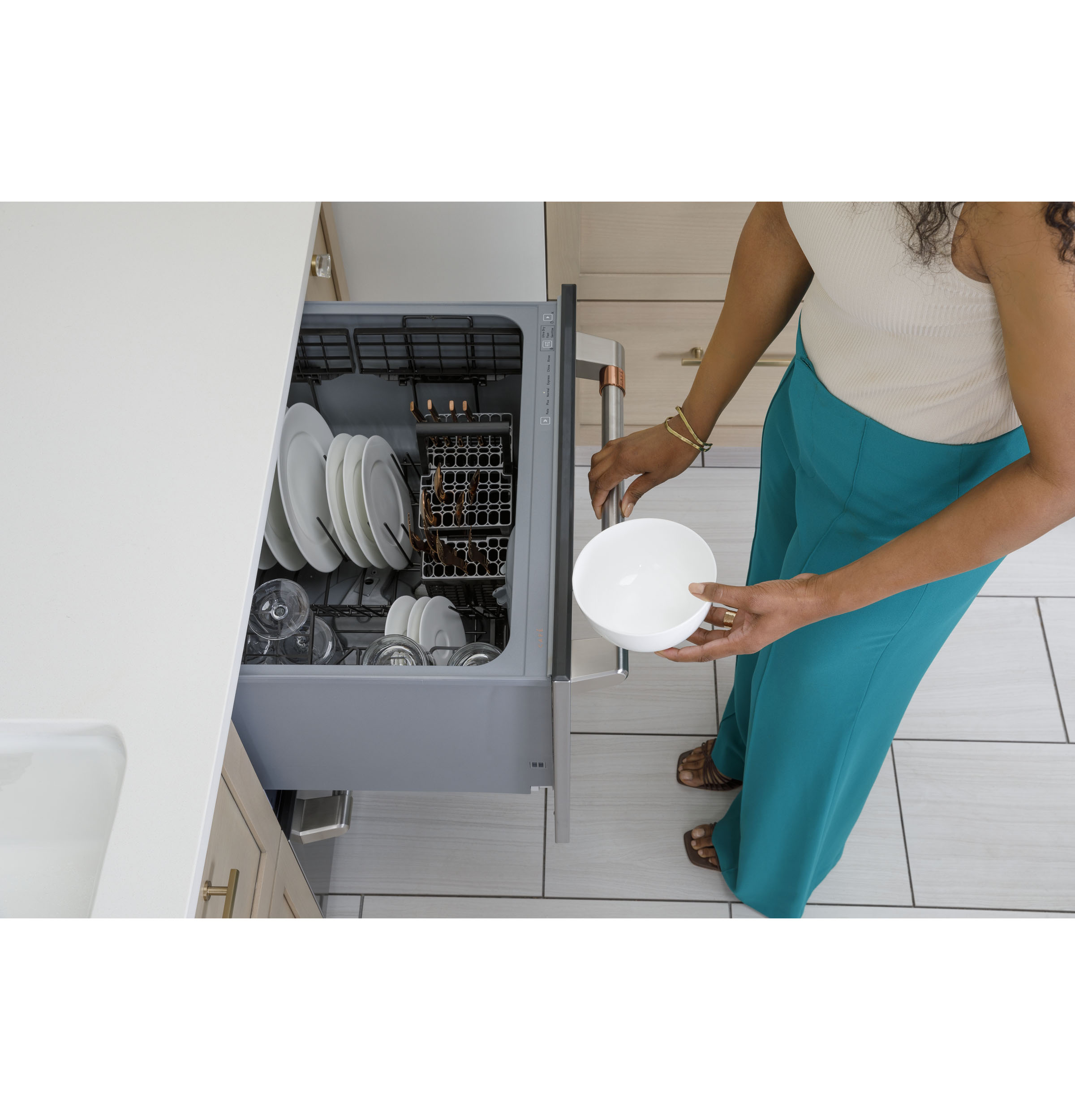

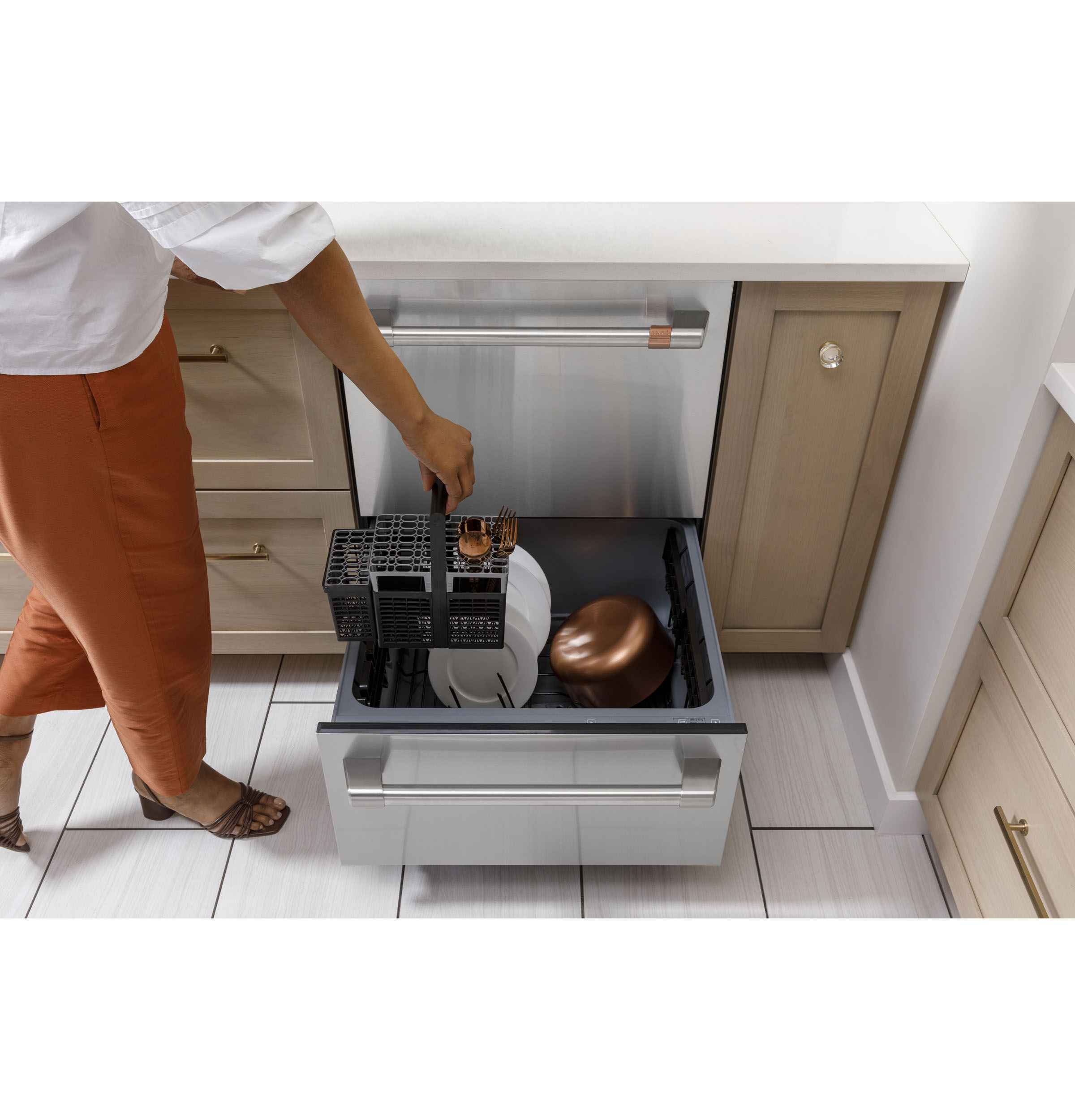

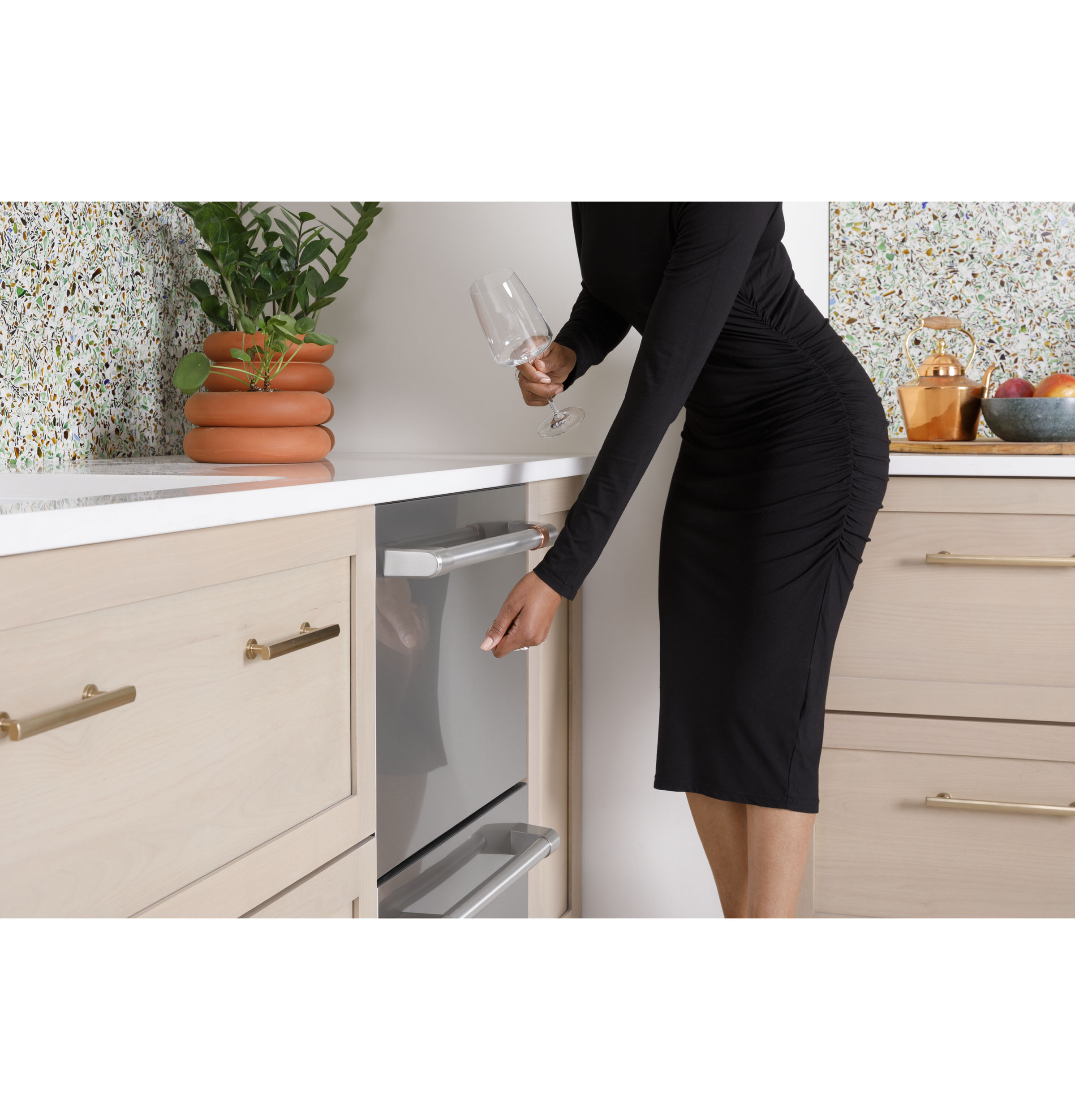

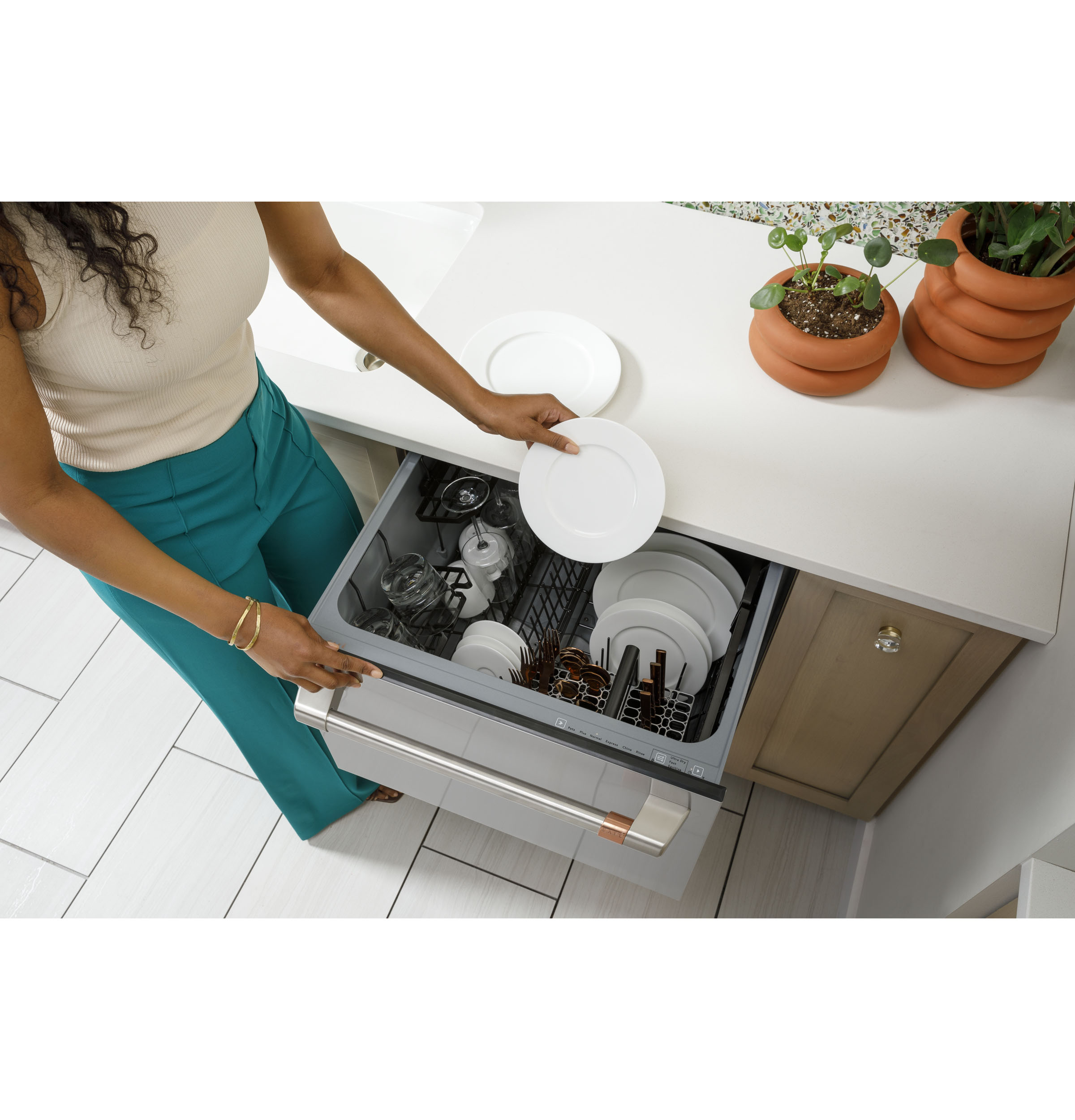

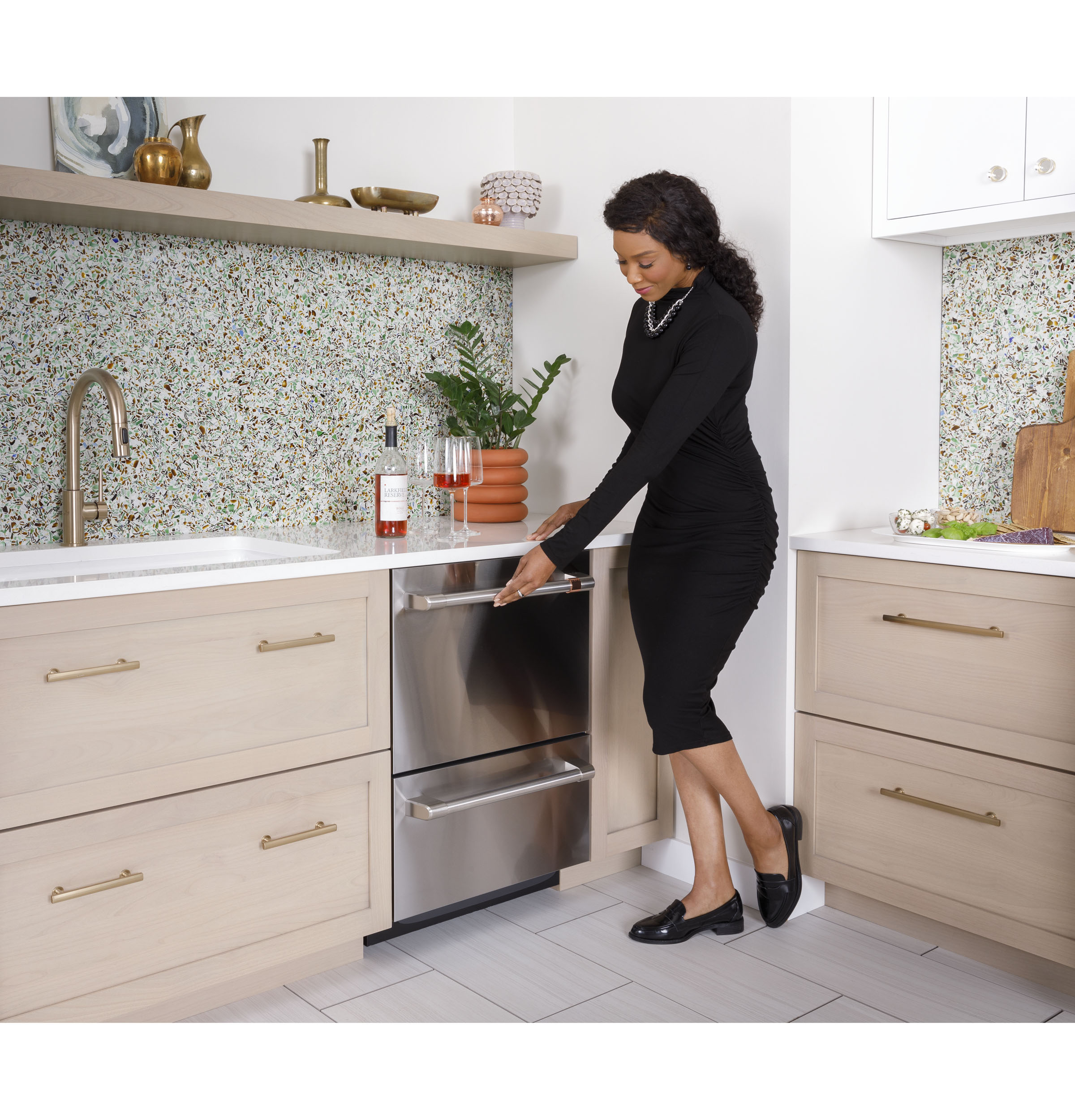

Easy to Load and Unload

Keep bending to a minimum while you load and unload the conveniently placed, ergonomically designed upper drawer

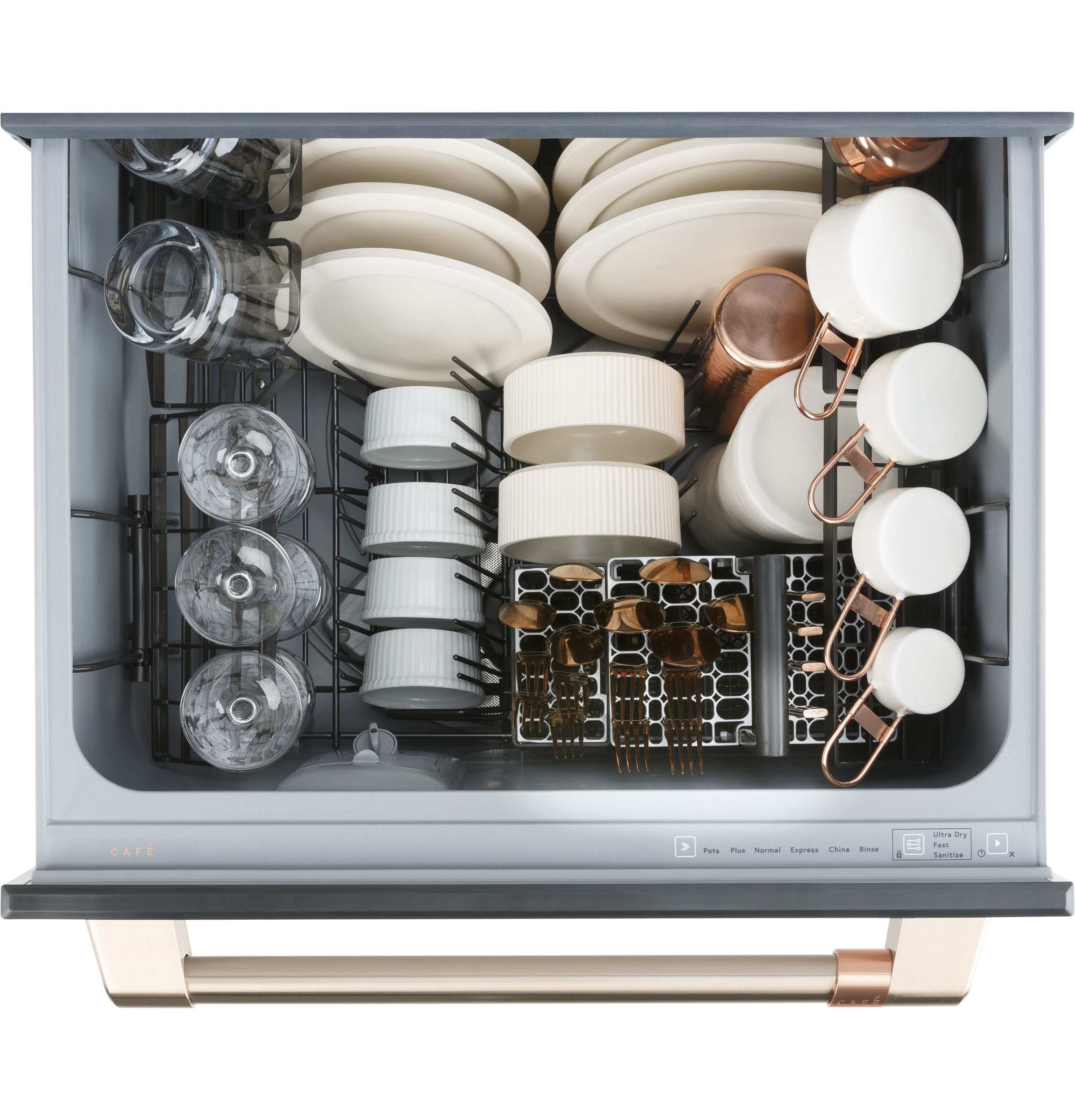

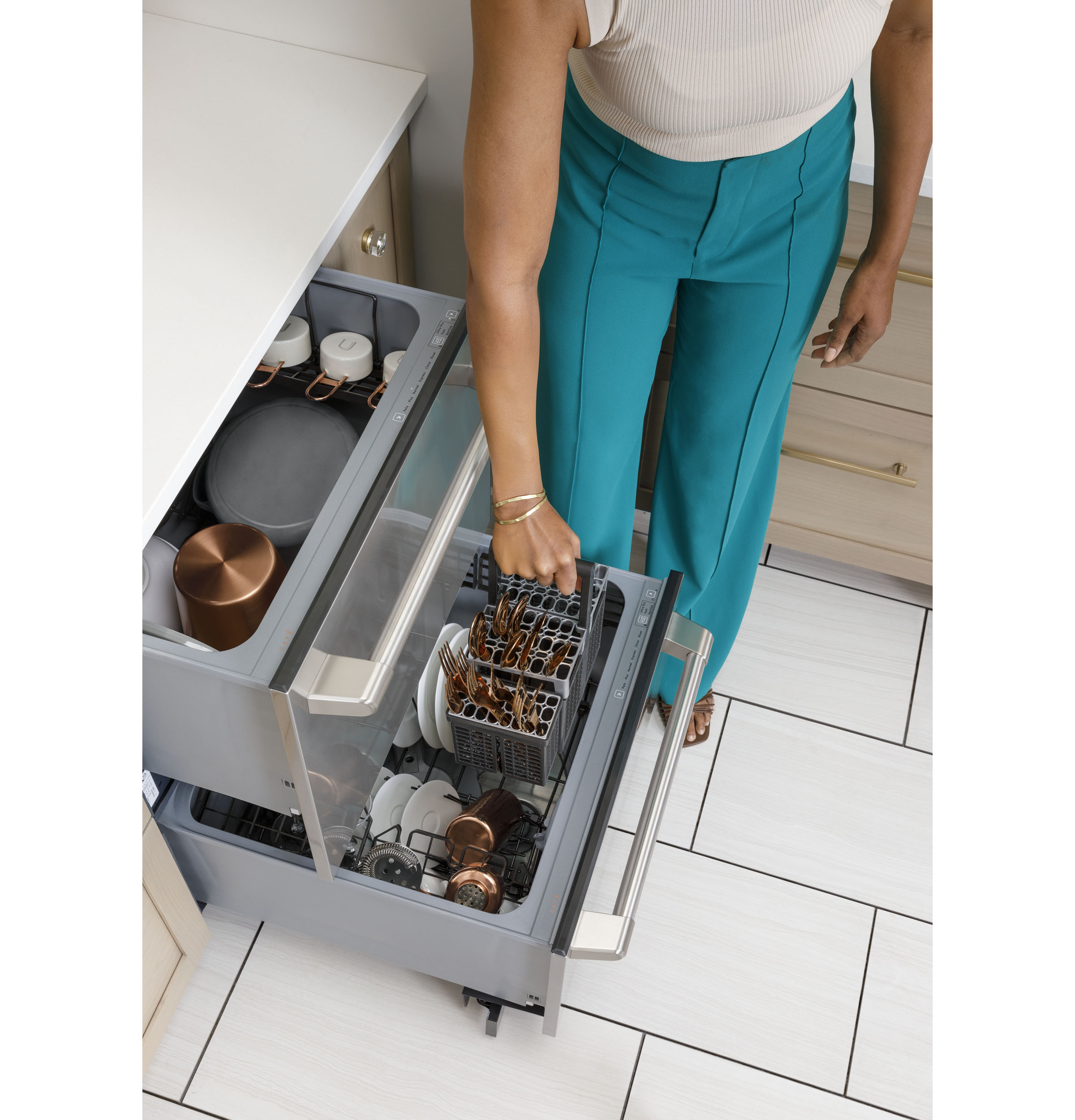

Accommodates Large Dish Loads

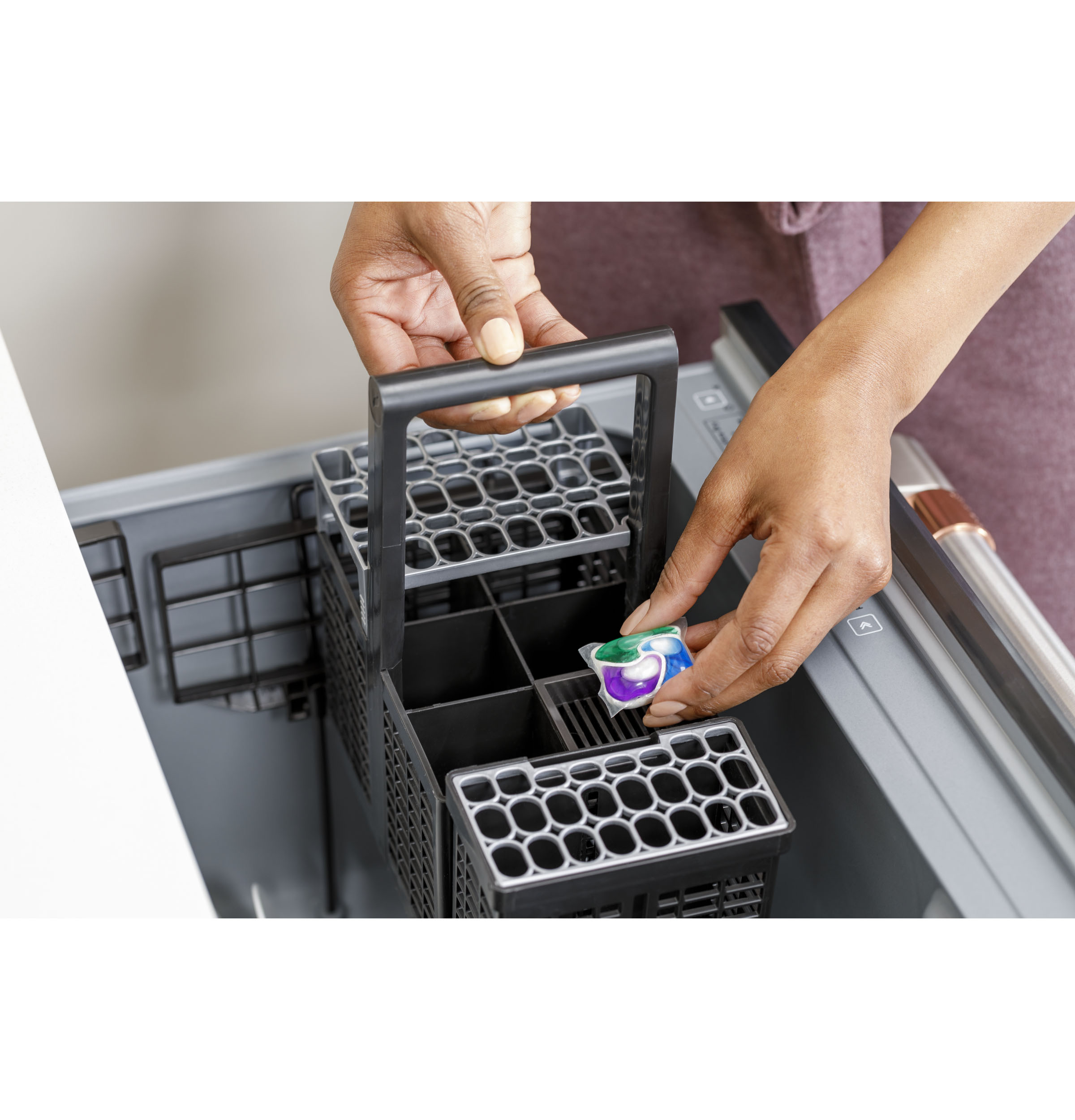

With two removable silverware baskets and enough capacity for 14 place settings, you can wash every item in a single load, even after the largest meals

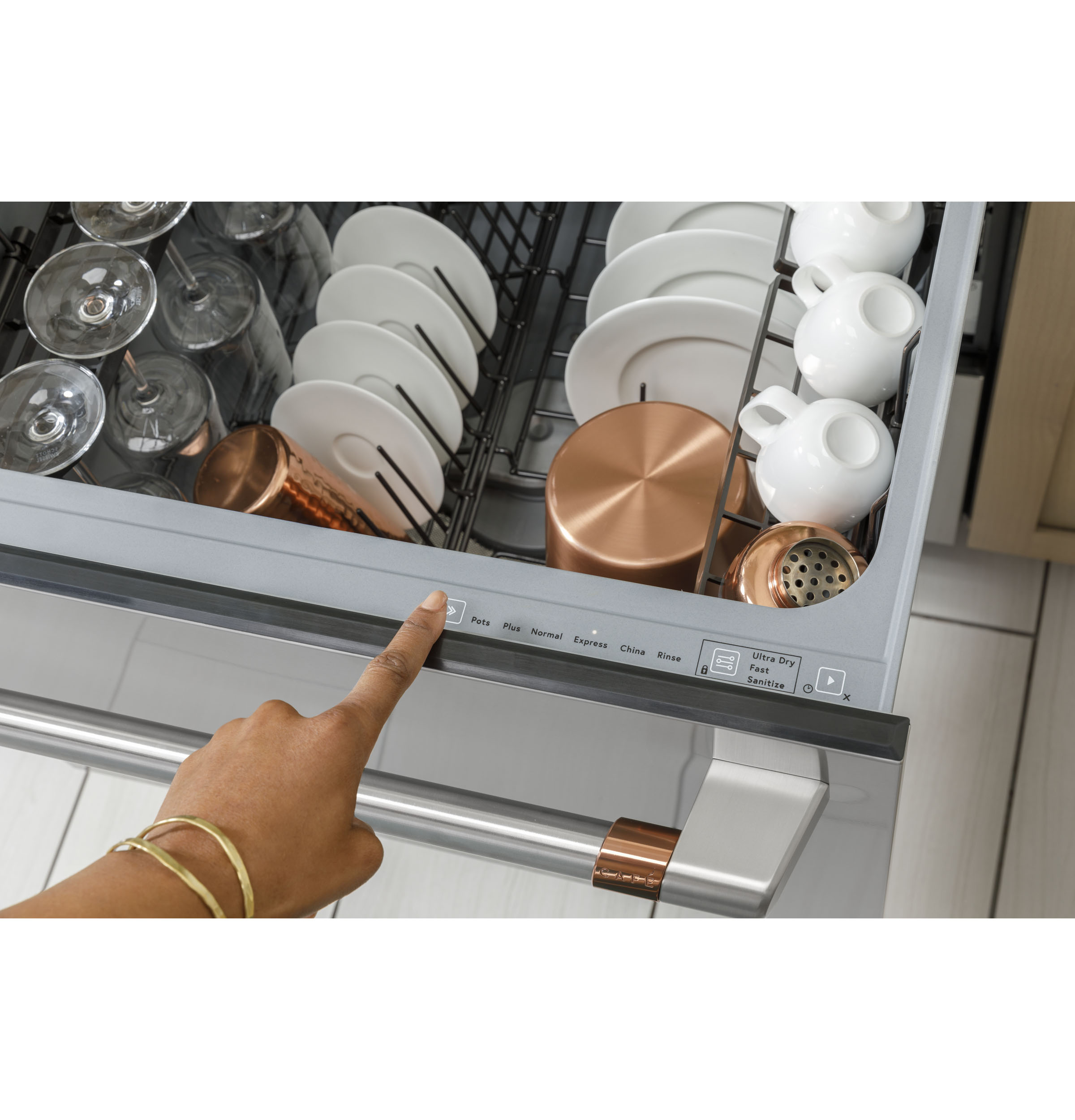

6 Wash Cycles

Go beyond the normal wash and dry with six cycles, plus Fast Dry, Sanitize and Ultra Dry options

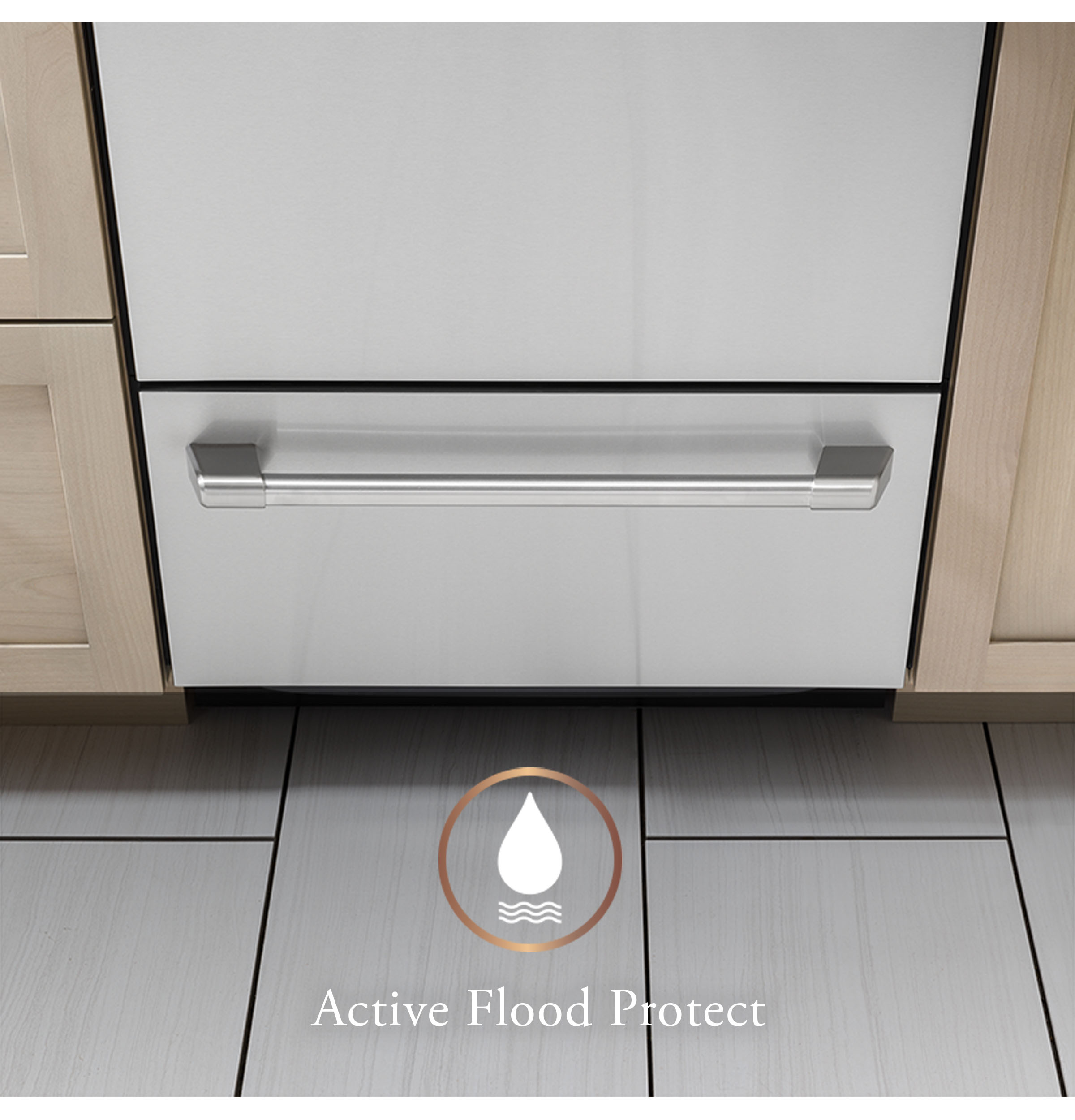

Water Leak Sensor

This dishwasher features Water Leak Sensor, preventing potential overflows for greater peace of mind. A water sensor cancels the wash cycle before a flood can occur and alerts you with blinking lights and a tone

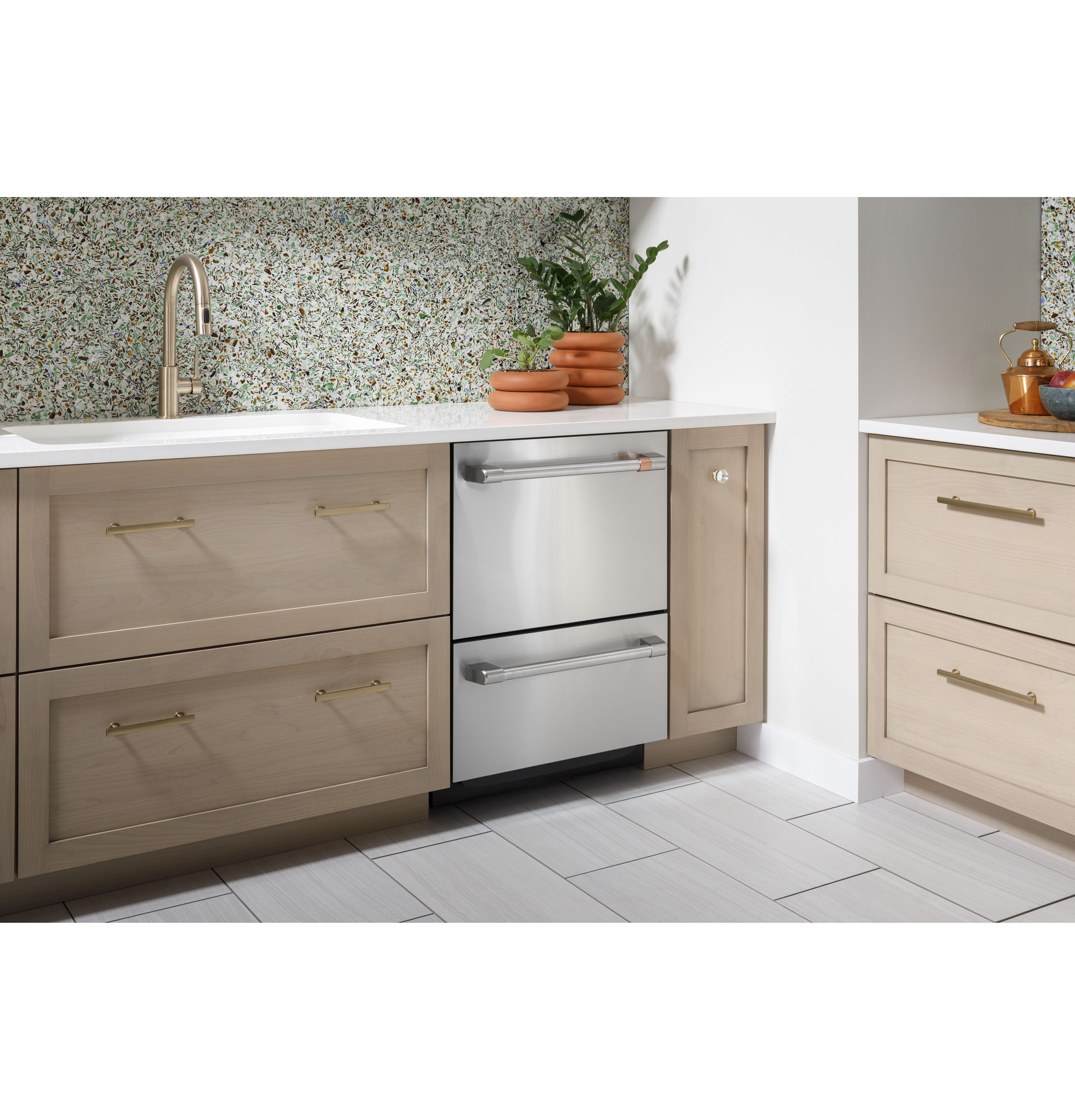

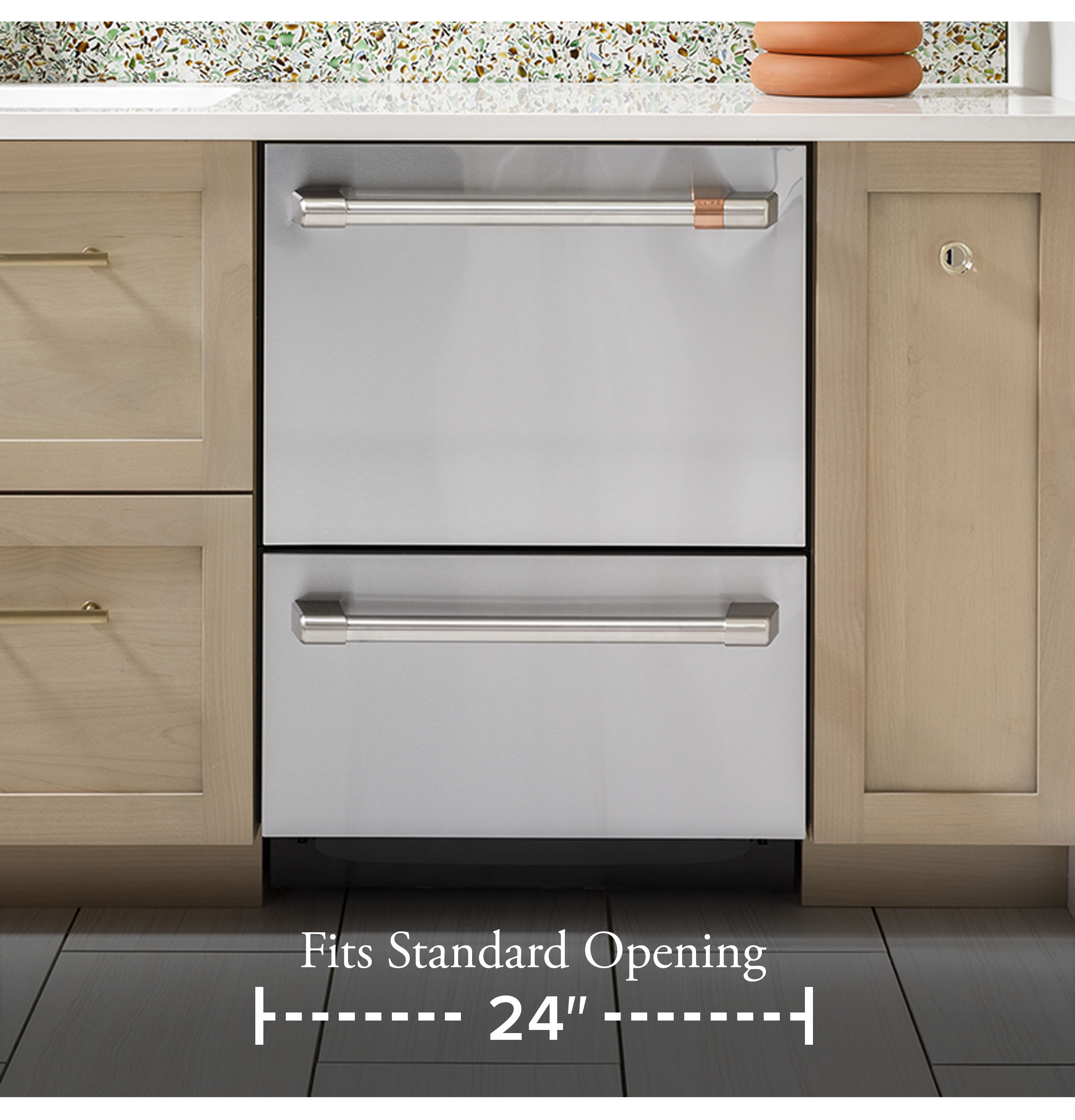

Fits Standard 24" Cutout

The dishwasher dimensions allow for easy installation in a standard 24"-wide cutout

Delay Start

A dishwasher delay function lets you set it to start while you're working, sleeping or out of the house

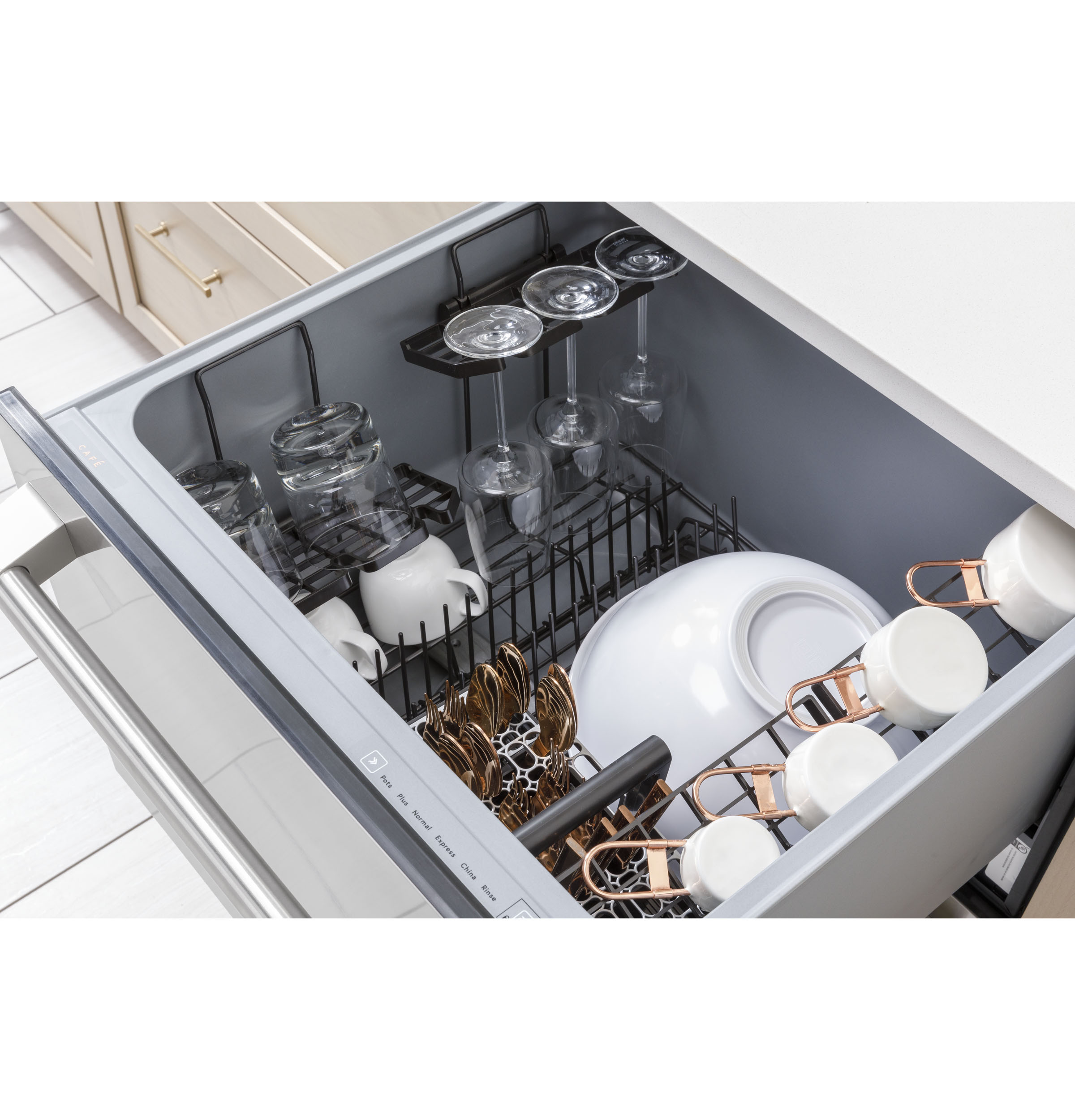

Adjustable Racks

Never worry about how to load the dishwasher again thanks to the loading flexibility that comes with racks that can be adjusted to accommodate any item

46 dBA Single Drawer & 49 dBA Double Drawer

This quiet dishwasher keeps your kitchen peaceful whether you're using one or both of the drawers

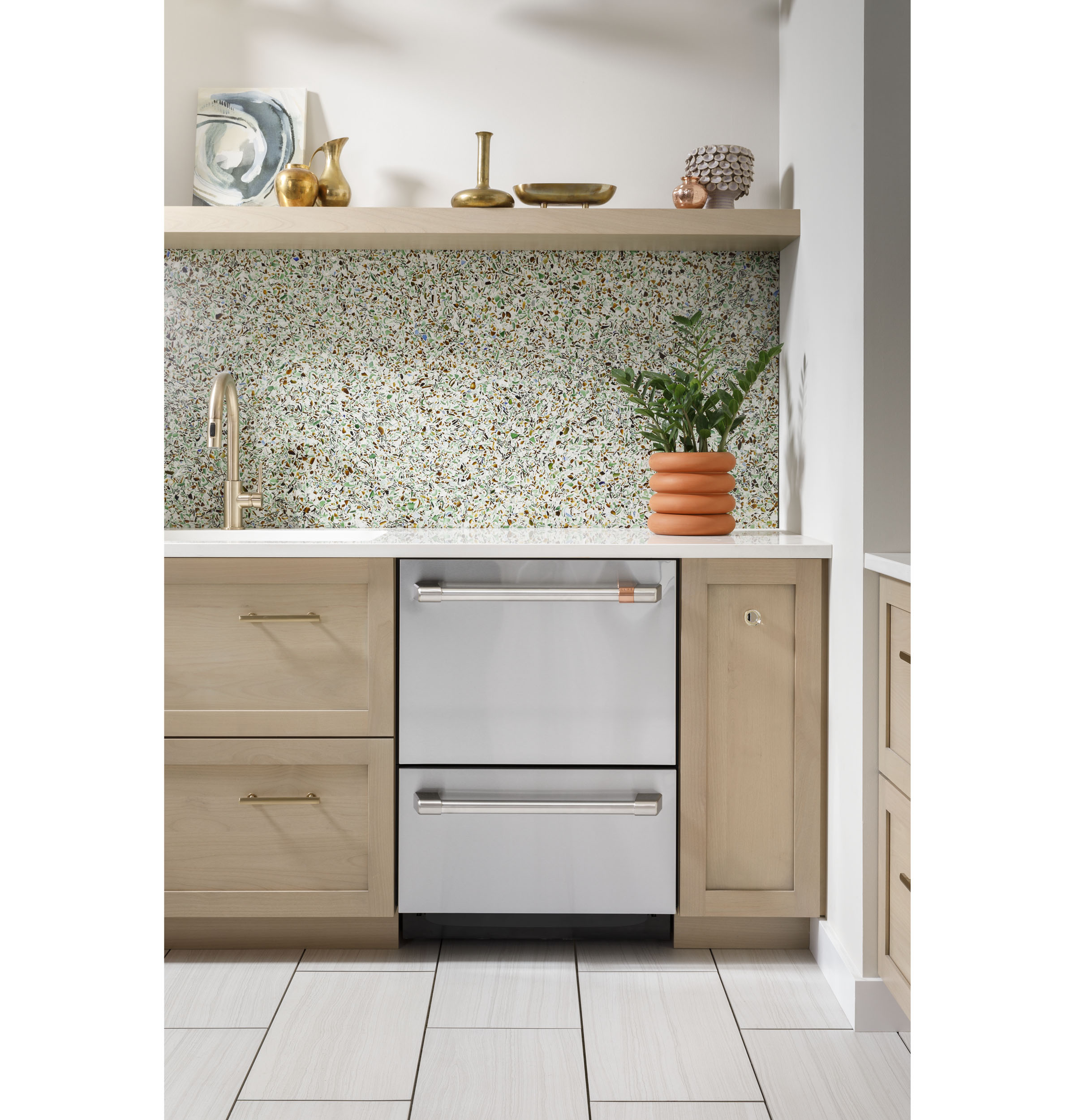

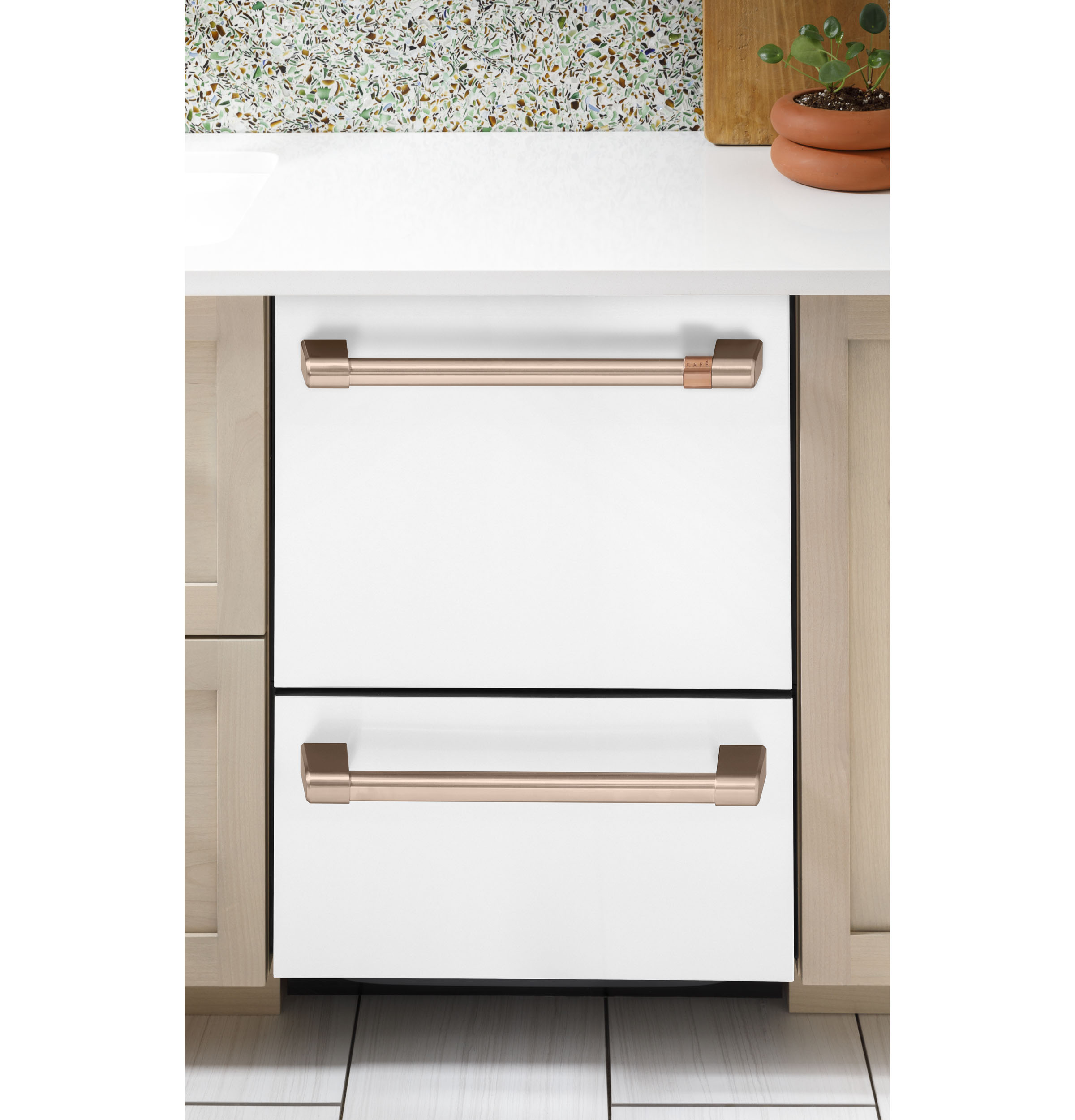

Create a Look That Matches Your Personal Style

With this customizable dishwasher, you can combine any of the premium finishes and hardware options for a stylish appearance that's truly unique

Fits Standard 24” Cutout

The dishwasher dimensions allow for easy installation in a standard 24"-wide cutout

Certifications

CEC Regulated certification

CEC Regulated

California Prop 65 certification

California Prop 65

Specifications

Warranty

Parts1 Year
Labor1 Year

FEATURES

Wash System2 completely independent wash systems
Tub TypeDouble Drawer
Leveling System4 Leveling Legs
Additional ProtectionActive Flood Protect
Number of Place Settings14
Dishwasher OptionsUltra Dry; Fast; Sanitize; Lock Controls, Delay
LatchPull with Handle; Interior lid closes during cycle
Number of Options3
StyleBuilt-In Top Control
Water Filtration System100% Filtration
Lower DrawerStandard
Rack FeaturesFull Extension Slides
Racking MaterialNylon
Dishwasher CyclesRinse
Upper DrawerUpper drawer fits 13 inch plates
Rack ColorGrigio
DispenserRinse Aid

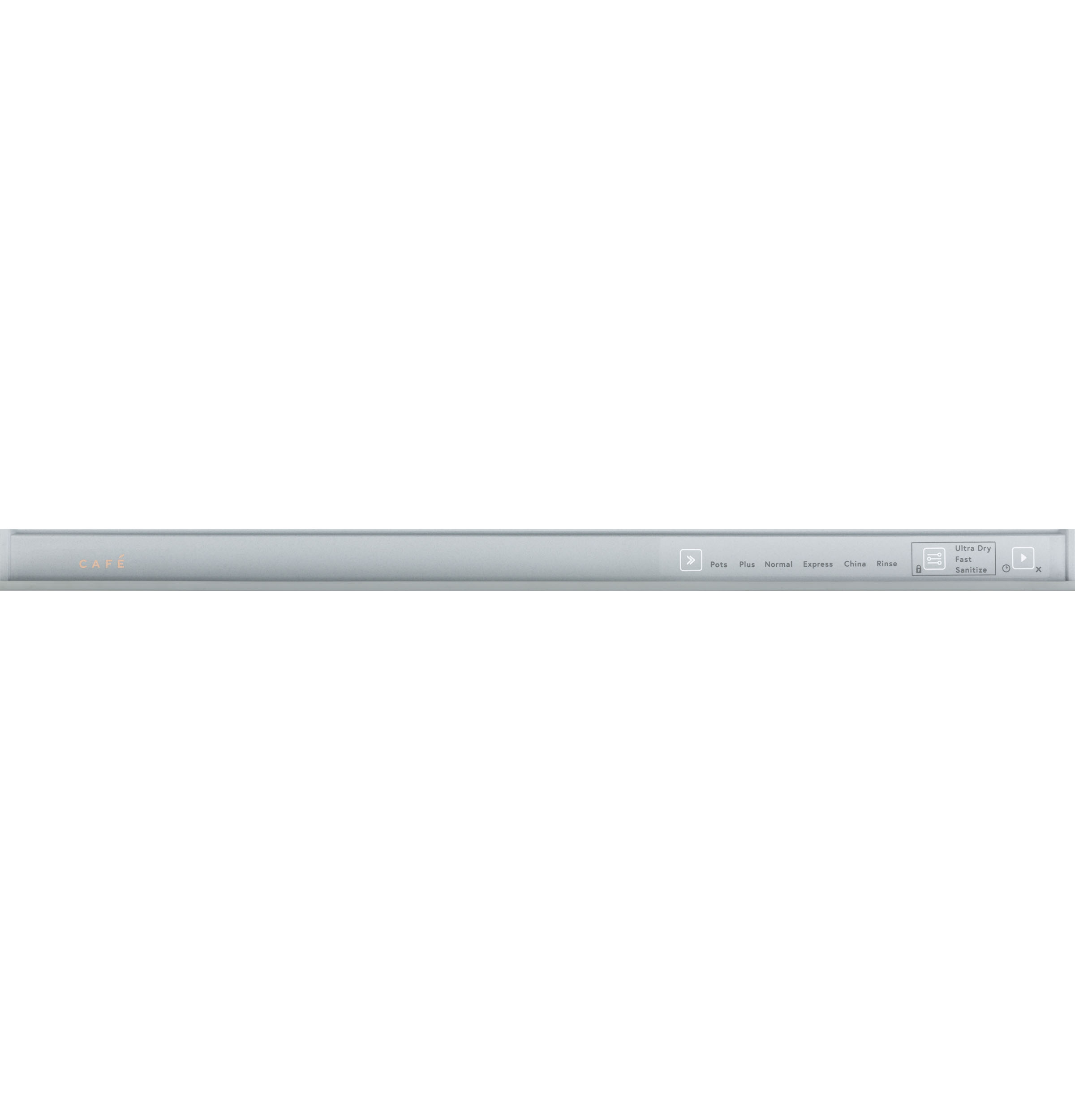

Control TypeTop Controls
Racking System2 Racks with 4 Cup Shelves
Dishwasher Drying FeaturesFan Assist Dry
Wash Arms2 Total, 1 per Drawer
Exterior StyleTraditional
Active Flood ProtectionActive Flood Protect
Product TypeBuilt-In
Dishwasher Control FeaturesDelay and Lock capabilities, Audible End-of-Cycle Signal; Last Cycle Memory, Non Sanitization Temp Error
Number of Cycles6
Tub and Door LinerGray Plastic
Showroom Power ModeYes
Lower DrawerFold Down Tines
Rack FeaturesBall-Tipped Tines
Dishwasher CyclesExpress
Upper DrawerFold Down Tines
Control TypeCap Touch Controls
Wash System FeaturesSingle pump per system (identical per drawer); Water and Prime regulator for efficiency
Control Type3 Touchpads
Dishwasher CyclesPots
Dishwasher CyclesPlus
Dishwasher CyclesNormal
Dishwasher CyclesChina
Lower Drawer4 Utility Shelves; 2 with StemSafe
Lower DrawerSilverware Basket with cell covers
Lower DrawerLower drawer fits 10-1/2 inch plates
Rack Features2 long and 2 short articulating plastic utility shelves w/Stemsafe; Fold Down and Adjustable Tines; 2 piece Silverware Basket
Upper DrawerLarge
Upper Drawer4 Utility Shelves; 2 with StemSafe
Upper DrawerSilverware Basket with cell covers
Wash System FeaturesAutomatic Temperature Control

POWER / RATINGS

Power ConnectionPower Cord - Included
Energy Consumption (kWh/year)270
Electrical Requirements120V ; 60Hz ; 9.4A
Calrod Heater Watts503
Volts/Hertz/Amps120V; 60Hz; 9.4A
Hertz60
Watts1128

ECONOMICAL / QUIET

Door InsulationYes
Quiet Package46 dBA Single/ 49 dBA Double
Outer WrapFull Steel Inclosure
Motor TypeVariable Speed, BLDC

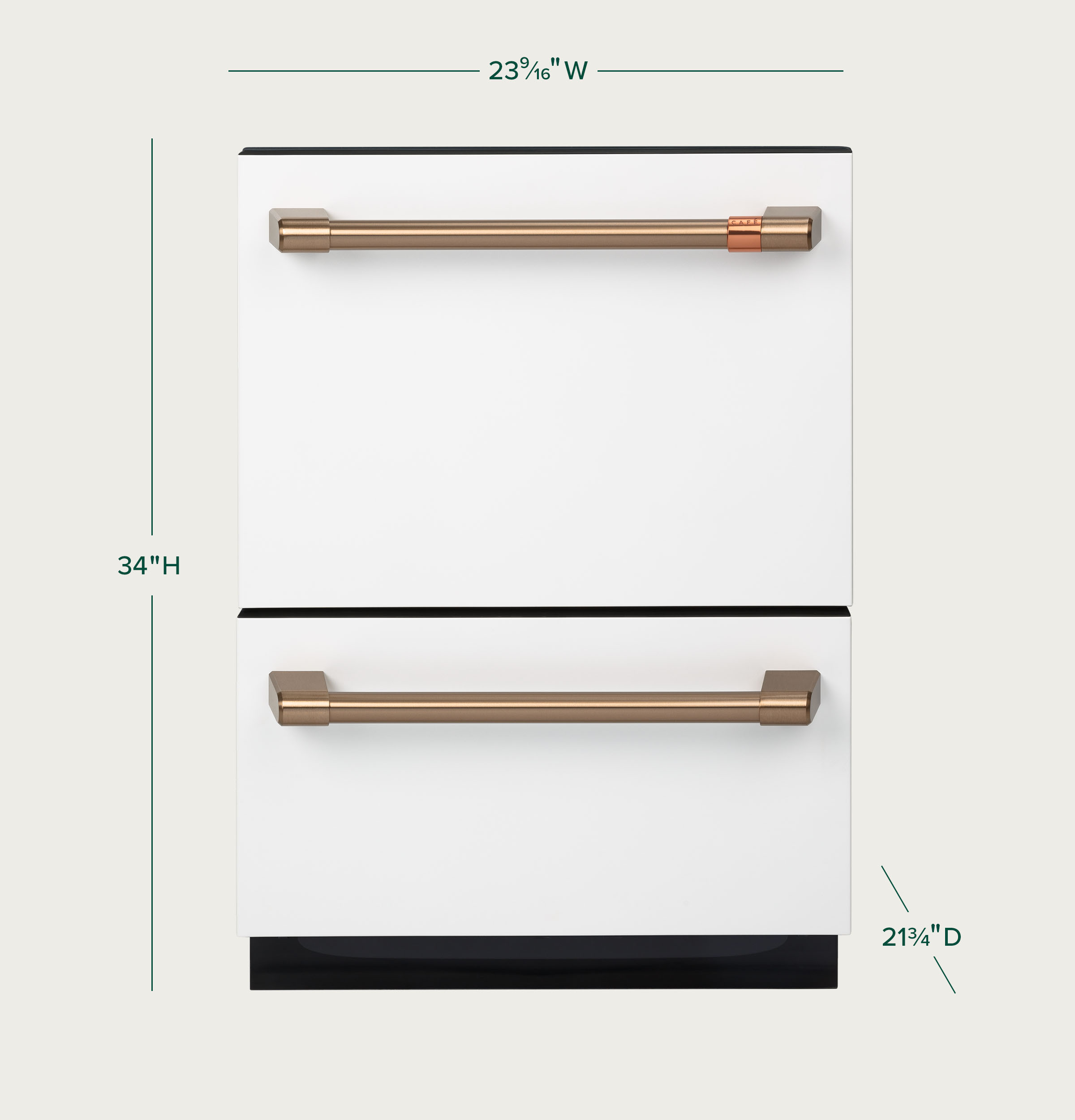

WEIGHTS & DIMENSIONS

Height w/ Legs Retracted - Minimum Height34 in
Cabinet Width24 in
Net Weight120 lb
Overall Width23.5625 in
Approximate Shipping Weight125 lb
Overall Height34 in
Height w/Legs Extended - Maximum Height36.375 in
Depth with Door Open21.5625 in
Overall Depth25.1875 in
Cutout Height (in)34
Cutout Width (in)23.625
Depth Without Handle22.5625 in
Overall Depth with Handle25.1875 in
Cutout Depth (in)22.0625

APPEARANCE

InstallationSide Installation or Top Installation Included
Handle ColorBrushed Bronze
Door Style2 Drawer Fronts
Door Appearance2 Drawer Fronts
Color AppearanceMatte White
Control Panel ColorGrey
Handle DesignCustomizable
HandleCAFÉ™
InstallationFlush Cabinet Installation
InstallationBuilt-Up Floor Capable

WARRANTY

Labor WarrantyLimited 1-year entire appliance
Warranty NotesSee written warranty for full details
Parts WarrantyLimited 1-year entire appliance

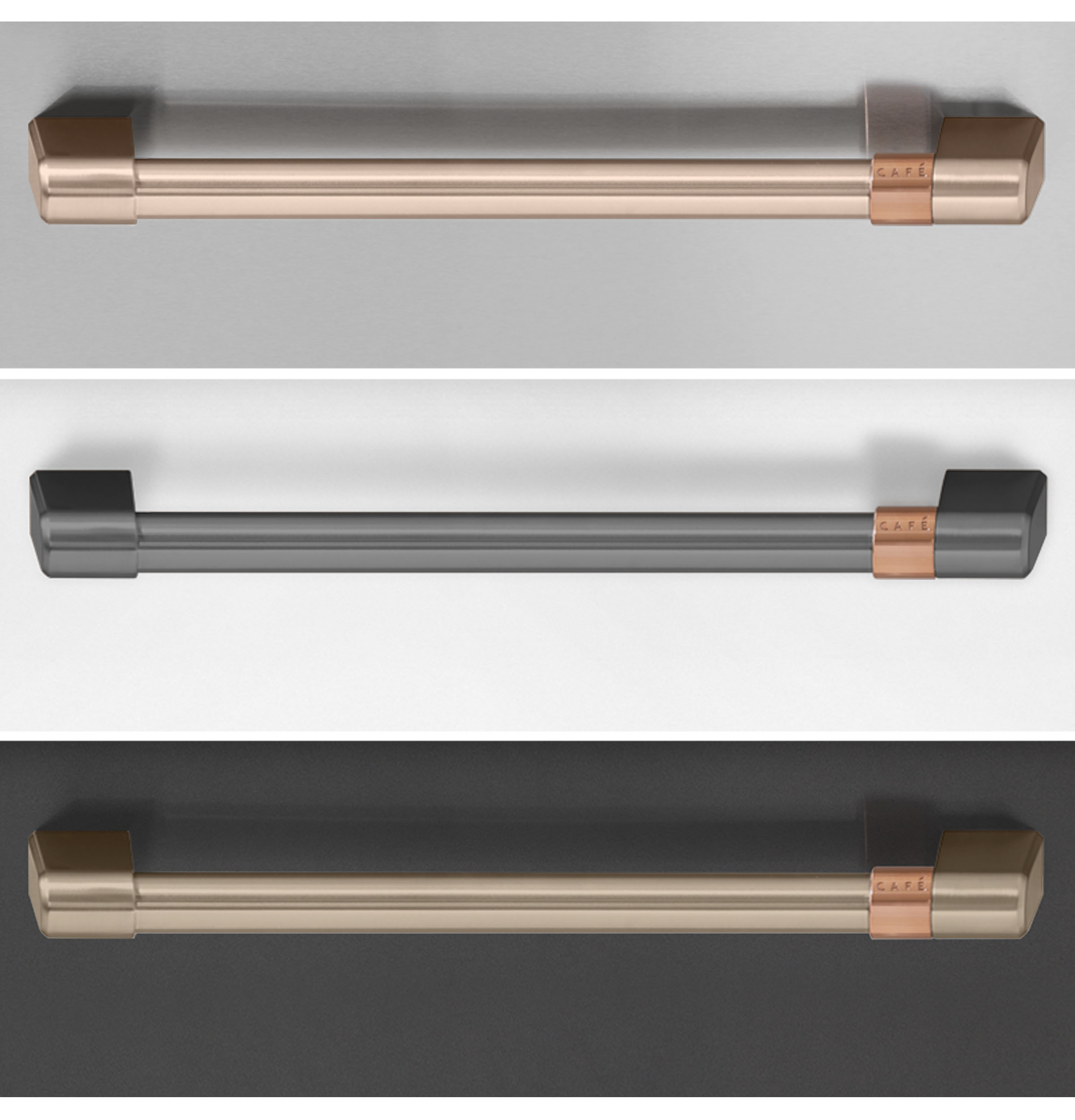

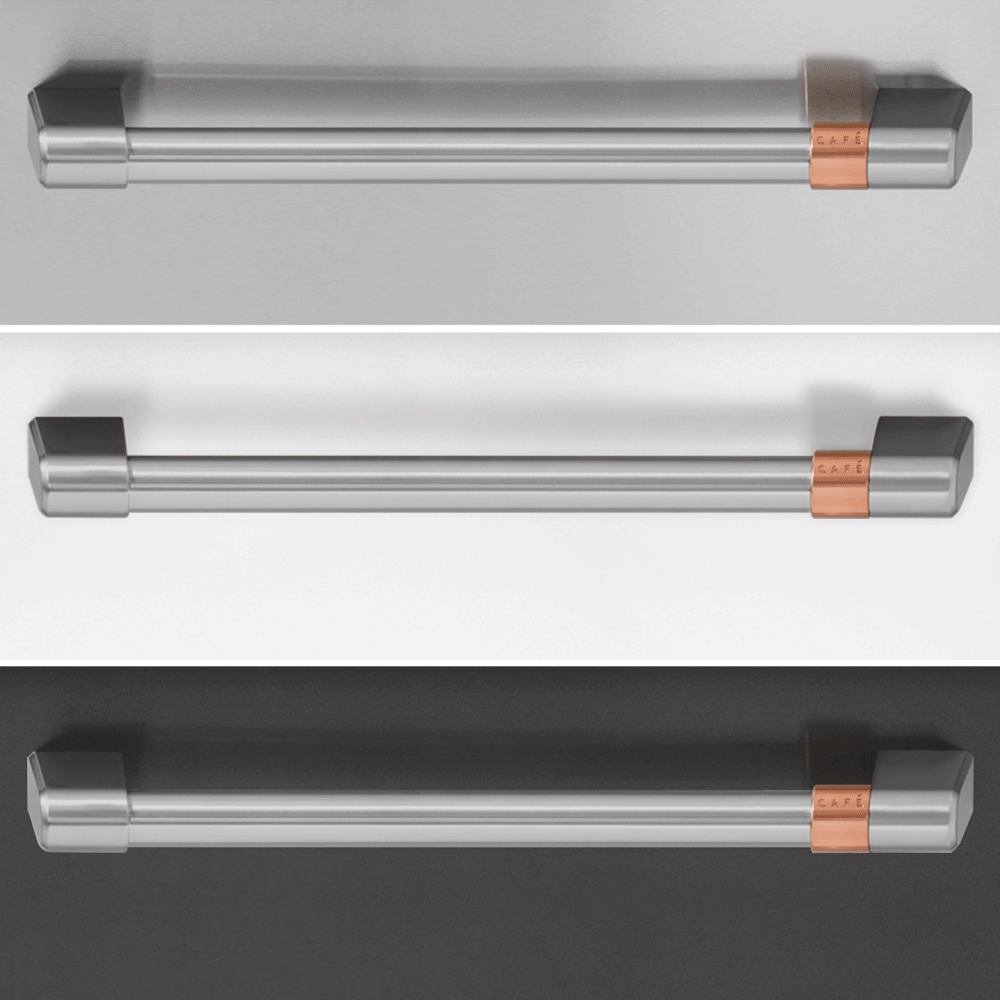

ACCESSORIES

Optional KitsCXQD2H2PNSS - Brushed Stainless
Optional KitsCXQD2H2PNBZ - Brushed Bronze
Optional KitsCXQD2H2PNBT - Brushed Black
Optional KitsCXQD2H2PNCU - Brushed Copper
Optional KitsCXQD2H2PNCG - Brushed Brass
Optional KitsCXQD2H2PNFB - Flat Black

Dimensions & Weight

Width23.56 in.
Height34 in.
Length0.19 in.
Weight120 lbs.

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes1
Shipping Width28.56 in.
Shipping Height39 in.
Shipping Length5.19 in.
Shipping Weight125 lbs.
Total of Shipping Weight125 lbs.
SourceCalculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement0.09 ft³
Dimensional Weight0.9 lbs.
Total of Cubes0.09 ft³
Total of Dimensional Weight0.9 lbs.
