$674.00

Was$759.00Save $85.00 (11%)

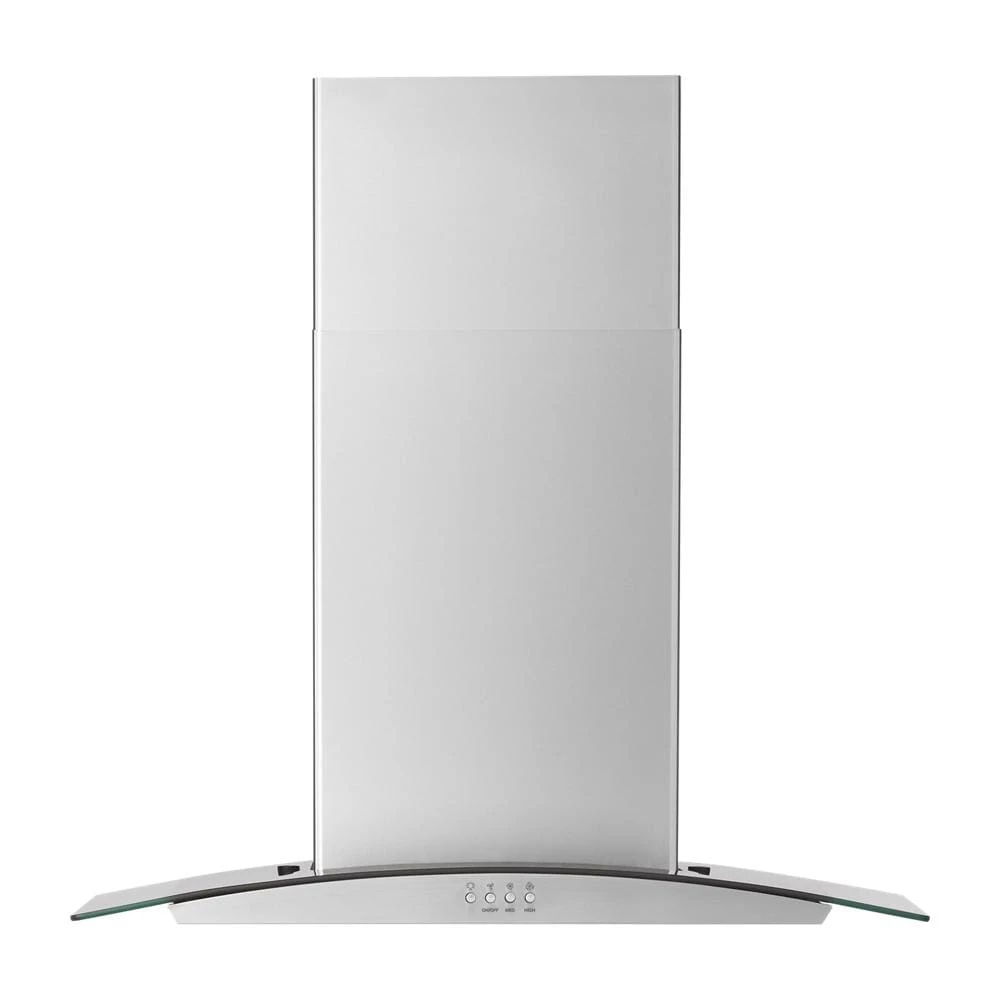

36" Curved Glass Wall Mount Range Hood - WVW51UC6LS

36" Curved Glass Wall Mount Range Hood

Model: WVW51UC6LS

36" Curved Glass Wall Mount Range Hood WVW51UC6LS36" Curved Glass Wall Mount Range Hood WVW51UC6LS36" Curved Glass Wall Mount Range Hood WVW51UC6LS36" Curved Glass Wall Mount Range Hood WVW51UC6LS36" Curved Glass Wall Mount Range Hood WVW51UC6LS36" Curved Glass Wall Mount Range Hood WVW51UC6LS36" Curved Glass Wall Mount Range Hood WVW51UC6LS36" Curved Glass Wall Mount Range Hood WVW51UC6LS36" Curved Glass Wall Mount Range Hood WVW51UC6LS36" Curved Glass Wall Mount Range Hood WVW51UC6LS36" Curved Glass Wall Mount Range Hood WVW51UC6LS36" Curved Glass Wall Mount Range Hood WVW51UC6LS36" Curved Glass Wall Mount Range Hood WVW51UC6LS36" Curved Glass Wall Mount Range Hood WVW51UC6LS36" Curved Glass Wall Mount Range Hood WVW51UC6LS36" Curved Glass Wall Mount Range Hood WVW51UC6LS36" Curved Glass Wall Mount Range Hood WVW51UC6LS36" Curved Glass Wall Mount Range Hood WVW51UC6LS36" Curved Glass Wall Mount Range Hood WVW51UC6LS
36" Curved Glass Wall Mount Range Hood WVW51UC6LS
36" Curved Glass Wall Mount Range Hood WVW51UC6LS
36" Curved Glass Wall Mount Range Hood WVW51UC6LS
36" Curved Glass Wall Mount Range Hood WVW51UC6LS
36" Curved Glass Wall Mount Range Hood WVW51UC6LS
+14more

$674.00

Was$759.00Save $85.00 (11%)

Color : Stainless Steel

36" Curved Glass Wall Mount Range Hood WVW51UC6LS

$674.00

Stainless Steel

Key Features

  • 3-Speed, 400 CFM Motor Class (Performance varies based on installation. Resources available at aham.org.)

  • Grease Filter

  • LED Task Lighting

  • 65K BTU Cooktop Threshold

  • 7 Sones Sound Level at high speed (When configured for outside ventilation. As published by aham.org.)

  • Push Button Controls

  • ADA Compliant

  • Convertible Ventilation (Recirculating or Vented)

Read More

Available from Mark's Appliance, serving customers throughout Southern IL & St. Louis, MO.

Features
Specifications

Features

3-Speed, 400 CFM Motor Class (Performance varies based on installation. Resources available at aham.org.)

Helps remove smoke, odor and moisture with 400 CFM Motor Class hood venting that helps keep your kitchen clean. Three fan speeds provide the right amount of ventilation for every meal you prepare.

Grease Filter

Help trap unwanted grease and remove odors with a filter that unlatches from the hood so you can wash it with soap and water at the sink.

LED Task Lighting

Bright, long-lasting LED Task Lighting makes it easy to see what you’re cooking.

65K BTU Cooktop Threshold

Handle the heat and cooking power of a gas cooktop with up to 65K total BTUs or any electric cooktop.

7 Sones Sound Level at high speed (When configured for outside ventilation. As published by aham.org.)

Stay focused on cooking and making memories in the kitchen, even when venting at the highest speed. At maximum speed, sound level is 7 Sones.

Push Button Controls

Use Push Button Controls to easily control fan speed and cooktop lighting at the push of a button.

ADA Compliant

When the range hood is wired to operate from a dedicated standard electrical wall switch, this hood meets the Standards for Accessible Design specified by the Americans with Disabilities Act to provide equal access to all. See install instructions for ADA compliance for more details.

Convertible Ventilation (Recirculating or Vented)

A convertible design allows for installation that can be vented externally or internally. When internal venting, recirculation passes the air through charcoal filters (sold separately) to trap grease and odors before pushing the air back into the home.

Optional Recirculation Kit (non-vented/duct-free)

This hood can be installed without needing to vent outside. Recirculation passes the air through filters to trap grease and odors before pushing the air back into the home. Recirculation kit sold separately. Part number W11548457.

6" Round Damper Included

Help regulate the flow of air through the chimney with the included 6" round damper (part number W10446915).

Optional Chimney Extension Kit

Extend chimney height for ceilings from 8'4" to 12'4" with the Optional Chimney Extension Kit. See installation instructions for details. Optional Chimney Extension Kit sold separately. Part number EXTKIT10ES.

Specifications

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement16.63 ft³
Dimensional Weight206.71 lbs.
Total of Cubes16.63 ft³
Total of Dimensional Weight206.71 lbs.

Ventilation Details

Auto FunctionNo
BTU Threshold65 K
Blower MotorN/A
CFM Motor Class400
Duct DirectionVertical
Duct TypeRound
Exhaust Vent LocationTop
FiltersAluminum Mesh Filter
HVI (CFM HS Vertical)340
Maximum Motor CFM340
Night LightNo
Night Light TypeN/A
Task Light TypeLED
Vent MaterialMetal
VentingExterior or Recirculating
Duct Length45.5
Damper IncludedYes
Duct Outlet Size6 in
Hood and Vent SelectionsFan High, Fan Med, Fan On/Off, Lamp
Lighting Control TypePush Button
Number of Task Light Settings1
Task LightingYes

Controls

Control LocationFront
Control TypePush Button
Number of Vent Speeds3

Details

Hood TypeWall-Mount Canopy
Blower TypeCentrifugal

Electrical

Power Cord IncludedNo
Amps2
Hz60
Volts120

Dimensions & Weight

Width36 in.
Height45.13 in.
Length17.69 in.
Weight51 lbs.
Gross Weight51 lbs
Net Weight40 lbs
Canopy Height10.813 in
Maximum Height45.125 in
Minimum Height27.125 in

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes1
Shipping Width40 in.
Shipping Height26 in.
Shipping Length22.69 in.
Shipping Weight91 lbs.
Total of Shipping Weight91 lbs.
SourceCalculation

Other

Common Size36 in

Certifications

Energy Star QualifiedNo
Energy Star® QualifiedNo

Capacity

Volume10.833 Cu.Ft.
