$799.95

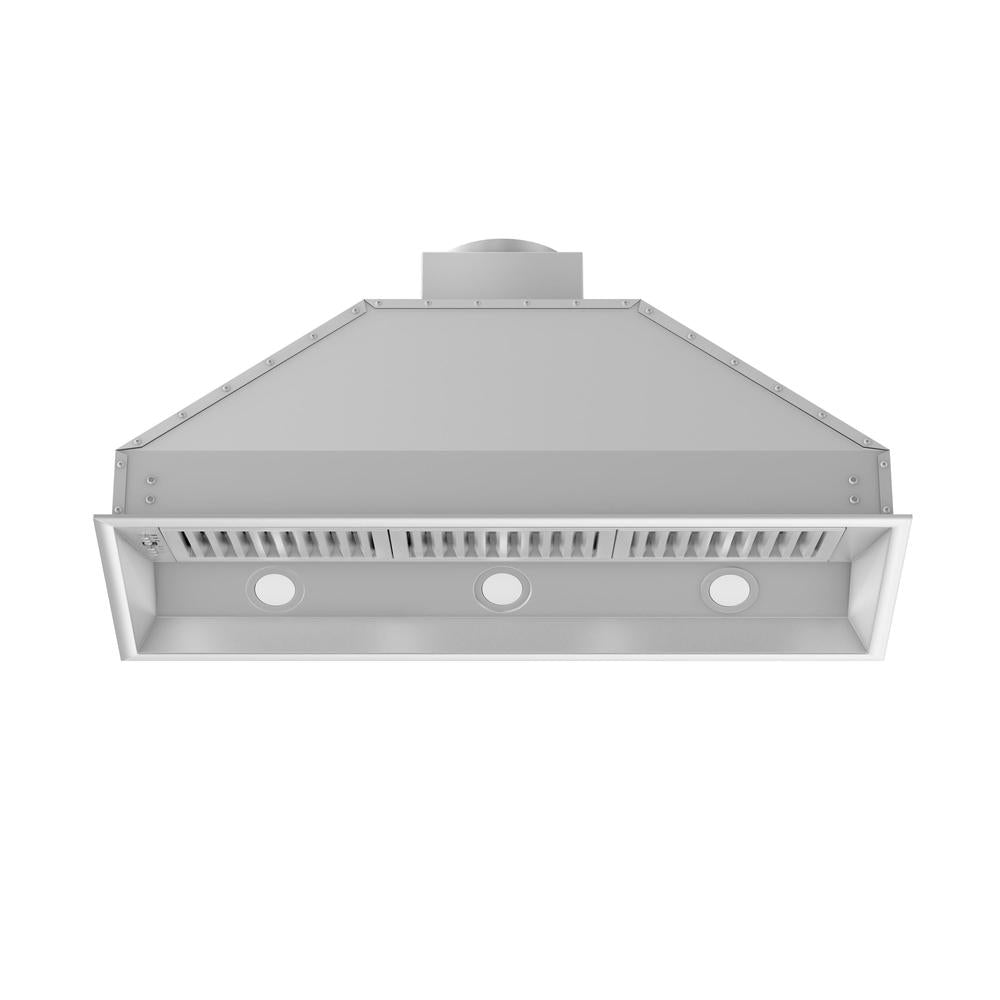

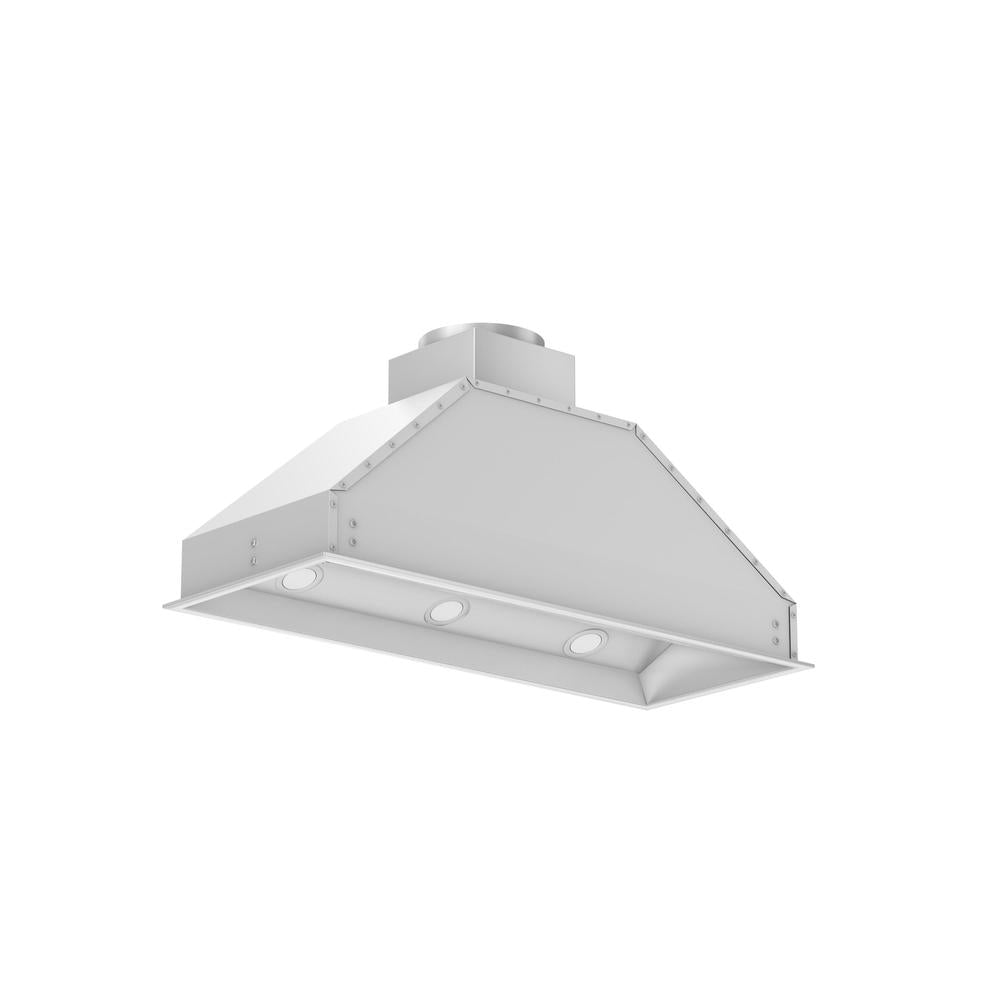

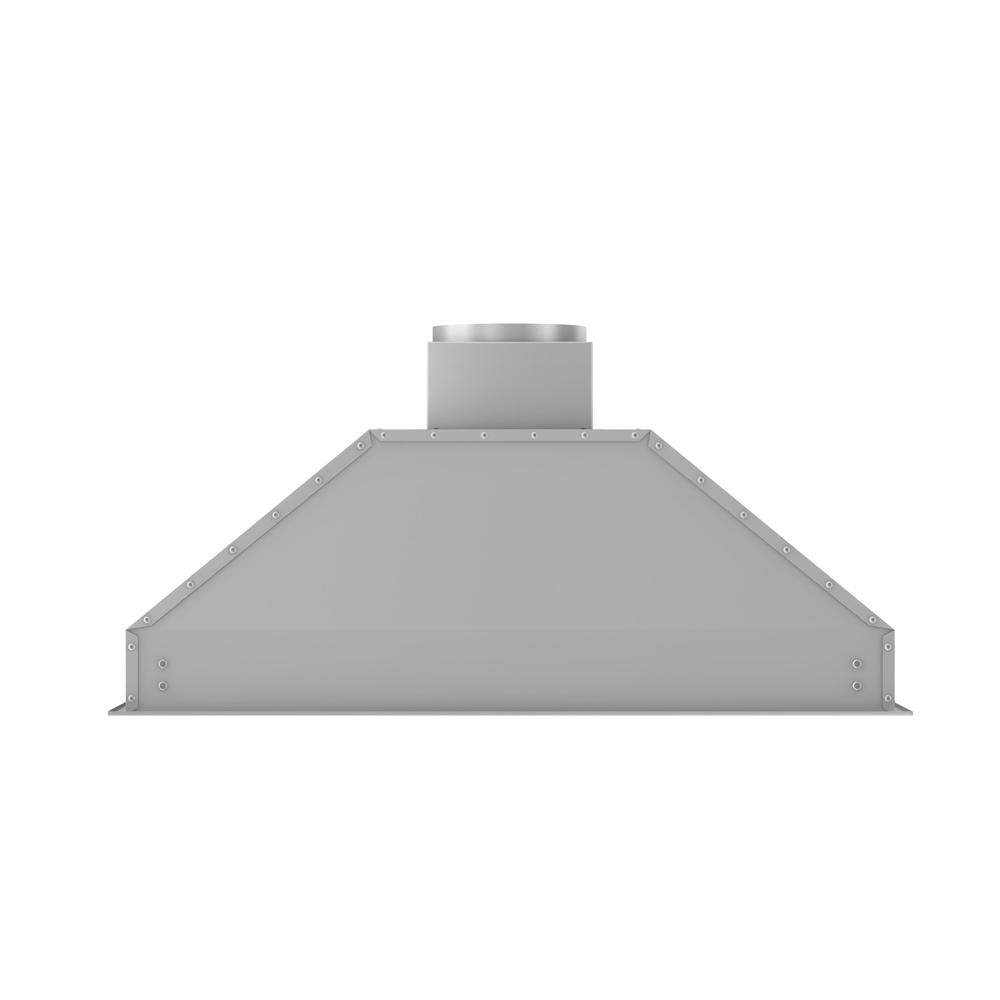

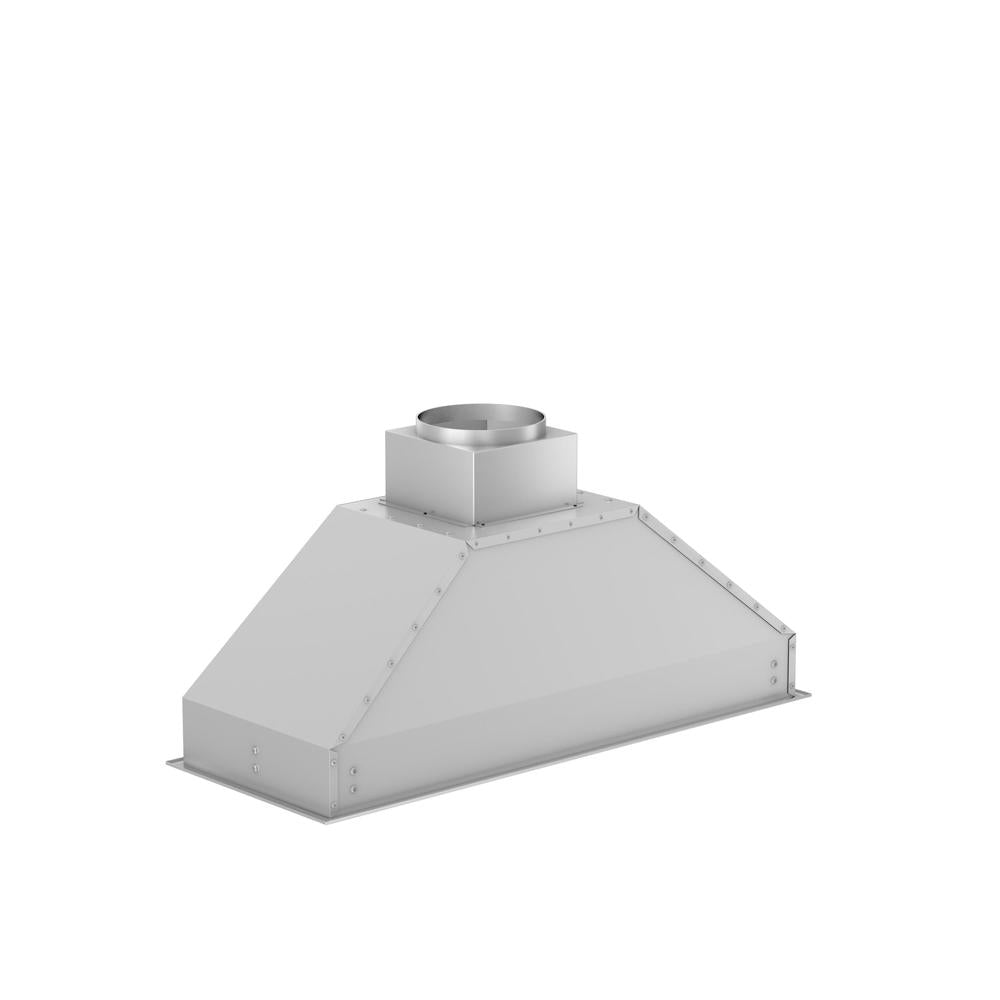

40 In. Ducted Wall Mount Range Hood Insert In Stainless Steel - 69540
$799.95
Color : Brushed 430 Stainless Steel
Key Features
Lifetime Motor Warranty
Dishwasher Safe Baffle Filters
Built-in Led Lighting
Description
Available from Mark's Appliance, serving customers throughout Southern IL & St. Louis, MO.
Features
Lifetime Motor Warranty
Enjoy the high performance of your ZLINE range hood motor for years to come with an industry-first lifetime motor warranty
Dishwasher Safe Baffle Filters
Reduce cleaning time with durable stainless steel baffle filters that are dishwasher safe
Built-in Led Lighting
Easily illuminate your cooking space with bright built-in LED lights
Specifications
Warranty
| Parts | 3 Year |
Other
| Motor | High Performance 4-Speed Motor |
| Filters | Stainless Steel Baffle Filters (Dishwasher Safe) |
| Brand | ZLINE Kitchen and Bath |
| 695-28 | 28 in. W x 15 in. D x 14 in. H |
| 695-34 | 34 in. W x 15 in. D x 14 in. H |
| 695-46 | 46 in. W x 15 in. D x 14 in. H |
| 695-40 | 40 in. W x 15 in. D x 14 in. H |
| Venting Size | 6" Outlet for 28" Insert and 8" Outlet for all other sizes (Transition piece with backdraft damper to round ducting included) |
| Lighting | |
| 695-28 | 2 LED Lights |
| 695-34 | 3 LED Lights |
| 695-46 | 4 LED Lights |
| 695-28 | 120/240/320/400 |
| 695-34 | 280/420/560/700 |
| Voltage | 110V/60HZ |
| Speeds | 4 Speeds |
| Control Type | Speed/Timer Panel with LCD (3 Minute AutoTimer with Delayed Shutoff) |
| Material | 21g #430 Stainless Steel |
| Mount Type | Range Hood Insert |
| Filters | Stainless Steel Baffle Filters (Dishwasher Safe) Warranty |
Dimensions & Weight
| Width | - |
| Height | - |
| Length | - |
| Weight | - |
| Width | 40 Inch |
| Height | 14.06 Inch |
| Weight | 50 lbs |
| Depth | 15 Inch |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | - |
| Shipping Height | - |
| Shipping Length | - |
| Shipping Weight | - |
| Total of Shipping Weight | - |
| Source | Calculation |
| Shipping Width | 45 Inch |
| Shipping Height | 19.06 Inch |
| Shipping Length | 20 Inch |
| Shipping Weight | 90 lbs |
| Total of Shipping Weight | 90 lbs |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | - |
| Dimensional Weight | - |
| Total of Cubes | - |
| Total of Dimensional Weight | - |
| Cubic Feet Measurement | 4.88 ft³ |
| Dimensional Weight | 60.7 Ibs |
| Total of Cubes | 4.88 ft³ |
| Total of Dimensional Weight | 60.7 Ibs |
Dimensions
| Dimensions: | 40.0625 in. W x 15 in. D x 14.0625 in. H |
| Product Depth (in.): | 15 |
| Product Width (in.): | 40 |
| Product Height (in.): | 14.0625 |
Details
| Appliance Category: | Insert Range Hood |
| Color/ Finish Family: | Brushed 430 Stainless Steel |
| Airflow (Q/L/M/H): | 280/420/560/700 |
| Motor: | High Performance 700 CFM/4-Speed Motor |
| Filters: | Stainless Steel Baffle Filters (Dishwasher-safe) |
| Mount Type: | Insert |
| Number of Lights: | 3 |
| Number of Speeds: | 4 |
| Control Type: | Speed/Timer Panel with LCD (3 Minute AutoTimer with Delayed Shutoff) |
| Button Panel: | Push Button Control Panel (4-Speed Fan Control/Lights/3 Minute AutoTimer with Delayed Shutoff) |
| Product Weight (lb.): | 50 |
| Decibels: | 30/41/49/52 |
| Duct Size: | 8 |
| Voltage: | 110 |
| Amps: | 5 |
Warranties & Certifications
| Certifications and Listings: | ETL Listed |
| Manufacturer Warranty: | 3 year parts, life-time motor warranty |
