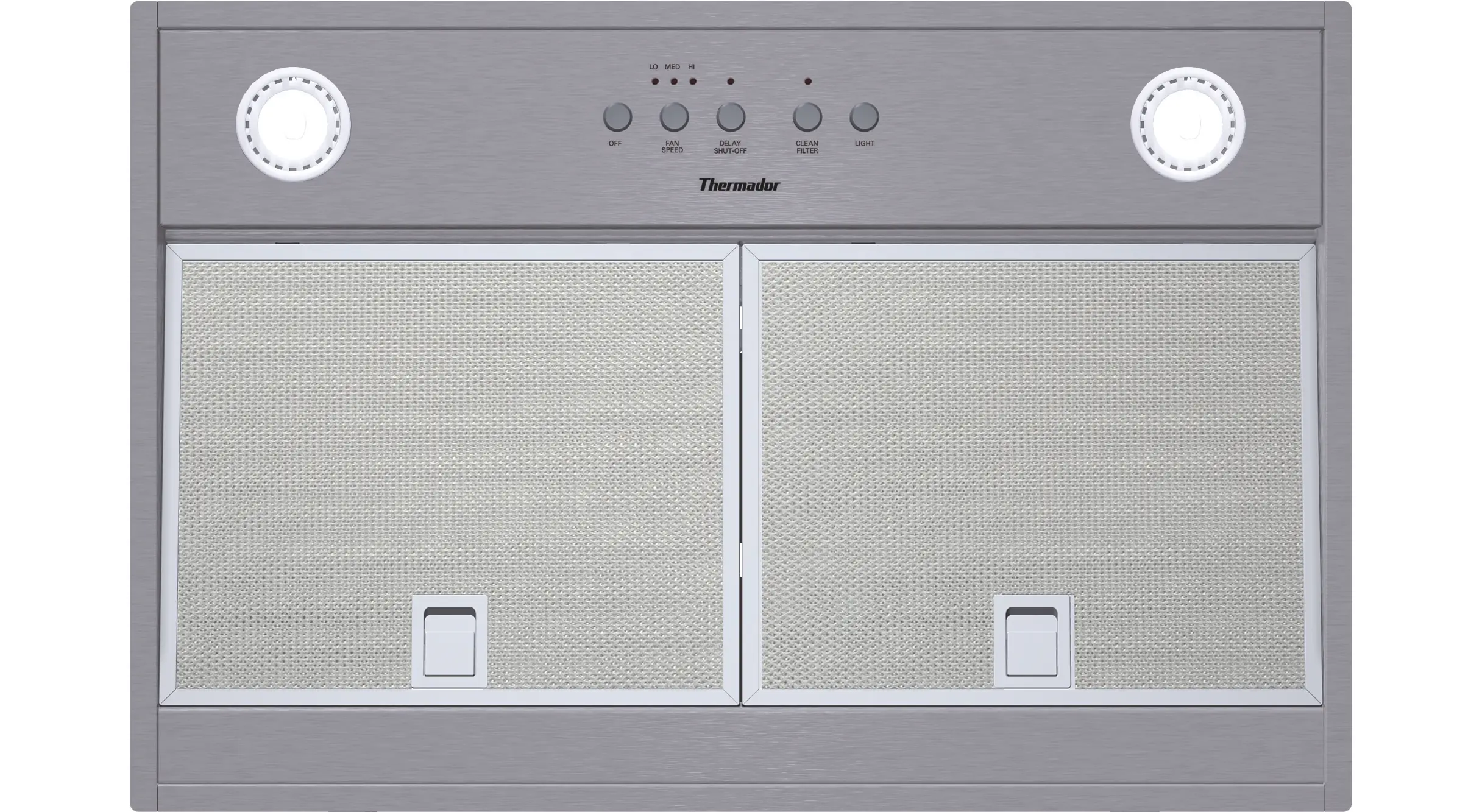

Custom Insert - VCI230DS
Color : Graphite
Key Features
Seamless integration into custom canopies to create a focal point in your kitchen
Halogen lighting spotlights your best recipes
Three fan speeds
Dishwasher safe hybrid mesh filters
Available from Mark's Appliance, serving customers throughout Southern IL & St. Louis, MO.
Features
Seamless integration into custom canopies to create a focal point in your kitchen
Halogen lighting spotlights your best recipes
Three fan speeds
Dishwasher safe hybrid mesh filters
Specifications
General
| Venting | Ducted |
| Type of Control | LED, Low-lift pushbuttons |
| Filter Type | Cassette with Aluminum Frame |
| Installation Type | Built-in |
| Material | Stainless Steel |
| Grease Filter Material | Washable Aluminum |
| Speed Settings | 3 Fan Speeds |
Size and Weight

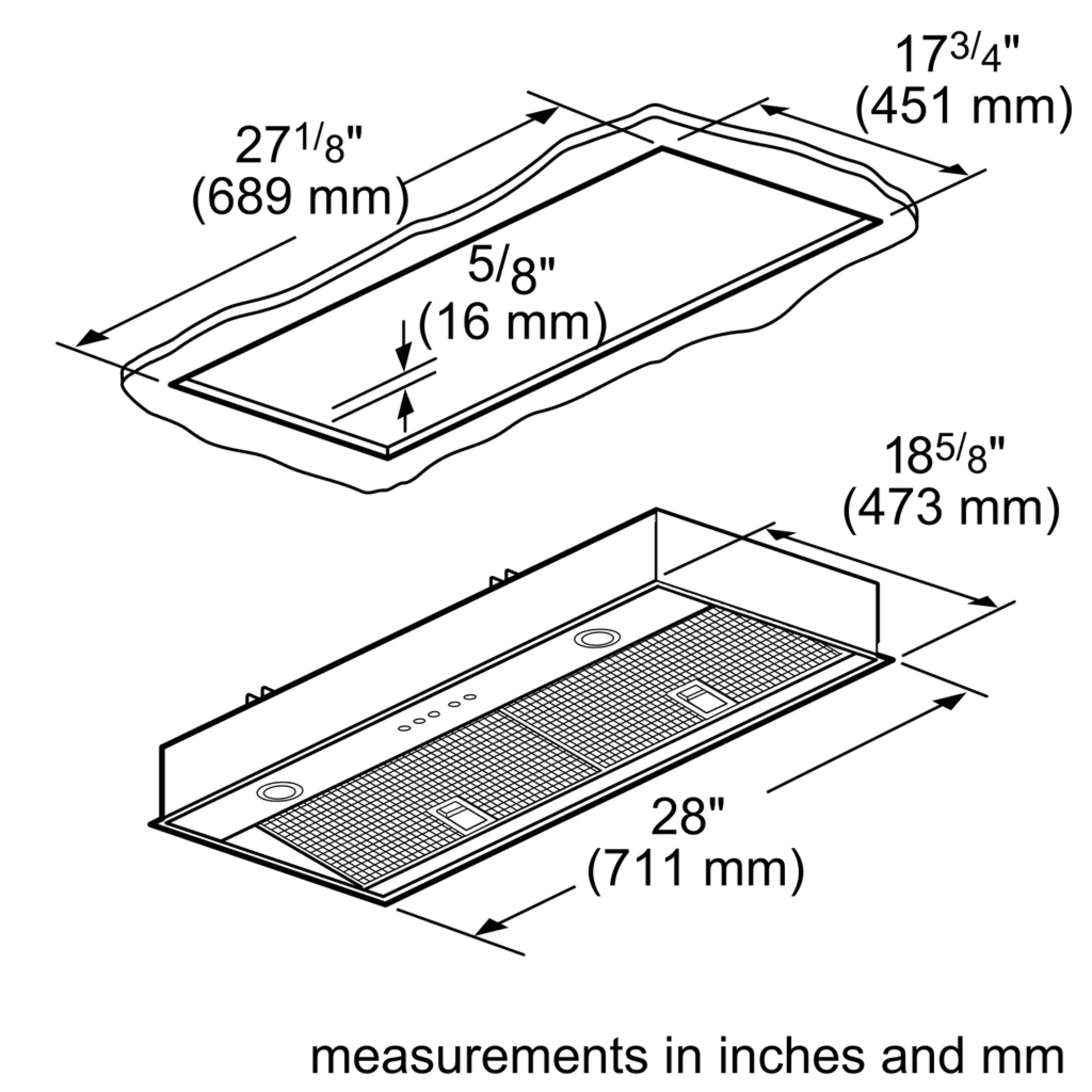

| Overall Appliance Dimensions (HxWxD) (in) | 5 3/4'' x 28'' x 18 5/8'' |

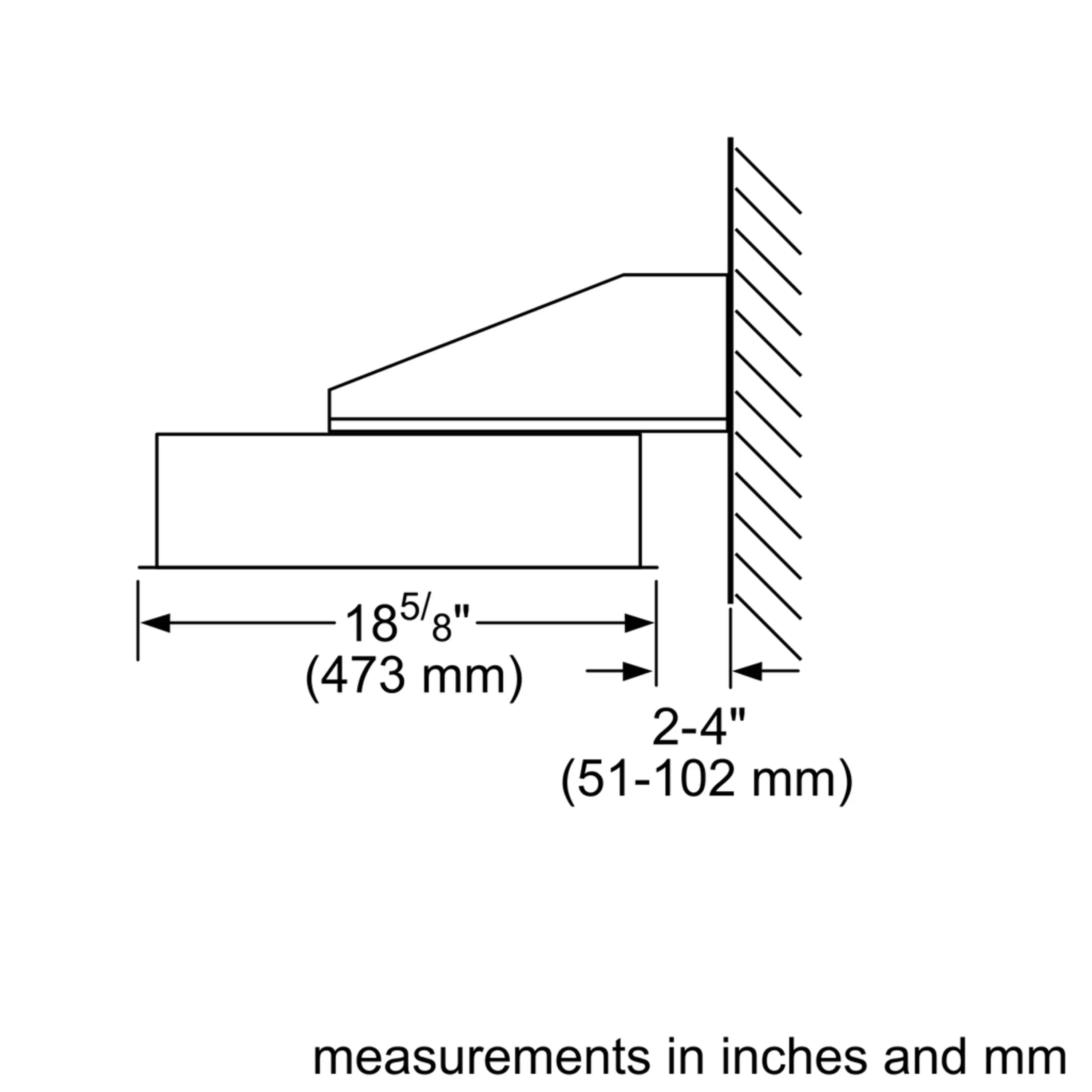

| Required Distance Above Cooktop/Ranges | 30''/30'' |
| Damper | no |
| Product Packaging Dimensions (HxWxD) | 9 7/16'' x 29 15/16'' x 20 1/2'' |
Comfort and Convenience
| Clean Filter Reminders | No |
| Delay Shut Off Modes | no |
| Boost Speed | no |
| ADA Compliant (When Installed to ADA requirements) | no |
| Remote Control (Accessory Sold Separately) | no |
Light
| Light Type | Halogen |
| Number of Lights | 2 |
| Heat Lamps | no |
| Color Temperature | Warm (<= 3.000 K) |
Connectivity
| Home Connect® WiFi-enabled | no |
| Cooktop Hood Sync | no |
Other
| Required Distance Above Cooktop/Ranges | 30''/30'' |
| Damper | no |
| Product Packaging Dimensions (HxWxD) | 9 7/16'' x 29 15/16'' x 20 1/2'' |
Dimensions & Weight
| Width | 28 in. |
| Height | 5.75 in. |
| Length | 18.63 in. |
| Weight | - |
| Product Packaging Dimensions (HxWxD) | 9 7/16'' x 29 15/16'' x 20 1/2'' |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 33 in. |
| Shipping Height | 10.75 in. |
| Shipping Length | 23.63 in. |
| Shipping Weight | - |
| Total of Shipping Weight | - |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 1.74 ft³ |
| Dimensional Weight | 21.57 lbs. |
| Total of Cubes | 1.74 ft³ |
| Total of Dimensional Weight | 21.57 lbs. |
