Home/Cooking/Ranges/Slide In Ranges/JSP46DPWW

30" Slide-In CleanDesign Electric Range - JSP46DPWW

GEGE brand logo
This product has been discontinued by the manufacture and is no longer available.

30" Slide-In CleanDesign Electric Range

Model: JSP46DPWW

30" Slide-In CleanDesign Electric Range JSP46DPWW30" Slide-In CleanDesign Electric Range JSP46DPWW30" Slide-In CleanDesign Electric Range JSP46DPWW
30" Slide-In CleanDesign Electric Range JSP46DPWW
30" Slide-In CleanDesign Electric Range JSP46DPWW
30" Slide-In CleanDesign Electric Range JSP46DPWW

Product Video

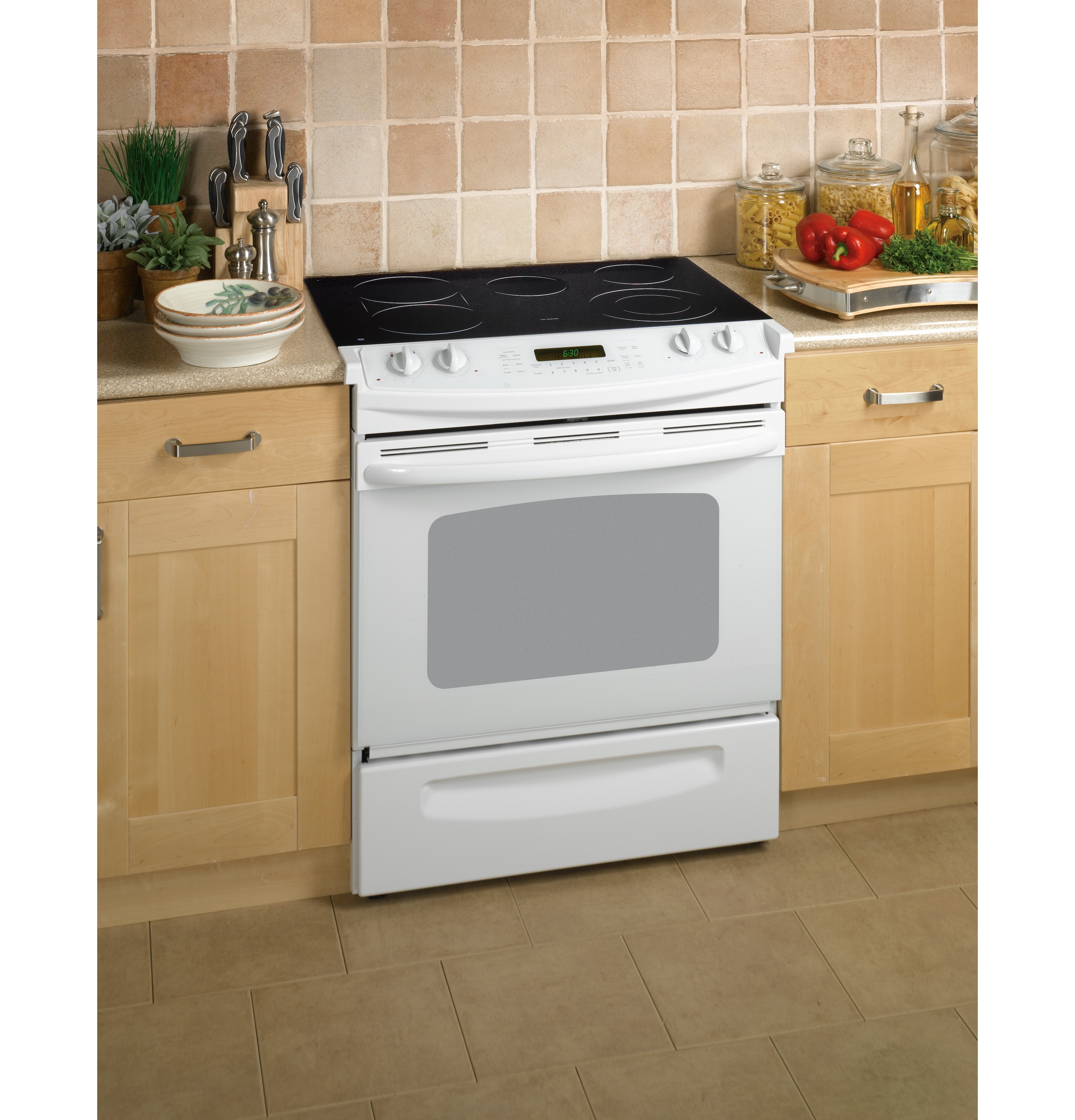

GE 30" Slide-In CleanDesign Electric Range White JSP46DPWW Picture

Color : White

30" Slide-In CleanDesign Electric Range JSP46DPWW
White

Type : Electric

ElectricGas

Key Features

  • Self-clean oven

  • True European Convection with Precise Air

  • Glass touch controls

  • 9"/6" Power Boil element

  • Bridge element

  • 4.1 cu. ft. oven capacity

  • Ribbon heating elements

  • Big hearth window

Description

Accurate heat circulation ensures evenly baked foods.Smooth design is easy to operate and easy to clean.36 1/4 H x 31 1/4 W x 27 7/8 D

Available from Mark's Appliance, serving customers throughout Southern IL & St. Louis, MO.

Features
Specifications
Certifications

Features

Self-clean oven

Cleans the oven cavity without the need for scrubbing

True European Convection with Precise Air

Accurate heat circulation ensures evenly baked foods

Glass touch controls

Smooth design is easy to operate and easy to clean

9"/6" Power Boil element

Produces rapid, powerful heat

Bridge element

Combines cooking elements into one cooking area

4.1 cu. ft. oven capacity

More room for cooking more dishes at once

Ribbon heating elements

Consistent heat and glass surface provide fast, even heating

Big hearth window

Makes monitoring of foods easy

Certifications

ADA Compliant certification

ADA Compliant

California Prop 65 certification

California Prop 65

Specifications

WARRANTY

Parts WarrantyLimited 1-year entire appliance
Labor WarrantyLimited 1-year entire appliance
Warranty NotesSee written warranty for full details

Warranty

Parts1 Year
Labor1 Year

Other

Cabinet Opening30 in
Oven Interior Dimensions (W x H x D) (in.)24 x 17-1/2 x 18-1/4

Dimensions & Weight

Width31.25 in.
Height36.25 in.
Length27.88 in.
Weight160 lbs.

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes1
Shipping Width36.25 in.
Shipping Height41.25 in.
Shipping Length32.88 in.
Shipping Weight200 lbs.
Total of Shipping Weight200 lbs.
SourceCalculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement18.27 ft³
Dimensional Weight227.17 lbs.
Total of Cubes18.27 ft³
Total of Dimensional Weight227.17 lbs.

FEATURES

Cooking SystemTrue European Convection with Precise Air
Cleaning TimeVariable with Delay Clean Option
Oven InteriorHidden Bake
Storage Drawer FeaturesRemovable Full-Width
Oven Rack Features3 Oven Racks
Element - Left Front7" 1800W
Oven Cleaning TypeSelf-Clean
Heating Element "ON" Indicator Light2
Element - Right Front9"/6" 3000W Power Boil
Control LocationUpfront
Bridge Element800W (4400W Total)
Dishwasher Safe KnobsYes
Control TypeGlass Touch
Temperature Management SystemTrue Temp System
Hot Surface Indicator Lights4
Leveling System4 Leveling Legs
Element - Left Rear7" 1800W
Cooking TechnologyConvection
ConfigurationRange with Storage Drawer
Oven Features6-Pass Broil Element
Cooktop Burner TypeSmoothtop
Infinite Heat ControlsYes
Element - Right Rear6" 1500W
Cooktop SurfaceWhite Patterned on Black Glass Ceramic
Oven Rack Positions (Single or Upper/Lower)7
Self-Clean Oven Door LockAutomatic
Element - Center120W Warming Zone
Oven Control FeaturesAuto Oven Shut-Off with Override
Oven Cooking ModesConvection Broil
Oven Control FeaturesWarm Mode
Oven Cooking ModesConvection Roast
Cooking SystemFlat Back Convection
Cooktop Burner Type5 Ribbon
Oven Control FeaturesAudible Preheat Signal
Oven Control FeaturesAuto Recipe Conversion
Oven Control FeaturesC° or F° Programmable
Oven Control FeaturesSabbath Mode
Oven Control FeaturesControl Lock Capability
Oven Control FeaturesDelay Bake Option
Oven Control FeaturesDelay Bake Option With Cook & Hold
Oven Control FeaturesDelay Clean Option
Oven Control FeaturesElectronic Clock & Kitchen Timer
Oven Control FeaturesLight Self Clean Mode
Oven Control FeaturesTemperature Probe
Oven Control FeaturesProof Mode
Oven Control FeaturesTemperature Display
Oven Cooking ModesConvection Bake Multi/Single Rack
Oven Features6-Pass Bake Element
Oven InteriorAuto Halogen Oven Interior Light

WEIGHTS & DIMENSIONS

Net Weight160 lb
Cabinet Width30 in
Approximate Shipping Weight181 lb
Cabinet Opening30 in
Depth with Door Open45.625 in
Oven Interior Dimensions (W x H x D) (in.)24 x 17-1/2 x 18-1/4
Overall Depth27 7/8 in
Overall Height36 1/4 in
Overall Width31 1/4 in

ACCESSORIES

Optional Lower Trim KitJXS56WW (White)
Optional BackguardJXS37WW (White)
Optional Body SidesJXS77WW (White)
Optional BackguardJXS32WW (White)

APPEARANCE

InstallationFlush Appearance
Oven Door FeaturesFrameless Lift-off Oven Door
Handle DesignD-shaped
Handle ColorColor-Matched
Control KnobsPlastic
Door ColorWhite
Color AppearanceWhite
Oven Door FeaturesBig Hearth Oven Window

POWER / RATINGS

Amp Rating at 208V40
Broiler Wattage3600W
Amp Rating at 240V40
Convection Wattage2500W
KW Rating at 240V12.4
Bake Wattage2700W
KW Rating at 208V9.3

CAPACITY

Total Capacity (cubic feet)4.10 cu ft
