30" Slide-In Gas Range - JGSS05DEMBB
30" Slide-In Gas Range
Model: JGSS05DEMBB
30" Slide-In Gas Range
Model: JGSS05DEMBB
Color : Black
Key Features
Standard clean oven
4.8 cu. ft. oven capacity
Standard burners
Small hearth-shaped window
Description
Available from Mark's Appliance, serving customers throughout Southern IL & St. Louis, MO.
Features
Standard clean oven
Smooth surface makes cleaning by hand easier
4.8 cu. ft. oven capacity
More room for cooking more dishes at once
Standard burners
Reliable heat for everyday cooktop cooking
Small hearth-shaped window
Makes it easy to keep an eye on foods
Certifications
ADA Compliant
California Prop 65
Specifications
WEIGHTS & DIMENSIONS
| Overall Width | 30 in |
| Overall Height | 36 in |
| Net Weight | 145 lb |
| Oven Interior Dimensions (W x H x D) (in.) | 24 x 17 x 19 |
| Cabinet Width | 30 in |
| Approximate Shipping Weight | 165 lb |
| Overall Depth | 26 1/8 in |
Other
| Oven Interior Dimensions (W x H x D) (in.) | 24 x 17 x 19 |
Dimensions & Weight
| Width | 30 in. |
| Height | 36 in. |
| Length | 26.13 in. |
| Weight | 145 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 35 in. |
| Shipping Height | 41 in. |
| Shipping Length | 31.13 in. |
| Shipping Weight | 185 lbs. |
| Total of Shipping Weight | 185 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 16.33 ft³ |
| Dimensional Weight | 202.99 lbs. |
| Total of Cubes | 16.33 ft³ |
| Total of Dimensional Weight | 202.99 lbs. |
FEATURES
| Slide - Out Broiler Drawer | Yes |
| Ignition System | Electronic |
| Broiler Pan and Grid | Large |
| Burner - Right Rear | 9,000 BTU |
| Fuel Type | Natural Gas |
| Oven Interior | Interior Oven Light |
| Cooktop Burner Type | Standard |
| Oven Rack Features | 2 Oven Racks |
| Burner - Left Rear | 9,000 BTU |
| Oven Cleaning Type | Standard Clean |
| All-Purpose Burners | (4) 9,000 BTU |
| Cooktop Burner Grate Material | Square |
| Valves (Degree of Turn) | 140 |
| Burner - Right Front | 9,000 BTU |
| Cooktop Surface | Porcelain-Enamel |
| Burner - Left Front | 9,000 BTU |
| Dishwasher Safe Knobs | Yes |
| Oven Rack Positions (Single or Upper/Lower) | 7 |
| Leveling System | 4 Leveling Legs |
| Cooktop Burner Grate Material | Porcelain on Steel |
| Cooktop Surface | Lift-Up |
APPEARANCE
| Cooktop Burner Grate Color | Black |
| Oven Door Features | Small Hearth-Shaped Window |
| Frameless Oven Door(s) | Black Glass |

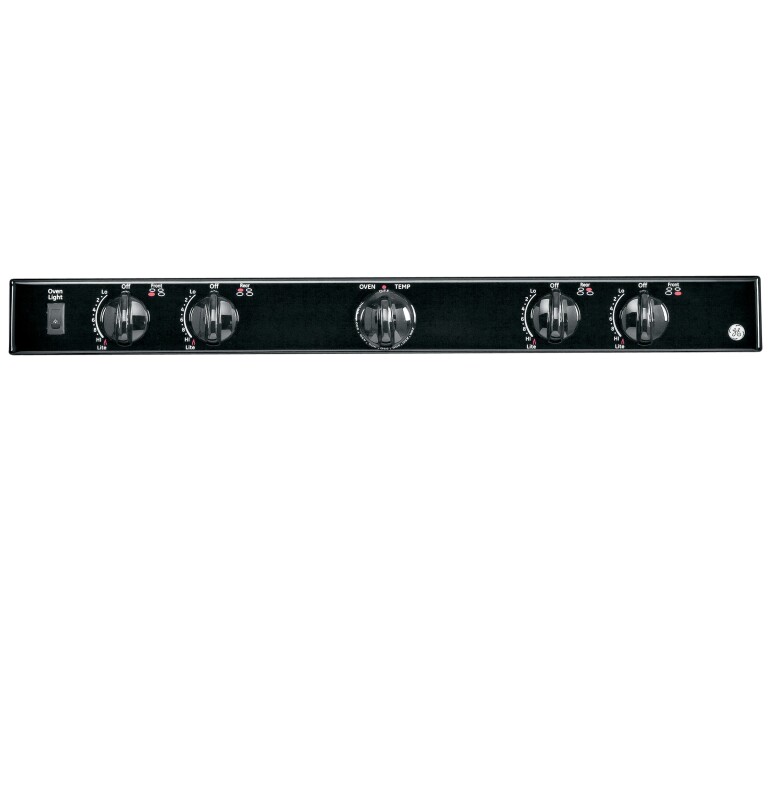

| Control Knobs | Designer-Style |
| Handle Design | D-shaped |
| Handle Color | Color-Matched |
| Color Appearance | Black on Black |
ACCESSORIES
| LP Conversion Kit | Included |
POWER / RATINGS
| Top Burner BTU Rating - Nat. Gas (000's BTU's) | (4) 9.1 |
| Volts/Hertz/Amps | 120V; 60Hz; 5A |
| Top Burner BTU Rating - LP (000's BTU's) | (4) 8.0 |
| Bake/Broiler BTU Rating - Nat. Gas (000's BTU's) | 16.0 |
| Bake/Broiler BTU Rating - LP (000's BTU's) | 16.0 |
WARRANTY
| Labor Warranty | Limited 1-year entire appliance |
| Parts Warranty | Limited 1-year entire appliance |
| Warranty Notes | See written warranty for full details |
CAPACITY
| Total Capacity (cubic feet) | 4.80 cu ft |
