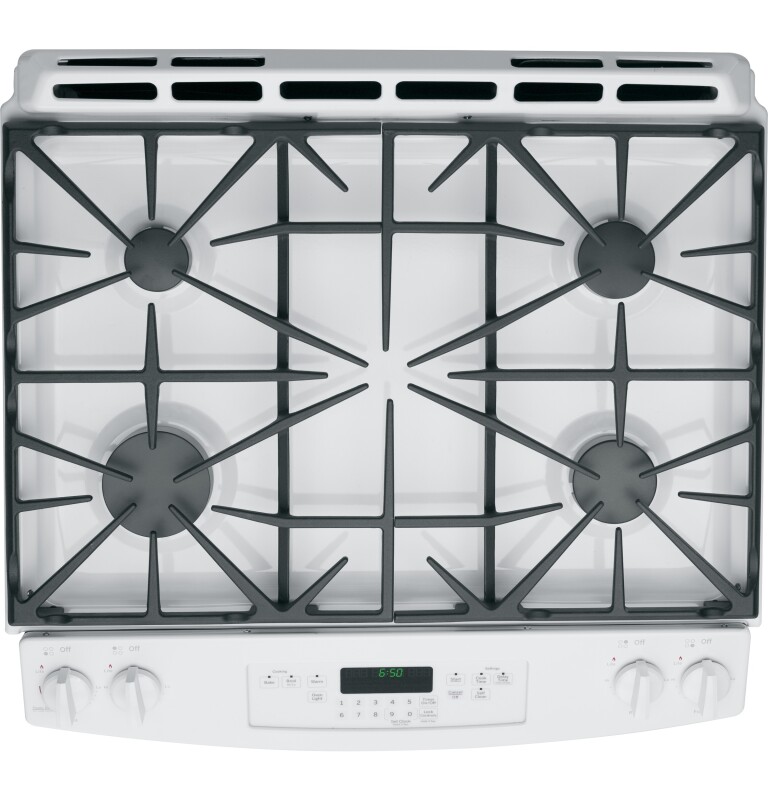

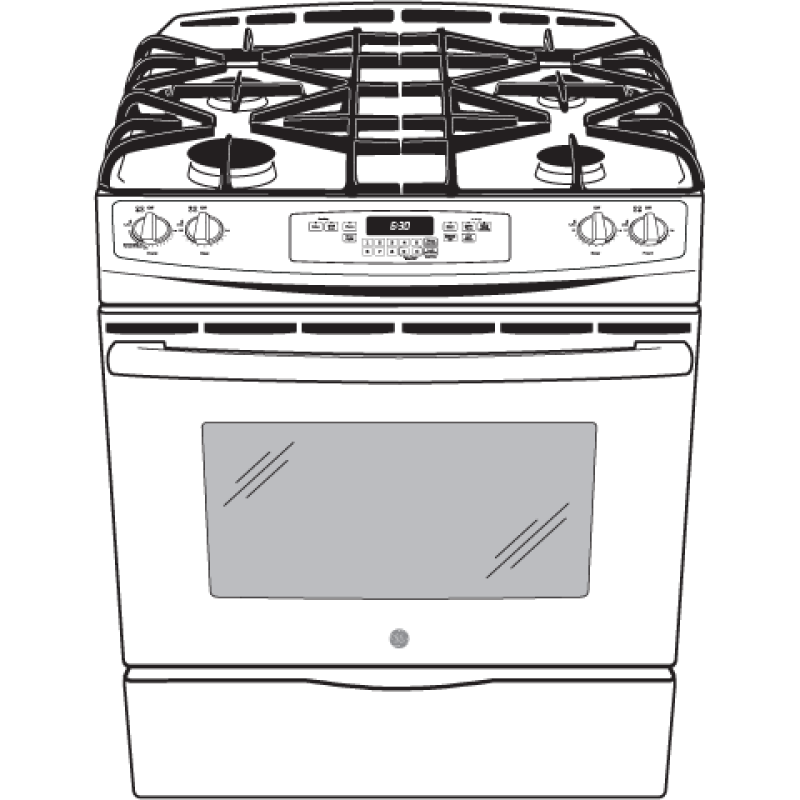

30" Slide-In Front Control Gas Range - JGS650DEFWW

GEGE brand logo
This product has been discontinued by the manufacture and is no longer available.

30" Slide-In Front Control Gas Range

Model: JGS650DEFWW

30" Slide-In Front Control Gas Range JGS650DEFWW30" Slide-In Front Control Gas Range JGS650DEFWW30" Slide-In Front Control Gas Range JGS650DEFWW30" Slide-In Front Control Gas Range JGS650DEFWW30" Slide-In Front Control Gas Range JGS650DEFWW30" Slide-In Front Control Gas Range JGS650DEFWW30" Slide-In Front Control Gas Range JGS650DEFWW30" Slide-In Front Control Gas Range JGS650DEFWW30" Slide-In Front Control Gas Range JGS650DEFWW30" Slide-In Front Control Gas Range JGS650DEFWW30" Slide-In Front Control Gas Range JGS650DEFWW
30" Slide-In Front Control Gas Range JGS650DEFWW
30" Slide-In Front Control Gas Range JGS650DEFWW
30" Slide-In Front Control Gas Range JGS650DEFWW
30" Slide-In Front Control Gas Range JGS650DEFWW
30" Slide-In Front Control Gas Range JGS650DEFWW
+6more

Product Video

GE 30" Slide-In Front Control Gas Range White JGS650DEFWW Picture
2 Videos

Color : White

30" Slide-In Front Control Gas Range JGS650DEFWW
White

Type : Gas

GasElectric

Key Features

  • 15,000 BTU Power Boil Burner

  • Precise Simmer burner

  • Heavy-cast, continuous grates

  • Deep-recessed cooktop

  • Self-clean oven

  • 5.6 cu. ft. oven capacity

  • Front controls

Description

Delicate foods don’t burn with low, even heat.Allow for easy movement of pans between burners.39 1/4 H x 31 1/4 W x 29 3/8 D

Available from Mark's Appliance, serving customers throughout Southern IL & St. Louis, MO.

Features
Specifications
Certifications

Features

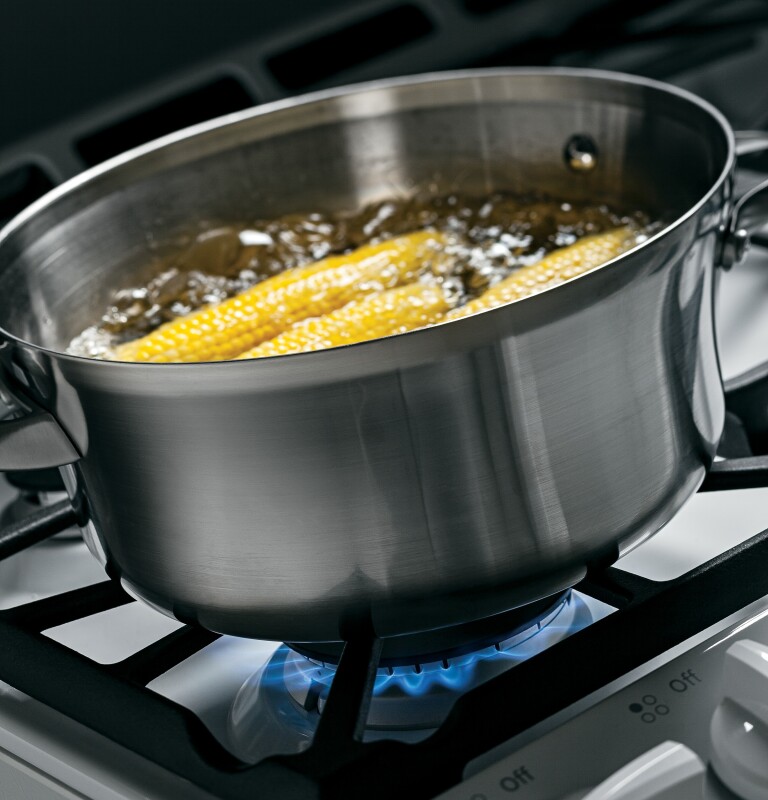

15,000 BTU Power Boil Burner

Delivers high heat for fast boiling

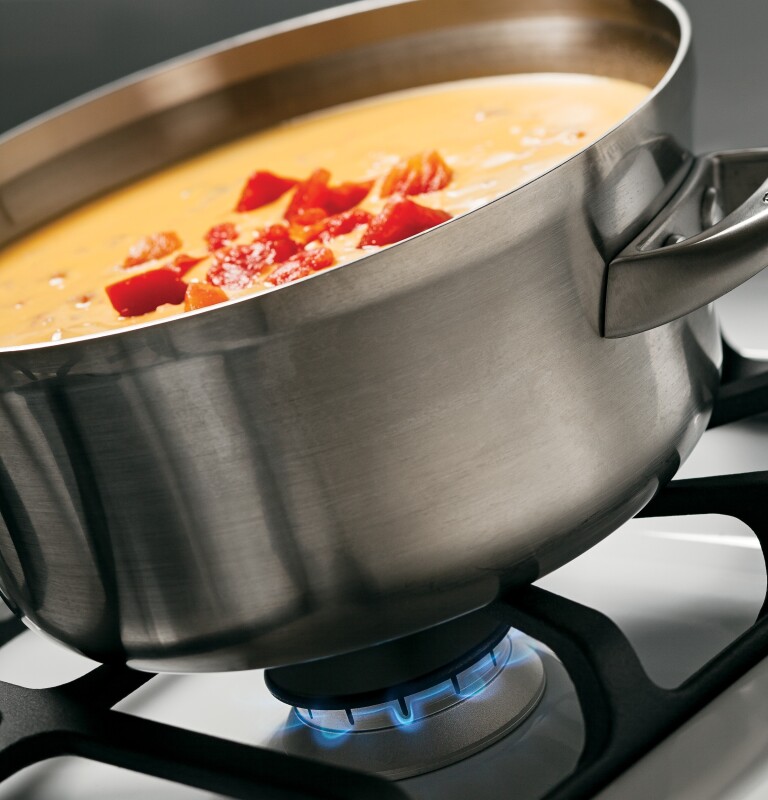

Precise Simmer burner

Delicate foods don’t burn with low, even heat

Heavy-cast, continuous grates

Allow for easy movement of pans between burners

Deep-recessed cooktop

Contains spills for quick and easy cleaning

Self-clean oven

Cleans the oven cavity without the need for scrubbing

5.6 cu. ft. oven capacity

Enough room to cook an entire meal at once

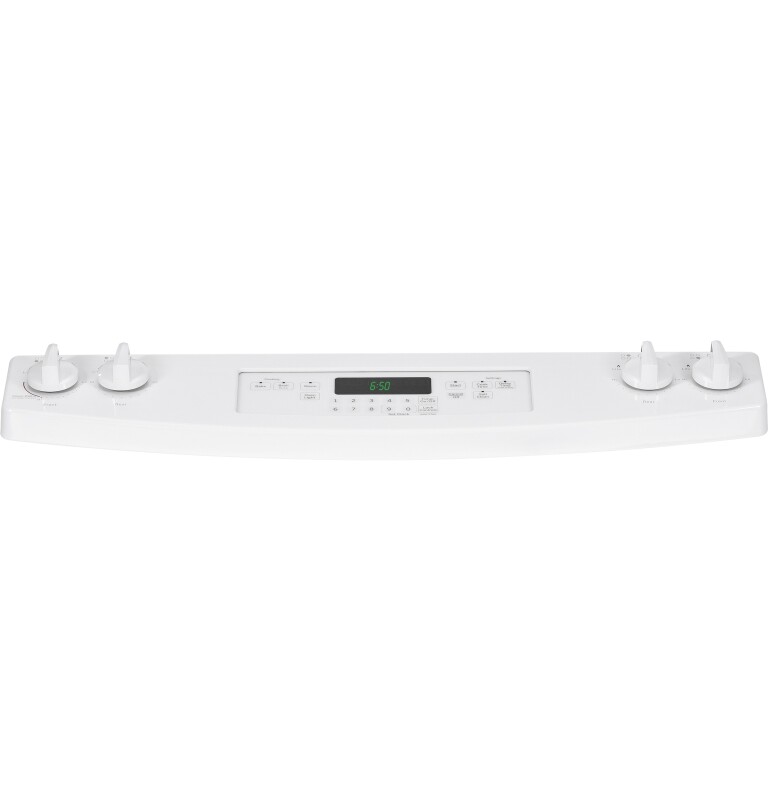

Front controls

Certifications

ADA Compliant certification

ADA Compliant

California Prop 65 certification

California Prop 65

Specifications

Warranty

Parts1 Year
Labor1 Year

Other

Oven Interior Dimensions (W x H x D) (in.)24 x 19-1/2 x 20-5/8
Cabinet Opening30 in

Dimensions & Weight

Width31.25 in.
Height39.25 in.
Length29.38 in.
Weight225 lbs.

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes1
Shipping Width36.25 in.
Shipping Height44.25 in.
Shipping Length34.38 in.
Shipping Weight265 lbs.
Total of Shipping Weight265 lbs.
SourceCalculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement20.85 ft³
Dimensional Weight259.21 lbs.
Total of Cubes20.85 ft³
Total of Dimensional Weight259.21 lbs.

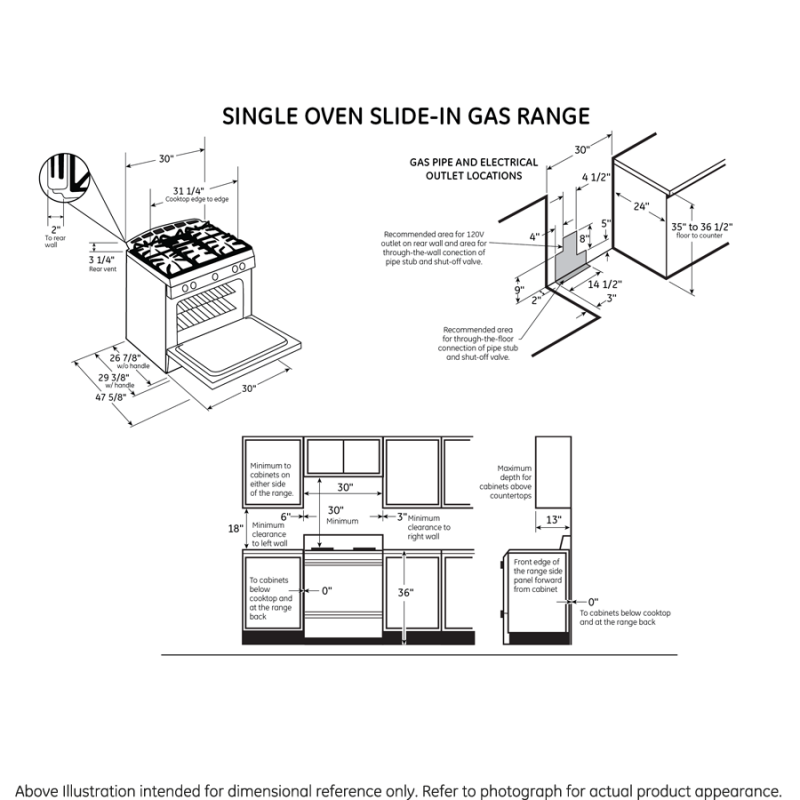

WEIGHTS & DIMENSIONS

Net Weight225 lb
Depth Without Handle26.875 in
Oven Interior Dimensions (W x H x D) (in.)24 x 19-1/2 x 20-5/8
Depth with Door Open47.625 in
Cabinet Opening30 in
Cabinet Width30 in
Approximate Shipping Weight245 lb
Overall Depth29 3/8 in
Overall Height39 1/4 in
Overall Width31 1/4 in

FEATURES

ConfigurationRange with Storage Drawer
Cooking SystemTraditional
Ignition SystemElectronic
Burner - Right Rear9,100 BTU
Interior Oven Light1 Incandescent
Fuel TypeNatural Gas
Cooktop Burner TypeSealed
Oven Rack Features2 Oven Racks
Burner - Left Rear5,000 BTU Precise Simmer
Oven Cleaning TypeSelf-Clean
Product TypeSlide-In Single Oven
Cooktop Burner Grate MaterialHeavy Cast Iron
Cooktop Burner Grate FeaturesEdge-to-Edge Grates
Burner - Right Front11,000 BTU
Burner - Left Front15,000 BTU Power Boil
Control LocationFront controls

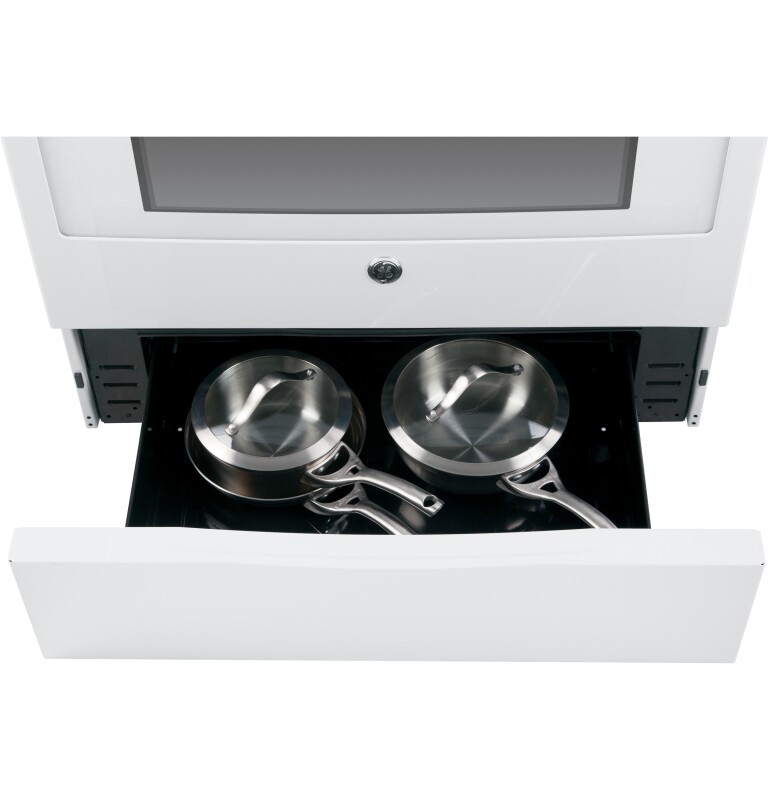

Drawer TypeStorage
Control TypeElectronic
Cooktop SurfaceOverhanging Cooktop
Oven Control FeaturesAuto Self Clean
Oven Control FeaturesSabbath Mode
Cooktop SurfaceWhite
Cooktop SurfaceDeep Recessed
Cooktop SurfacePorcelain-Enamel
Oven Control FeaturesAudible Preheat Signal
Oven Control FeaturesFront Controls

APPEARANCE

Cooktop Burner Grate ColorMatte Black
Oven Door FeaturesBig View Oven Window
HandleDesigner Style
InstallationFree-standing cut-out
Control KnobsWeighted
Color AppearanceWhite on White
Control KnobsColor-Matched
HandleColor-Matched
InstallationFlush Appearance

ACCESSORIES

LP Conversion KitIncluded
Optional Body SidesIncluded
Trim Kit - IslandJXS81WW

POWER / RATINGS

Top Burner BTU Rating - Nat. Gas (000's BTU's)(1) 11.0 (1) 9.1; (1) 15.0; (1) 5.0
Volts/Hertz/Amps120v; 60Hz; 15A
Top Burner BTU Rating - LP (000's BTU's)(1) 15.0; (1) 5.0; (1) 10.0; (1) 9.1
Bake/Broiler BTU Rating - Nat. Gas (000's BTU's)16.0 Bake / 13.5 Broiler
Bake/Broiler BTU Rating - LP (000's BTU's)16.0 Bake / 12.0 Broiler

WARRANTY

Labor WarrantyLimited 1-year entire appliance
Parts WarrantyLimited 1-year entire appliance
Warranty NotesSee written warranty for full details
Warranty NotesFor models produced on or after January 1, 2006

CAPACITY

Total Capacity (cubic feet)5.60 cu ft
