$13,799.00

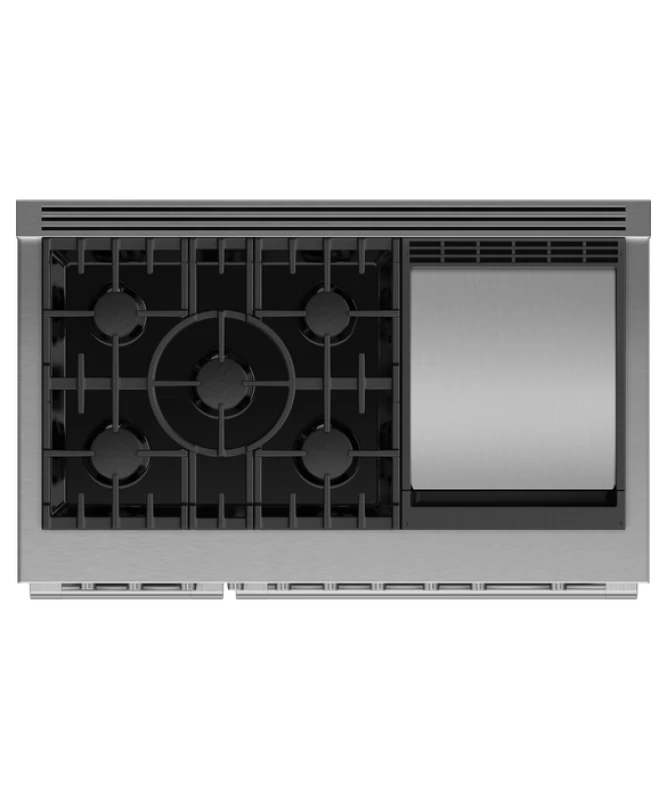

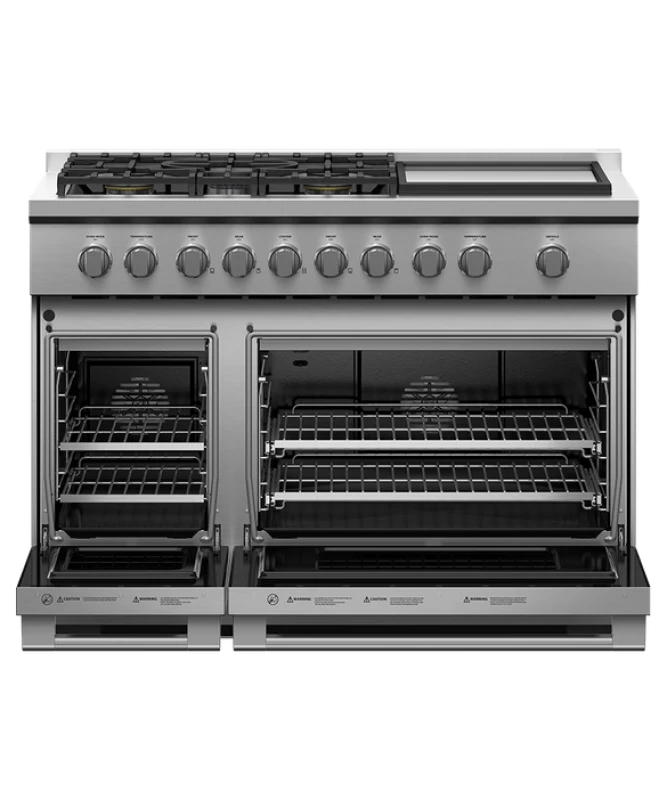

Gas Range, 48", 5 Burners with Griddle - RGV3485GDN
$13,799.00
Color : Stainless Steel
Key Features
Generous Capacity
Cooktop Power
Cooking Flexibility
Design Quality
Easy To Clean
Total Control
Available from Mark's Appliance, serving customers throughout Southern IL & St. Louis, MO.
Features
Generous Capacity
Cooktop Power
Cooking Flexibility
Design Quality
Easy To Clean
Total Control
Specifications
Other
| Yes |
Burner ratings
| Yes | |
| Maximum burner power | 23500 BTU |
| Power back left | 18500BTU |
| Power back right | 18500BTU |
| Power centre | 23500BTU |
| Power front left | 18500BTU |
| Power front right | 18500BTU |
| Power griddle | 24000BTU |
| Total cooktop power | 121500 BTU |
Capacity
| Yes | |
| Shelf positions (main oven) | 5 |
| Shelf positions (second oven) | 5 |
| Total capacity (main oven) | 5.3cu ft |
| Total capacity second oven | 2.4cu ft |
| Usable capacity (main oven) | 3.9cu ft |
Cleaning
| Yes | |
| Easy clean porcelain basepan | Yes |
Controls
| Yes | |
| Electric circuit | 3 wire |
| Metal illuminated dials | Yes |
Gas Requirements
| Yes | |
| Fitting and pipe | ½ NPT, min. ⅝" ∅ flex line |
| Supply Pressure (natural gas) | 6" to 9" W.C |
Oven features
| Yes | |
| Auto re-ignition system | Yes |
| Electronic oven control | Yes |
| Full extension telescopic sliding shelves | Yes |
| Infrared Broiler | Yes |
| Titanium coated, illuminated metal dials | Yes |
Oven functions
| Yes | |
| Bake | Yes |
| Broil | Yes |
| Convection bake | Yes |
| Slow cook | Yes |
Oven performance
| Yes | |
| Main oven - Bake power | 28,000 BTU |
| Main oven - Broil power | 18,500 BTU |
| Secondary oven - Bake power | 18,000 BTU |
Power requirements
| Yes | |
| Amperage | 15A |
| Supply frequency | 60Hz |
Rangetop features
| Yes | |
| Sealed range top | Yes |
| Vent trim included | Yes |
Recommended Back Guards Ventilation
| Yes | |
| Combustible situation | BGRV3-3048H |
| Non combustible situation | BGRV2-3048 / BGRV2-1248 |
| Recommended hood | HCB48-12_N (48"" Professional Range Hood, Dual Blower) |
Safety
| Yes | |
| ADA compliant | Yes |
| Full extension telescopic sliding shelves | Yes |
Secondary oven features
| Yes | |
| 3/4 Extension racks | 2 |
| Electronic oven control | Yes |
| Internal light | Yes |
Secondary oven functions
| Yes | |
| Bake | Yes |
| Convection bake | Yes |
| Number of secondary oven functions | 4 |
| Proof | Yes |
| Slow cook | Yes |
Dimensions & Weight
| Width | 47 in. |
| Height | 35 in. |
| Length | 29 in. |
| Weight | - |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 52 in. |
| Shipping Height | 40 in. |
| Shipping Length | 34 in. |
| Shipping Weight | - |
| Total of Shipping Weight | - |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 27.61 ft³ |
| Dimensional Weight | 343.2 lbs. |
| Total of Cubes | 27.61 ft³ |
| Total of Dimensional Weight | 343.2 lbs. |
