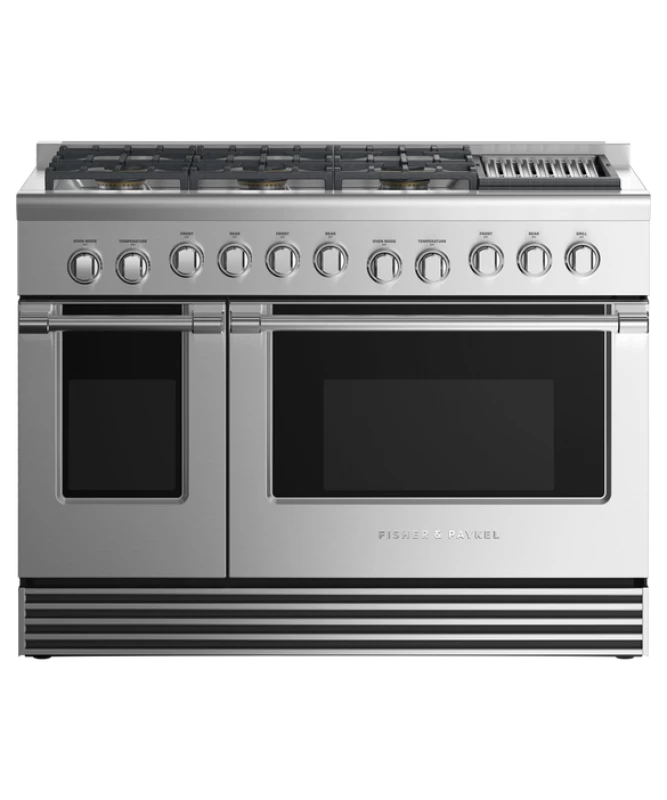

Gas Range, 48", 6 Burners with Grill - RGV2486GLNN
Gas Range, 48", 6 Burners with Grill
Model: RGV2486GLNN
Gas Range, 48", 6 Burners with Grill
Model: RGV2486GLNN
Color : Other
Replaced By
Key Features
Cooktop power
Total control
Easy to clean
Instant visibility
Cooking flexibility
Design quality
Documents
Available from Mark's Appliance, serving customers throughout Southern IL & St. Louis, MO.
Features
Cooktop power
Total control
Easy to clean
Instant visibility
Cooking flexibility
Design quality
Specifications
Gas requirements
| Fitting and pipe | ½ NPT, min. â…" ∅ flex line |
Main oven features
| Capacity usable (AHAM) | 3.9 cu ft |
| Capacity total (AHAM) | 5.3 cu ft |
| Full extension telescopic racks | 3 |
| Shelf positions | 5 |
Main oven functions
| Number of main oven functions | 3 |
Oven performance
| Main oven - Broil power | 19,000 BTU |
| Main oven - Bake power | 28,000 BTU |
| Secondary oven - Bake power | 18,000 BTU |
| Bake | Yes |
| Bake | 28000 BTU |
| Yes |
Power requirements
| Supply frequency | 60Hz |
| Supply voltage | 120V |
| Amperage | 15A |
| Rated current | 15A |
| Yes |

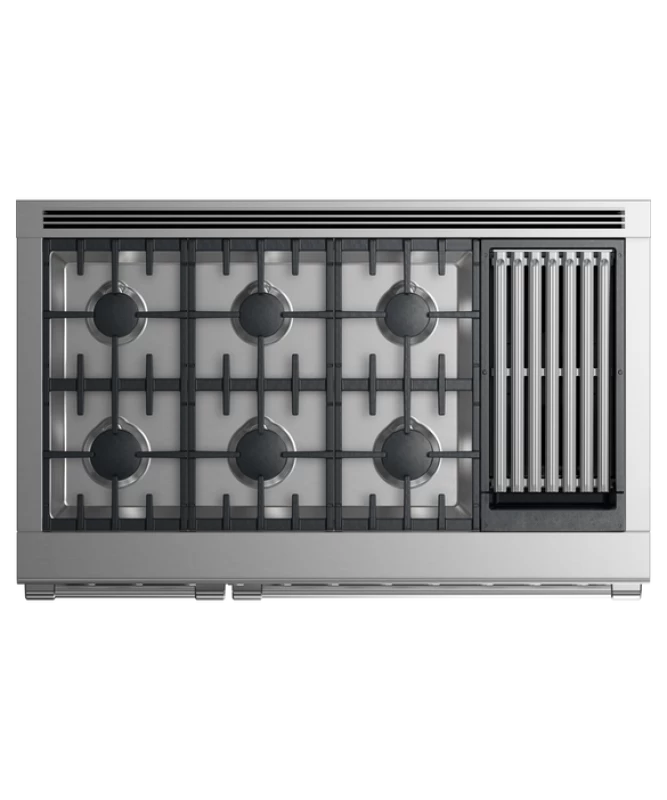

Rangetop features
| Sealed Dual Flow Burners™ | 6 |
| Simmer on all burners | 140°F |
| Vent trim included | Yes |
| Vent trim included | Yes |
| Sealed range top | Yes |
| Yes |
Rangetop Performance
| Max burner power | 23,500 BTU |
| Power back centre | 18,500 BTU |
| Power back left | 18,500 BTU |
| Power back right | 18,500 BTU |
| Power front centre | 18,500 BTU |
| Power front left | 23,500 BTU |
| Power front right | 18,500 BTU |
| Power grill | 12,000 BTU |
| Total cooktop power | 128,000 BTU |
Secondary oven features
| Capacity usable (AHAM) | 1.7 cu ft |
| Capacity total (AHAM) | 2.4 cu ft |
| Shelf positions | 5 |
| Internal light | Yes |
| Electronic oven control | Yes |
| Yes |
Secondary oven functions
| Number of secondary oven functions | 2 |
| Bake | Yes |
| Proof | Yes |
| Yes |
Warranty
| Parts and labor | Limited 2 years |
| Parts | 2 Year |
| Labor | 2 Year |
Capacity
| Capacity total (AHAM) | 5.3cu ft |
| Shelf positions | 5 |
| Capacity usable (AHAM) | 3.9cu ft |
| Yes |
Cleaning
| Dishwasher proof trivets | Yes |
Controls
| Metal illuminated dials | Yes |
| Electric circuit | 3 wire |
| Yes |
Oven features
| Full extension telescopic sliding shelves | Yes |
| Yes |
Gas Requirements
| Fitting and pipe | ½ NPT, min. â…" ∅ flex line |
| Supply Pressure (natural gas) | 6" to 9" W.C |
| Yes |
Installation Dimensions
| Height (excluding vent trim) | 35 3/4 - 36 3/4" |
Safety
| Full extension telescopic sliding shelves | Yes |
| ADA compliant | Yes |
| Yes |
Burner ratings
| Maximum burner power | 23500 BTU |
| Power back centre | 18500BTU |
| Power back left | 18500BTU |
| Power back right | 18500BTU |
| Power front centre | 18500BTU |
| Power front left | 23500BTU |
| Power front right | 18500BTU |
| Power griddle | 12000BTU |
| Total cooktop power | 128000 BTU |
| Yes |
Other
| Fitting and pipe | ½ NPT, min. â…" Ø flex line |
| Capacity total (AHAM) | 5.3 cu ft |
| Capacity usable (AHAM) | 3.9 cu ft |
| Full extension telescopic racks | 3 |
| Shelf positions | 5 |
| Main oven - Bake power | 28,000 BTU |
| Main oven - Broil power | 19,000 BTU |
| Secondary oven - Bake power | 18,000 BTU |
| Amperage | 15A |
| Supply frequency | 60Hz |
| Supply voltage | 120V |
| Sealed Dual Flow Burners™ | 6 |
| Simmer on all burners | 140°F |
| Vent trim included | Flat vent trim |
| Max burner power | 23,500 BTU |
| Power back centre | 18,500 BTU |
| Power grill | 12,000 BTU |
| Total cooktop power | 128,000 BTU |
| Capacity total (AHAM) | 2.4 cu ft |
| Capacity usable (AHAM) | 1.7 cu ft |
| Number of secondary oven functions | 2 |
| Parts and labor | Limited 2 years |
| Yes |
Dimensions & Weight
| Width | 47.88 in. |
| Height | 44 in. |
| Length | 29.13 in. |
| Weight | - |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 52.88 in. |
| Shipping Height | 49 in. |
| Shipping Length | 34.13 in. |
| Shipping Weight | - |
| Total of Shipping Weight | - |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 35.5 ft³ |
| Dimensional Weight | 441.38 lbs. |
| Total of Cubes | 35.5 ft³ |
| Total of Dimensional Weight | 441.38 lbs. |
