5.8 Cu. Ft. Freestanding Gas Range With Ez-2-lift™ Hinged Grates - WFG745H0FE
5.8 Cu. Ft. Freestanding Gas Range With Ez-2-lift™ Hinged Grates
Model: WFG745H0FE
5.8 Cu. Ft. Freestanding Gas Range With Ez-2-lift™ Hinged Grates
Model: WFG745H0FE
Color : Black Ice
Key Features
EZ-2-Lift™ Hinged Cast-Iron Grates
True Convection Cooking
SpeedHeat™ Burner
Frozen Bake™ Technology
Available from Mark's Appliance, serving customers throughout Southern IL & St. Louis, MO.
Features

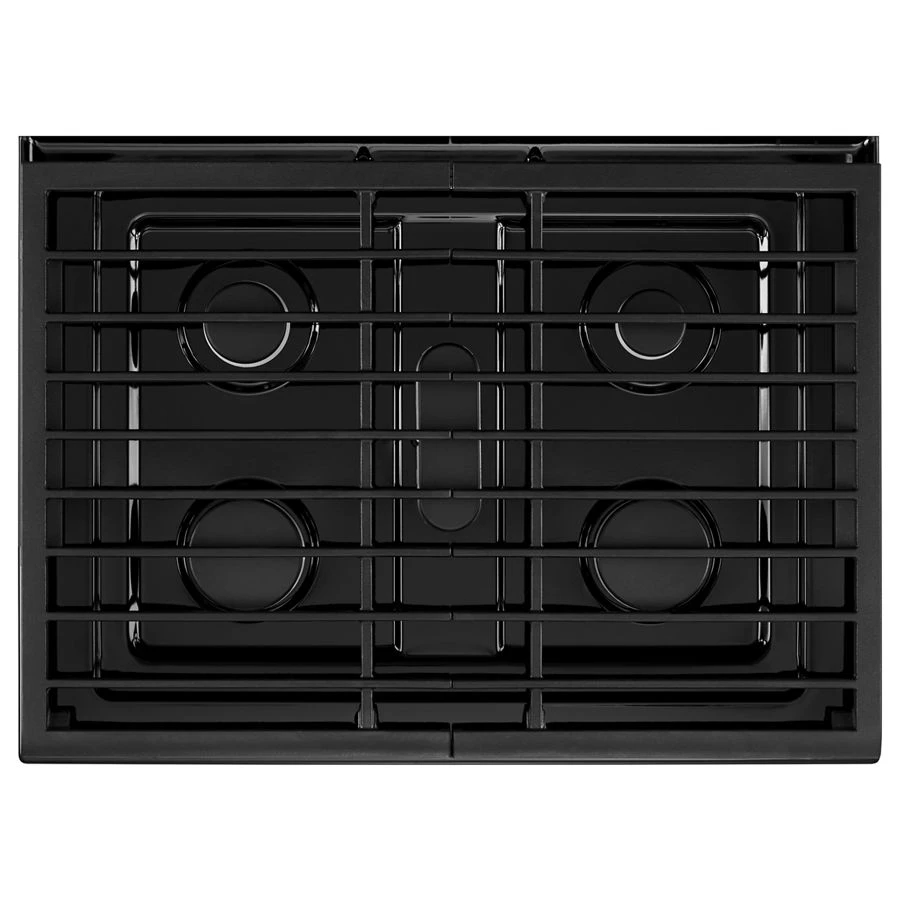

EZ-2-Lift™ Hinged Cast-Iron Grates
Get quick access to spills on the cooktop with our industry-exclusive EZ-2-Lift™ hinged cast-iron grates. The hinged design allows you to wipe up under them without removing them entirely. For a more thorough clean, the grates are also dishwasher-safe.
True Convection Cooking
True convection cooking helps you cook foods faster by using a third element plus a fan to distribute hot air evenly over, under and around food.
SpeedHeat™ Burner
Sear and boil quickly with the high temperatures provided by the 17,000-BTU SpeedHeat™ burner.
Frozen Bake™ Technology
Skip preheating and cook frozen favorites like pizza in fewer steps with preprogrammed settings that automatically adjust cooking times for you.
Specifications
Exterior Details
| Door Type | Metal & Glass |
| Handle Color | Stainless Steel |
| Handle Material | Metal |
| Handle Type | Reach Through Handle |
| Knob Color | Color Coordinated |
| Knob Type | Dishwasher-Safe Weighted |
| Oven Window Size | Large |
| Oven Control Type | Electronic Touch |
| Oven Control Location | Backguard |
Oven Cavity Details
| Automatic Convection Conversion Temperature Adjust | Yes |
| Broiler Location | Top of Oven |
| Convection Element Power | 925 w |
| Convection Element Type | True |
| Convection Functions | Bake, Broil, Roast |
| Door Removable | Yes |
| Hidden Bake Element | Yes |
| Interior Color | Grey |
| Number of Oven Lights | 1 |
| Number of Oven Racks | 3 |
| Number of Rack Guides | 7 |
| Oven Cleaning Type | AquaLift® Self Clean |
| Oven Light Switch Location | Oven Control |
| Oven Light Type | Incandescent |
| Oven Rack Type | 2 Standard and 1 Max Capacity |
| Bake Element Power | 18,000 BTU |
| Broiler Element Power | 11,000 BTU |
Cooktop Details
| Auto Re-ignition | No |
| Cooktop Control Location | Front |
| Cooktop Surface Color | Black on Stainless |
| Cooktop Surface Material | Porcelain Coated Steel |
| Heating Element On Indicator Light | No |
| Hot Surface Indicator Light | No |
| Ignition Type | Electronic |
Element/Burner Details
| Center Rear Element-Burner Type | Oval Burner |
| Cooktop Element Style | Sealed Burner |
| Left Front Element-Burner Type | High Output |
| Left Rear Element-Burner Type | Multi Purpose |
| Number of Cooking Element-Burners | 5 |
| Number of Grates | 2 |
| Right Front Element-Burner Type | High Output |
| Right Rear Element-Burner Type | Simmer |
| Center Rear Element-Burner Power | 8,000 BTU |
| Left Front Element-Burner Power | 17,000 BTU |
| Left Rear Element-Burner Power | 9,500 BTU |
| Right Front Element-Burner Power | 15,000 BTU |
| Right Rear Element-Burner Power | 5,000 BTU |
Grate Details
| Grate Details | Cast Iron Grates, Continuous with Hinge, Dishwasher Safe, Matte Finish |
| Number of Grates | 2 |
Details
| Fuel Type | Gas |
| LP Convertible | Yes - Kit Included |
| Oven Automatic Shut-Off | No |
| Oven Configuration | Single Oven |
| Oven Selections | Control Lock, Cook Time Indicator, Delay Start, Energy Save Mode, Frozen Bake, Keep Warm Setting, Rapid Preheat, Sabbath Mode |
| Power On Indicator Light | No |
| Power Outage Compatible | Yes - Cooktop Only |
| Range Configuration | Freestanding |
| Range Type | Freestanding |
Controls
| Display Color | Blue |
| Electronic Display Type | VFD |
Electrical
| Amps | 15 |
| Power Cord Included | Yes |
| Volts | 120 |
| Hz | 60 |
Refinements
| Features | Frozen Bake™ Technology, EZ-2-Lift™ Hinged Grates, Self-Cleaning, True Convection, Bladed Knob, Whirlpool Handle |
Features
| Range Features | Bladed Knob, EZ-2-Lift™ Hinged Grates, Frozen Bake™ Technology, Self-Cleaning, True Convection, Whirlpool Handle |
Certifications
| ADA Compliant | No |
Dimensions & Weight
| Width | 29.88 in. |
| Height | 46.88 in. |
| Length | 27.88 in. |
| Weight | 187 lbs. |
| Cutout Height | 36 in |
| Cutout Width | 30 in |
| Gross Weight | 187 lbs |
| Oven Interior Height | 20 in |
| Depth Closed Excluding Handles | 25.438 in |
| Depth With Door Open 90 Degree | 47.938 in |
| Maximum Height | 47.875 in |
| Minimum Height | 46.875 in |
| Oven Interior Depth | 20.75 in |
| Oven Interior Width | 24.375 in |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 34.88 in. |
| Shipping Height | 51.88 in. |
| Shipping Length | 32.88 in. |
| Shipping Weight | 227 lbs. |
| Total of Shipping Weight | 227 lbs. |
| Source | Calculation |
Dimensions
| Net Weight | 187 lbs |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 22.6 ft³ |
| Dimensional Weight | 280.91 lbs. |
| Total of Cubes | 22.6 ft³ |
| Total of Dimensional Weight | 280.91 lbs. |
