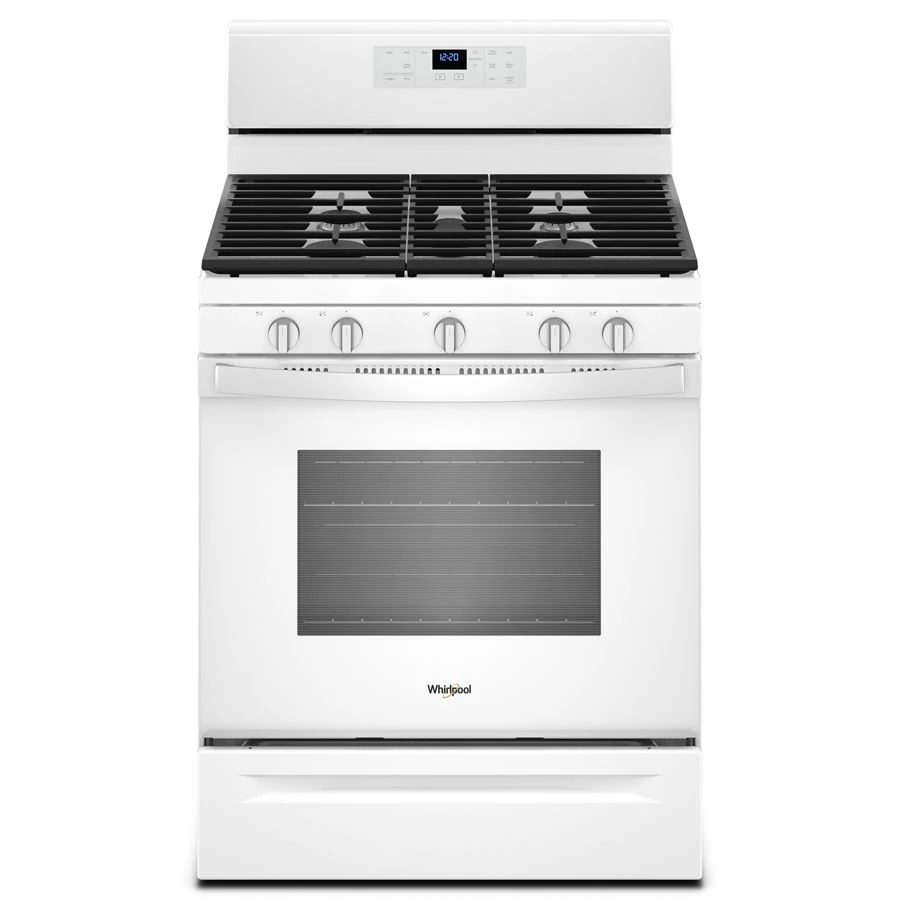

5.0 cu. ft. Freestanding Gas Range with Center Oval Burner - WFG525S0HW
This product has been discontinued by the manufacture and is no longer available.
5.0 cu. ft. Freestanding Gas Range with Center Oval Burner
Model: WFG525S0HW
This product has been discontinued by the manufacture and is no longer available.
5.0 cu. ft. Freestanding Gas Range with Center Oval Burner
Model: WFG525S0HW
Color : White
Available from Mark's Appliance, serving customers throughout Southern IL & St. Louis, MO.
Specifications
Specifications
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 22.97 ft³ |
| Dimensional Weight | 285.54 lbs. |
| Total of Cubes | 22.97 ft³ |
| Total of Dimensional Weight | 285.54 lbs. |
Exterior Details
| Door Type | Metal & Glass |
| Handle Color | White |
| Handle Material | Metal |
| Handle Type | Reach Through Handle |
| Oven Control Location | Backguard |
| Oven Control Type | Electronic Touch |
| Oven Window Size | Large |
Cooktop Details
| Cooktop Control Knob Color | White |
| Cooktop Control Knob Type | Plastic |
| Cooktop Control Location | Front |
| Cooktop Control Type | Knobs |
| Cooktop Surface Color | Black |
| Cooktop Surface Material | Porcelain Coated Steel |
| Griddle Included | N/A |
| Heating Element On Indicator Light | No |
| Hot Surface Indicator Light | No |
| Ignition Type | Direct Spark Ignition |
Oven Cavity Details
| Automatic Convection Conversion Temperature Adjust | No |
| Broiler Location | Top of Oven |
| Convection Element Type | None |
| Convection Functions | No |
| Door Removable | Yes |
| Hidden Bake Element | Yes |
| Interior Color | Dark Grey |
| Number of Oven Lights | 1 |
| Number of Oven Racks | 2 |
| Number of Rack Guides | 5 |
| Oven Cleaning Type | Adjustable Self Cleaning |
| Oven Cooking System | Thermal |
| Oven Light Switch Location | Oven Control |
| Oven Light Type | Incandescent |
| Oven Rack Type | Standard |
| Bake Element Power | 16,500 BTU |
| Broiler Element Power | 10,000 BTU |
Element/Burner Details

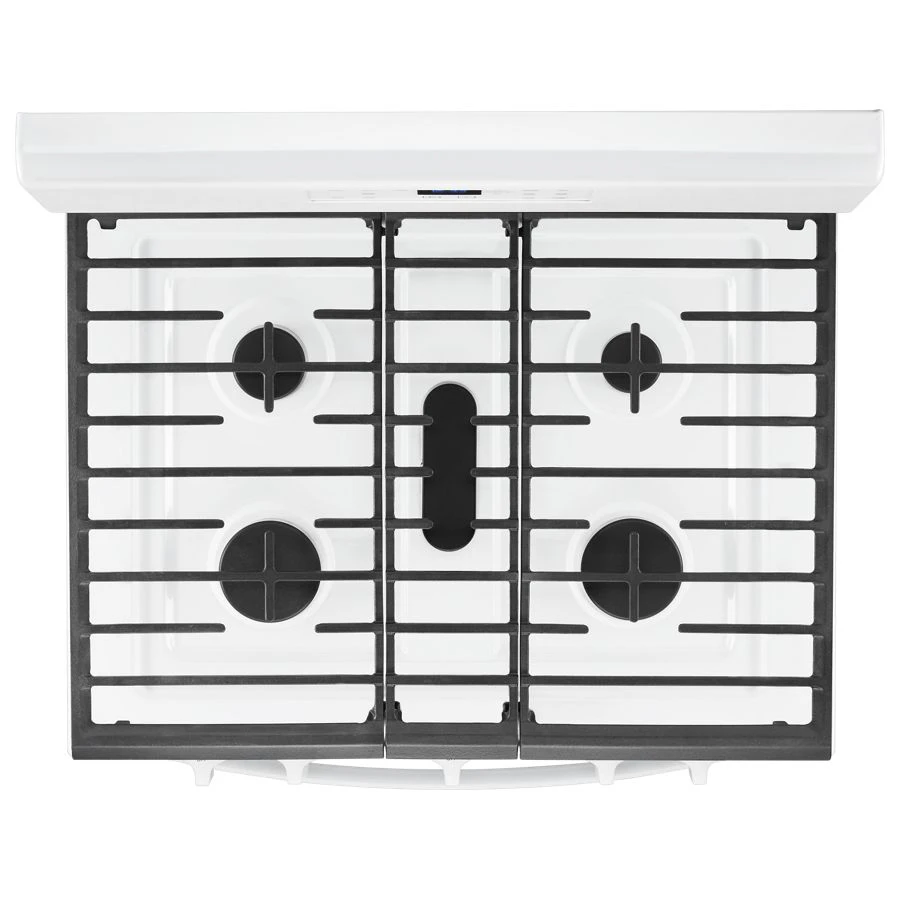

| Center Rear Element-Burner Type | Oval Burner |
| Cooktop Element Style | Sealed Burner |
| Left Front Element-Burner Type | Power™ Burner |
| Number of Cooking Element-Burners | 5 |
| Number of Grates | 3 |
| Right Front Element-Burner Type | Power™ Burner |
| Center Rear Element-Burner Power | 8,000 BTU |
| Left Front Element-Burner Power | 15,000 BTU |
| Left Rear Element-Burner Power | 9,500 BTU |
| Right Front Element-Burner Power | 15,000 BTU |
| Right Rear Element-Burner Power | 5,000 BTU |
Controls
| Display Color | Blue |
| Electronic Display Type | LED |
Details
| Fuel Type | Gas |
| LP Convertible | Yes |
| Natural Gas Convertible | Yes |
| Oven Automatic Shut-Off | Yes |
| Oven Configuration | Single Oven |
| Power On Indicator Light | Yes |
| Power Outage Compatible | Yes |
| Range Configuration | Freestanding |
| Range Type | Freestanding |
| Oven Selections | Audible Signal, Bake, Broil, Cancel/Off, Clock, Control Lock, Cook Time Indicator, Cook and Hold, Delay Start, Frozen Bake, Keep Warm Setting, Language Conversion, Sabbath Mode, Start Time, S |
Grate Details
| Grate Details | Cast Iron Grates, Continuous, Dishwasher Safe, Satin Finish |
Refinements
| Features | Frozen Bake™ Technology, ADA Compliant, Bladed Knob, Whirlpool Handle, FlexHeat™ Dual Element |
Electrical
| Amps | 15 |
| Power Cord Included | Yes |
| Volts | 120 |
Certifications
| ADA Compliant | No |
| Prop 65 | Standard |
| UL | Yes |
Dimensions & Weight
| Width | 29.88 in. |
| Height | 47.88 in. |
| Length | 27.75 in. |
| Weight | 189 lbs. |
| Cutout Depth | 24 in |
| Cutout Height | 36 in |
| Cutout Width | 30 in |
| Depth Closed Excluding Handles | 25-313/1000 in |
| Depth Closed Including Handles | 27-3/4 in |
| Depth With Door Open 90 Degree | 46-86/125 in |
| Gross Weight | 189 lbs |
| Maximum Height | 47-7/8 in |
| Minimum Height | 46-7/8 in |
| Net Weight | 174 lbs |
| Oven Interior Depth | 18-1/2 in |
| Oven Interior Height | 18-7/8 in |
| Oven Interior Width | 24-1/2 in |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 34.88 in. |
| Shipping Height | 52.88 in. |
| Shipping Length | 32.75 in. |
| Shipping Weight | 229 lbs. |
| Total of Shipping Weight | 229 lbs. |
| Source | Calculation |
Other
| Capacity | 5 cu. ft. |
| Common Size | 30 in |
