5.3 cu. ft. Electric Range with Frozen Bake™ Technology - WFE515S0JB

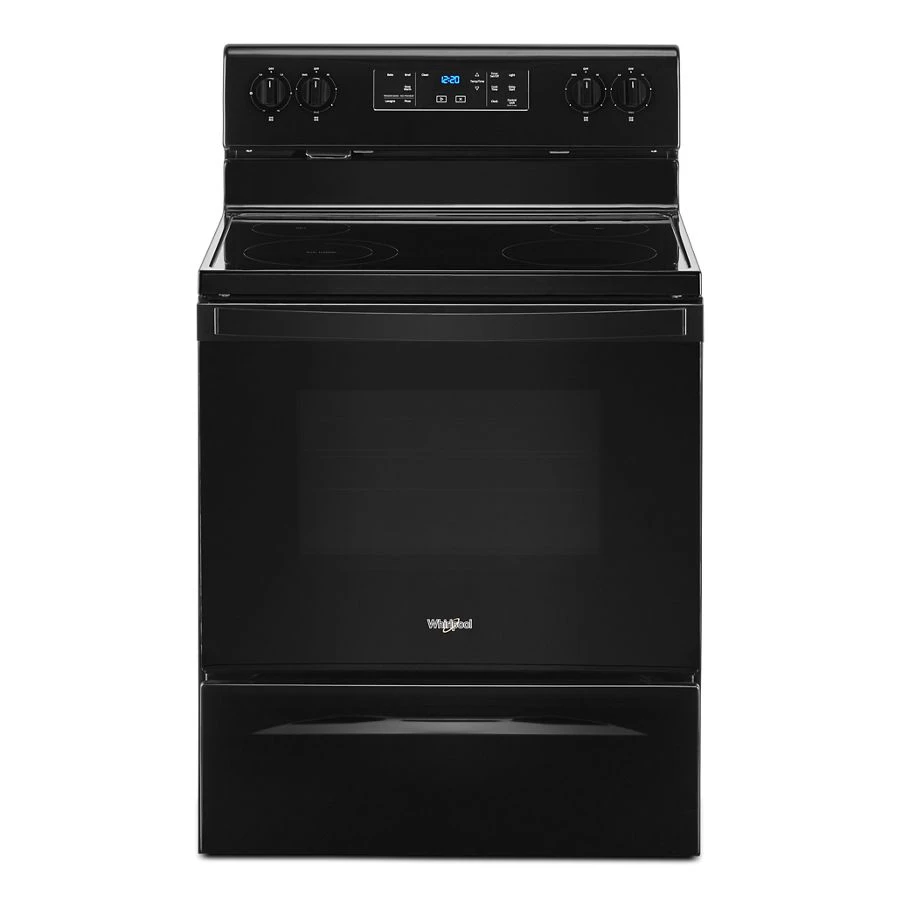

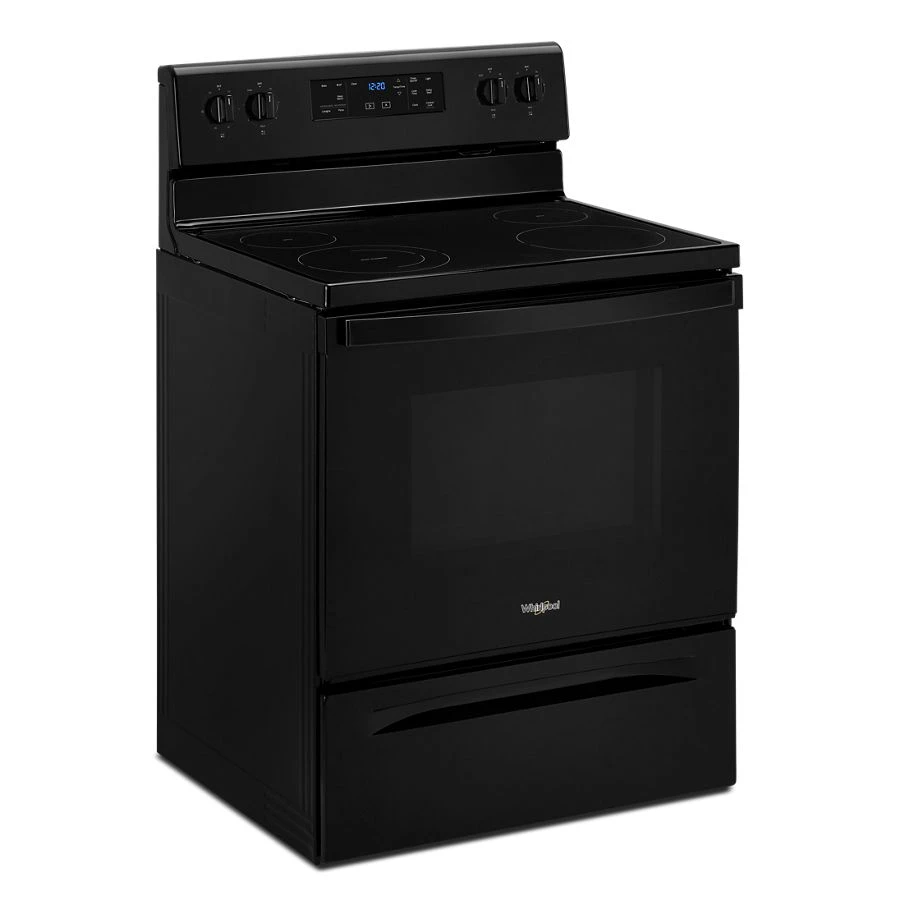

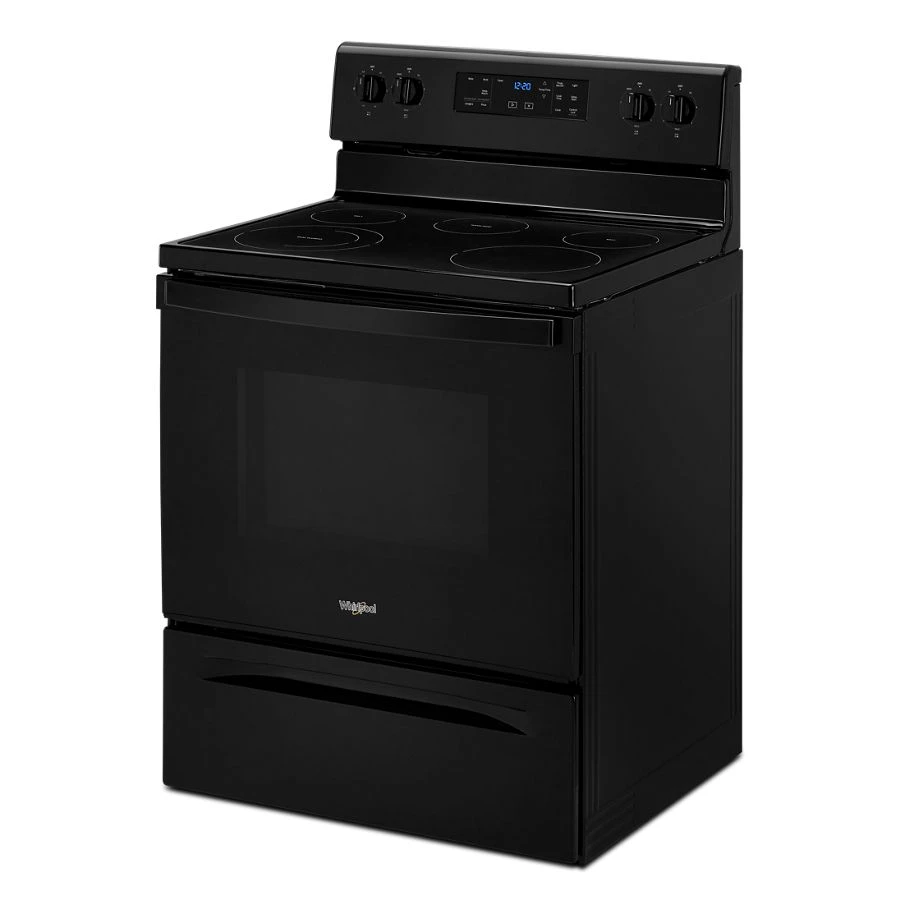

5.3 cu. ft. Electric Range with Frozen Bake™ Technology
Model: WFE515S0JB















360 View
5.3 cu. ft. Electric Range with Frozen Bake™ Technology
Model: WFE515S0JB
Key Features
Adjustable Self-Cleaning Technology
Large Oven Window
Closed Door Broiling
Control Lock Mode
5.3 cu. ft. Capacity
Ceramic Glass Cooktop
Upswept SpillGuard™ Cooktop
An American company for over 100 years
Available from Mark's Appliance, serving customers throughout Southern IL & St. Louis, MO.
Features
Adjustable Self-Cleaning Technology
Clean without harsh chemicals or special cleaners by running this high-temperature setting that automatically cleans the oven according to a preprogrammed cycle.

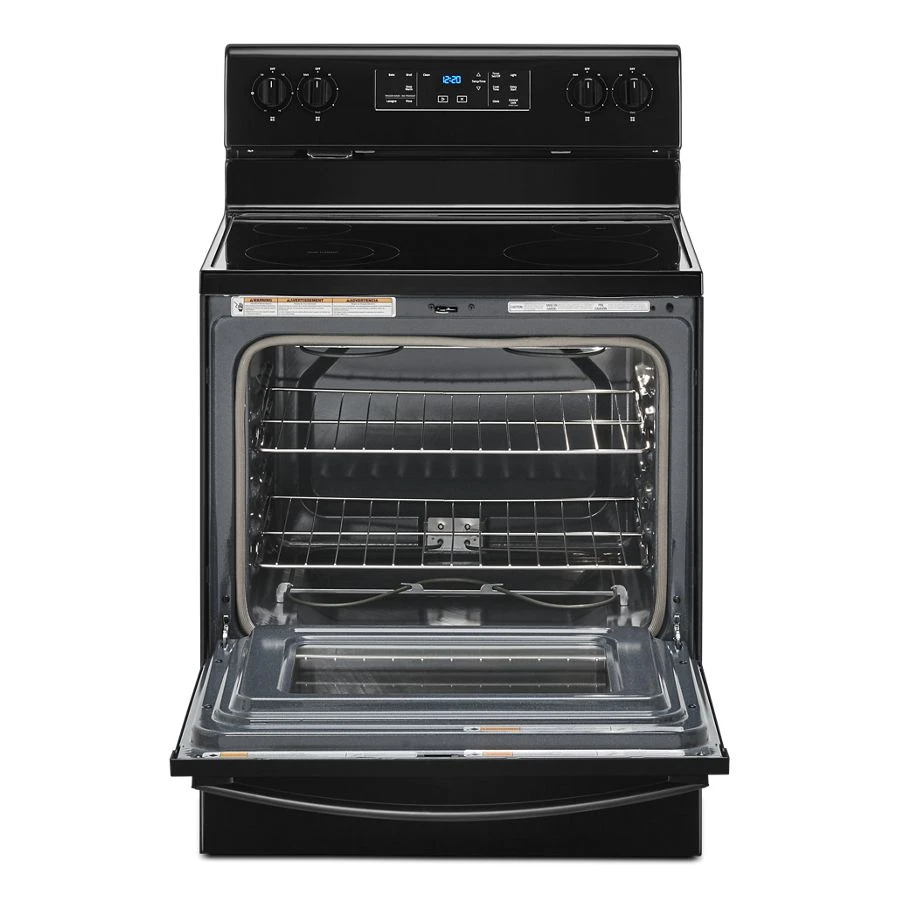

Large Oven Window
Keep an eye on your meal and track cooking progress through the Large Oven Window.
Closed Door Broiling
Maintain the optimal broiling temperature for food while still keeping the kitchen comfortable using this broiling temperature management system.
Control Lock Mode
Disable the control panel to avoid unintended use and easily clean controls.

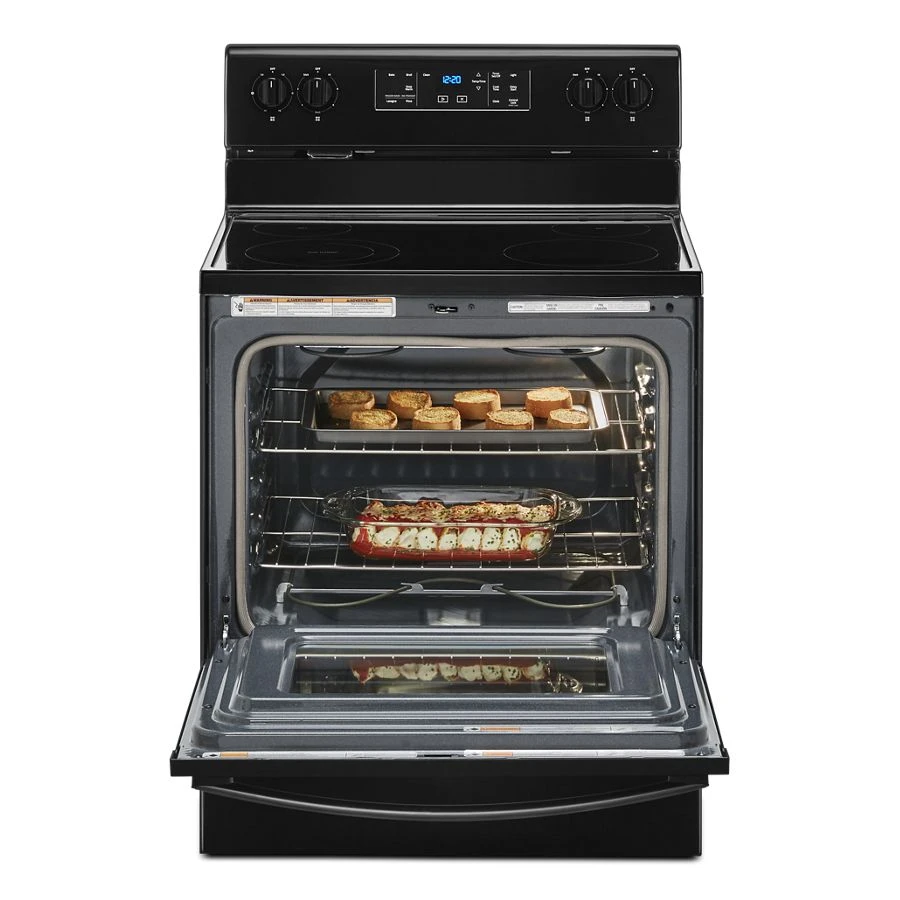

5.3 cu. ft. Capacity
Easily cook large meals with 5.3 cu. ft. capacity

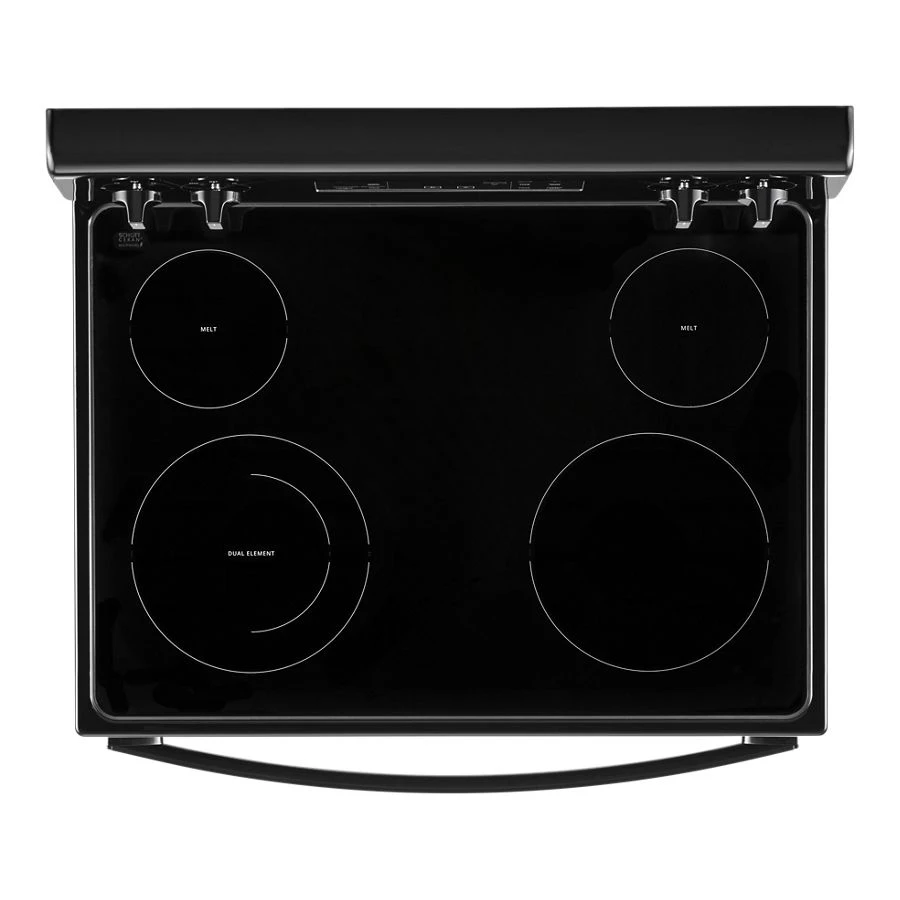

Ceramic Glass Cooktop
Wiping up spills is simple with the Ceramic Glass Cooktop. The raised edges help contain spills, so you can easily clean the cooktop.
Upswept SpillGuard™ Cooktop
Clean up faster with a cooktop that has raised edges to help contain spills.
An American company for over 100 years
Whirlpool Corporation started in 1911 in Benton Harbor, Michigan. Today we are a global home appliance business selling products around the world. We are proud of our American heritage and ingenuity that have driven innovation for over 100 years.
Specifications
Other
| Common Size | 30 in |
| Capacity | 5.3 cu. ft. |
| Capacity | 5.3 cu. ft. |
| Common Size | 30 in |
| Capacity | 5.3 cu. ft. |
| Common Size | 30 in |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 22.97 ft³ |
| Dimensional Weight | 285.54 lbs. |
| Total of Cubes | 22.97 ft³ |
| Total of Dimensional Weight | 285.54 lbs. |
Exterior Details
| Door Type | Glass Window |
| Handle Color | Black |
| Handle Material | Metal |
| Handle Type | Reach Through Handle |
| Oven Control Knob Color | Black |
| Oven Control Knob Type | Plastic |
| Oven Control Location | Backguard |
| Oven Control Type | Electronic Touch |
| Oven Window Size | Extra Large |

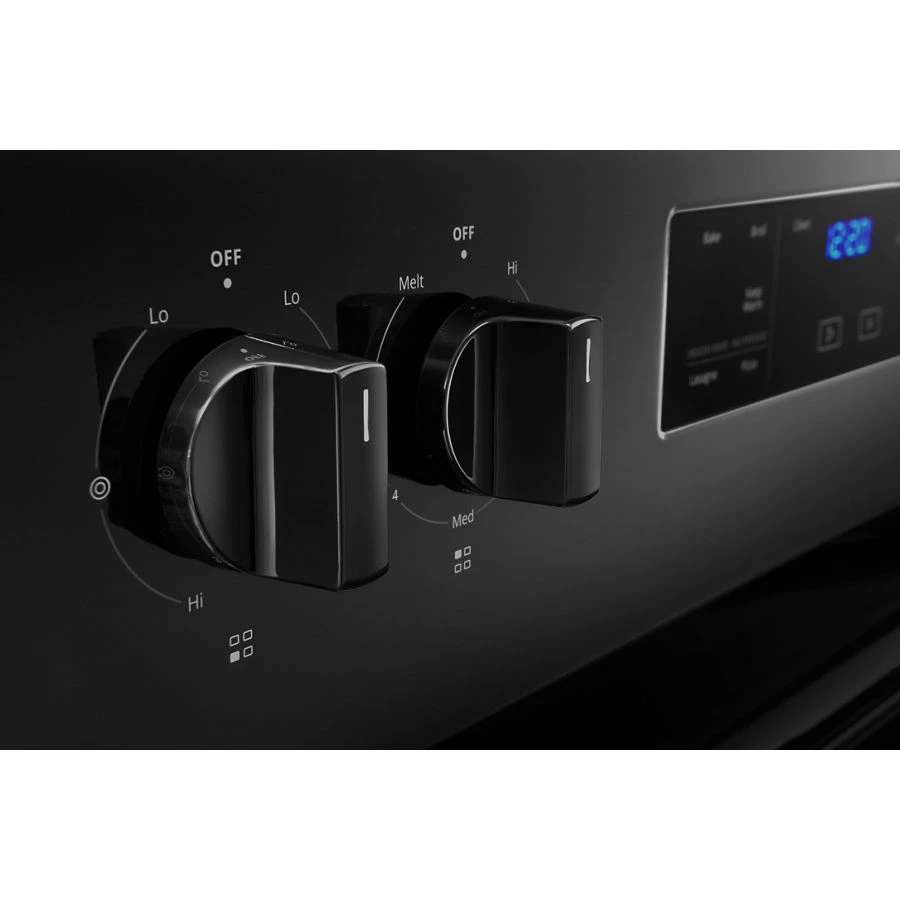

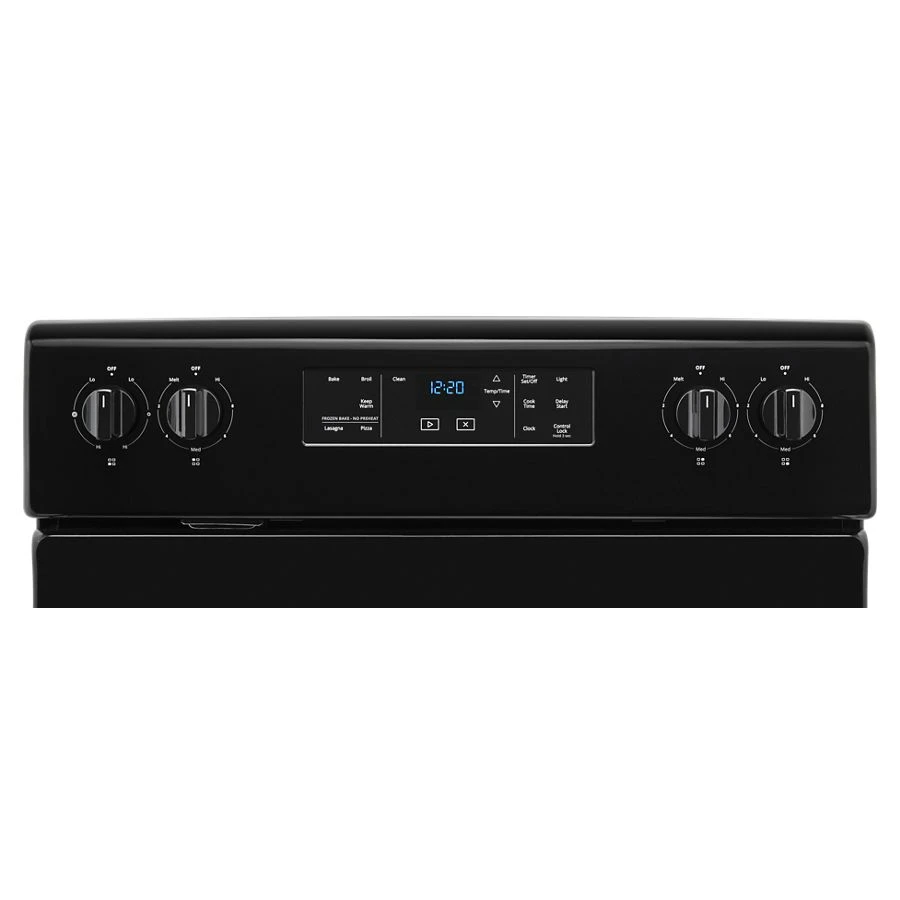

Cooktop Details
| Cooktop Control Knob Color | Black |
| Cooktop Control Knob Type | Plastic |
| Cooktop Control Location | Backguard |
| Cooktop Control Type | Knobs |
| Cooktop Surface Color | Black |
| Cooktop Surface Material | Glass |
| Griddle Included | N/A |
| Heating Element On Indicator Light | Yes |
| Hot Surface Indicator Light | Yes |
Oven Cavity Details
| Automatic Convection Conversion Temperature Adjust | No |
| Broiler Location | Top Center |
| Door Removable | Yes |
| Hidden Bake Element | No |
| Interior Color | Black |
| Number of Oven Lights | 1 |
| Number of Oven Racks | 2 |
| Number of Rack Guides | 5 |
| Oven Cleaning Type | Self-Cleaning |
| Oven Cooking System | Thermal |
| Oven Light Switch Location | Oven Control |
| Oven Light Type | Incandescent |
| Oven Rack Type | Standard (Both) |
| Bake Element Power | 2,400 W |
| Broiler Element Power | 3,400 W |
Details
| Fuel Type | Electric |
| Oven Automatic Shut-Off | No |
| Oven Configuration | Single Oven |
| Oven Selections | Audible Signal, Bake, Broil, Cancel/Off, Clock, Control Lock, Cook Time Indicator, Delay Start, Frozen Bake, Keep Warm Setting, Sabbath Mode, Start Time, Stop Time, Timer, Warm Hold |
| Power On Indicator Light | No |
| Power Outage Compatible | No |
| Range Configuration | Freestanding |
| Range Type | Freestanding |
Element/Burner Details
| Cooktop Element Style | Radiant |
| Left Front Element-Burner Size | 9in./6in. |
| Left Front Element-Burner Type | Dual |
| Left Rear Element-Burner Size | 6in. |
| Left Rear Element-Burner Type | Standard |
| Number of Cooking Element-Burners | 4 |
| Right Front Element-Burner Size | 9in. |
| Right Front Element-Burner Type | Standard |
| Right Rear Element-Burner Size | 6in. |
| Right Rear Element-Burner Type | Standard |
| Left Front Element-Burner Power | 3,000W |
| Left Rear Element-Burner Power | 1,200W |
| Right Front Element-Burner Power | 2,500W |
| Right Rear Element-Burner Power | 1,200W |
Controls
| Display Color | Blue |
| Electronic Display Type | LED |
Electrical
| Amps | 40 |
| Power Cord Included | No |
| Volts | 120 |
| Watts | 7 |
Certifications
| ADA Compliant | No |
| CUL | No |
| Prop 65 | Standard |
| UL | Yes |

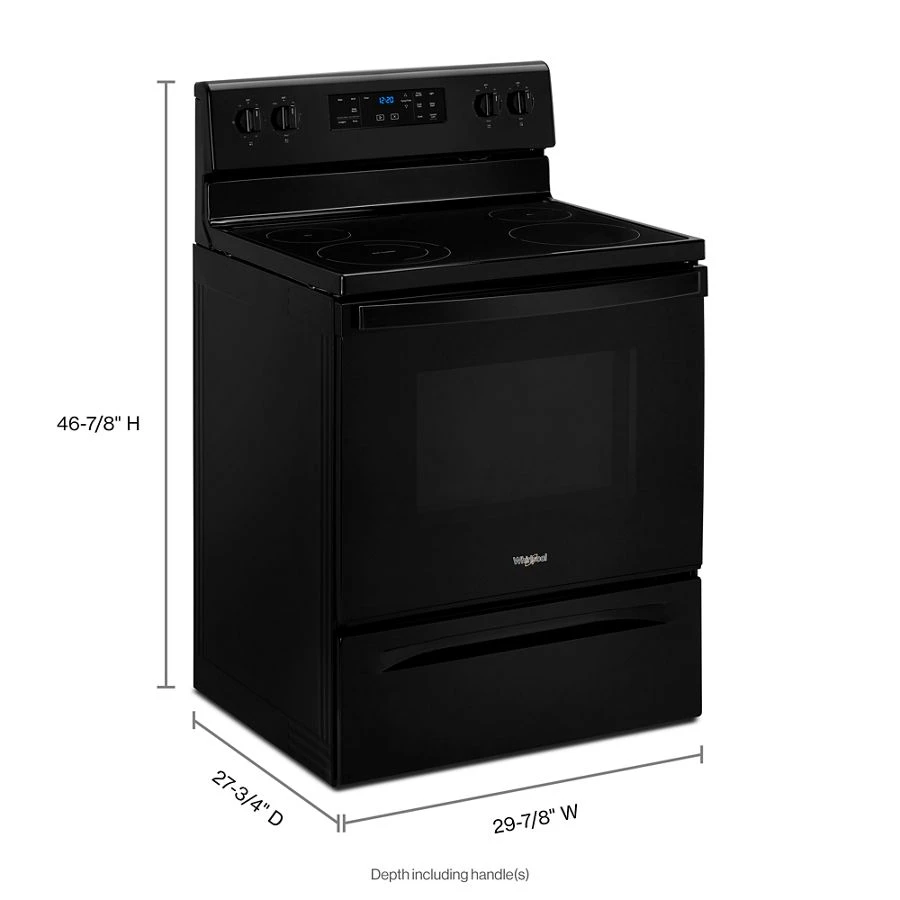

Dimensions & Weight
| Width | 29.88 in. |
| Height | 47.88 in. |
| Length | 27.75 in. |
| Weight | 160 lbs. |
| Cutout Depth | 24 in |
| Cutout Height | 36 in |
| Cutout Width | 30 in |
| Depth Closed Excluding Handles | 25-313/1000 in |
| Depth Closed Including Handles | 28 in |
| Depth With Door Open 90 Degree | 46-86/125 in |
| Gross Weight | 160 lbs |
| Maximum Height | 47-7/8 in |
| Minimum Height | 46-7/8 in |
| Net Weight | 144 lbs |
| Oven Interior Depth | 18-1/2 in |
| Oven Interior Height | 18-1/8 in |
| Oven Interior Width | 24-1/2 in |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 34.88 in. |
| Shipping Height | 52.88 in. |
| Shipping Length | 32.75 in. |
| Shipping Weight | 200 lbs. |
| Total of Shipping Weight | 200 lbs. |
| Source | Calculation |
