5.3 cu. ft. Electric Range with Frozen Bake™ Technology - WFE515S0JB

This product has been discontinued by the manufacture and is no longer available.

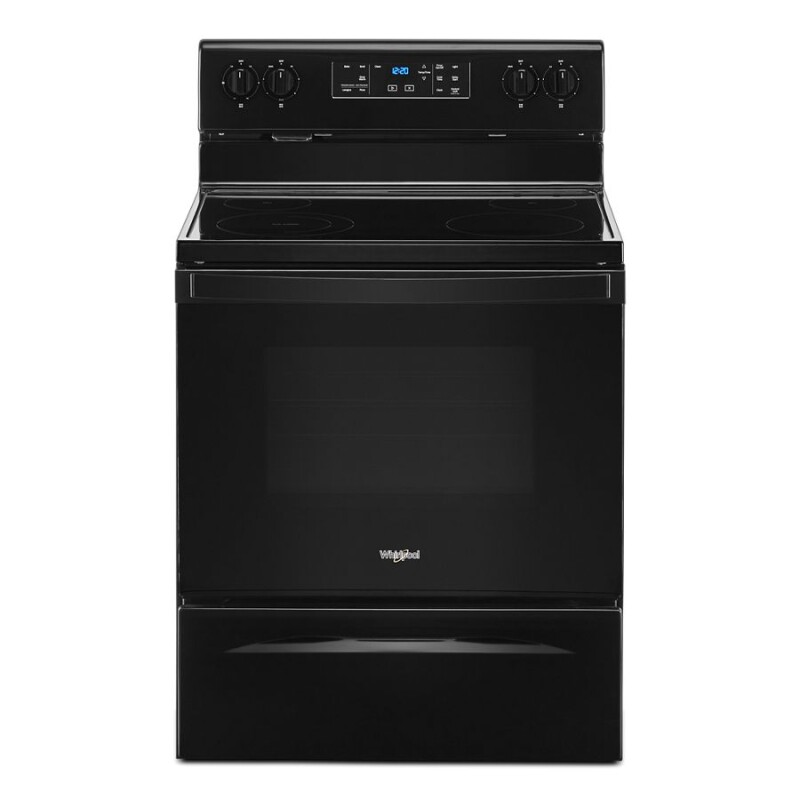

5.3 cu. ft. Electric Range with Frozen Bake™ Technology

Model: WFE515S0JB

5.3 cu. ft. Electric Range with Frozen Bake™ Technology WFE515S0JB5.3 cu. ft. Electric Range with Frozen Bake™ Technology WFE515S0JB5.3 cu. ft. Electric Range with Frozen Bake™ Technology WFE515S0JB5.3 cu. ft. Electric Range with Frozen Bake™ Technology WFE515S0JB5.3 cu. ft. Electric Range with Frozen Bake™ Technology WFE515S0JB5.3 cu. ft. Electric Range with Frozen Bake™ Technology WFE515S0JB5.3 cu. ft. Electric Range with Frozen Bake™ Technology WFE515S0JB5.3 cu. ft. Electric Range with Frozen Bake™ Technology WFE515S0JB5.3 cu. ft. Electric Range with Frozen Bake™ Technology WFE515S0JB5.3 cu. ft. Electric Range with Frozen Bake™ Technology WFE515S0JB
5.3 cu. ft. Electric Range with Frozen Bake™ Technology WFE515S0JB
5.3 cu. ft. Electric Range with Frozen Bake™ Technology WFE515S0JB
5.3 cu. ft. Electric Range with Frozen Bake™ Technology WFE515S0JB
5.3 cu. ft. Electric Range with Frozen Bake™ Technology WFE515S0JB
5.3 cu. ft. Electric Range with Frozen Bake™ Technology WFE515S0JB
+5more

360 View

360 icon

Color : Black

5.3 cu. ft. Electric Range with Frozen Bake™ Technology WFE515S0JB
Black

Type : Electric

Key Features

  • Adjustable Self-Cleaning Technology

  • Large Oven Window

  • Closed Door Broiling

  • Control Lock Mode

  • 5.3 cu. ft. Capacity

  • Ceramic Glass Cooktop

  • Upswept SpillGuard™ Cooktop

  • An American company for over 100 years

Available from Mark's Appliance, serving customers throughout Southern IL & St. Louis, MO.

Features
Specifications

Features

Adjustable Self-Cleaning Technology

Clean without harsh chemicals or special cleaners by running this high-temperature setting that automatically cleans the oven according to a preprogrammed cycle.

Large Oven Window

Keep an eye on your meal and track cooking progress through the Large Oven Window.

Closed Door Broiling

Maintain the optimal broiling temperature for food while still keeping the kitchen comfortable using this broiling temperature management system.

Control Lock Mode

Disable the control panel to avoid unintended use and easily clean controls.

5.3 cu. ft. Capacity

Easily cook large meals with 5.3 cu. ft. capacity

Ceramic Glass Cooktop

Wiping up spills is simple with the Ceramic Glass Cooktop. The raised edges help contain spills, so you can easily clean the cooktop.

Upswept SpillGuard™ Cooktop

Clean up faster with a cooktop that has raised edges to help contain spills.

An American company for over 100 years

Whirlpool Corporation started in 1911 in Benton Harbor, Michigan. Today we are a global home appliance business selling products around the world. We are proud of our American heritage and ingenuity that have driven innovation for over 100 years.

Specifications

Other

Common Size30 in
Capacity5.3 cu. ft.
Capacity5.3 cu. ft.
Common Size30 in
Capacity5.3 cu. ft.
Common Size30 in

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement22.97 ft³
Dimensional Weight285.54 lbs.
Total of Cubes22.97 ft³
Total of Dimensional Weight285.54 lbs.

Exterior Details

Door TypeGlass Window
Handle ColorBlack
Handle MaterialMetal
Handle TypeReach Through Handle
Oven Control Knob ColorBlack
Oven Control Knob TypePlastic
Oven Control LocationBackguard
Oven Control TypeElectronic Touch
Oven Window SizeExtra Large

Cooktop Details

Cooktop Control Knob ColorBlack
Cooktop Control Knob TypePlastic
Cooktop Control LocationBackguard
Cooktop Control TypeKnobs
Cooktop Surface ColorBlack
Cooktop Surface MaterialGlass
Griddle IncludedN/A
Heating Element On Indicator LightYes
Hot Surface Indicator LightYes

Oven Cavity Details

Automatic Convection Conversion Temperature AdjustNo
Broiler LocationTop Center
Door RemovableYes
Hidden Bake ElementNo
Interior ColorBlack
Number of Oven Lights1
Number of Oven Racks2
Number of Rack Guides5
Oven Cleaning TypeSelf-Cleaning
Oven Cooking SystemThermal
Oven Light Switch LocationOven Control
Oven Light TypeIncandescent
Oven Rack TypeStandard (Both)
Bake Element Power2,400 W
Broiler Element Power3,400 W

Details

Fuel TypeElectric
Oven Automatic Shut-OffNo
Oven ConfigurationSingle Oven
Oven SelectionsAudible Signal, Bake, Broil, Cancel/Off, Clock, Control Lock, Cook Time Indicator, Delay Start, Frozen Bake, Keep Warm Setting, Sabbath Mode, Start Time, Stop Time, Timer, Warm Hold
Power On Indicator LightNo
Power Outage CompatibleNo
Range ConfigurationFreestanding
Range TypeFreestanding

Element/Burner Details

Cooktop Element StyleRadiant
Left Front Element-Burner Size9in./6in.
Left Front Element-Burner TypeDual
Left Rear Element-Burner Size6in.
Left Rear Element-Burner TypeStandard
Number of Cooking Element-Burners4
Right Front Element-Burner Size9in.
Right Front Element-Burner TypeStandard
Right Rear Element-Burner Size6in.
Right Rear Element-Burner TypeStandard
Left Front Element-Burner Power3,000W
Left Rear Element-Burner Power1,200W
Right Front Element-Burner Power2,500W
Right Rear Element-Burner Power1,200W

Controls

Display ColorBlue
Electronic Display TypeLED

Electrical

Amps40
Power Cord IncludedNo
Volts120
Watts7

Certifications

ADA CompliantNo
CULNo
Prop 65Standard
ULYes

Dimensions & Weight

Width29.88 in.
Height47.88 in.
Length27.75 in.
Weight160 lbs.
Cutout Depth24 in
Cutout Height36 in
Cutout Width30 in
Depth Closed Excluding Handles25-313/1000 in
Depth Closed Including Handles28 in
Depth With Door Open 90 Degree46-86/125 in
Gross Weight160 lbs
Maximum Height47-7/8 in
Minimum Height46-7/8 in
Net Weight144 lbs
Oven Interior Depth18-1/2 in
Oven Interior Height18-1/8 in
Oven Interior Width24-1/2 in

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes1
Shipping Width34.88 in.
Shipping Height52.88 in.
Shipping Length32.75 in.
Shipping Weight200 lbs.
Total of Shipping Weight200 lbs.
SourceCalculation
