$1,750.00

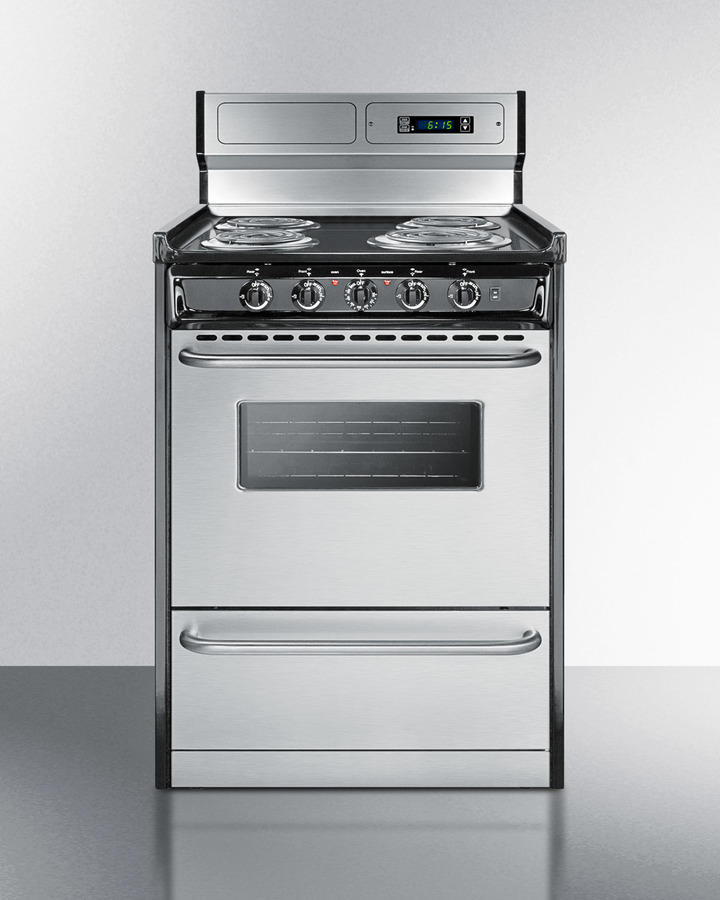

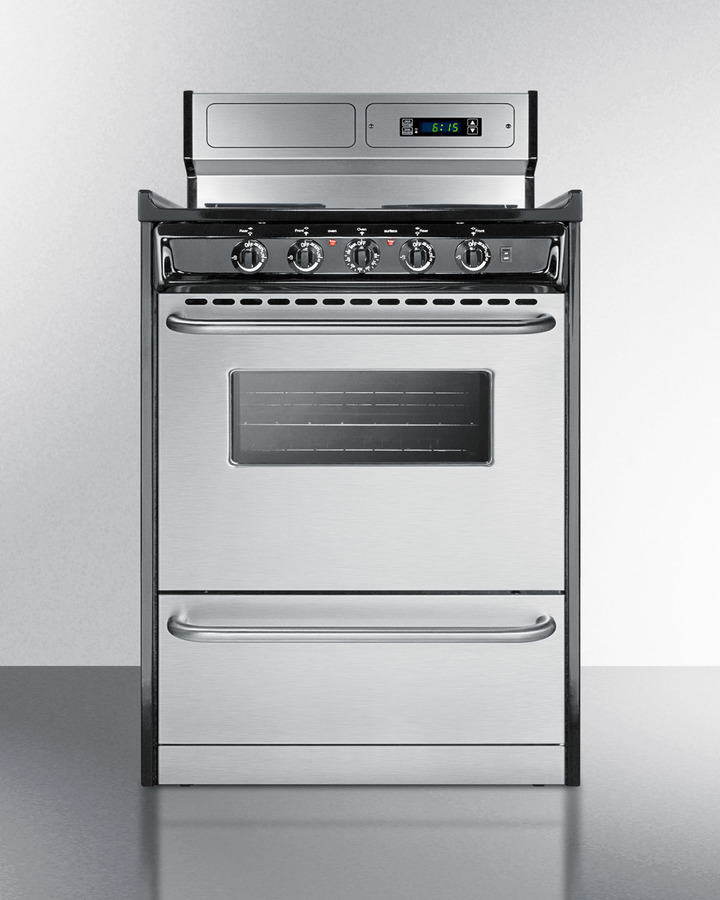

24" Wide Electric Coil Range - TEM630BKWY
$1,750.00
Key Features
Slim 24 inch width
Made in the USA
Professional towel bar handles
24 inch depth
Stainless steel finish
Four coil elements
Chrome drip pans
Oven window and interior lighting
Description
Available from Mark's Appliance, serving customers throughout Southern IL & St. Louis, MO.
Features
Slim 24 inch width
Apartment-sized width offers all the functionality you need in a smaller footprint
Made in the USA
Designed and constructed domestically
Professional towel bar handles
Curved handles in brushed stainless steel offer an easier grip in attractive style
24 inch depth
Shallower fit is ideal for L-shaped and galley kitchens
Stainless steel finish
Doors and backguard are constructed from brushed stainless steel for modern luxury built to last
Four coil elements
Three standard 6" and one large 8" element
Chrome drip pans
Each coil element includes a removable chrome pan for easier cleaning
Oven window and interior lighting
Door includes a window and exterior on/off rocker light switch, making it easier to monitor your cooking without opening the door
Storage compartment
Bottom drop-down compartment is ideal for storing cookware, helping to free up space in your small kitchen

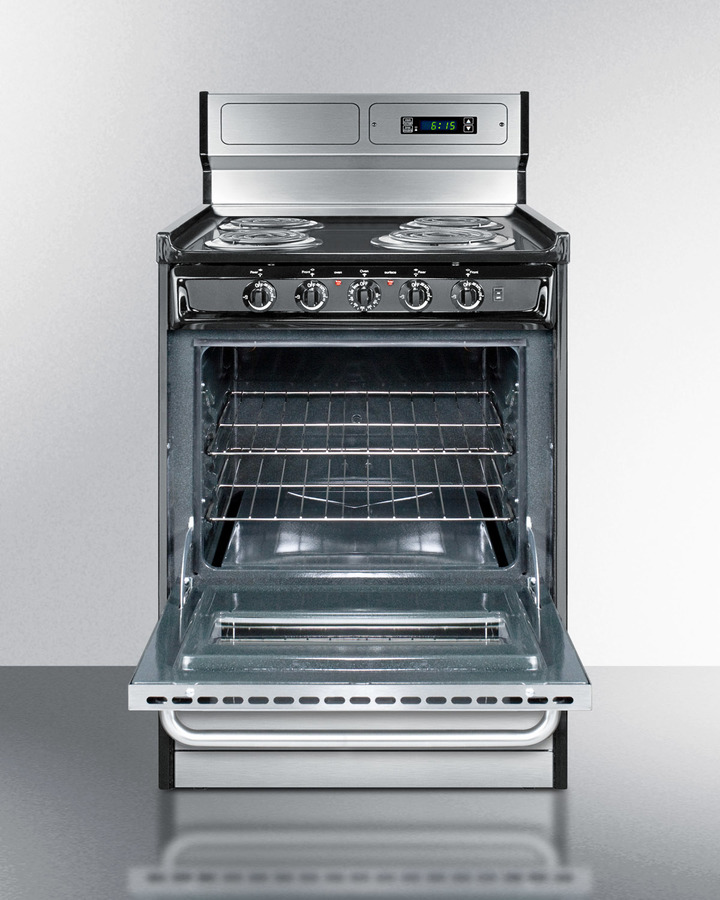

Adjustable oven racks
Two wire racks with safety brakes included, with several glide positions to accommodate a variety of sizes
Porcelain and steel construction
Solid construction built to hold up to everyday use
Recessed oven door
Smart design limits the depth and protects adjacent cabinets
Upfront oven/burner controls
All knobs are located in the front of the range, letting you adjust your heating without reaching over hot burners
Deluxe backguard
8" high backguard helps to protect your walls from spills and splashes
Push-to-turn knobs
Burner knobs require a small amount of force to turn on for added protection against accidents; oven knob is not push-to-turn
Indicator lights
Control panel includes an 'on' light for the oven and burners for added safety when using the range
Broiler pan included
Two-piece porcelain broiler tray with grease well
Anti-tip bracket
Included for user installation to help prevent tipping
Cord not included
Compatible with standard 40 amp 3 or 4-wire range cords
ADA compliant design
Upfront controls and easy-to-operate knobs offer easier accessibility that complies with the Americans for Disabilities Act (ADA) guidelines
Meets UL-858
Designed to comply with the latest UL safety standards, the elements include a sensor that will cycle the element off and on if it reaches flashpoint temperature
Waist-high broiler
Broiler is located inside the oven, eliminating the need to transfer contents to a separate compartment towards the floor
Digital clock and timer
Backguard includes clock and timer for added convenience
Removable oven door and range top
Allows for easier cleaning as needed
Specifications
Warranty
| Parts | 1 Year |
| Labor | 1 Year |
Dimensions & Weight
| Width | 24 in. |
| Height | 44 in. |
| Length | 24 in. |
| Weight | 135 lbs. |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 14.67 ft³ |
| Dimensional Weight | 182.33 lbs. |
| Total of Cubes | 14.67 ft³ |
| Total of Dimensional Weight | 182.33 lbs. |
Overview Electric Range
| Nominal Height | 44.0" (112 cm) |
| Height of Cabinet | 44.0" (112 cm) |
| Nominal Width | 24.0" (61 cm) |
| Width | 24.0" (61 cm) |
| Nominal Depth | 24.0" (61 cm) |
| Depth | 24.0" (61 cm) |
| Door | Stainless Steel |
| Cabinet | Black |
| Voltage/Frequency | 220 V AC/60 Hz |
| Weight | 135.0 lbs. (61 kg) |
| Parts & Labor Warranty | 1 Year |
| UPC | 761101005027 |
| Oven Capacity | 2.92 cu.ft. (83 L) |
| Cooktop Surface | Porcelain |
| Element Type | Coils |
| Number of Elements | 4 |
| Element #1 Size | 6.0" (15 cm) |
| Element #1 Wattage | 1500.0 |
| Element #2 Size | 6.0" (15 cm) |
| Element #2 Wattage | 1500.0 |
| Element #3 Size | 6.0" (15 cm) |
| Element #3 Wattage | 1500.0 |
| Element #4 Size | 8.0" (20 cm) |
| Element #4 Wattage | 2400.0 |
| Burner Controls | Dial |
| Oven Controls | Dial |
| Oven Light | Yes |
| Cooking Timer | Yes |
| Backguard | Yes |
| Backguard Display | Yes |
| Oven Rack Qty | 2 |
| Oven Window | Yes |
| Oven Interior Height | 14.0" (36 cm) |
| Oven Interior Width | 19.0" (48 cm) |
| Oven Interior Depth | 19.0" (48 cm) |
| Storage Compartment | Yes |
| Broiler Location | Inside Oven |
