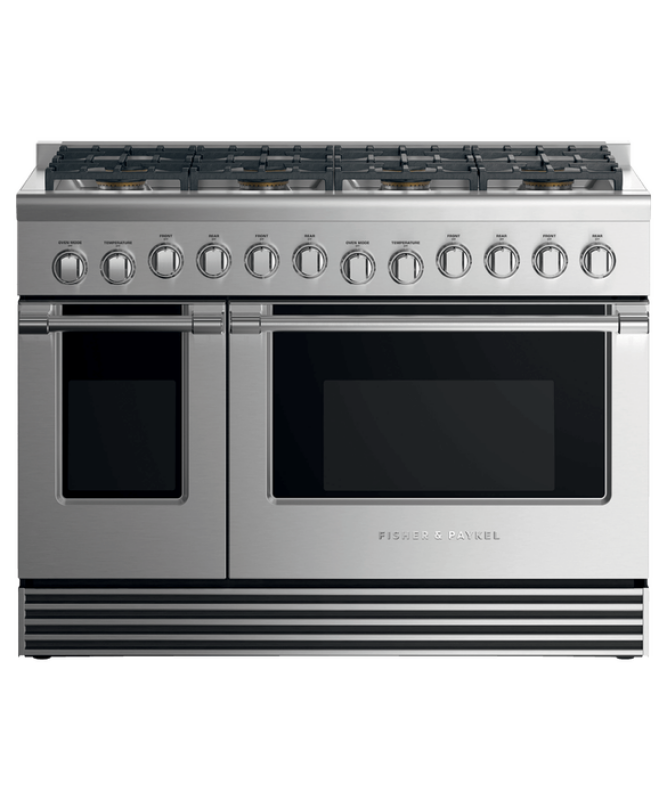

Gas Range, 48", 8 Burners - RGV2488NN
Color : Stainless Steel
Key Features
Cooktop power
Total control
Easy to clean
Instant visibility
Cooking flexibility
Consistent broiling
Available from Mark's Appliance, serving customers throughout Southern IL & St. Louis, MO.
Features
Cooktop power
Total control
Easy to clean
Instant visibility
Cooking flexibility
Consistent broiling
Specifications
Gas requirements
| Supply Pressure (natural gas) | 6" to 9" W.C |
| Fitting and pipe | ½ NPT, min. â…" Ø flex line |
Main oven features
| Capacity total (AHAM) | 5.3 cu ft |
| Capacity usable (AHAM) | 3.9 cu ft |
| Full extension telescopic racks | 3 |
| Shelf positions | 5 |
Oven performance
| Main oven - Bake power | 28,000 BTU |
| Main oven - Broil power | 19000 BTU |
| Secondary oven - Bake power | 18,000 BTU |
| Bake | Yes |
| Bake | 28000 BTU |
Power requirements
| Supply frequency | 60Hz |
| Supply voltage | 120V |
| Amperage | 15A |
| Rated current | 15A |
Main oven functions
| Number of main oven functions | 3 |

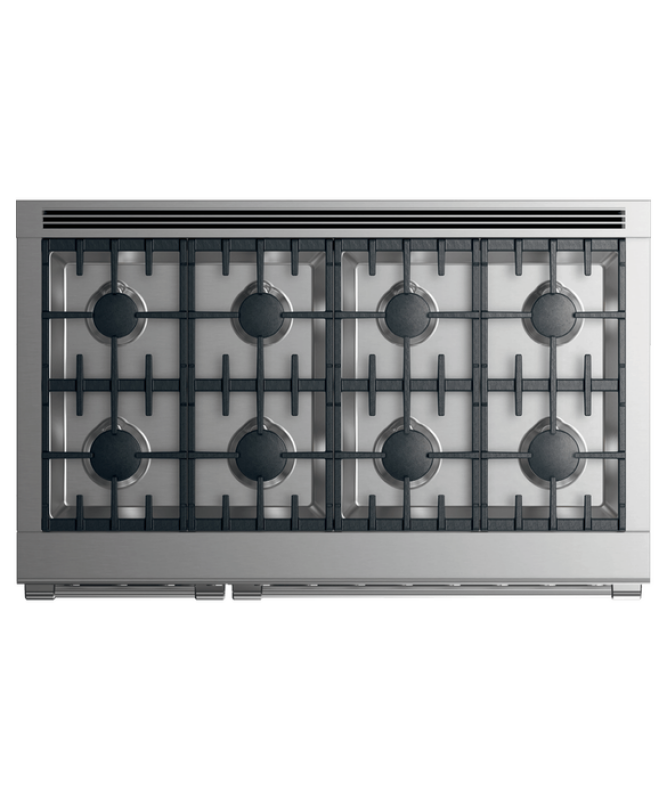

Rangetop features
| Sealed Dual Flow Burners™ | 8 |
| Simmer on all burners | 140°F |
| Vent trim included | Flat vent trim |
| Vent trim included | Yes |
| Sealed range top | Yes |
Rangetop Performance
| Max burner power | 23,500 BTU |
| Power back centre | 18,500 BTU (2) |
| Power front right | 23,500 BTU |
| Total cooktop power | 158,000 BTU |
| Power back right | 18,500 BTU |
| Power back left | 18,500 BTU |
| Power front centre | 18,500 BTU (2) |
| Power front left | 23,500 BTU |
| Power back centre (2) | 18500 BTU |
| Power front centre (2) | 18500 BTU |
Recommended back guards and ventilation
| Combustible situation | BGRV2-3048H |
| Non combustible situation | BGRV2-3048 / BGRV2-1248 |
| Minimum CFM | 1,200 |
| Recommended hood | HCB48-12_N (48" Professional Range Hood, Dual Blower) |
Secondary oven features
| Capacity total (AHAM) | 2.4 cu ft |
| 3/4 Extension racks | 2 |
| Capacity usable (AHAM) | 1.7 cu ft |
| Shelf positions | 5 |
| Electronic oven control | Yes |
| Internal light | Yes |
Warranty
| Parts and labor | Limited 2 years |
| Parts | 2 Year |
| Labor | 2 Year |
Secondary oven functions
| Number of secondary oven functions | 2 |
| Bake | Yes |
| Proof | Yes |
Capacity
| Capacity usable (AHAM) | 3.9cu ft |
| Shelf positions | 5 |
| Capacity total (AHAM) | 5.3cu ft |
Cleaning
| Dishwasher proof trivets | Yes |
Controls
| Electric circuit | 3 wire |
| Metal illuminated dials | Yes |
Oven features
| Full extension telescopic sliding shelves | Yes |
Gas Requirements
| Fitting and pipe | ½ NPT, min. â…" ∅ flex line |
Recommended Back Guards Ventilation
| Combustible situation | BGRV2-3048H |
| Minimum CFM | 1200 |
| Non combustible situation | BGRV2-3048 / BGRV2-1248 |
| Recommended hood | HCB48-12_N (48"" Professional Range Hood, Dual Blower) |
Installation Dimensions
| Height (excluding vent trim) | 35 3/4 - 36 3/4" |
Safety
| Full extension telescopic sliding shelves | Yes |
Other
| Fitting and pipe | ½ NPT, min. â…" Ø flex line |
| Supply Pressure (natural gas) | 6" to 9" W.C |
| Capacity total (AHAM) | 5.3 cu ft |
| Capacity usable (AHAM) | 3.9 cu ft |
| Full extension telescopic racks | 3 |
| Shelf positions | 5 |
| Main oven - Bake power | 28,000 BTU |
| Main oven - Broil power | 19000 BTU |
| Secondary oven - Bake power | 18,000 BTU |
| Amperage | 15A |
| Supply frequency | 60Hz |
| Supply voltage | 120V |
| Sealed Dual Flow Burners™ | 8 |
| Simmer on all burners | 140°F |
| Vent trim included | Flat vent trim |
| Max burner power | 23,500 BTU |
| Power back centre | 18,500 BTU (2) |
| Power back left | 18,500 BTU |
| Total cooktop power | 158,000 BTU |
| Combustible situation | BGRV2-3048H |
| Minimum CFM | 1,200 |
| Non combustible situation | BGRV2-3048 / BGRV2-1248 |
| Recommended hood | HCB48-12_N (48" Professional Range Hood, Dual Blower) |
| 3/4 Extension racks | 2 |
| Capacity total (AHAM) | 2.4 cu ft |
| Capacity usable (AHAM) | 1.7 cu ft |
| Parts and labor | Limited 2 years |
Dimensions & Weight
| Width | 47.88 in. |
| Height | 44 in. |
| Length | 29.13 in. |
| Weight | - |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 52.88 in. |
| Shipping Height | 49 in. |
| Shipping Length | 34.13 in. |
| Shipping Weight | - |
| Total of Shipping Weight | - |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 35.5 ft³ |
| Dimensional Weight | 441.38 lbs. |
| Total of Cubes | 35.5 ft³ |
| Total of Dimensional Weight | 441.38 lbs. |
