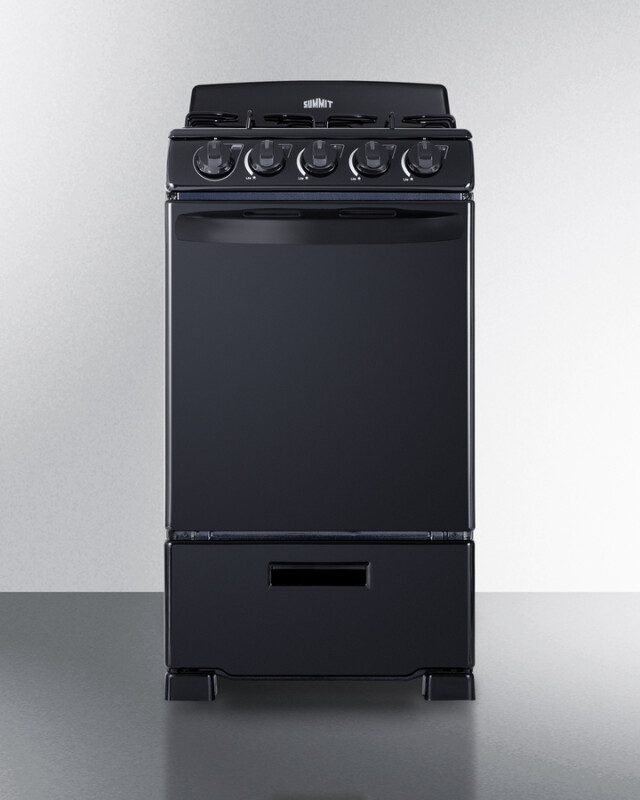

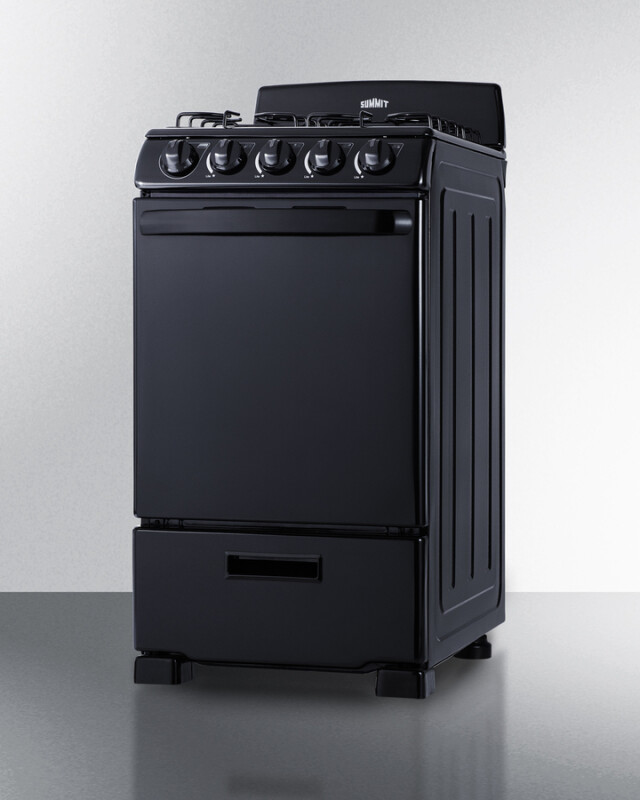

20" Wide Gas Range - RG201B

20" Wide Gas Range

Model: RG201B

20" Wide Gas Range RG201B20" Wide Gas Range RG201B20" Wide Gas Range RG201B20" Wide Gas Range RG201B20" Wide Gas Range RG201B20" Wide Gas Range RG201B20" Wide Gas Range RG201B20" Wide Gas Range RG201B
20" Wide Gas Range RG201B
20" Wide Gas Range RG201B
20" Wide Gas Range RG201B
20" Wide Gas Range RG201B
20" Wide Gas Range RG201B
+3more

Color : Black

product image
Black

Key Features

  • 20" Wide Gas Range

  • Sealed burners

  • LP kit included

  • Large oven

  • Two semi-rapid burners

  • Continuous grates

  • High output burner

  • Broiler compartment

Read More

Description

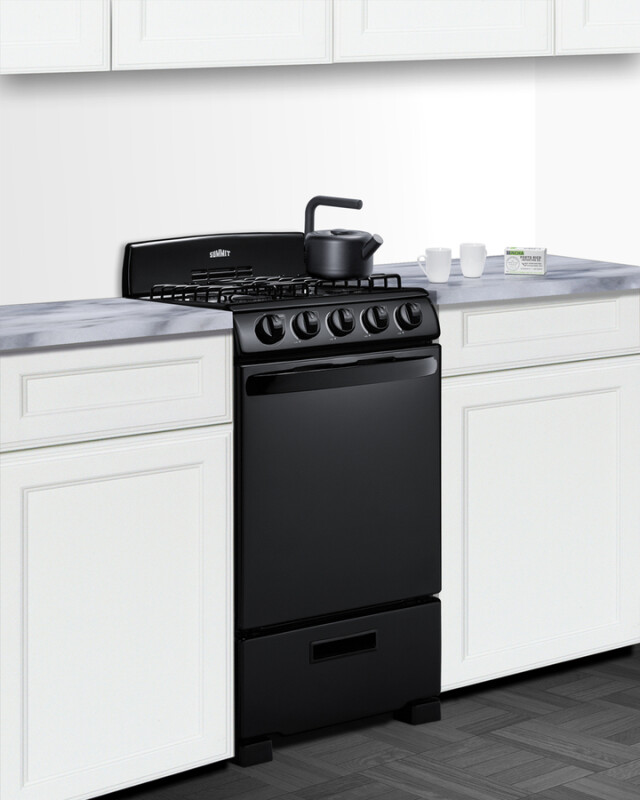

Summit's line of slim-fitting gas ranges made in North America brings quality and value to space-challenged kitchens. The RG201B is a 20" wide gas range designed for an easy fit in smaller kitchen spaces. The 2.3 cu.ft. oven includes two slide-out racks with a safety brake system, with four position options to let you accommodate all sizes and shapes. The broiler is located in a lower drop-down compartment. The RG201B comes in a jet black finish, with color-matched push-to-turn knobs and an easy-to-grab handle. This model utilizes electronic spark ignition and features four sealed burners for safer, cleaner cooking. One 12,000 BTU burner offers faster cooking for larger vessels, with two standard 9,500 BTU burners and a smaller 5,000 BTU burner for lower heating needs. The high backguard helps to protect your walls from spills, with enamel grates for lasting durability. The unit ships set for natural gas but includes its own LP kit for aftermarket conversion. With its clean look and unique size, the RG201B s the ideal gas range for apartment and small home kitchens. For this unit in a white finish, see model RG200WS.
Read More

Available from Mark's Appliance, serving customers throughout Southern IL & St. Louis, MO.

Features
Specifications

Features

20" Wide Gas Range

Featuring four sealed burners and a large oven to meet all cooking needs in smaller kitchens

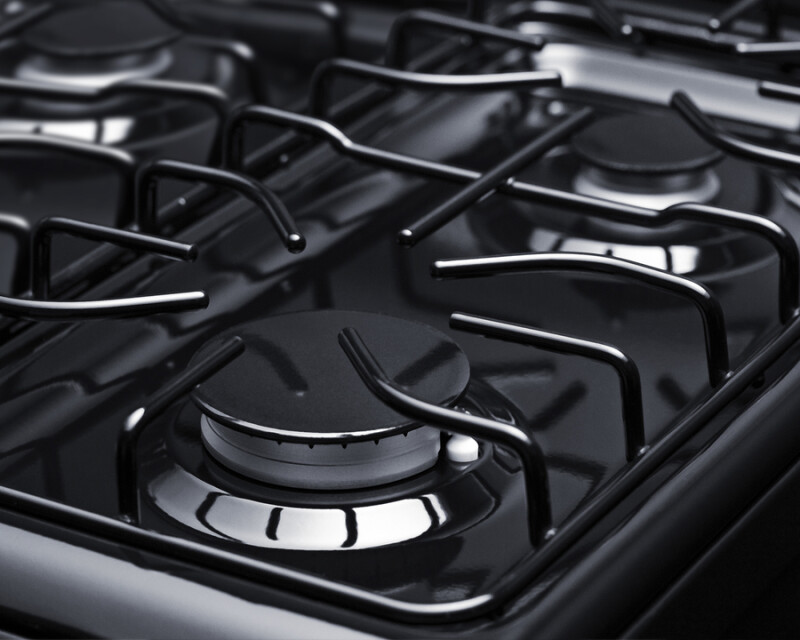

Sealed burners

Four sealed burners with removable cast iron tops ensure safer, cleaner cooking

LP kit included

Unit is set for natural gas but can be converted aftermarket with the included LP kit

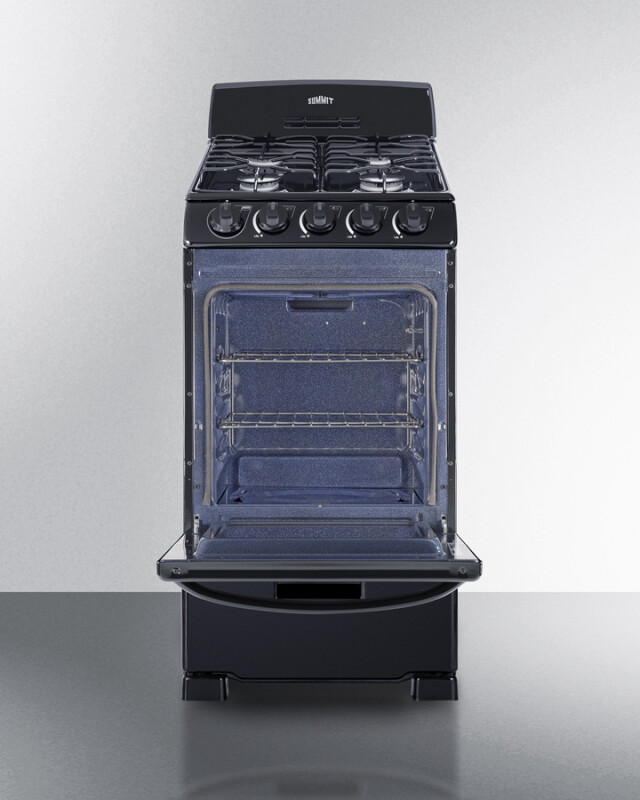

Large oven

Full 2.3 cu.ft. interior in slim 20" width

Two semi-rapid burners

Two right burners operate at 9,500 BTU to handle most heating needs

Continuous grates

Two sets of grates are removable for easy cleaning, with solid construction to support large pots and pans

High output burner

Front left burner features 12,500 BTU output for powerful cooking

Broiler compartment

Drop-down lower compartment offers the ideal conditions for broiling

Low output burner

Rear left burner reaches maximum of 5,000 BTUs to allow more precise heating of sensitive items

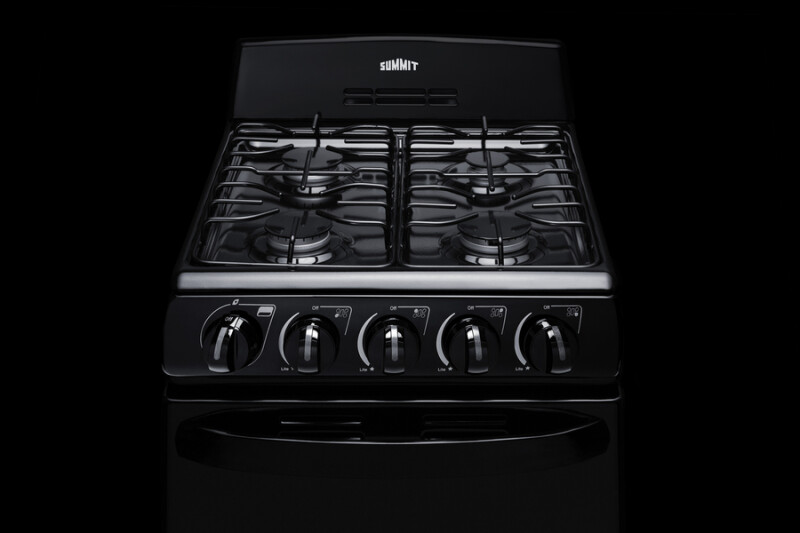

Push-to-turn knobs

Safety knobs help prevent accidents from turning on the oven or burners

Electronic ignition

Added safety with spark ignition system

Broiler pan included

Two-piece broiler pan with lid included with each range

Safety brake system for oven racks

Sliding racks will stay in your oven with special brake mechanism

High backguard

Solid backing prevents stovetop contents from splashing up or boiling over and staining walls

Power cord included

Standard 3-pronged 115V cord included for the electronic ignition

TAA compliant

Ideal for GSA contracts and other applications requiring a unit to have been manufactured in a TAA designated country

ADA compliant design

Upfront controls and easy-to-operate knobs offer easier accessibility

Anti-tip bracket

Included for user installation to help prevent accidents

Specifications

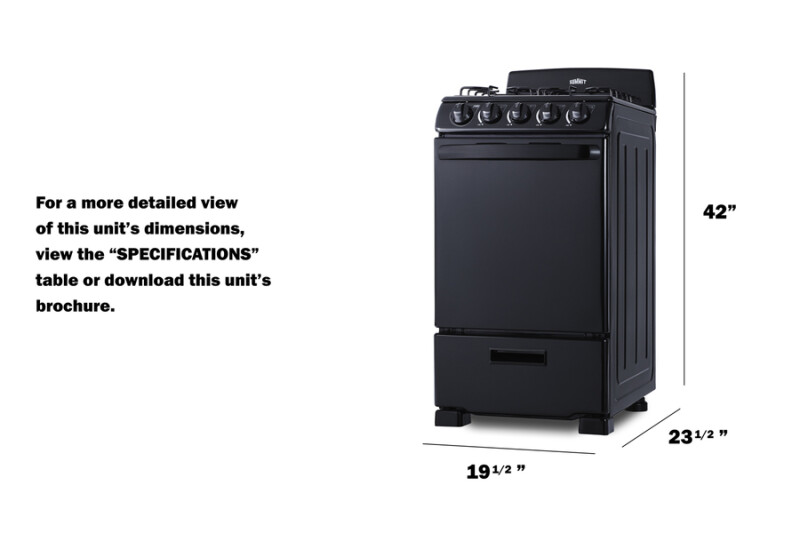

Overview Gas Range

Nominal Height42.0" (107 cm)
Height of Cabinet42.0" (107 cm)
Nominal Width20.0" (51 cm)
Width19.5" (50 cm)
Nominal Depth24.0" (61 cm)
Depth23.5" (60 cm)
Depth with Handle25.75" (65 cm)
Depth with door at 90°43.25" (110 cm)
DoorBlack
CabinetBlack
US Electrical SafetyCSA
Canadian Electrical SafetyCSA-C
Amps5.0
Voltage/Frequency115 V AC/60 Hz
Weight130.0 lbs. (59 kg)
Parts & Labor Warranty1 Year
UPC761101103761
IgnitionSpark
LP ConvertibleYes
Oven Capacity2.3 cu.ft
Cooktop SurfaceMetal
Burner TypeSealed
Number of Burners4
Burner #1 BTU12000.0
Burner #2 BTU9500.0
Burner #3 BTU9500.0
Burner #4 BTU5000.0
Burner ControlsDial
Oven ControlsDial
BackguardYes
Cleaning TypeManual
Oven Rack Qty2
Oven Interior Height15.25" (39 cm)
Oven Interior Width14.5" (37 cm)
Oven Interior Depth17.5" (44 cm)
Broiler LocationBelow Oven
