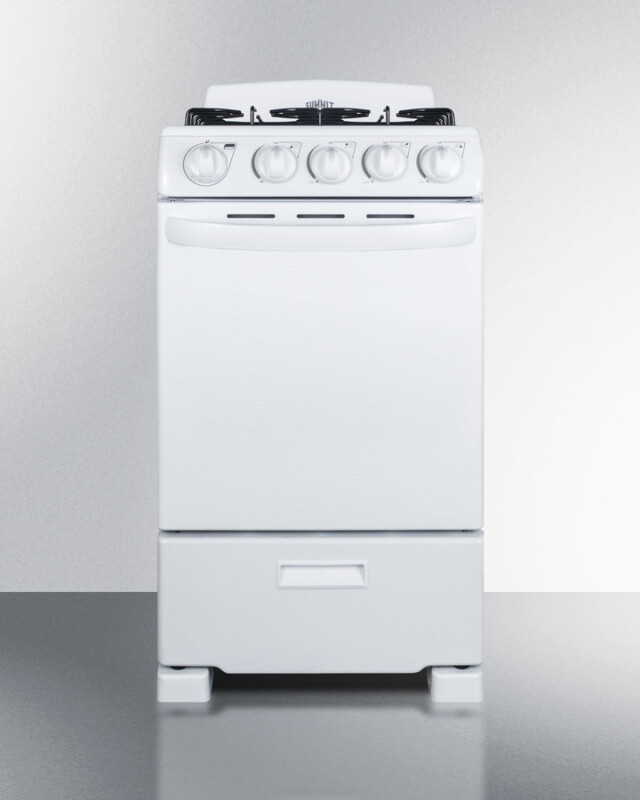

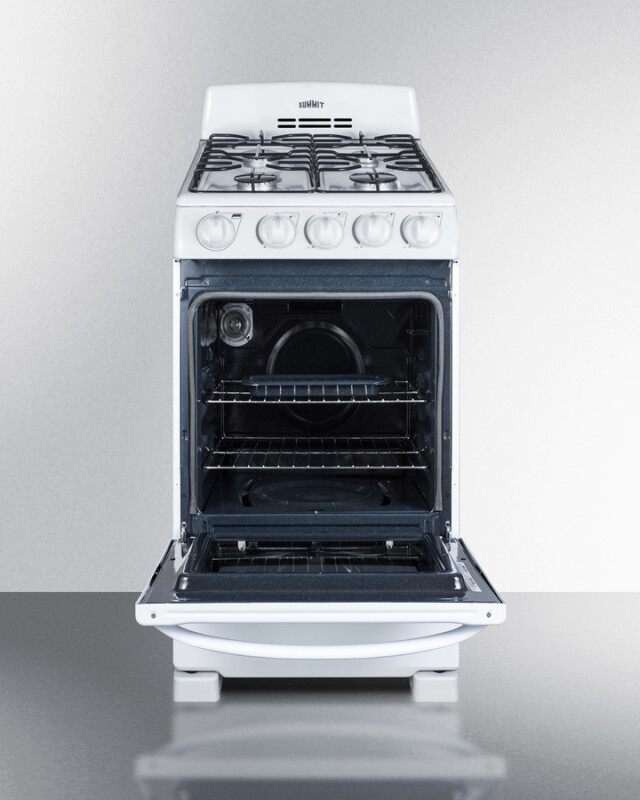

20" Wide Gas Range - RG200WS

This product has been discontinued by the manufacture and is no longer available.

20" Wide Gas Range

Model: RG200WS

20" Wide Gas Range RG200WS20" Wide Gas Range RG200WS20" Wide Gas Range RG200WS
20" Wide Gas Range RG200WS
20" Wide Gas Range RG200WS
20" Wide Gas Range RG200WS

Color : White

product image
White

Type : Gas

Key Features

  • Large oven

  • Sealed burners

  • LP kit included

  • Low output burner

  • Continuous grates

  • Broiler compartment

  • High output burner

  • Two semi-rapid burners

Read More

Description

SUMMIT's line of slim-fitting gas ranges made in North America brings quality and value to space-challenged kitchens. The RG200WS is sized at just 20" wide for an easy fit in smaller kitchen spaces. Two slide-out racks include a safety brake system, with four position options to let you accommodate all sizes and shapes. The broiler is located in a lower drop-down compartment. We include a two-piece broiler pan with lid. The RG200WS comes in a classic white finish, with color-matched push-to-turn knobs and an easy-to-grab handle. This model utilizes electronic spark ignition and features four sealed burners for safer, cleaner cooking. One 12,000 BTU burner offers faster cooking for larger vessels, with two standard 9,500 BTU burners and a smaller 5,000 BTU burner for lower heating needs. The high backguard helps to protect your walls from spills, with enamel grates for lasting durability. The unit ships set for natural gas but includes its own LP kit for aftermarket conversion. With its clean look and unique size, the RG200WS is the ideal gas range for apartment and small home kitchens. NOTE: This unit replaces model RG200W but features an upgraded sealed burner design.
Read More

Available from Mark's Appliance, serving customers throughout Southern IL & St. Louis, MO.

Features
Specifications
Certifications

Features

Large oven

Full 2.3 cu.ft. interior in slim 20" width

Sealed burners

Four sealed burners with removable cast iron tops ensure safer, cleaner cooking

LP kit included

Unit is set for natural gas but can be converted aftermarket with the included LP kit

Low output burner

Rear left burner reaches maximum of 5,000 BTUs to allow more precise heating of sensitive items

Continuous grates

Two sets of grates are removable for easy cleaning, with solid construction to support large pots and pans

Broiler compartment

Drop-down lower compartment offers the ideal conditions for broiling

High output burner

Front left burner features 12,500 BTU output for powerful cooking

Two semi-rapid burners

Two right burners operate at 9,500 BTU to handle most heating needs

Push-to-turn knobs

Safety knobs help prevent accidents from turning on the oven or burners

Electronic ignition

Added safety with spark ignition system

Safety brake system for oven racks

Sliding racks will stay in your oven with special brake mechanism

Broiler pan included

Two-piece broiler pan with lid included with each range

ADA compliant design

Upfront controls and easy-to-operate knobs offer easier accessibility

High backguard

Solid backing prevents stovetop contents from splashing up or boiling over and staining walls

Power cord included

Standard 3-pronged 115V cord included for the electronic ignition

Anti-tip bracket

Included for user installation to help prevent accidents

Certifications

ADA Compliant certification

ADA Compliant

Specifications

Warranty

Parts1 Year
Labor1 Year

Dimensions & Weight

Width19.5 in.
Height42 in.
Length23.5 in.
Weight130 lbs.

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement11.14 ft³
Dimensional Weight138.46 lbs.
Total of Cubes11.14 ft³
Total of Dimensional Weight138.46 lbs.

Overview Gas Range

Nominal Height42.0" (107 cm)
Height of Cabinet42.0" (107 cm)
Nominal Width20.0" (51 cm)
Width19.5" (50 cm)
Nominal Depth24.0" (61 cm)
Depth23.5" (60 cm)
Depth with Handle25.75" (65 cm)
Depth with door at 90°43.25" (110 cm)
DoorWhite
CabinetWhite
US Electrical SafetyCSA
Canadian Electrical SafetyCSA-C
Voltage/Frequency115 V AC/60 Hz
Weight130.0 lbs. (59 kg)
Parts & Labor Warranty1 Year
UPC761101058269
IgnitionSpark
LP ConvertibleYes
Oven Capacity2.3 cu.ft
Cooktop SurfaceMetal
Burner TypeSealed
Number of Burners4
Burner #1 BTU12000.0
Burner #2 BTU9500.0
Burner #3 BTU9500.0
Burner #4 BTU5000.0
Burner ControlsDial
Oven ControlsDial
BackguardYes
Cleaning TypeManual
Oven Rack Qty2
Oven Interior Height15.25" (39 cm)
Oven Interior Width14.5" (37 cm)
Oven Interior Depth17.5" (44 cm)
Broiler LocationBelow Oven
